Graphic LCD Display

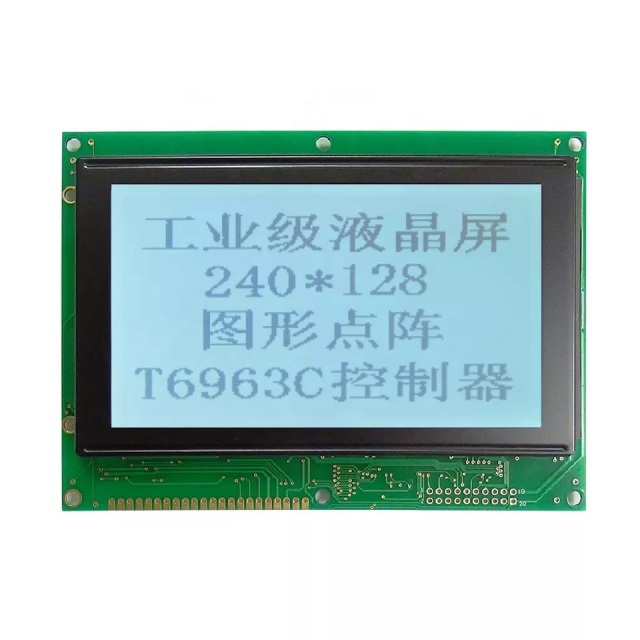

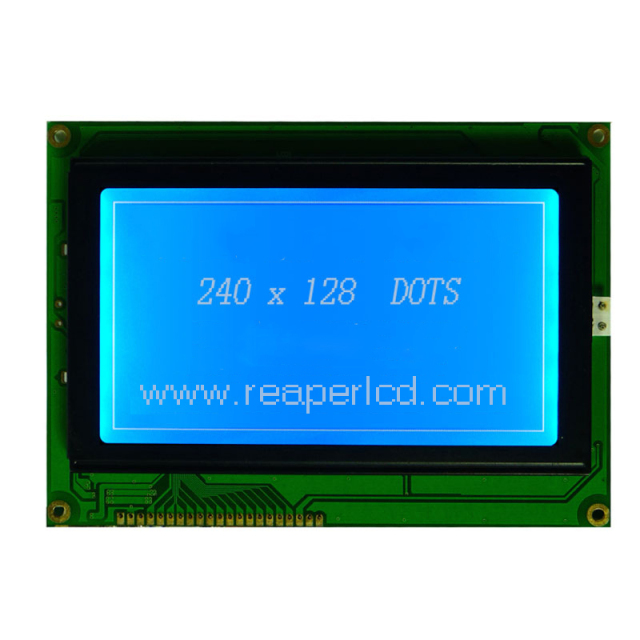

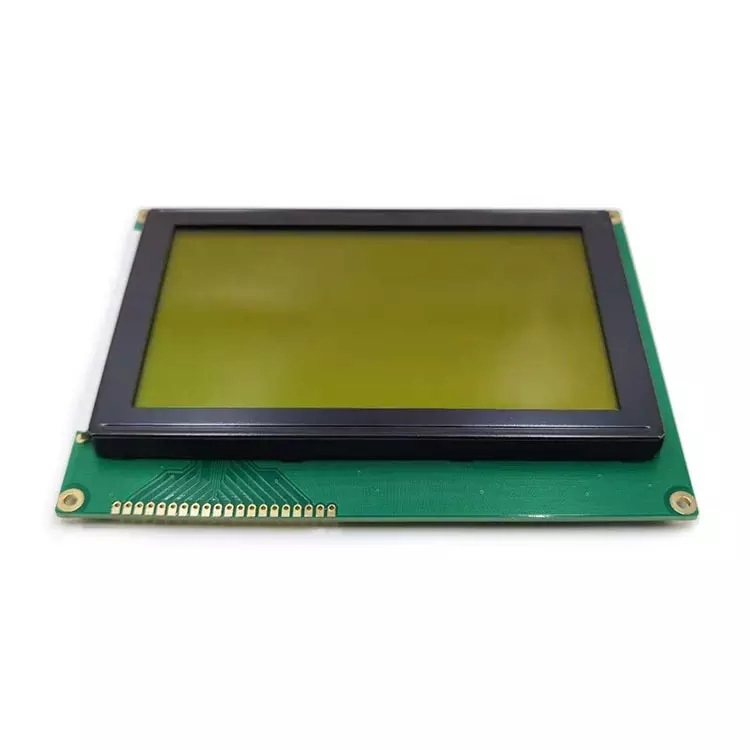

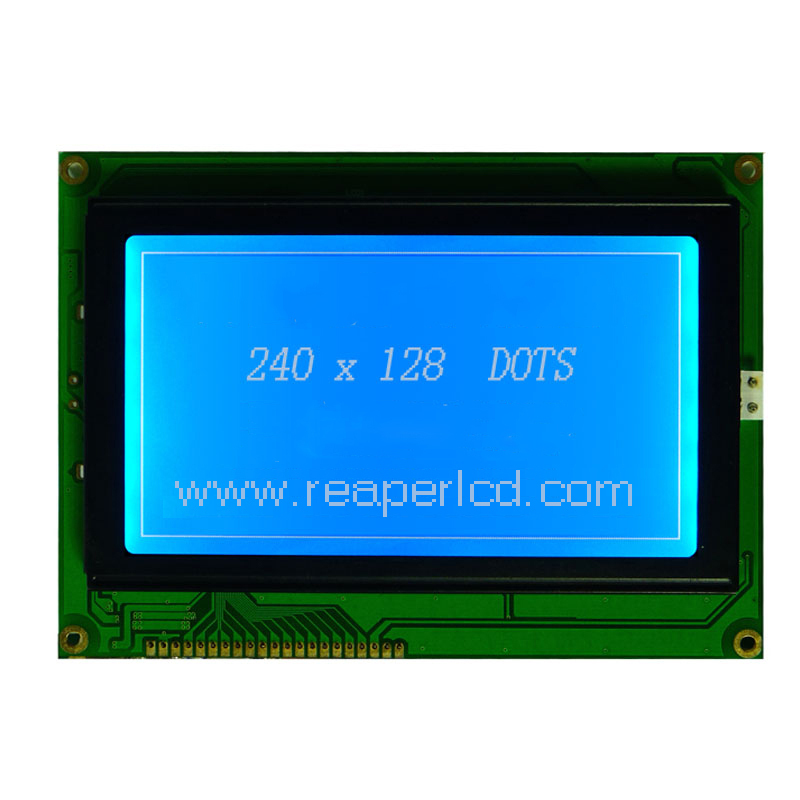

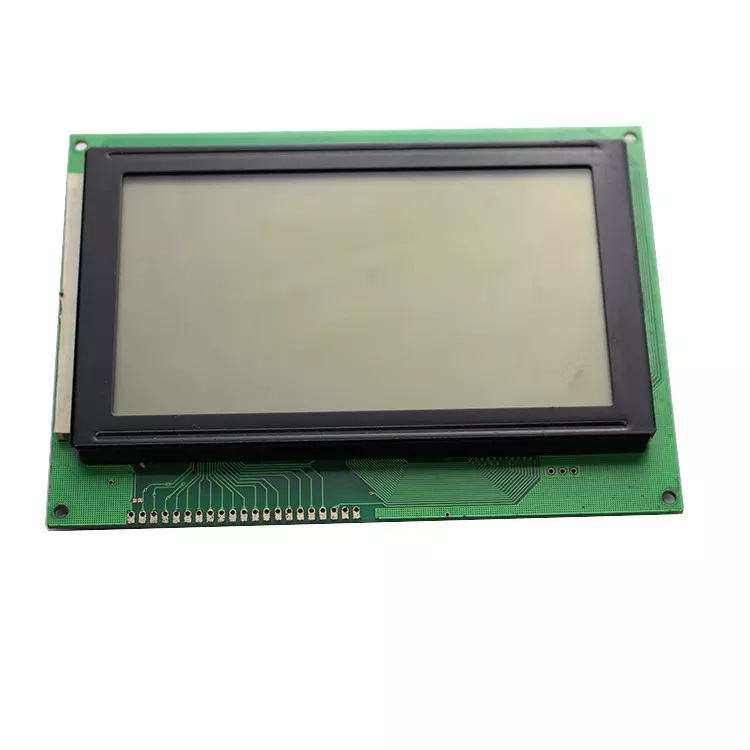

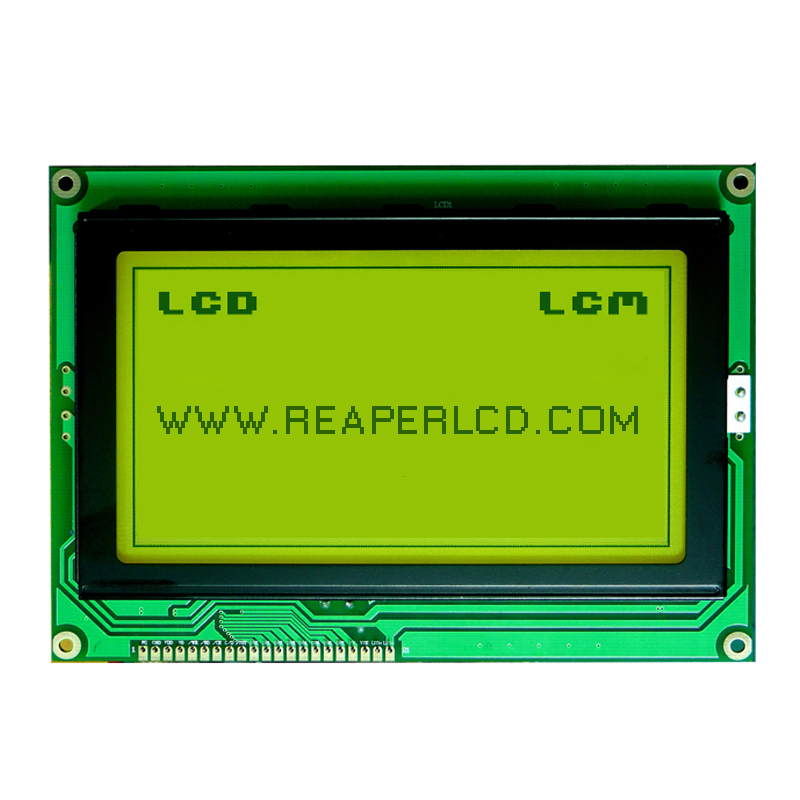

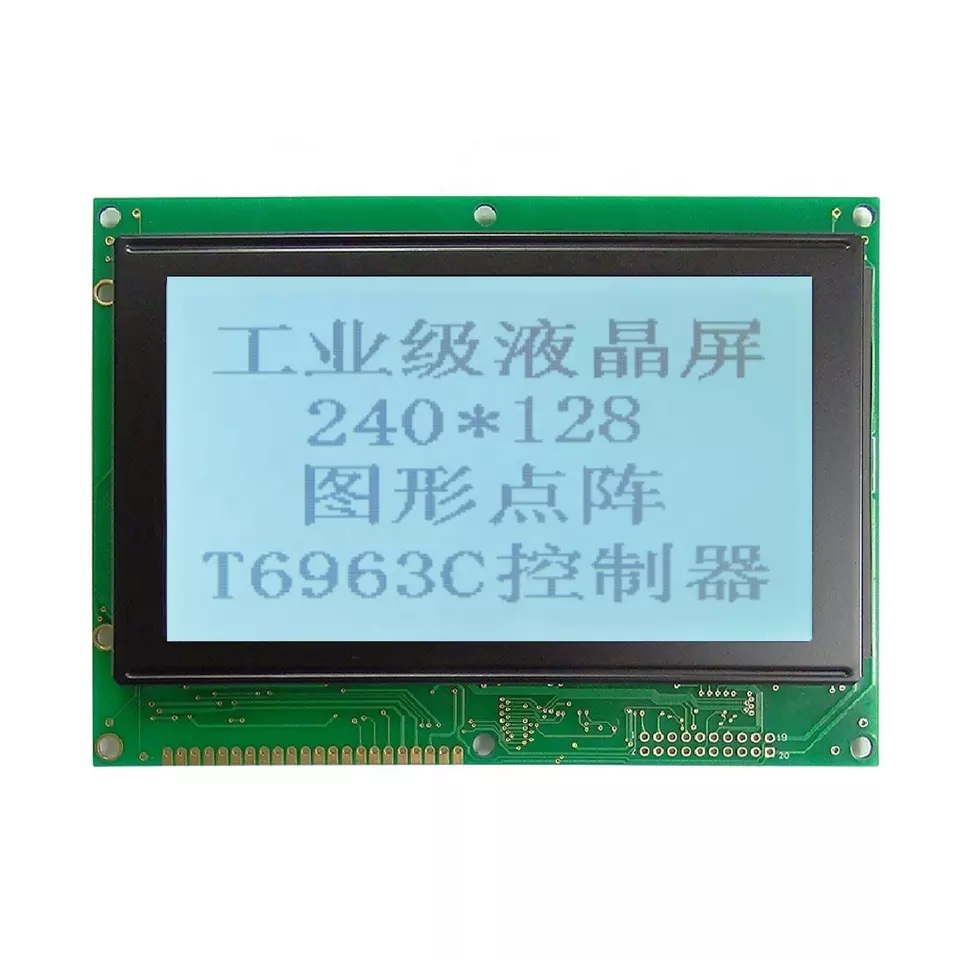

LCD Screen STN COB 240x128 LCD Display 240128 Graphic LCD Module

240x128 Graphic FSTN LCD Module Monochrome Display Mono Graphic 240128 LCD is used in a wide range of applications,electronic equipment, medical equipment, industrial equipment and smart home.
Description
LCD Screen STN COB 240x128 LCD Display 240128 Graphic LCD Module

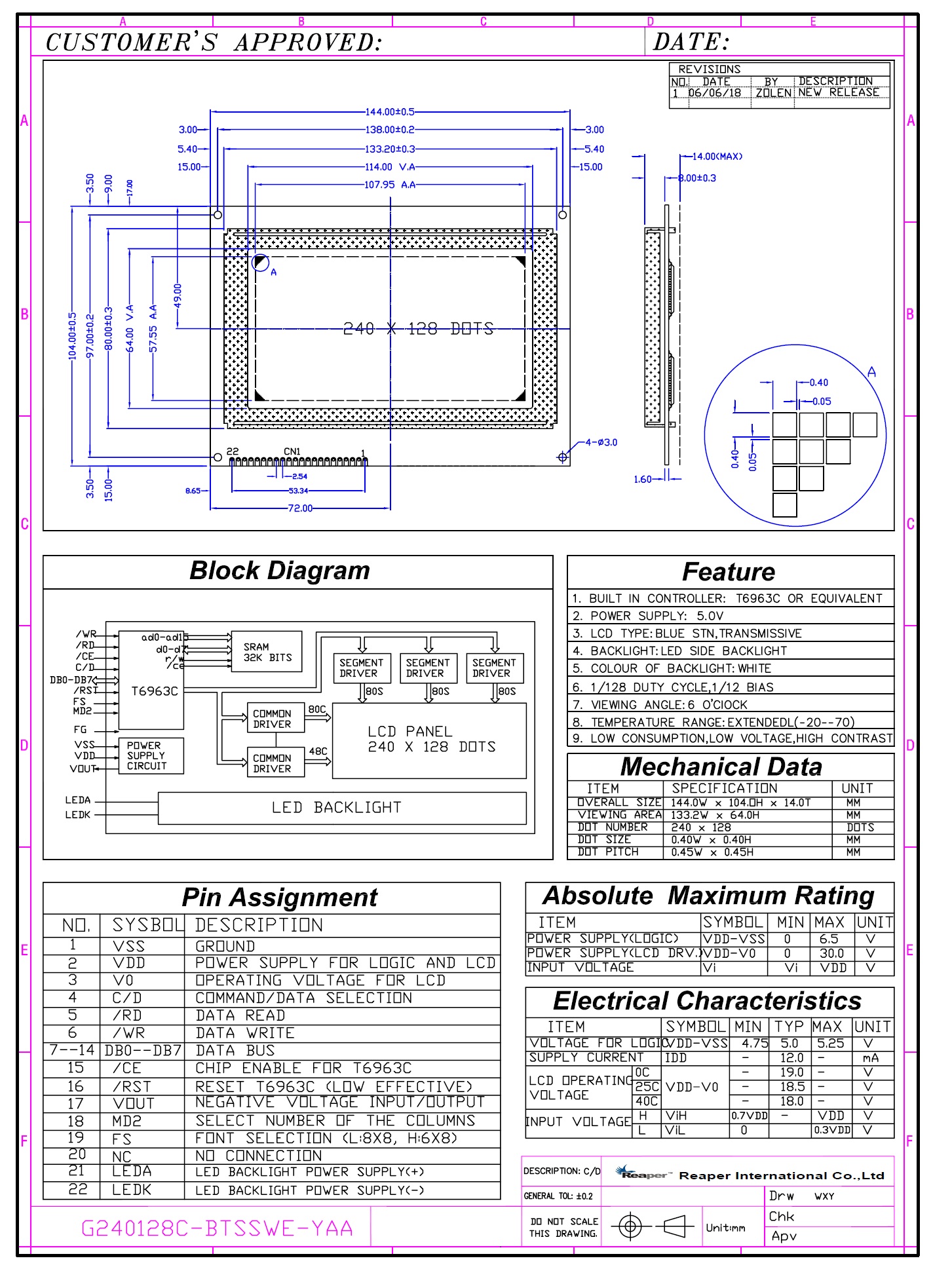

Model: RPG240128C
Dots: 240 x 128

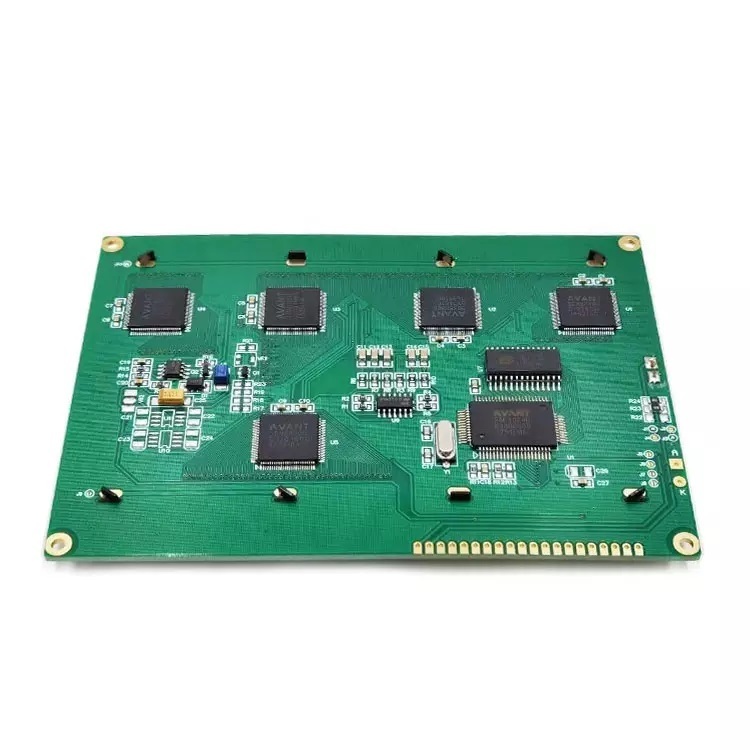

LCM Type COB
Module Size 144 x 104 x 14mm
Viewing Area 133.2 x 64.0 mm
Dot Pitch 0.45 x 0.45 mm
Dot Size(W*Hmm) 0.40 x 0.40 mm
Controller T6963C or Equivalent
LCD Type STN BLUE
Operating Voltage 5V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
