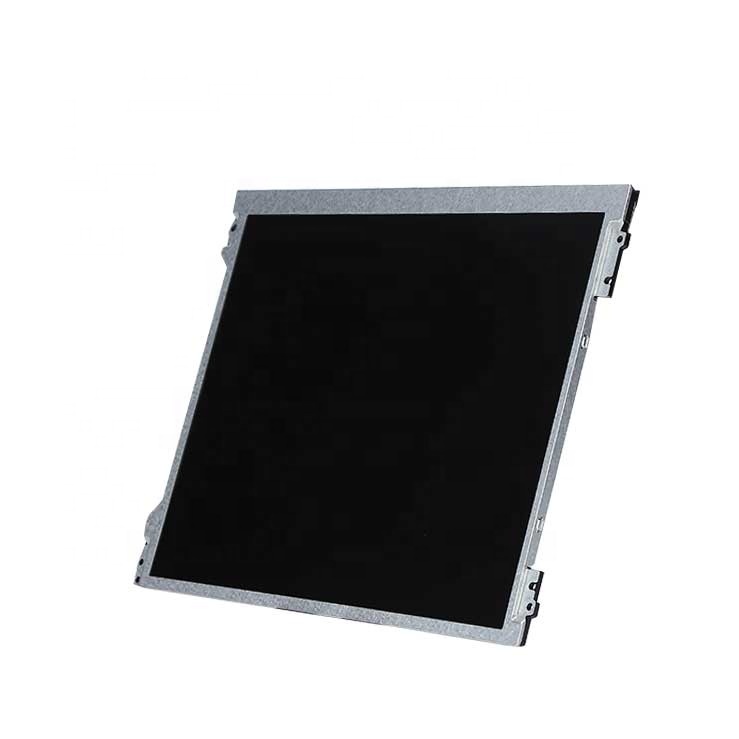

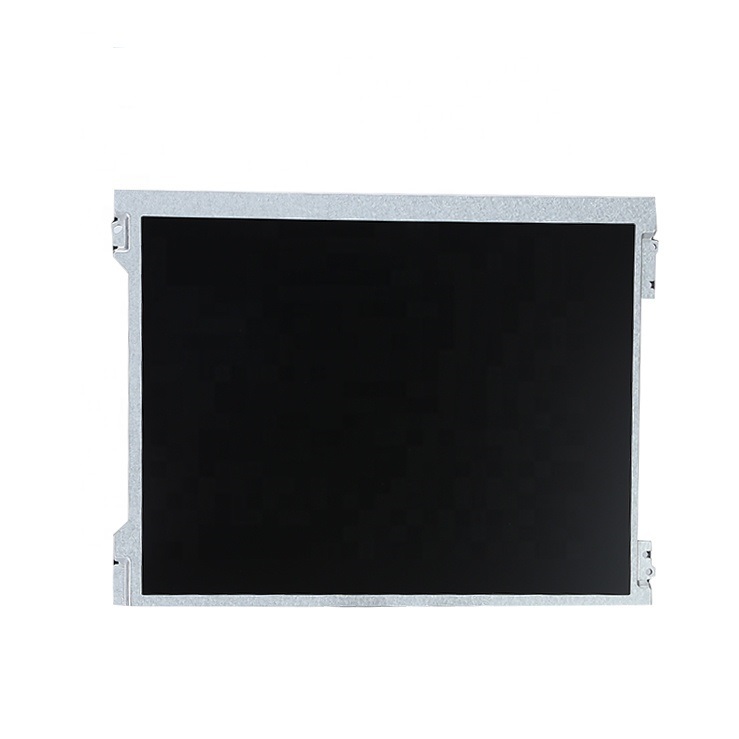

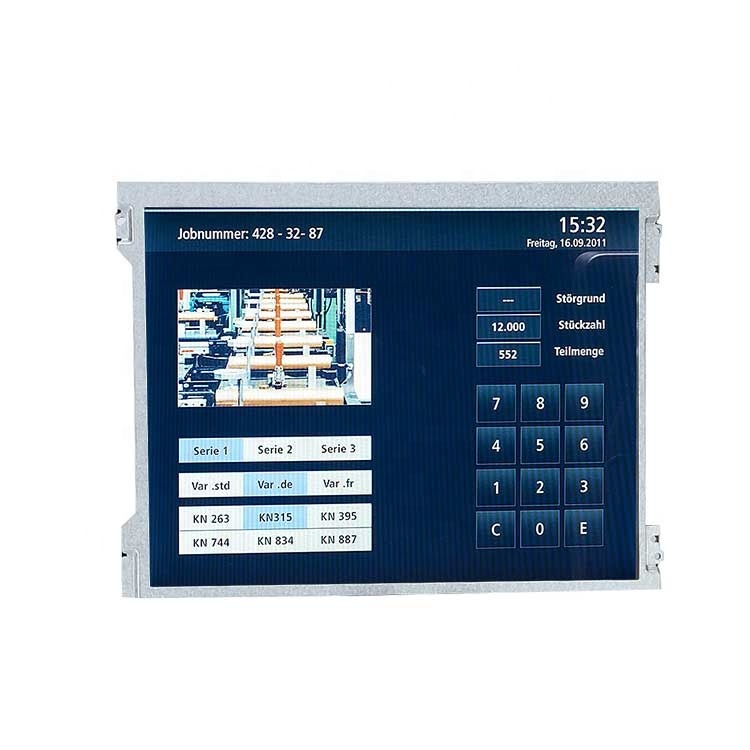

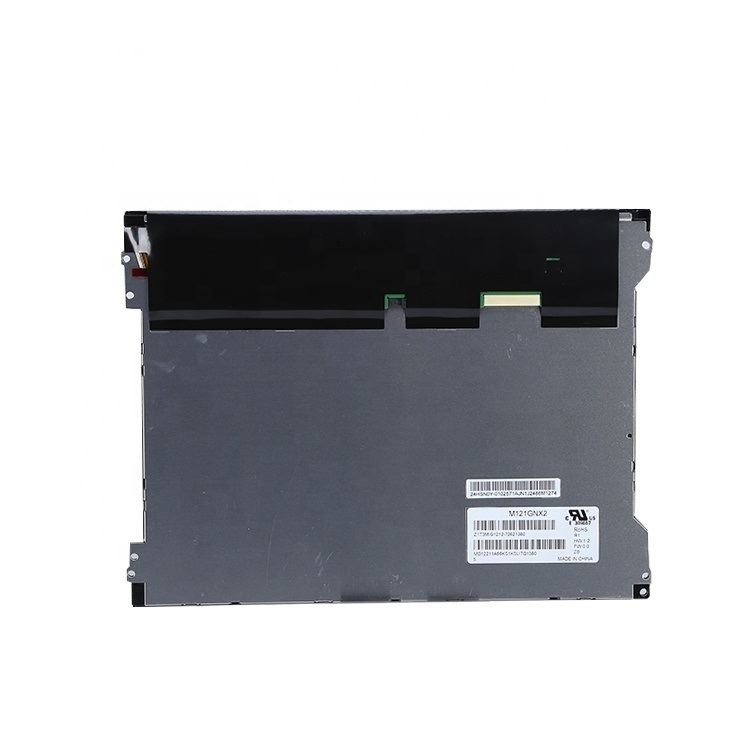

IVO M121GNX2 R1 1024*768 LVDS 12.1" Lcd Display For Multiparameter Monitor

Item No.: M121GNX2 R1
The M104GNX1 R1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of aTFT LCD panel, a driver circuit and a backlight system. This TFT LCD has a 1
Description
IVO M121GNX2 R1 1024*768 LVDS 12.1" Lcd Display For Multiparameter Monitor
1. INTRODUCTION
The M121GNX2 R1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, a backlight system, column driver and row driver circuit. This TFT LCD has a 12.1-inch diagonally measured active display area with XGA resolution ( 1024 horizontal by 768 vertical) pixels arrays.
2.Features

 Supported XGA Resolution
  LVDS Interface
  Compatible with RoHS Standard
3 Product Summary

Product Name

IVO M121GNX2 R1 1024*768 LVDS 12.1" Lcd Display For Multiparameter Monitor

Model

M121GNX2 R1

Size

12.1inch

Resolution

1024*768

Brightness

350nits

Pixel Pitch

0.24×0.24mm

Pixel Arrangement

R.G.B. Vertical Stripe

Display Mode

Normally White

Input Voltage

3.3V

Power Consumption

6.925W

Weight

545g

Electrical Interface (Logic)

LVDS

Contrast Ratio

800:1

 View Angle(L/R/U/D)  80/80/80/80
 Response Time  16ms
 Optical mode  TN
 Operating Temperature  -20°-70°
 Storage Temperature  -30°-80°
 Interface  LVDS/6/8-bit
 Lamp type  LED
 LED Life Time  30,000Hrs
 Active Area  245.76*184.32mm
 Outline Dimension

279.00*209.00*9.00

Support Color

262K/16.7M

Optimum Viewing Direction

6 o’clock

Surface Treatment

Anti-glare & hardness 3H

Authentication

ROSH/UL
