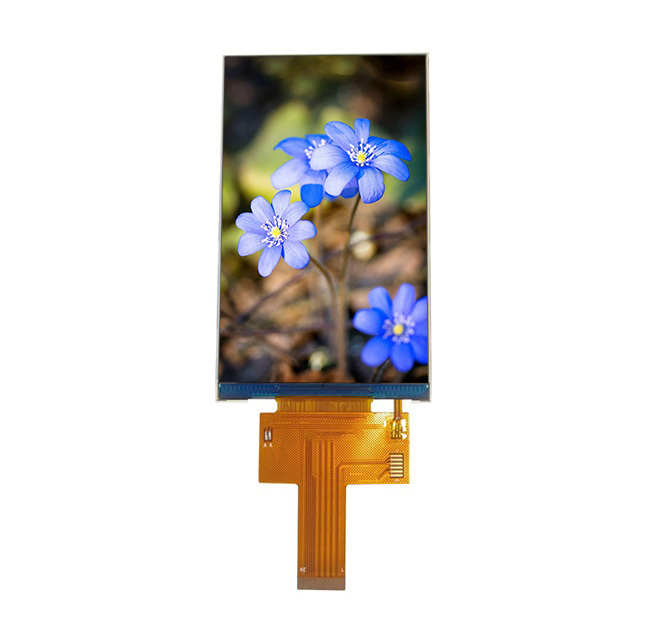

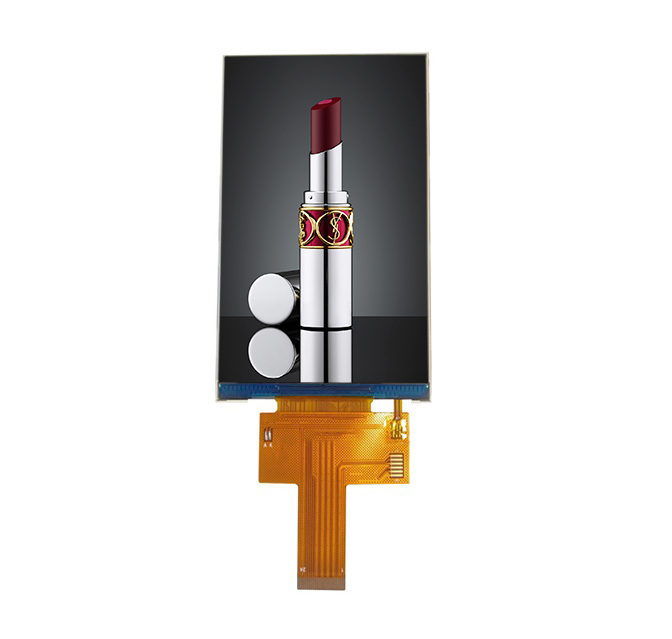

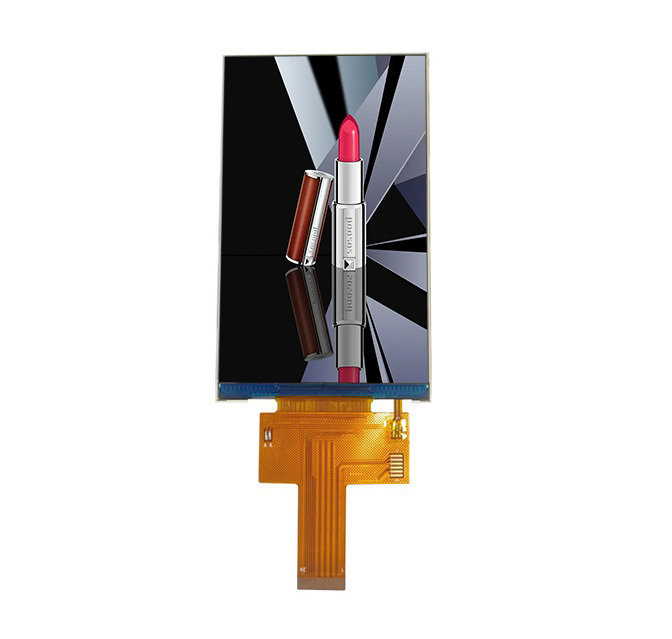

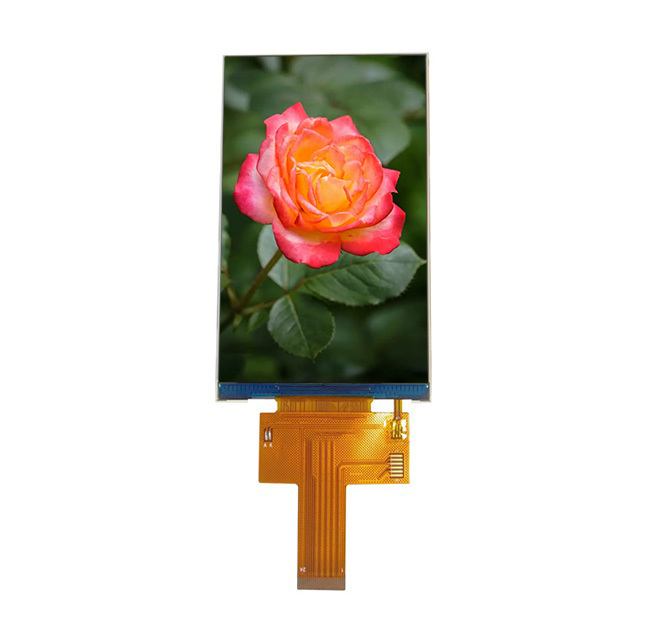

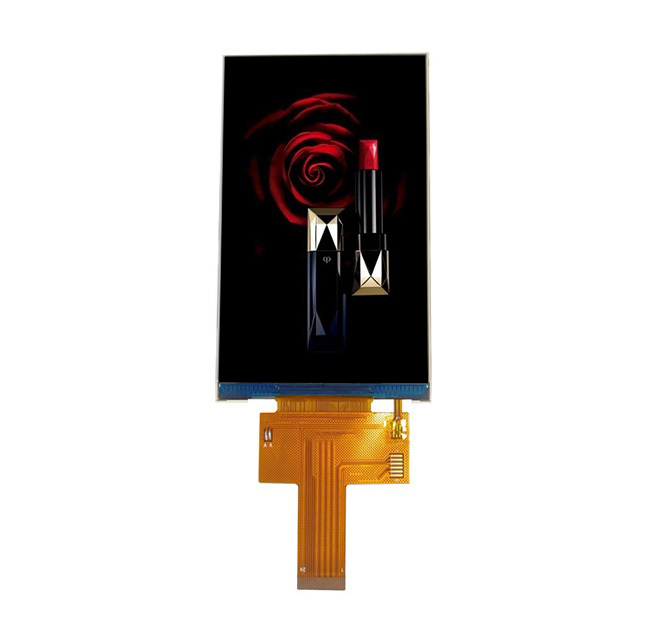

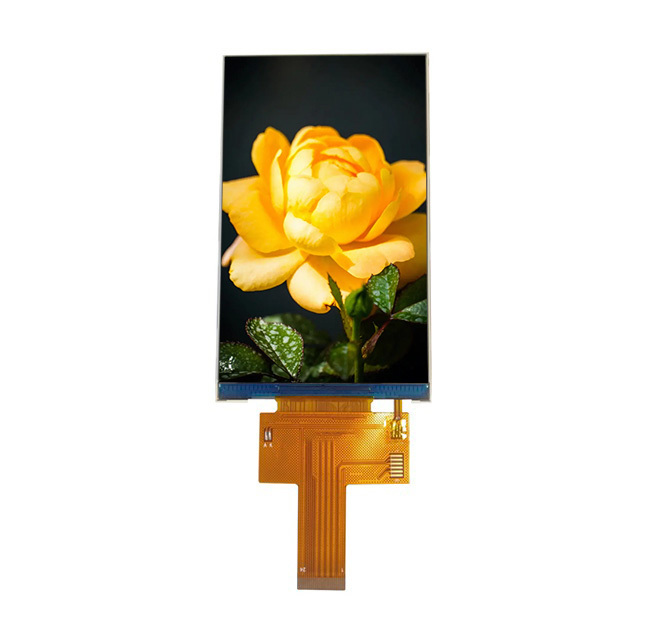

IPS TFT LCD Display Screen Module 3.97 Inch 480X800 Resolution Mipi Interface, Optional Capacitive or Resistive Touch
| Module number |
RP3978-08 |
| Size |
3.97 inch |
| Number of Pixels |
480(RGB)*800 |
| Viewing direction |
ALL |
| Active Area |
51.84(W) *86.40(H) |
| Dimensional Outline |
57.14(W )*95.70 (H)*2.3(T) |
| LCM Driver IC |
ST7701S |
| Contrast Ratio |
1000 |
| Display Colors |
16.7M |
| Interface type |
MIPI_1/2 lane |
| Display Mode |
Transmissive/IPS |
| Number of pin |
24 |
| Connecting type |
Plugging type |
| Luminance |
600cd/m² |
| Backlight leds |
8 pcs |
| Backlight type |
white LED backlight |
| operating temperature |
-20----70°C |
| Storage Temperature |
-30----80°C |
|
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
