TFT LCD Display

Innolux AT043TN24 V.7 4.3 inch tft lcd display with 4 wire resistive touch screen ttl interface

Item No.: AT043TN24
Model: AT043TN24
Dot Matrix: 480 x 272
Module size: 105.5(W)x67.2(H)x4.05(T)mm
Active area: 95.04(W)x53.856(H)mm
Description

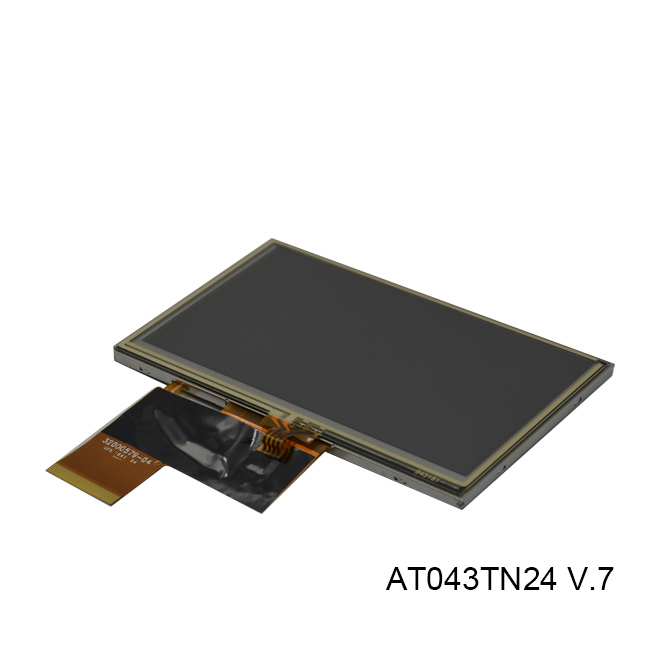

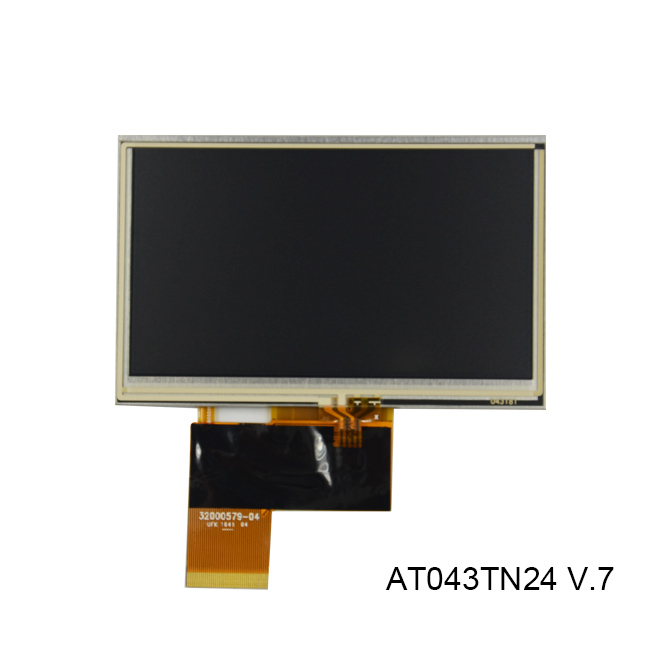

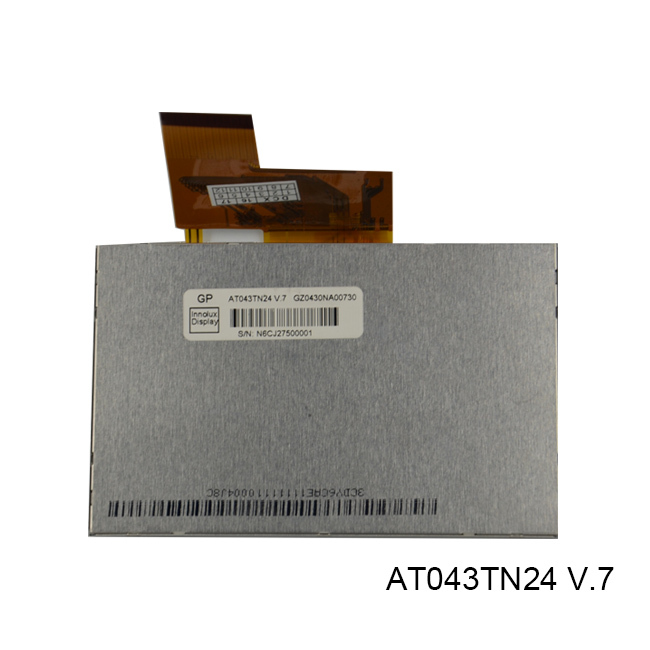

Innolux AT043TN24 V.7 4.3 inch tft lcd display with 4 wire resistive touch screen ttl interface

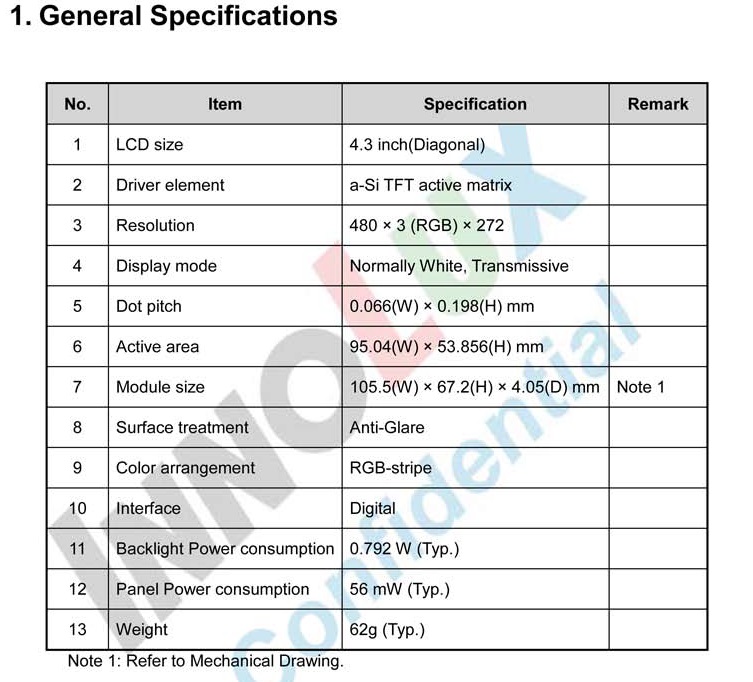

Model: AT043TN24
Panel Size 4.3 inch
LCD Type TFT TRANSMISSIVE
Module Size 105.5(W) x67.2(H) x 4.05(T)mm
Display Area 95.04(W) x53.856(H)mm
Resolution 480×(RGB)×272 Dots
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface Digital
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
