Character LCD Display

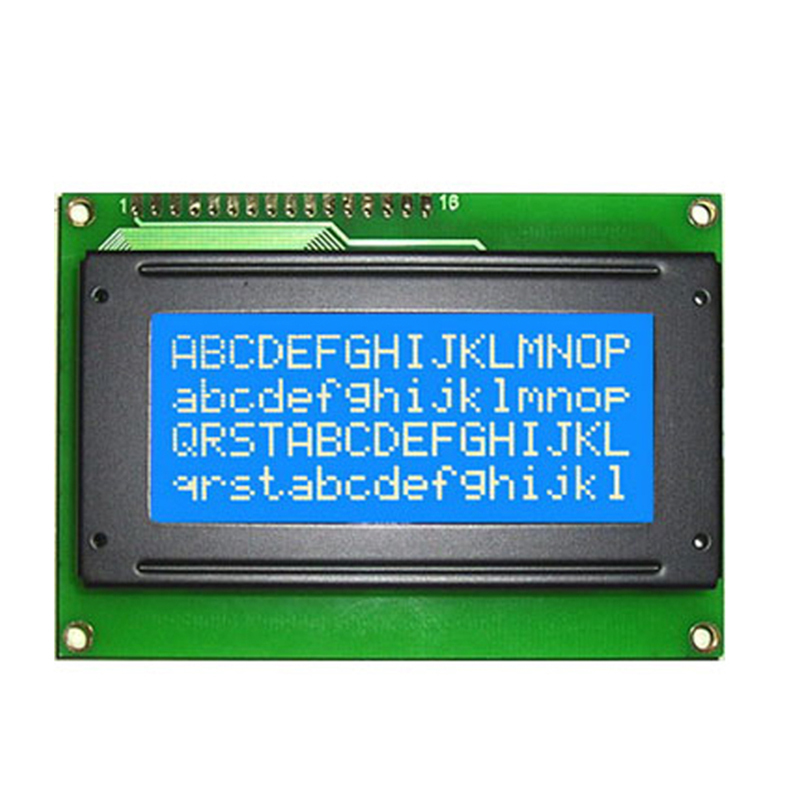

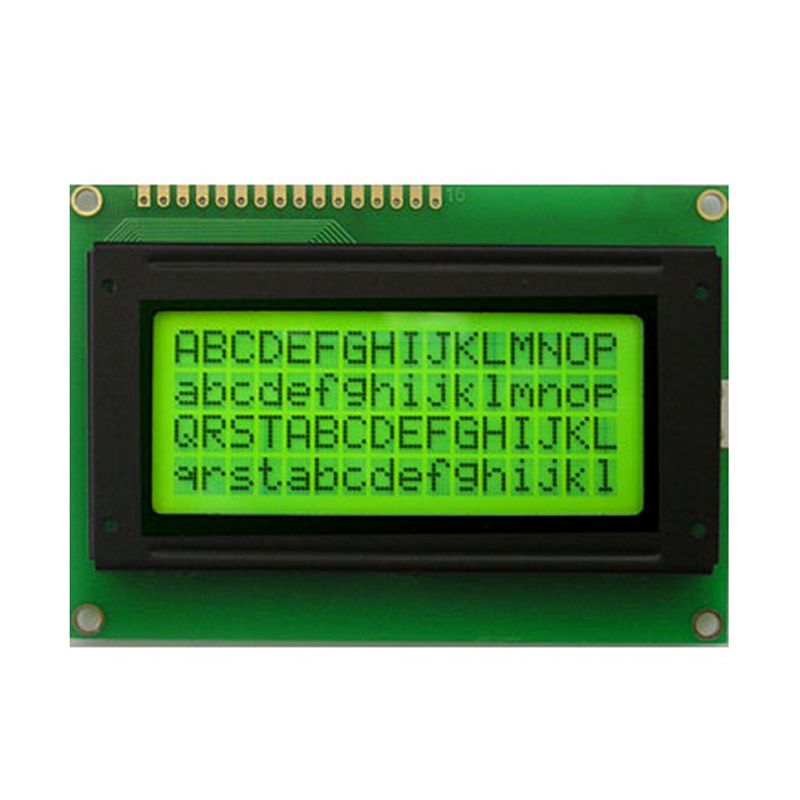

Industrial monochrome stn lcd 1604 character 16 pin display module lcd 16x4

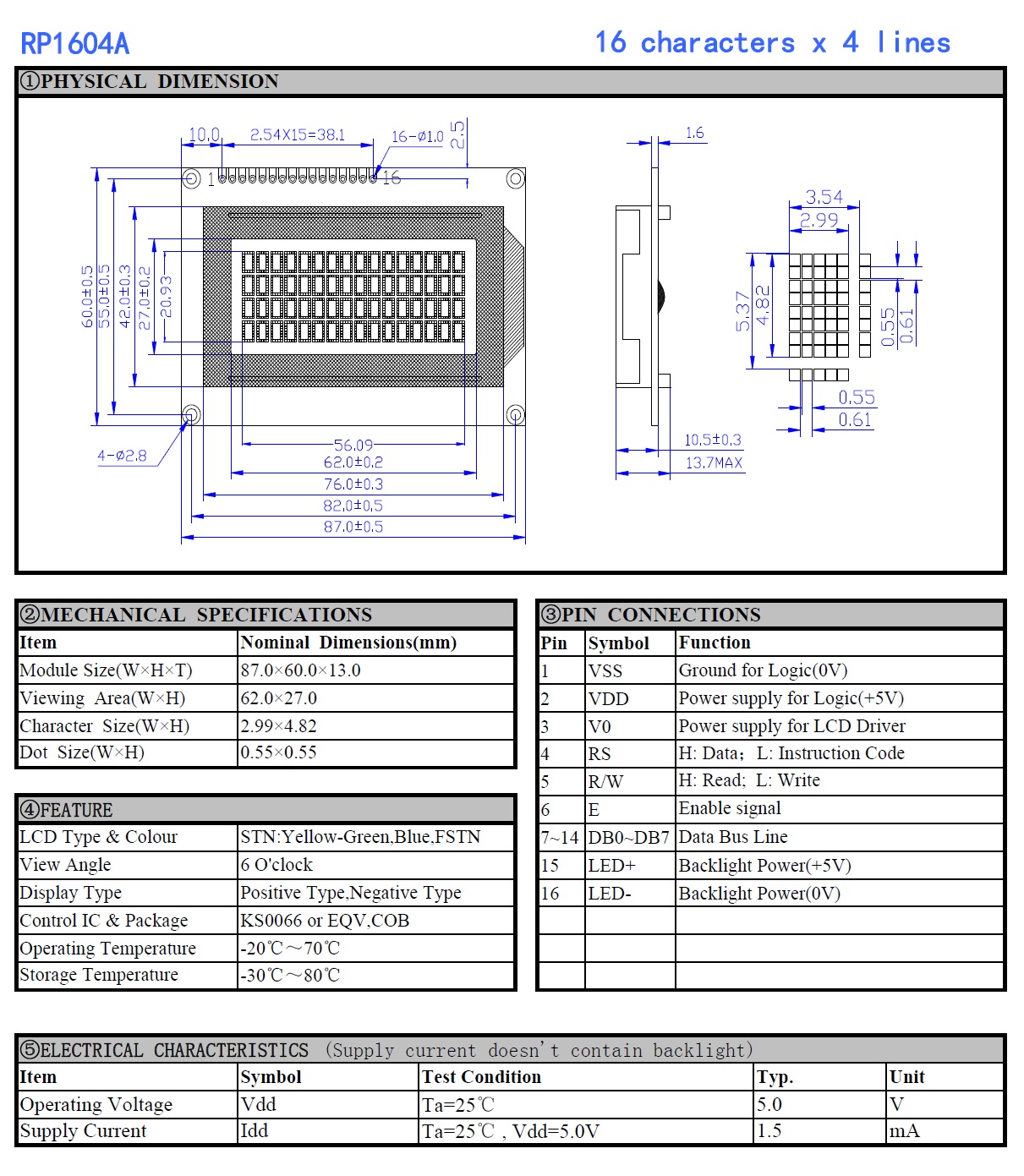

Model: RP1604A
DotS: 16 x 4
Module size: 87 x 60 x 13mm
Viewing Area: 62 x 27 mm
Description
 Industrial monochrome stn lcd 1604 character 16 pin display module lcd 16x4
Model: RP1604A
Dots: 16 x 4
LCM Type COB
Module Size 87 x 60 x 13mm
Viewing Area 62 x 27 mm
Character Size 2.99 x 4.82 mm
Dot Size(W*Hmm) 0.55 x 0.55 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
