Character LCD Display

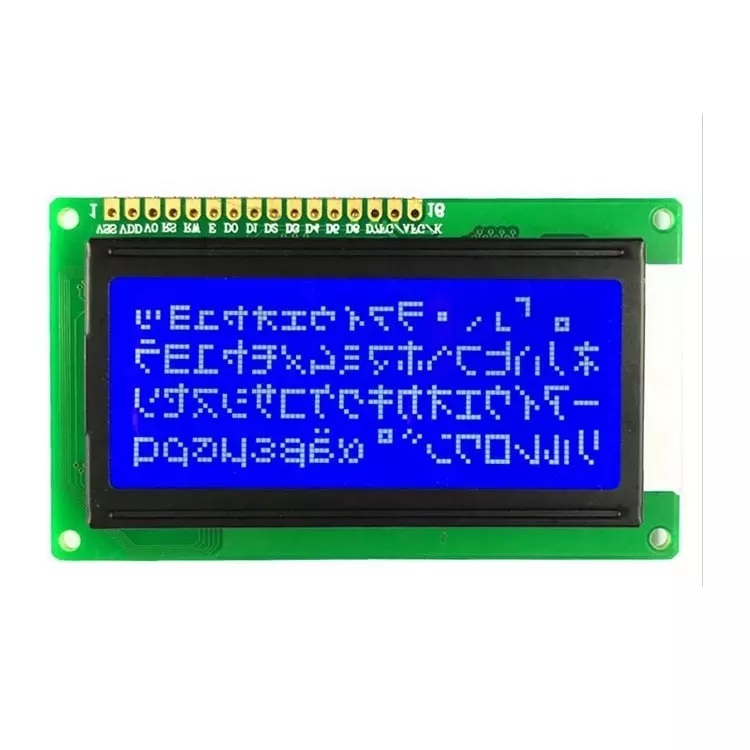

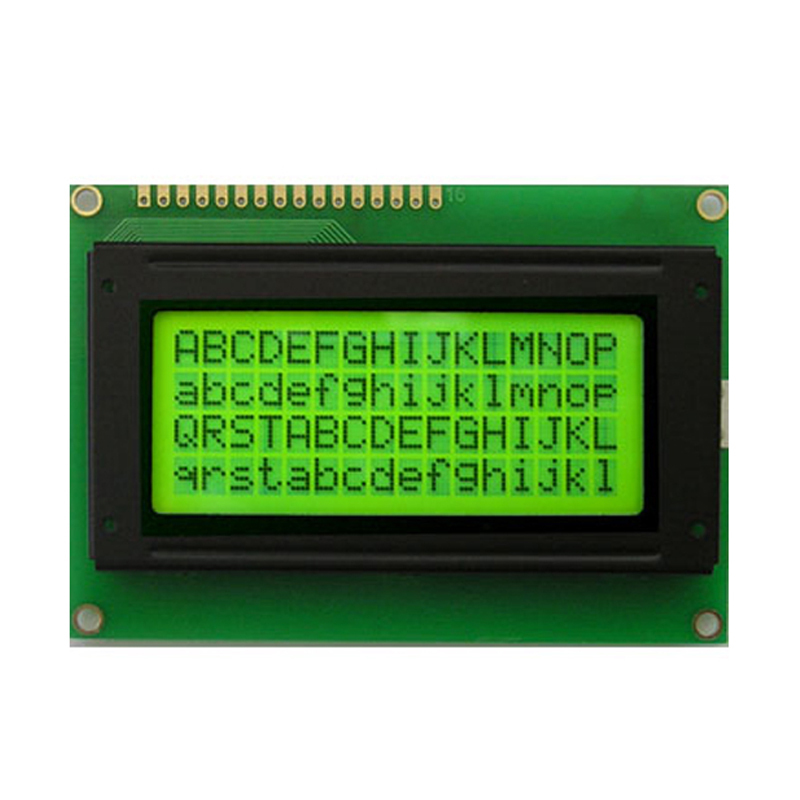

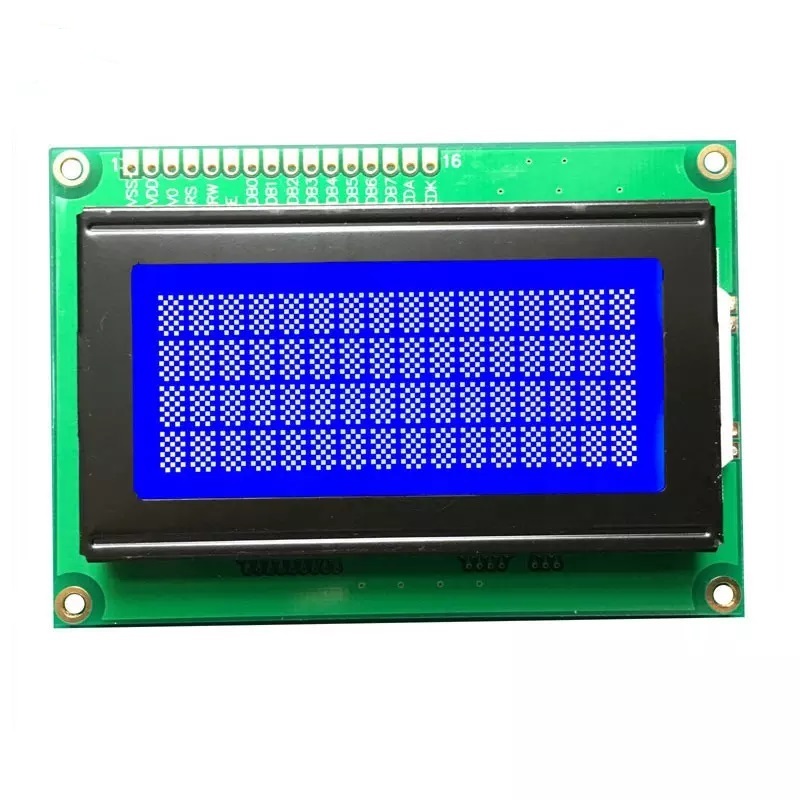

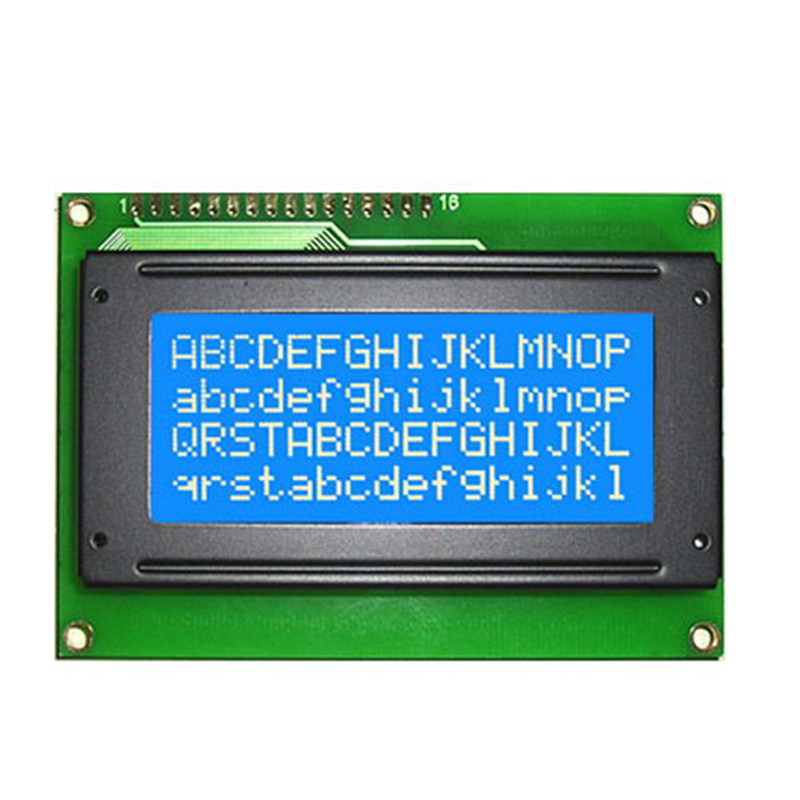

Industrial monochrome stn lcd 1604 character 16 pin display module lcd 16x4

Item No.: RP1604A
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description
 Industrial monochrome stn lcd 1604 character 16 pin display module lcd 16x4
Model: RP1604A
Dots: 16 x 4
LCM Type COB
Module Size 87 x 60 x 13mm
Viewing Area 62 x 27 mm
Character Size 2.99 x 4.82 mm
Dot Size(W*Hmm) 0.55 x 0.55 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
