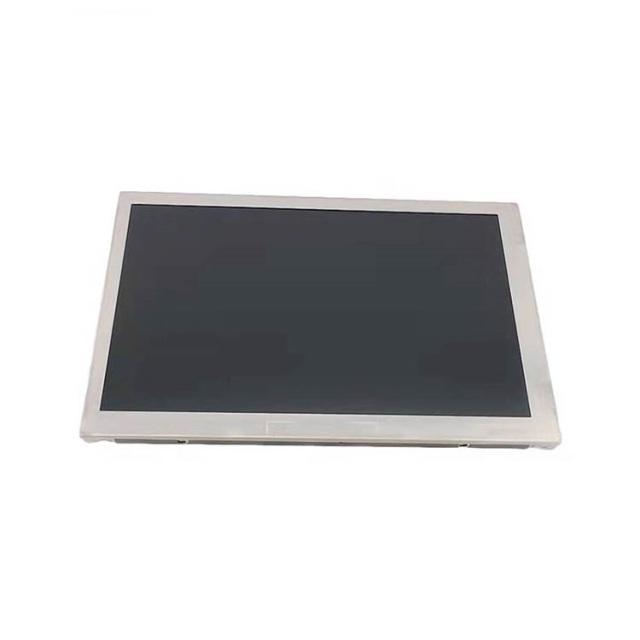

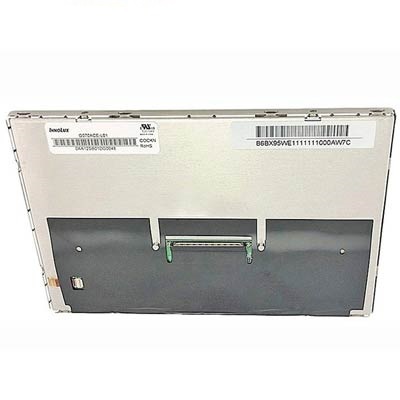

Industrial 7 Inch 800*480 Wxga LCD IPS Panel Original Innolux TFT LCD Display G070ace-L01 500nits 30 Pins Lvds

Item No.: G070ACE-L01
TFT displays and full color TFTs in line, these displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology.
Description
Industrial 7 Inch 800*480 Wxga LCD IPS Panel Original Innolux TFT LCD Display G070ace-L01 500nits 30 Pins Lvds
Manufacturer Innolux
Model Name G070ACE-L01
Screen Size 7.0 inch
Pixel Number 800(RGB)×480 , WVGA
Active Area(mm) 152.4 x 91.44 (H×V)
Outline(mm) 170 x 110 x 6 (H×V×D)
Pixel Pitch(mm) 0.1905 x 0.1905 (H×V)
Treatment AG type, 3H hard coating
Luminance 500 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle R/L/U/D 89/89/89/89 (CR≥10)
Response 13/12 (Typ.)(Tr/Td) ms
Work Mode AAS , Normally black , Transmissive
Color Depth 262K/16.7M , 70% NTSC
Backlight WLED , 50K hours , with LED Driver
Net Weight 192g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -40 ~ +90 (°C)
Operating Temp.: -30 ~ +85 (°C)
Package Innolux original package;
38 pcs/ctn;
weight : 8.3Kgs;
size : 445 (L)mm x 370 (W)mm x 275 (H)mm
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
