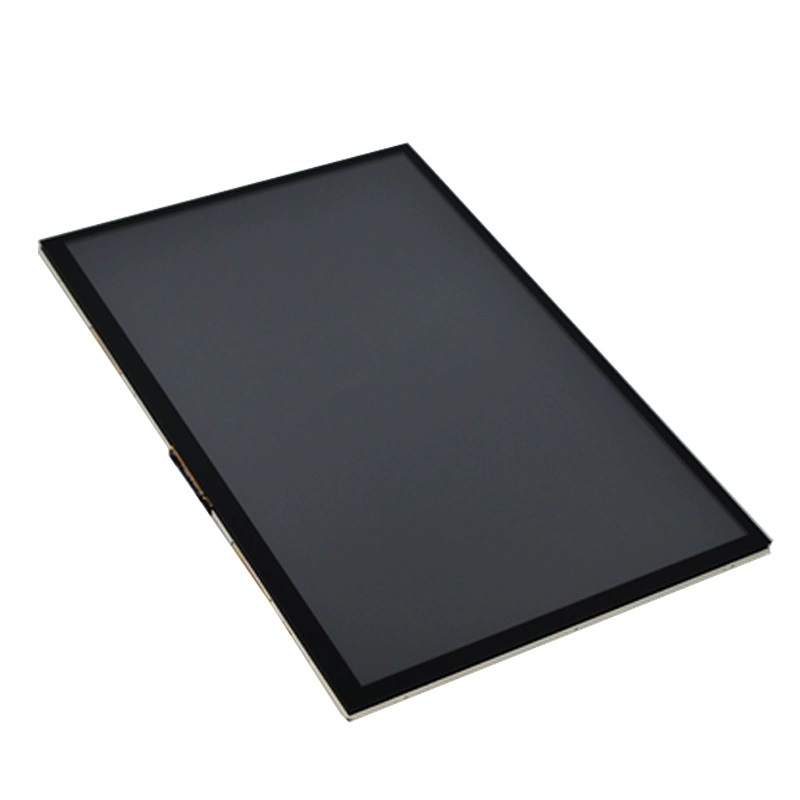

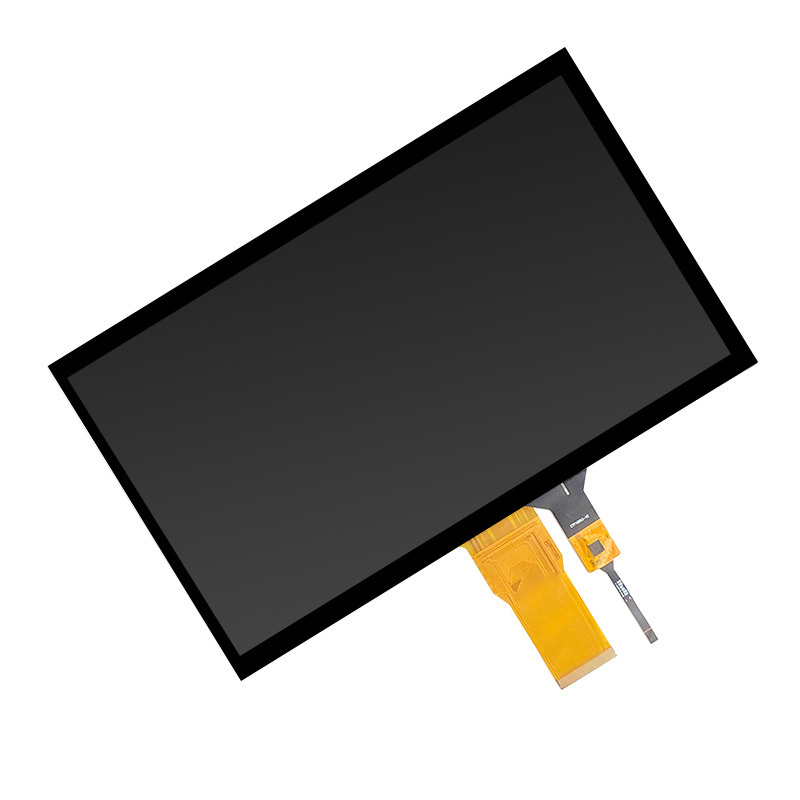

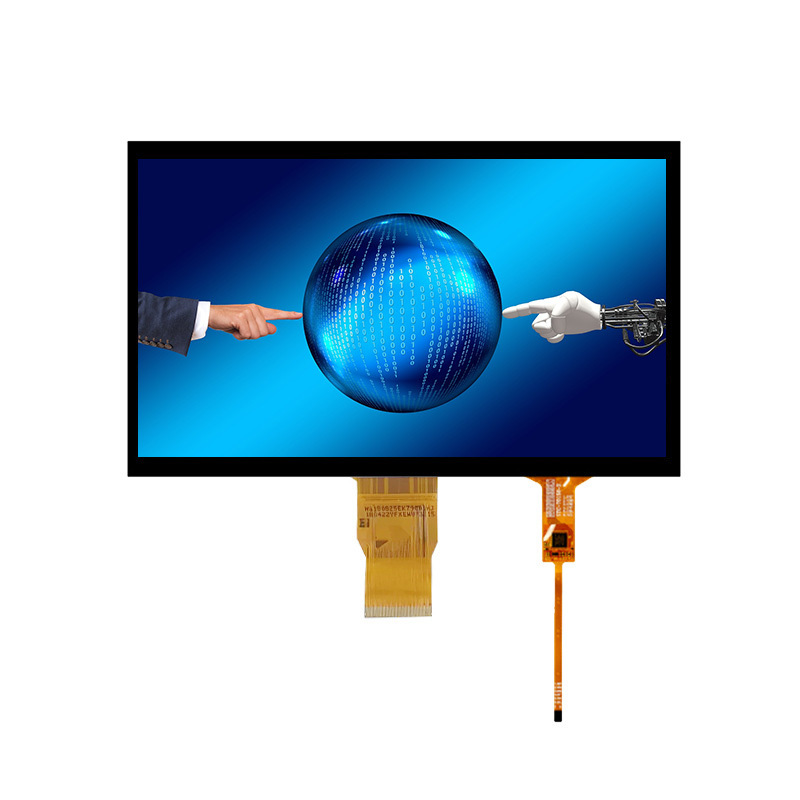

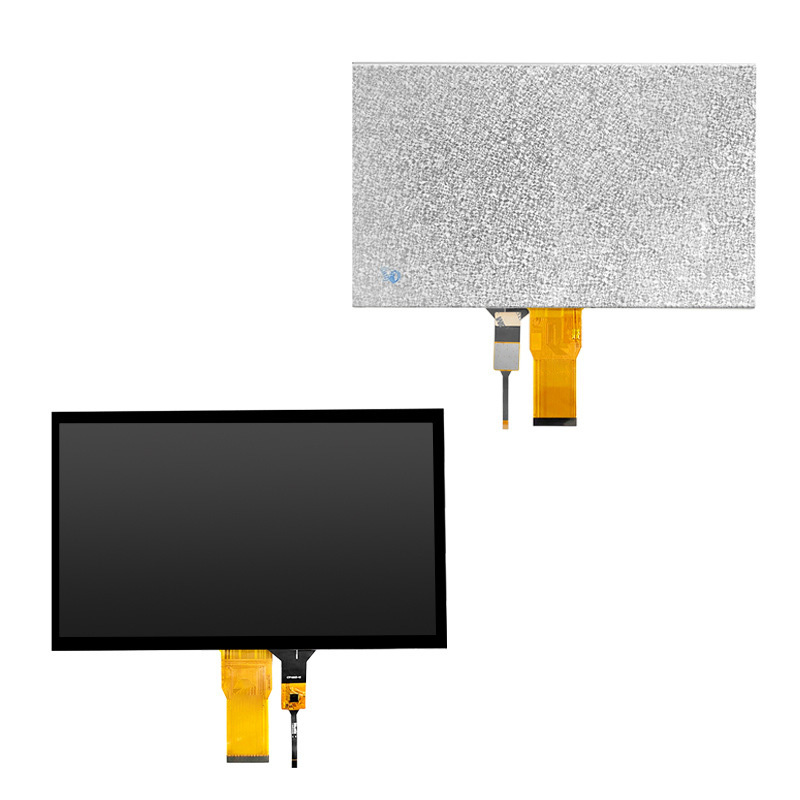

Industrial 10.1 Inch IPS TFT LCD Display 1024X600 RGB Interface Optional Capacitive Touch Screen

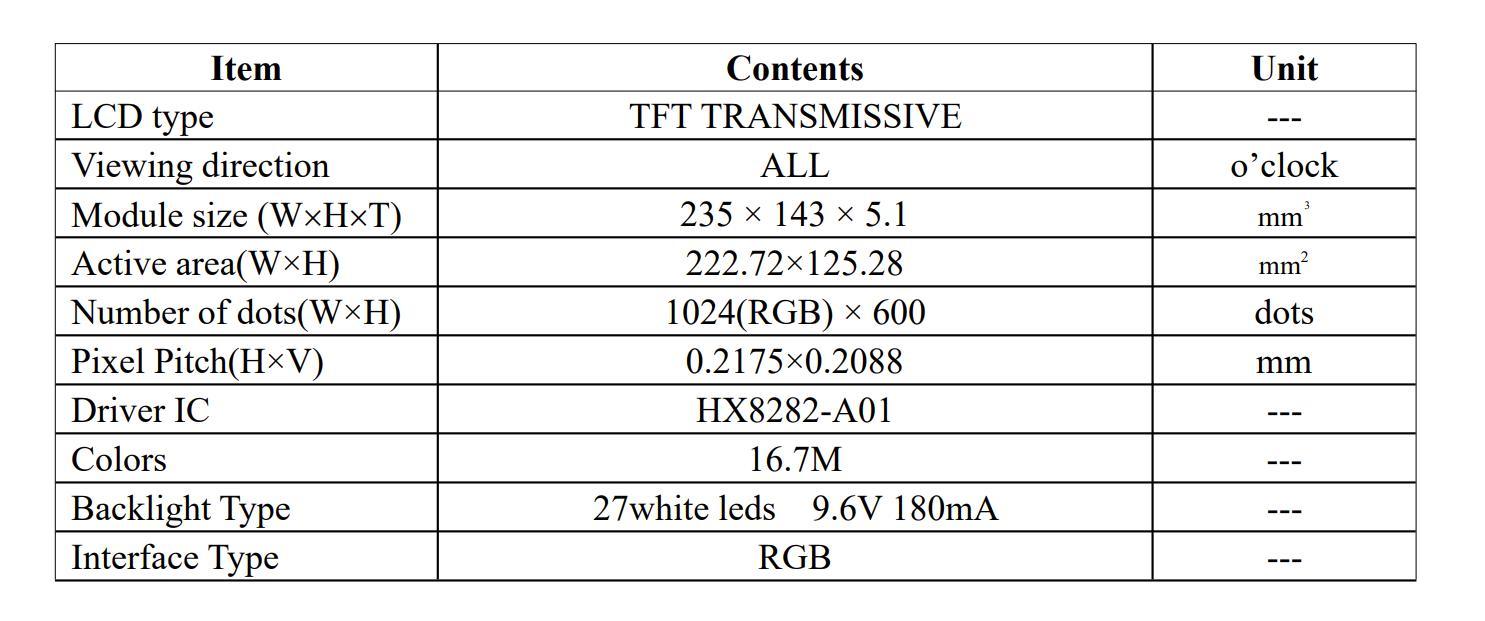

Model: |
RP101S150B-V1 |
Panel Size |
10.1 inch |
Resolution: |
1024*600
|

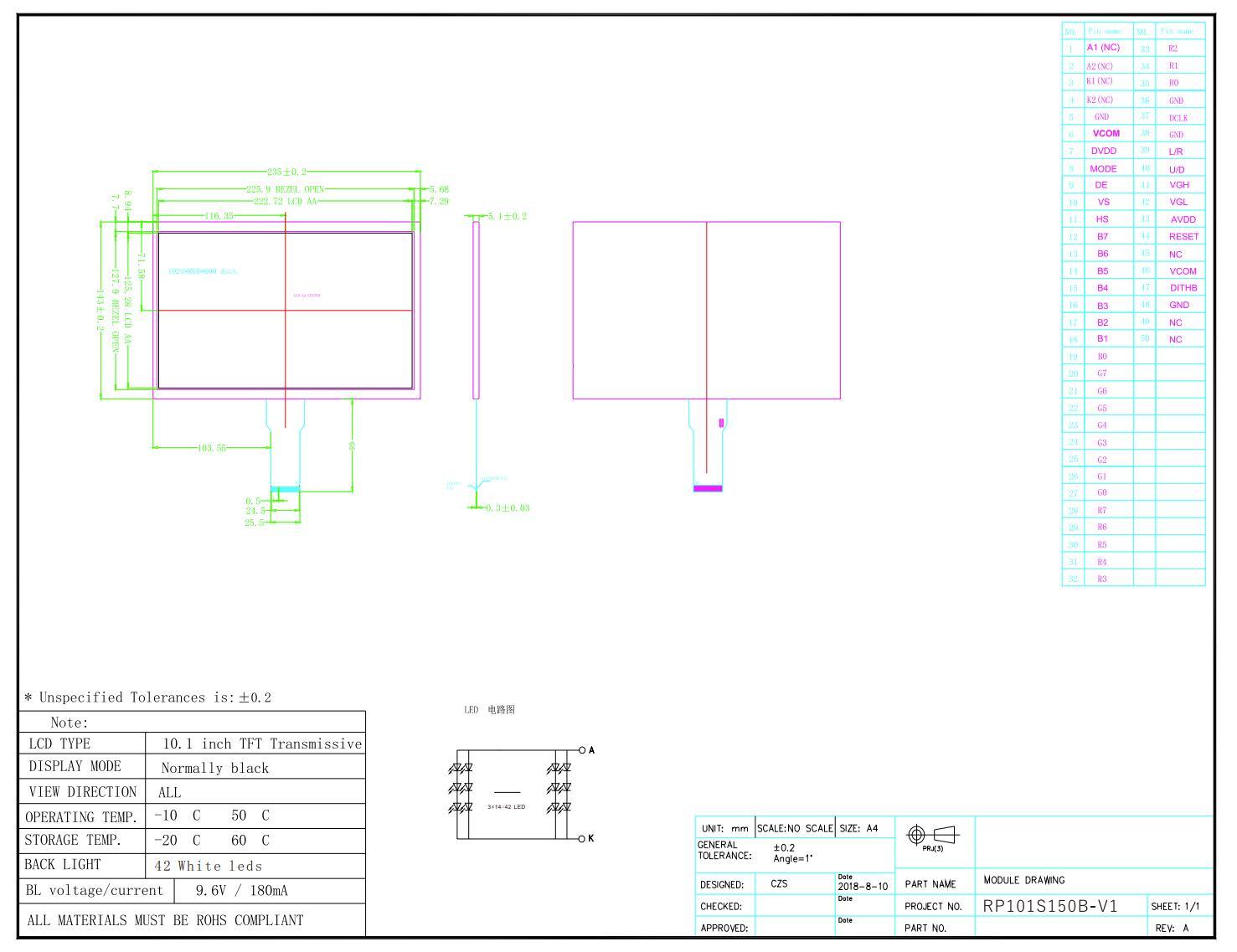

Module Size |
235(W)x143(H)x5.1(T)mm |
Display Area |
125.28(W)x222.72(H)mm |
Backlight: |
27 White LED |
Display Type: |
262K |
Driver IC |
HX8282A/HX8696A |
Operating Temperature: |
-20 ~ +70ºC |
Storage Temperature: |
-30 ~ +80ºC |

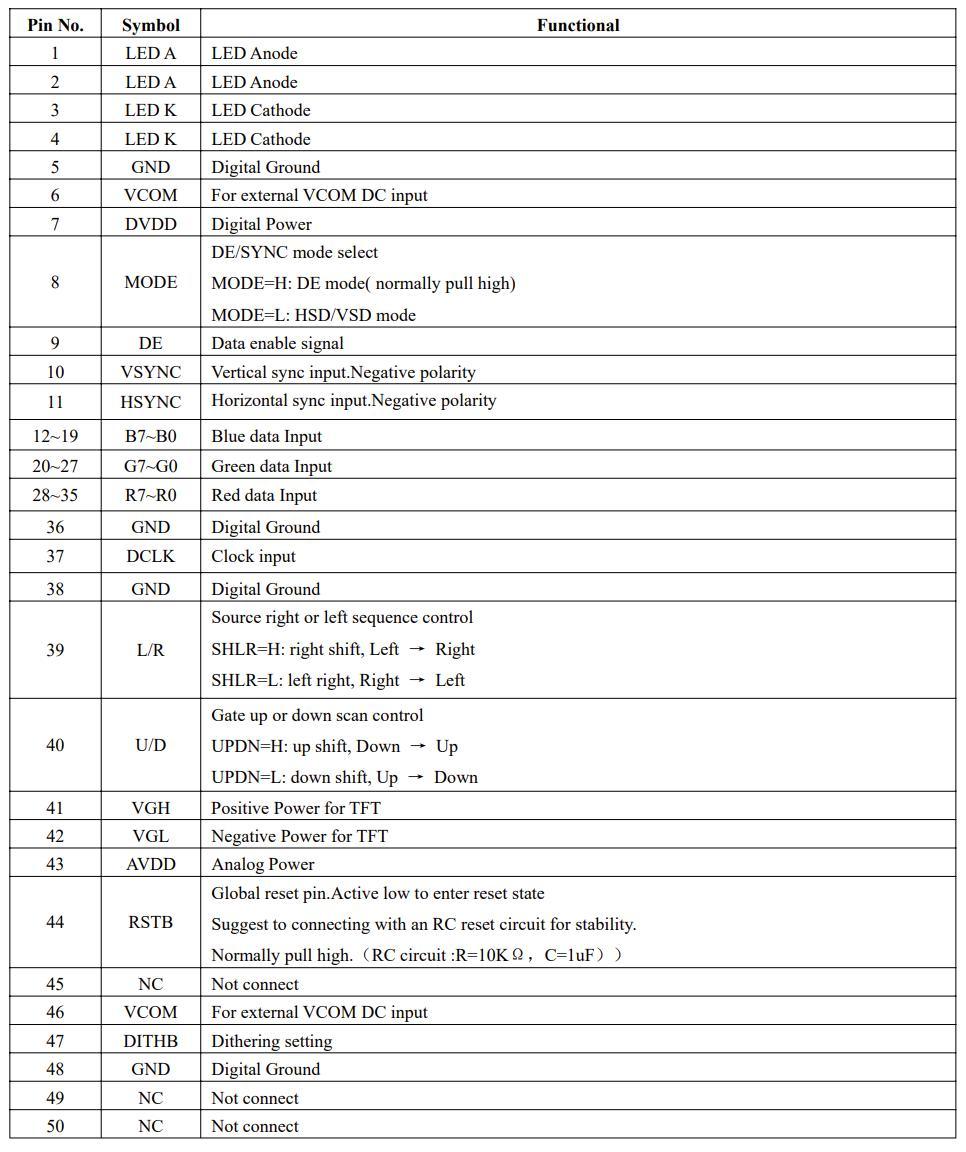

Interface Type |
RGB 50pin |
![](//ueeshop.ly200-cdn.com/u_file/UPAQ/UPAQ069/2407/photo/6a316e5869.jpg)
![](//ueeshop.ly200-cdn.com/u_file/UPAQ/UPAQ069/2407/photo/b7453c4f3b.jpg)
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
