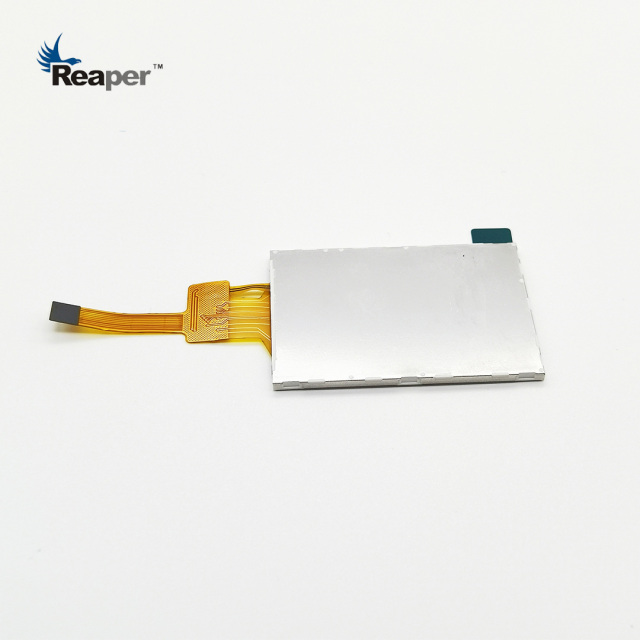

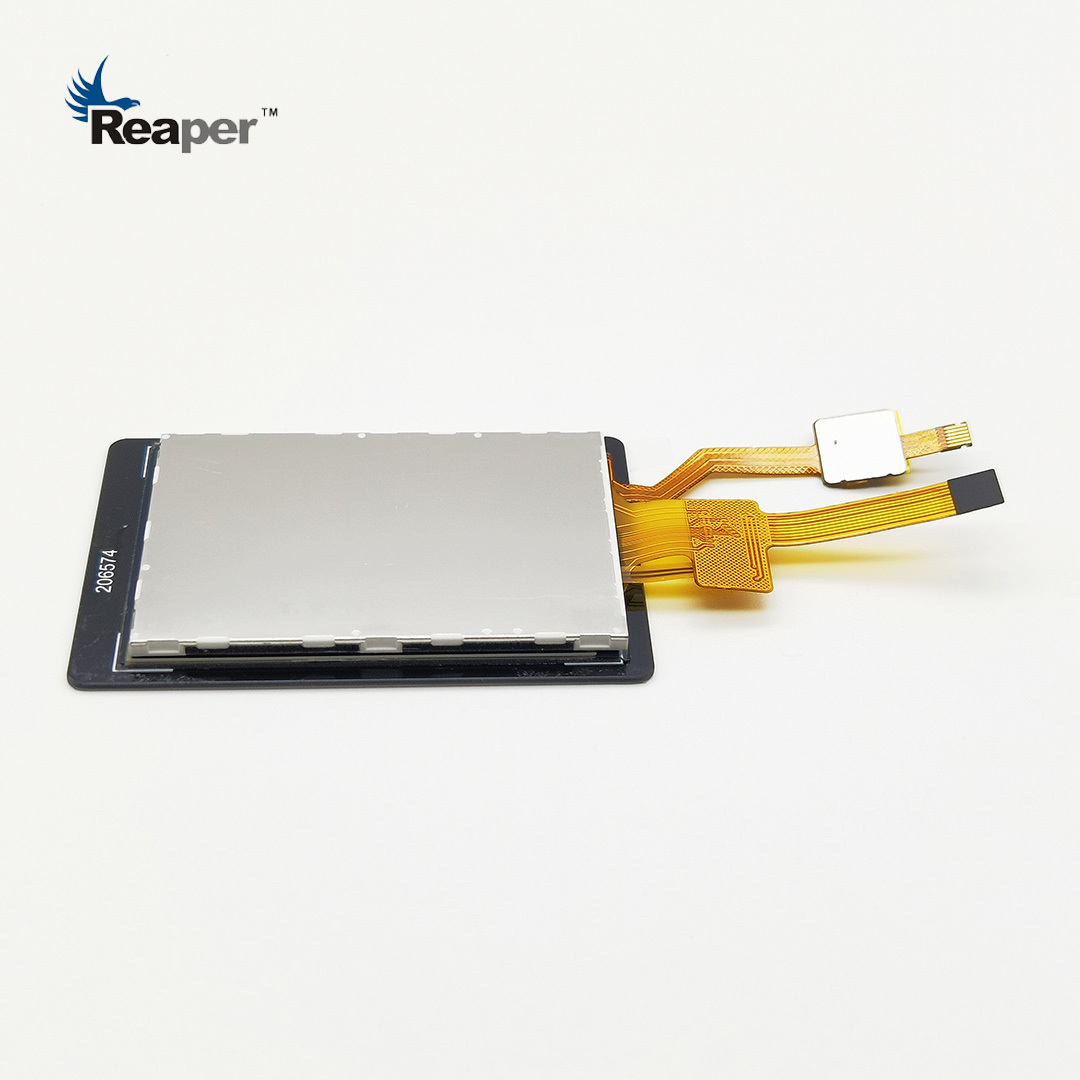

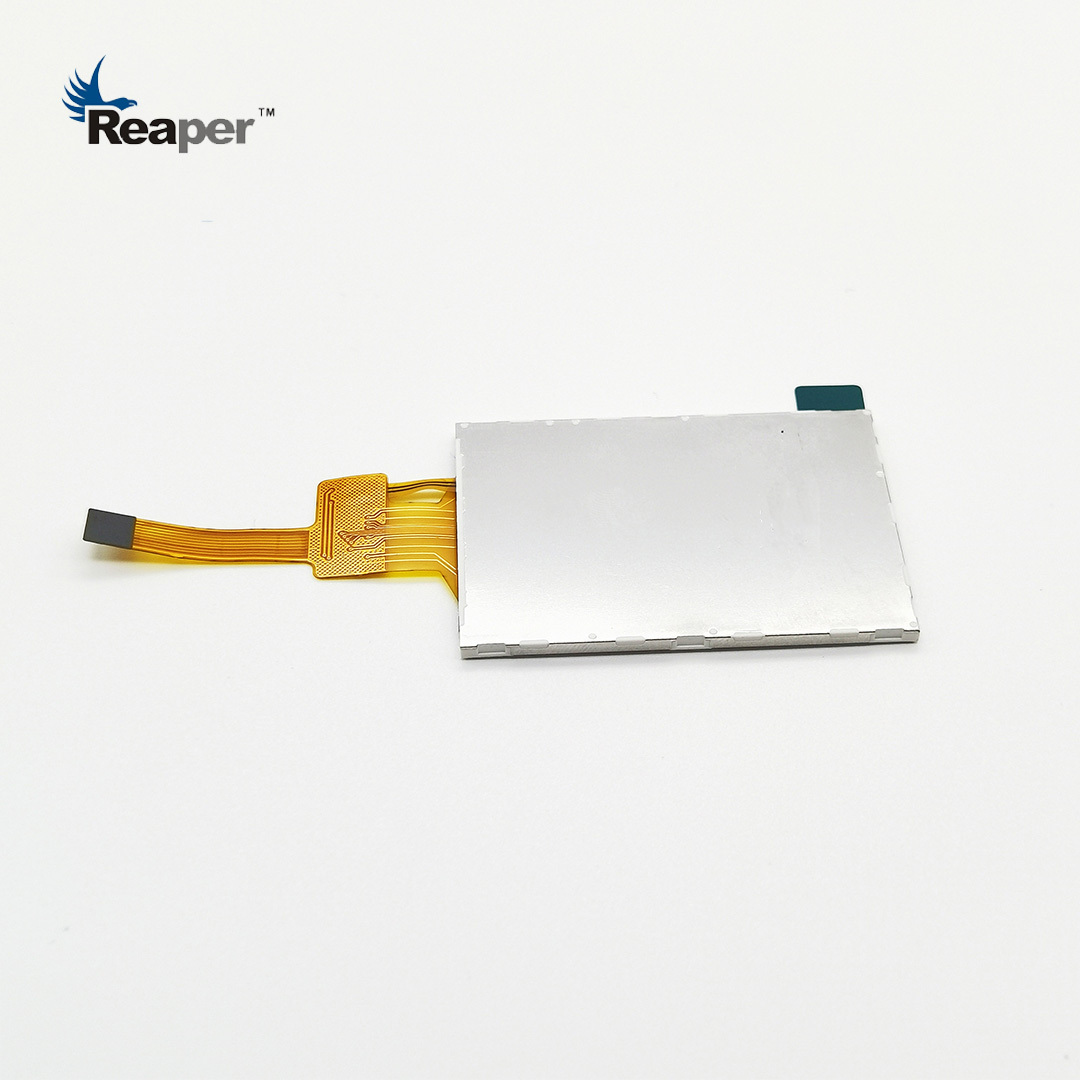

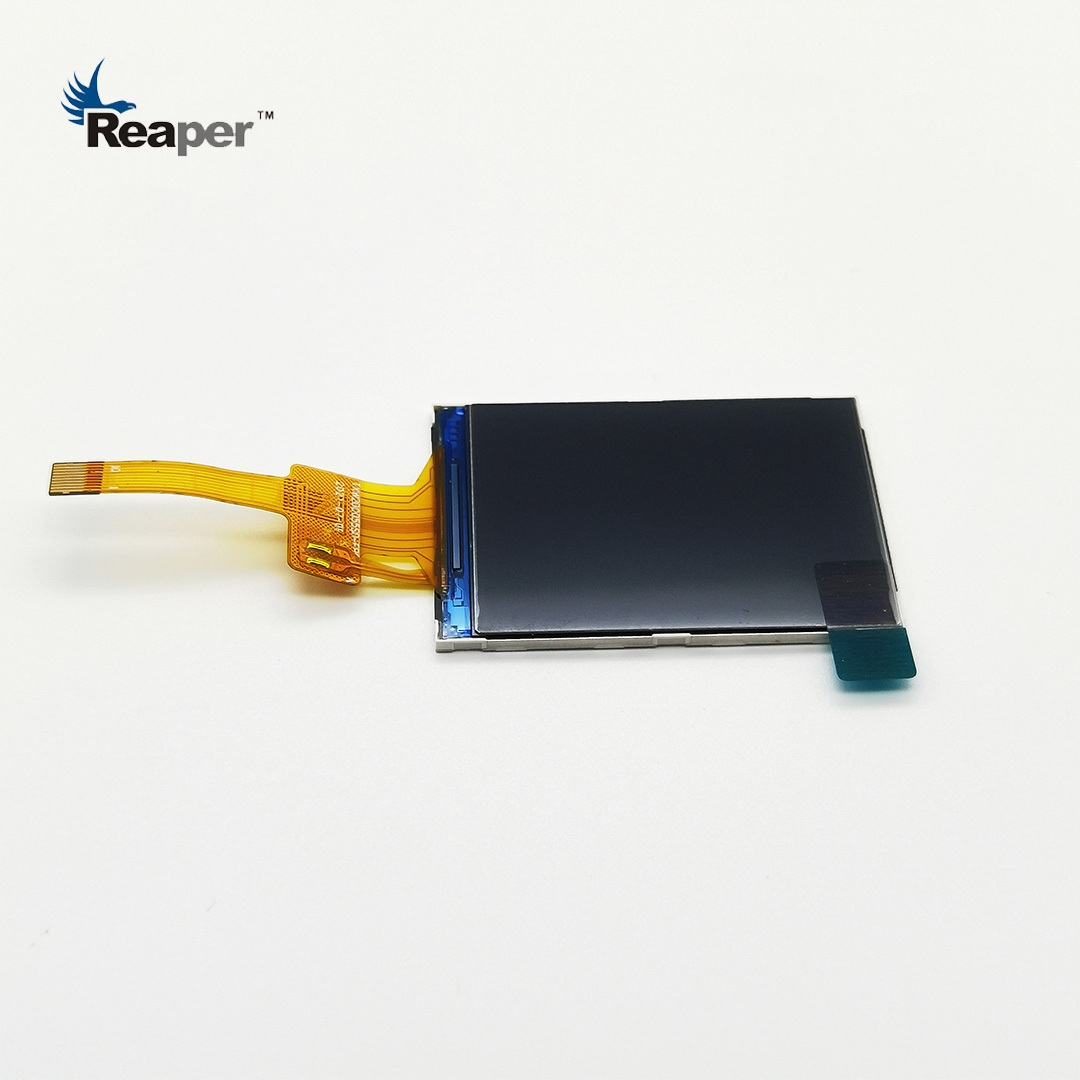

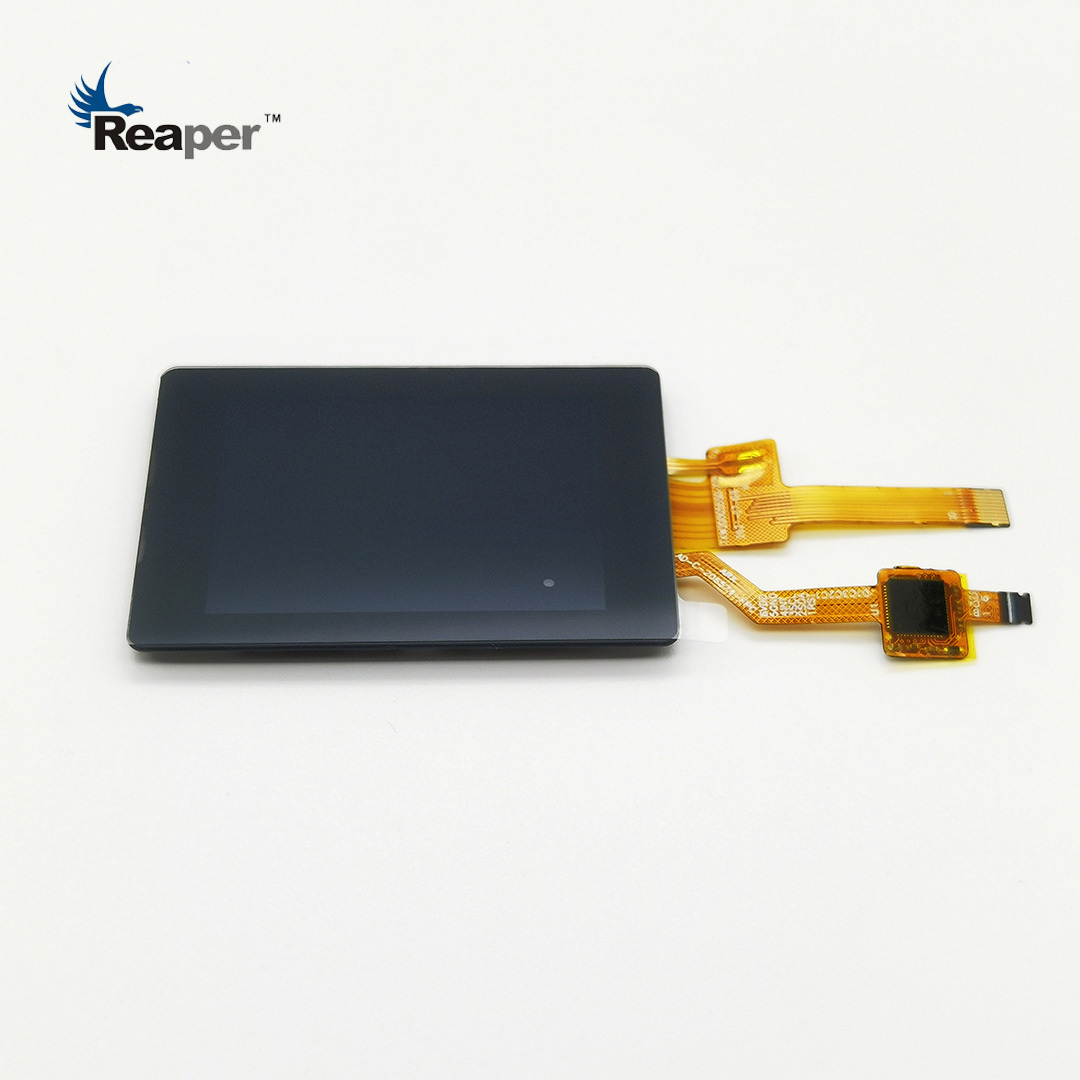

High Brightness 2.0 Inch TFT LCD Module 1.97 Inch LCD Display with Touch Screen For E-Bike
| Model: |
RP200055S0 |
| Panel Size |
2.0 inch |
| LCD Type |
Normally Black |
| Drive element |
TFT active matrix |
| Number of pixels |
240*3RGB(H)X320(V) Dots |
| Pixel arrangement |
RGB stripe |
| Pixel Pitch (W*H) |
0.1275*0.1275mm |
| Active area |
30.6(H) * 40.8(V)mm |
| Mechanical OutlineSize(W*H*T) |
34.6*47.83*2.1mm |
| Viewing direction |
ALL O'CLOCK |
| LCM Driver IC |
ST7789V |
| LCM interface |
SPI 4 BIT Interface |
| Lcm pin n count |
10 |
| Backlight leds |
3 pcs |
| Backlight current |
60ma |
| Backligh voltage |
2.8-3.3V |
| operating temperature |
-20-+70ºC |
| storage temperature |
-30-+80ºC |
| Lumens degrees |
600cd/m² |
