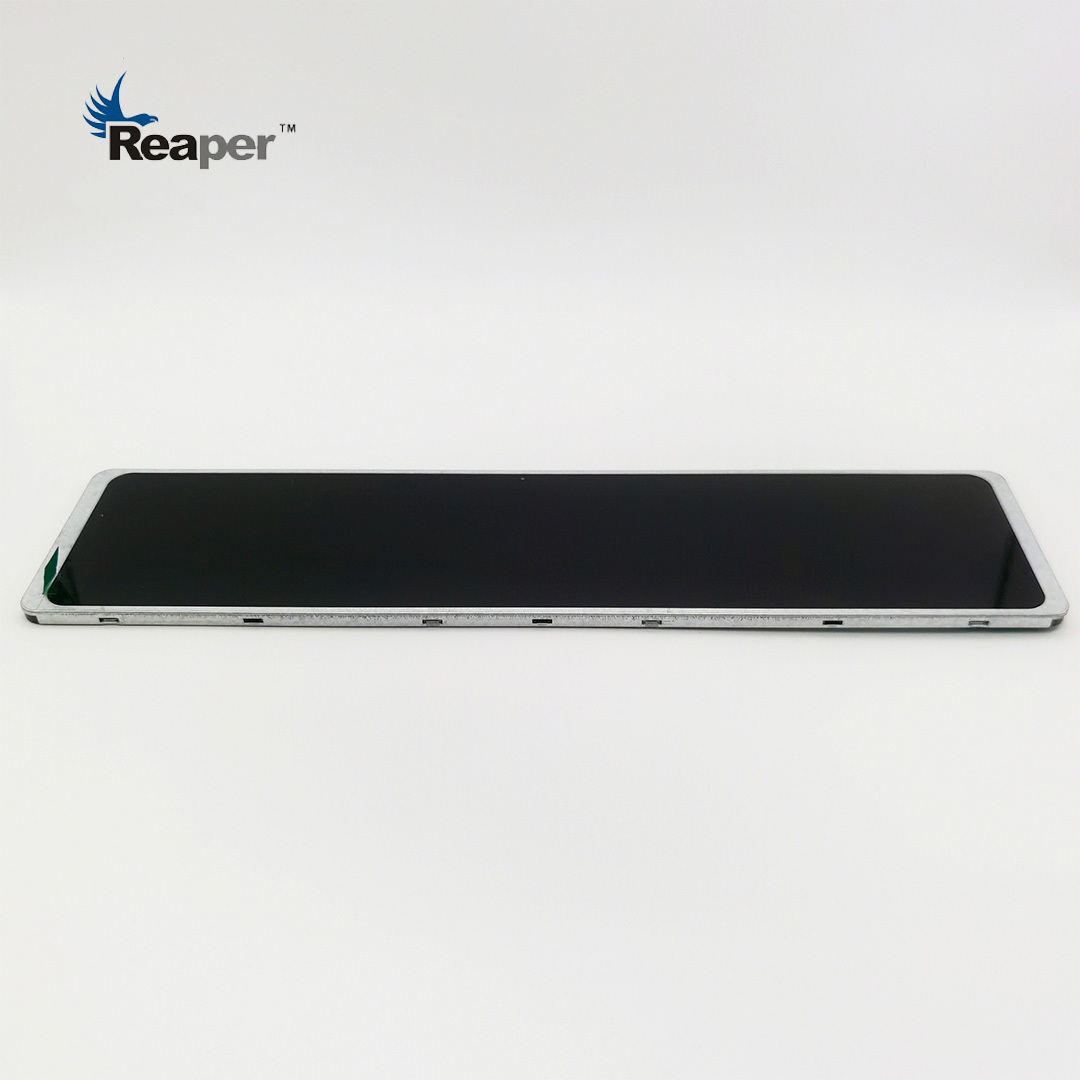

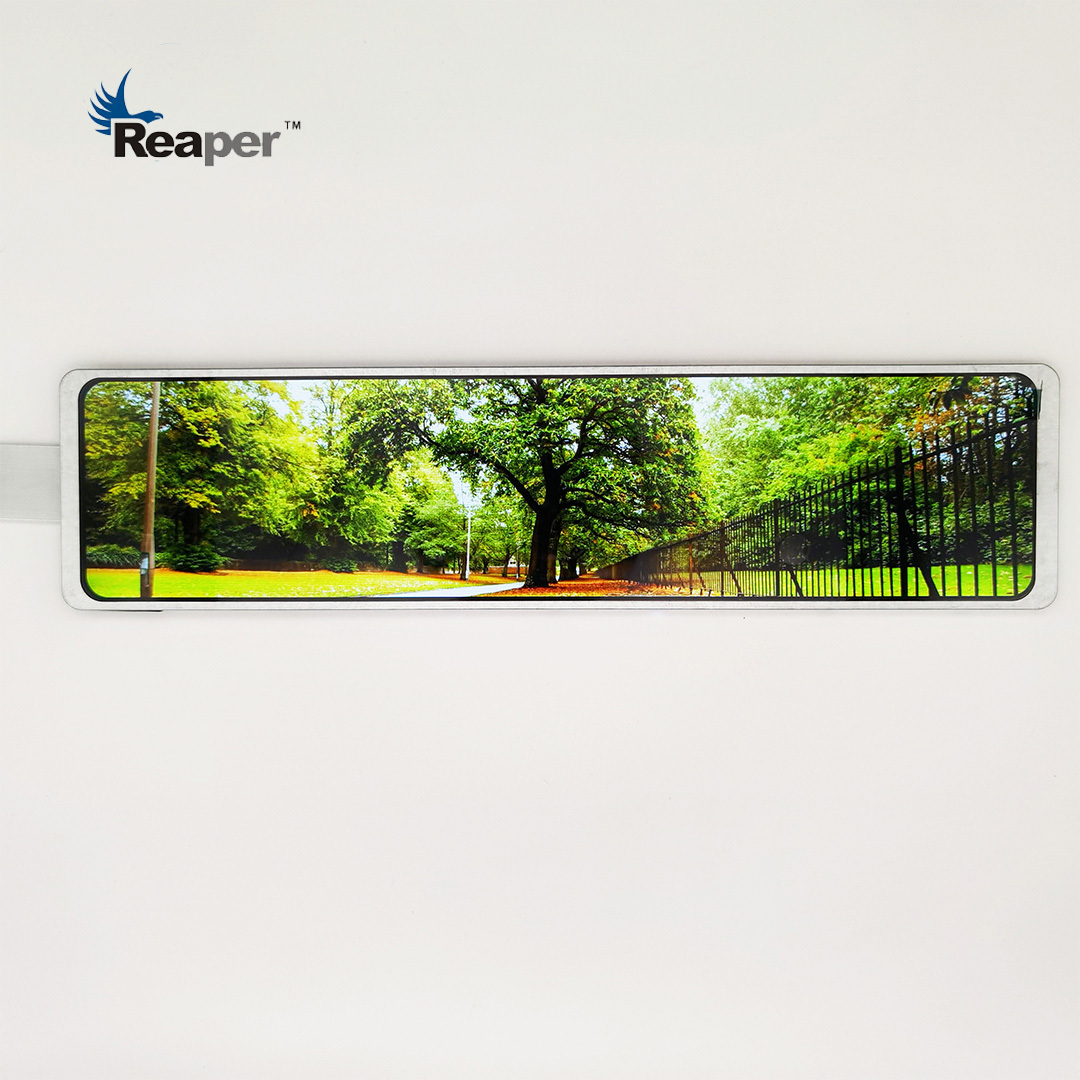

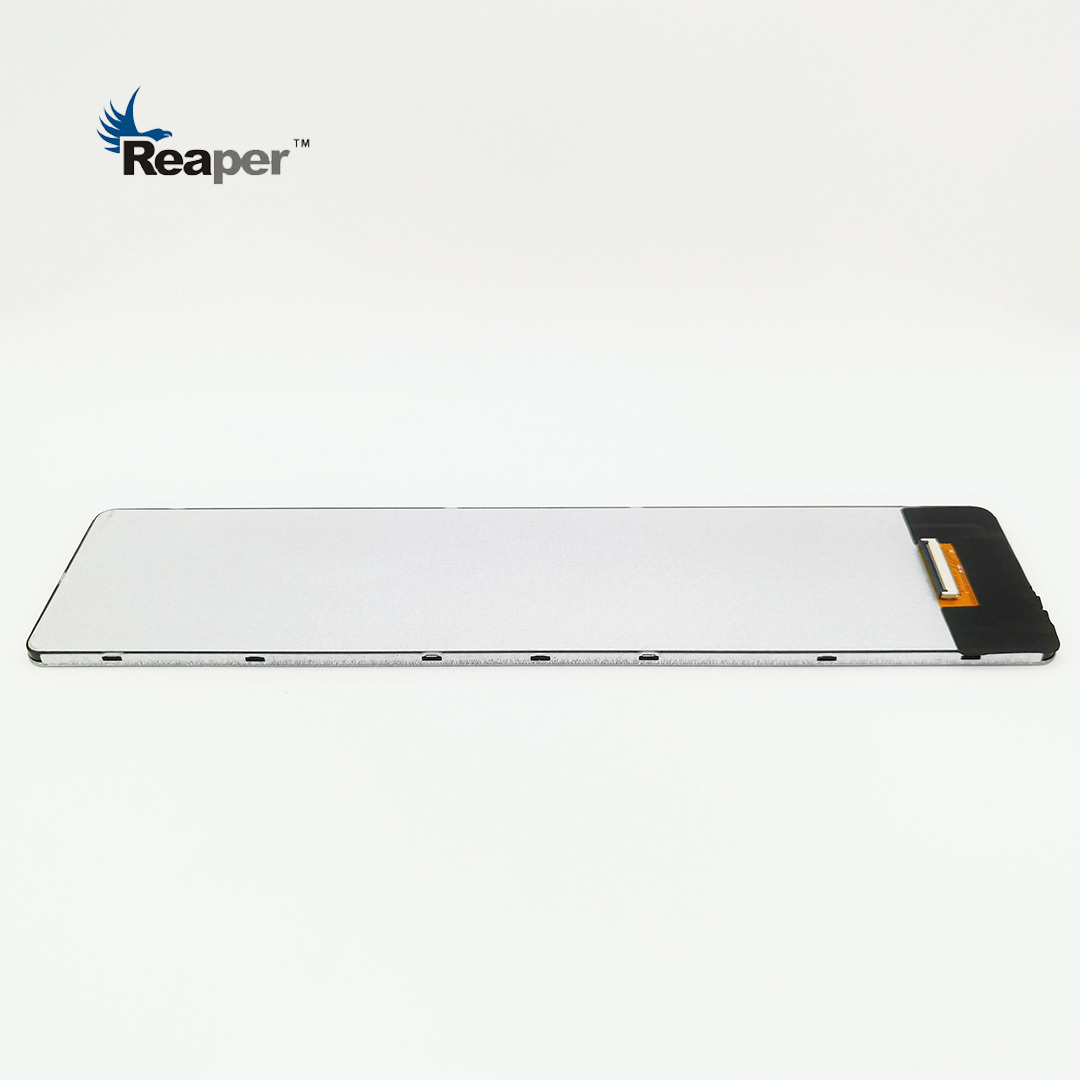

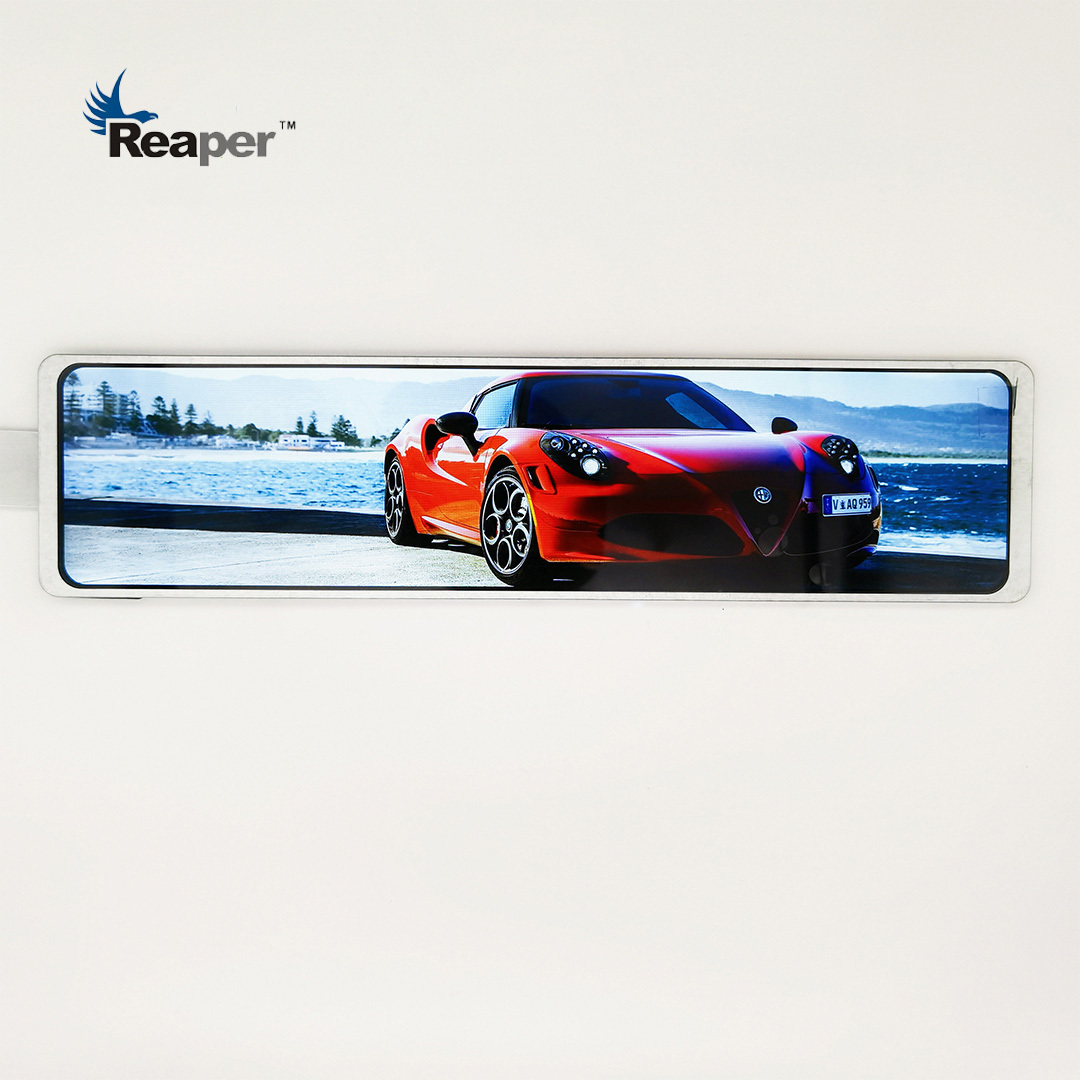

High Brightness 11.3-Inch HD IPS Bar LCD Display Module
1. INTRODUCTION

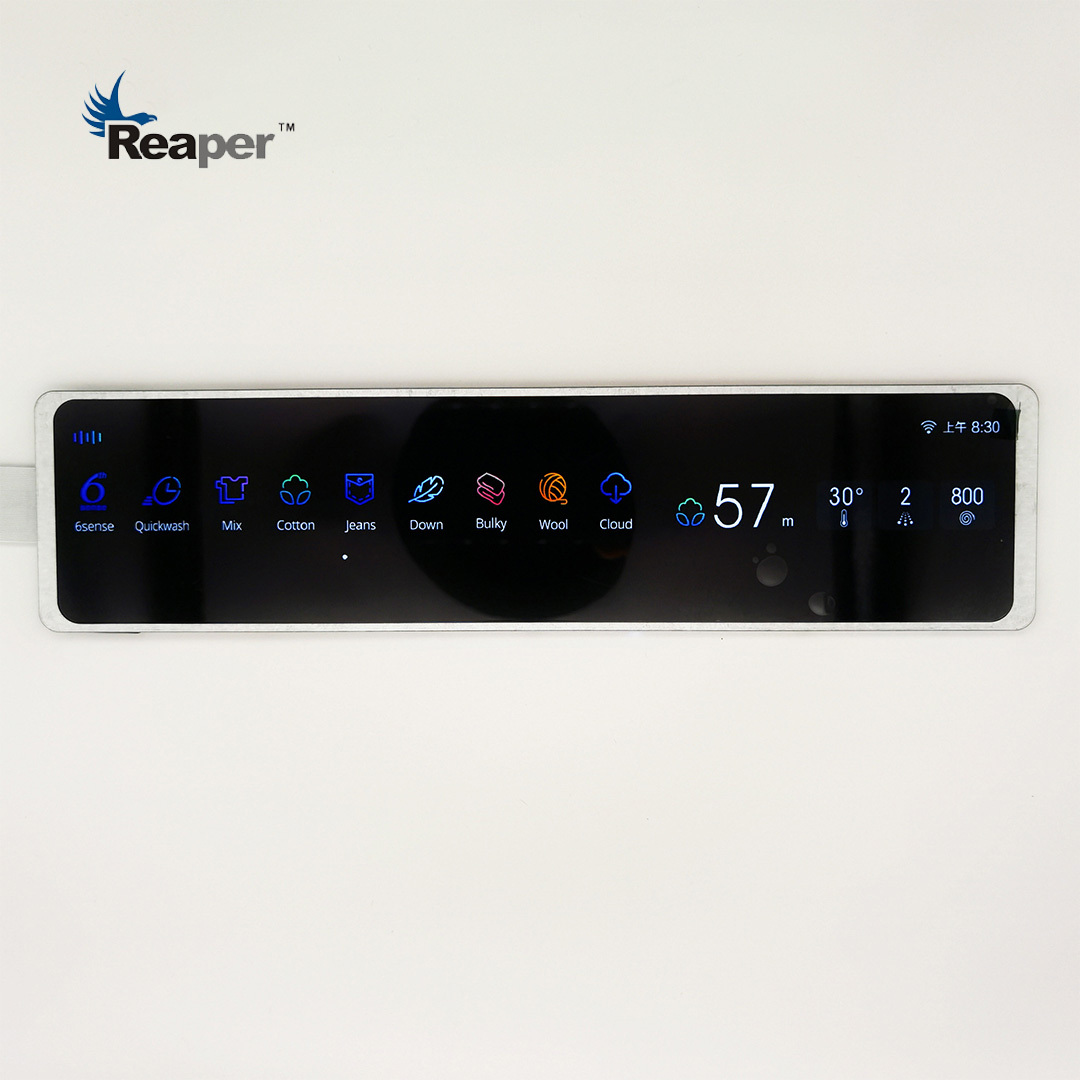

RP113003B0 is an 11.26 inch long bar scale full color TFT LCD screen with a resolution of 440 * 1920, IPS full view high-definition highlight effect, wide temperature -20+70 working temperature, and brightness of 1000cd/m2. This product is independently designed, developed, and produced, providing professional full process technical support services, first-class production quality control, and professional after-sales service guarantee. This product is widely used in refrigerator display panels, washing machine display panels, electric vehicle dashboards, shelf advertising displays, car displays, computer sub screens, and other products.
2.Features
| Model: |
RP113003B0 |
| Application |
Car rearview mirror, shelf advertising, medical, household appliances |
| Resolution |
440*3(RGB)*1920 |
| LCD Type |
Normally Black |
| Signal Interface |
MIPI BIT Interface |
| Drive element |
TFT active matrix |
| LCM Driver IC |
SC7707 |
| Working Voltage |
18V |
| Working Current |
180ma |
| Backlight leds |
24pcs |
| Viewing Angle(U/D/R/L) |
(80/80/80/80) |
| Panel Outline Dimensions |
266.39(W)*64.98(H)*4.6(T)mm |
| Lcm pin n count |
40pin |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
