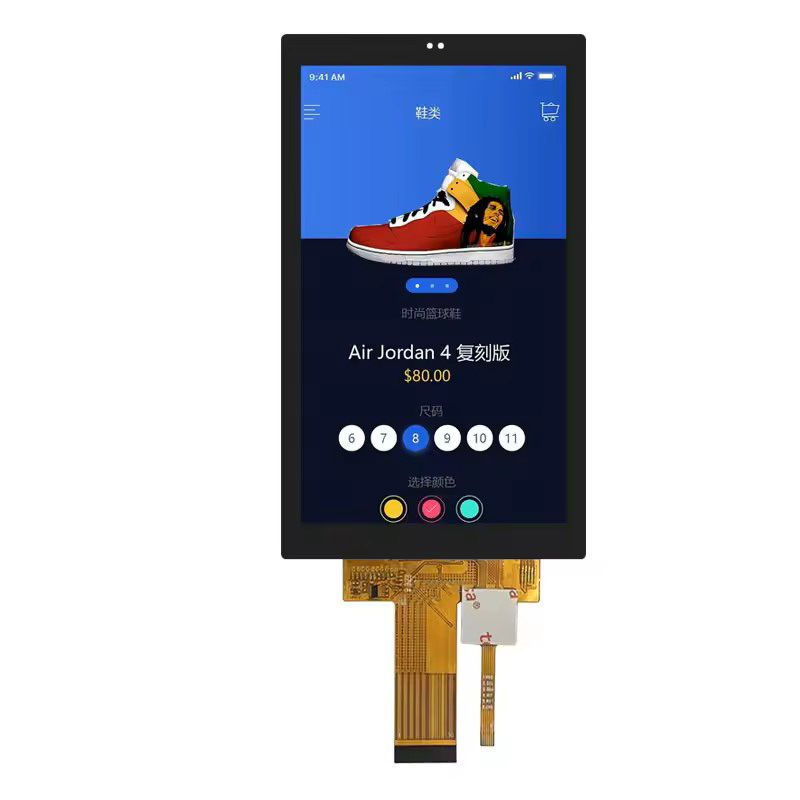

Custom 6 Inch 720*1280 IPS Capacitive Touch Screen 6.0 Inch TFT LCD Display
| Model: |
RP600005S0-GP |
| Size |
5.94 inch |
| LCD Type |
LCD+CTP
|
| Application |
Industrial Computer Display |
| CTP Interface |
USB I2C |
| TP Type |
Capacitive |
| Drive IC |
RM68200 |
| LCD Type |
Normally Black |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
| Drive element |
TFT active matrix |
| Number of pixels |
720*3RGB(H)X1280(V) |
| Pixel arrangement |
RGB stripe |
| Pixel Pitch (W*H) |
0.10275 |
| Active area |
73.98(H) * 131.52(V) |
| Mechanical OutlineSize(W*H*T) |
84.4*150.4*3.72 |
| LCM interface |
MIPI BIT Interface |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
