Capacitive touch screen

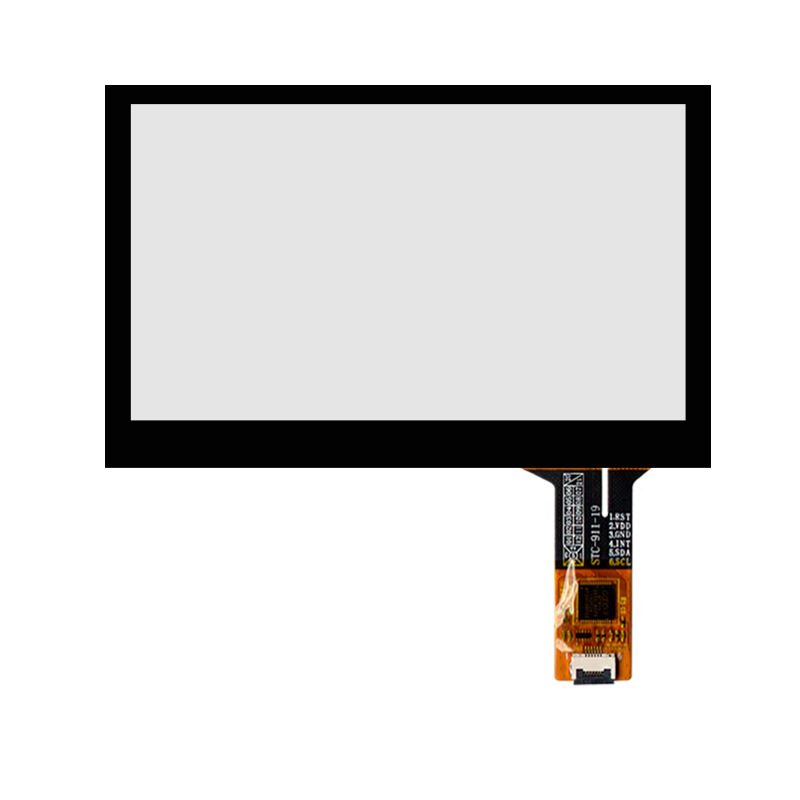

Custom 4.3 Inch LCD Display Capacitive Touch Screen Panel, Customizable size, thickness, interface, IC, color, etc.

Item No.: RP-GG043061C-1.0
Projected capacitive (PCAP) supports 5-10 points touch,commercial advantages –superior response time,robust,high optical clarity,and slim or bezel-less design.
Description
Custom 4.3 Inch LCD Display Capacitive Touch Screen Panel, Customizable size, thickness, interface, IC, color, etc.

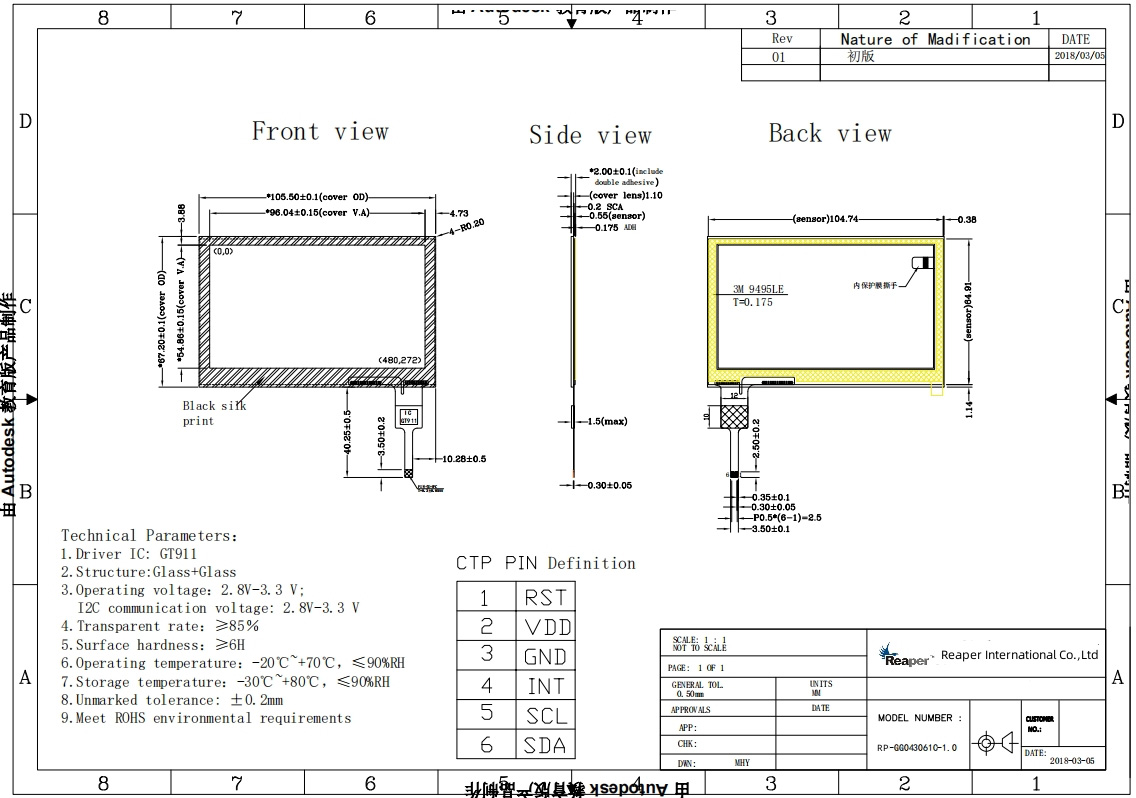

Model: RP-GG043061C-1.0
Regular Size 4.3 inch
IC GT911
Interface IIC
Type G+G
Dimensions 105.5*67.2(±0.1)
Visualre aa 96.04*54.86(±0.15)
Working temperature and humidity range -20ºC~+70ºC
Storage temperature and humidity range -30ºC~+80ºC
Transparency ≥85%
Surface Hardness 6H
Voltage 2.8~3.3V
Interface I²C

Product Overview:
 capacitive touch screens are based on proven projection capacitive touch technology,the preferred solution for applications that demand reliability,input flexibility,and anti-interference.We can provide proprietary technology to complete excellent touch response for you,they are free and drift-free,accurate and efficient.
Product Features:

◇ Pure plane structure,excellent craftsmanship,slim and smooth design.

◇ Accurate touch,high sensitivity,smooth writing,no disconnection,no drift.

◇ Glass cover each IP level,mpact resistance,prevent damage and scratch.

◇ High optical penetration,any point can withstand unlimited touches.

◇ Perform 100% IQC,OQC testing to ensure product quality.

◇ Own class 1,000 clean room,high quality,fast delivery.

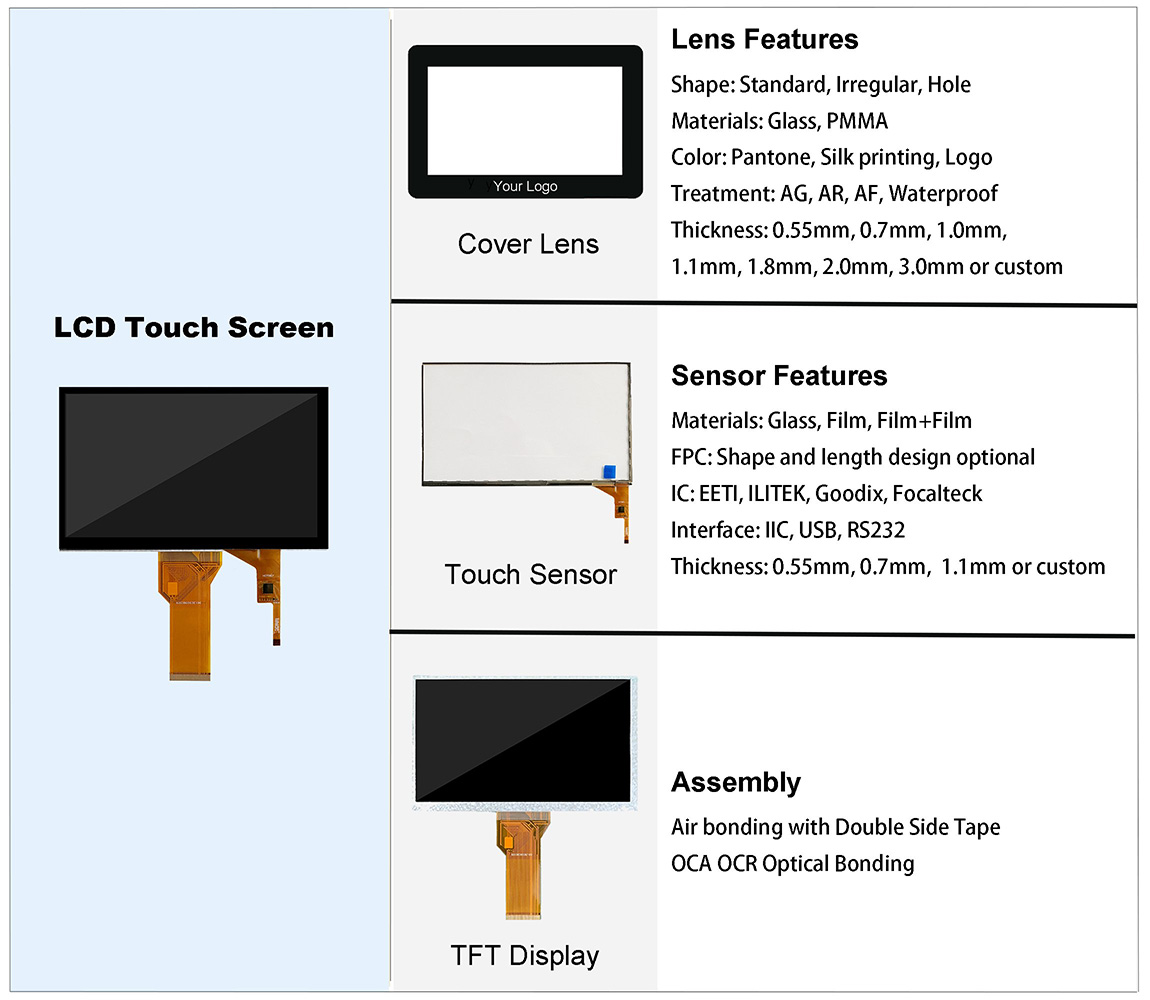

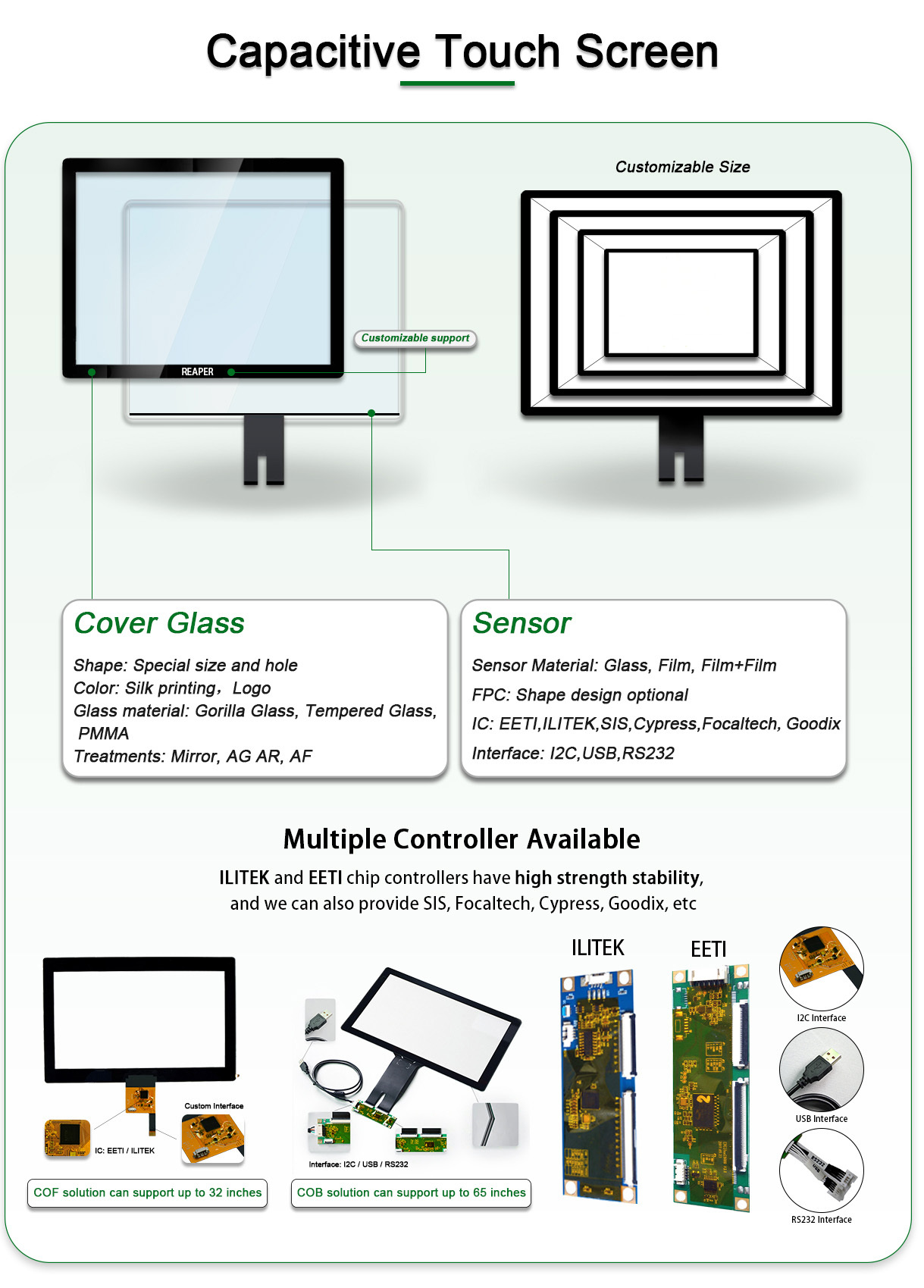

Product Customizable

① Touch screen size

② FPC outlet location

③ ITO glass thickness

④ Customer Logo

⑤ Glass of surface treatment AG, AF, AR.

Product Applications

Point of Sale (POS) terminals,ticketing and lottery terminals,industrial automation,medical equipment,retail automation,pharmacy automation,etc.
