Character LCD Display

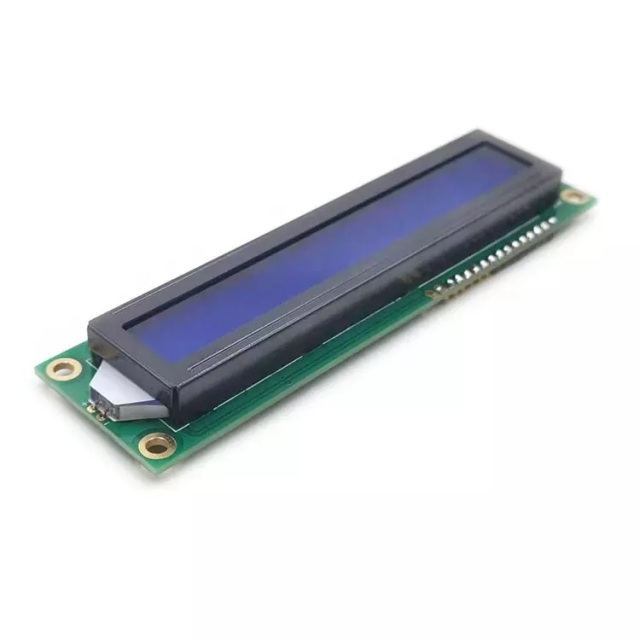

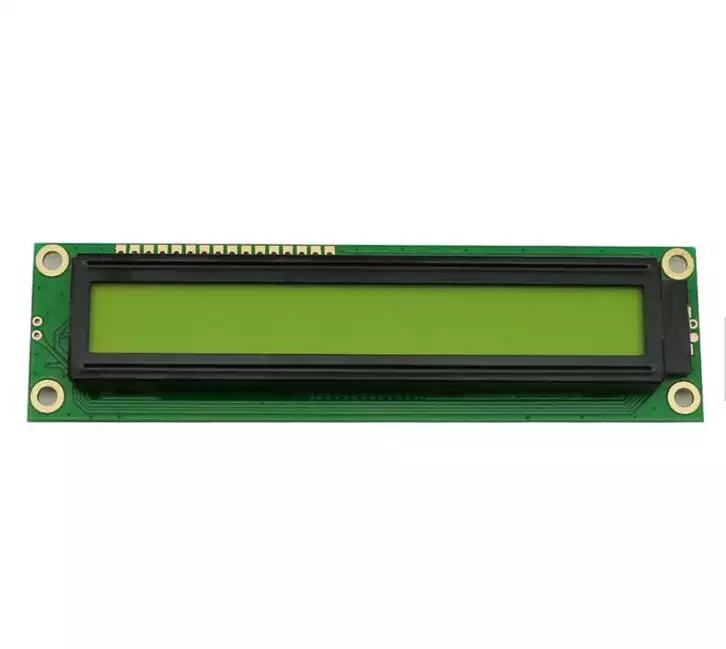

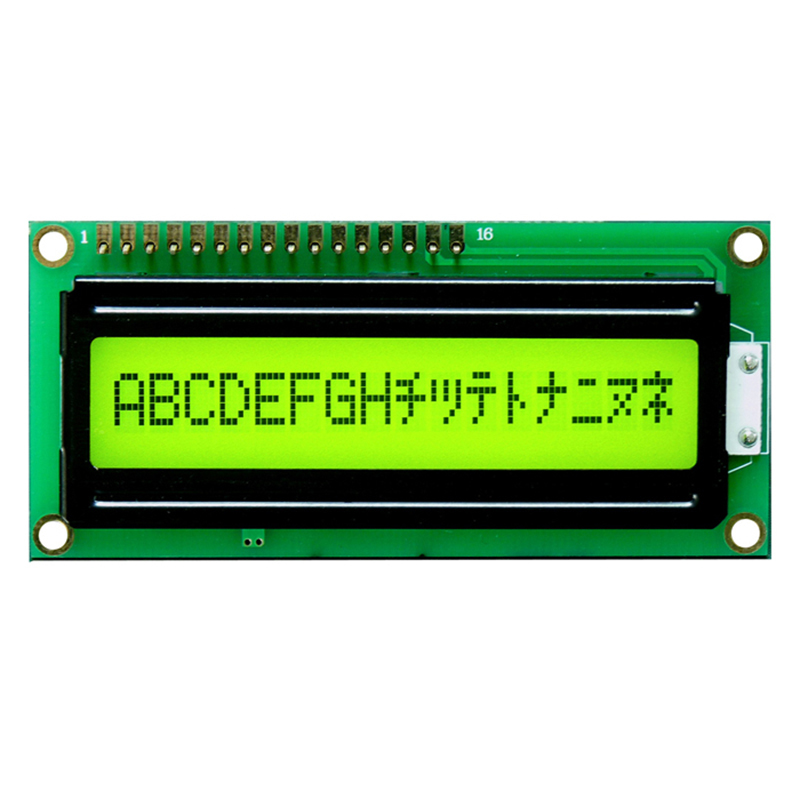

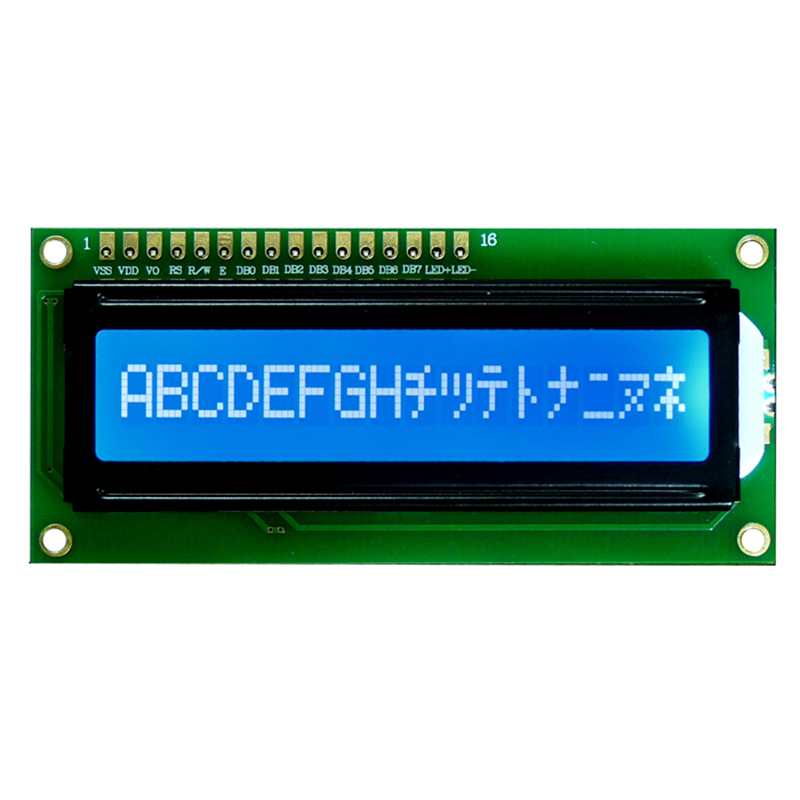

Factory Price Big 1601 lcd display 16x1 Character Blue 16 Pin LCD Module

Item No.: RP1601A-1
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description
 Factory Price Big 1601 lcd display 16x1 Character Blue 16 Pin LCD Module

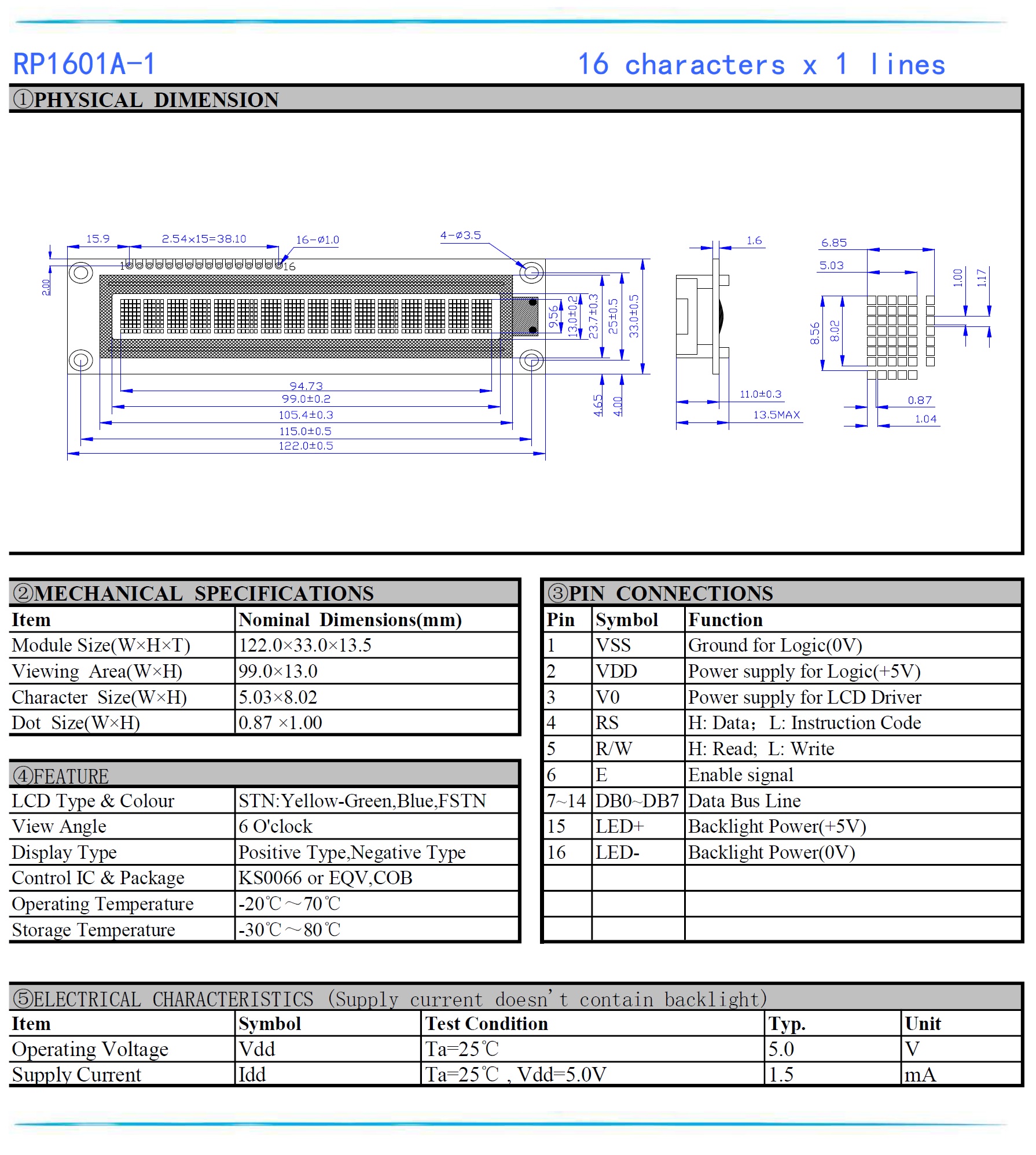

Model: RP1601A-1
Dots: 16 x 1
LCM Type COB
Module Size 122 x 33x 13.5mm
Viewing Area 99 x 13 mm
Character Size 5.03 x 8.02 mm
Dot Size(W*Hmm) 0.87 x 1.00 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
