Character LCD Display

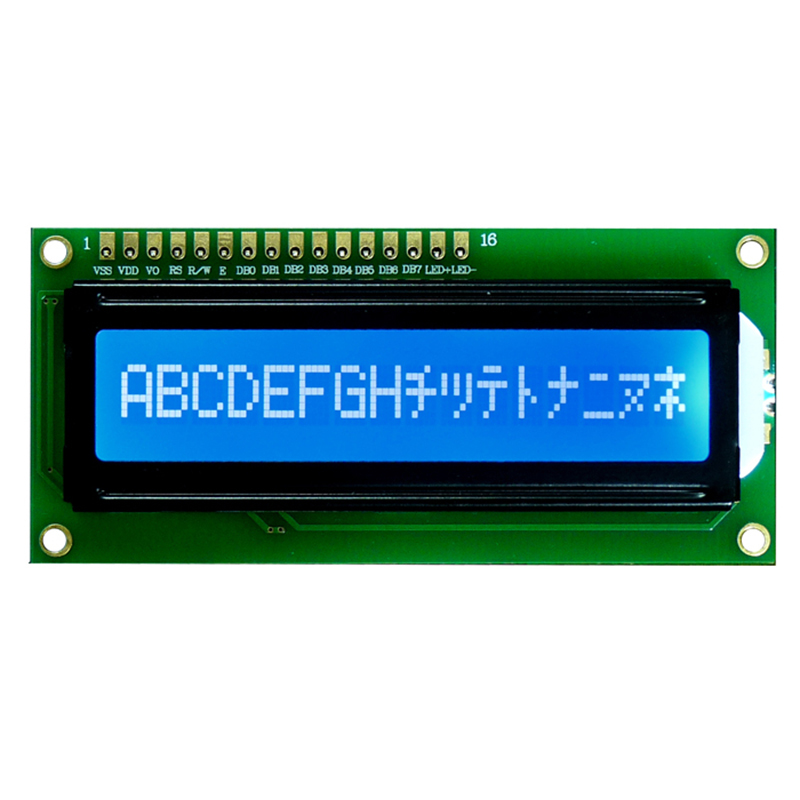

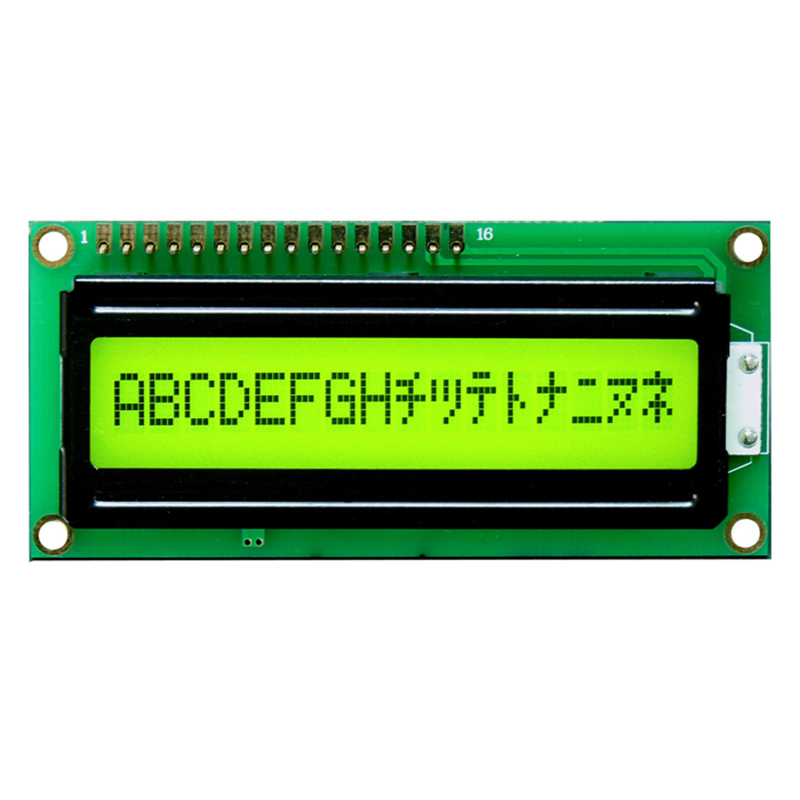

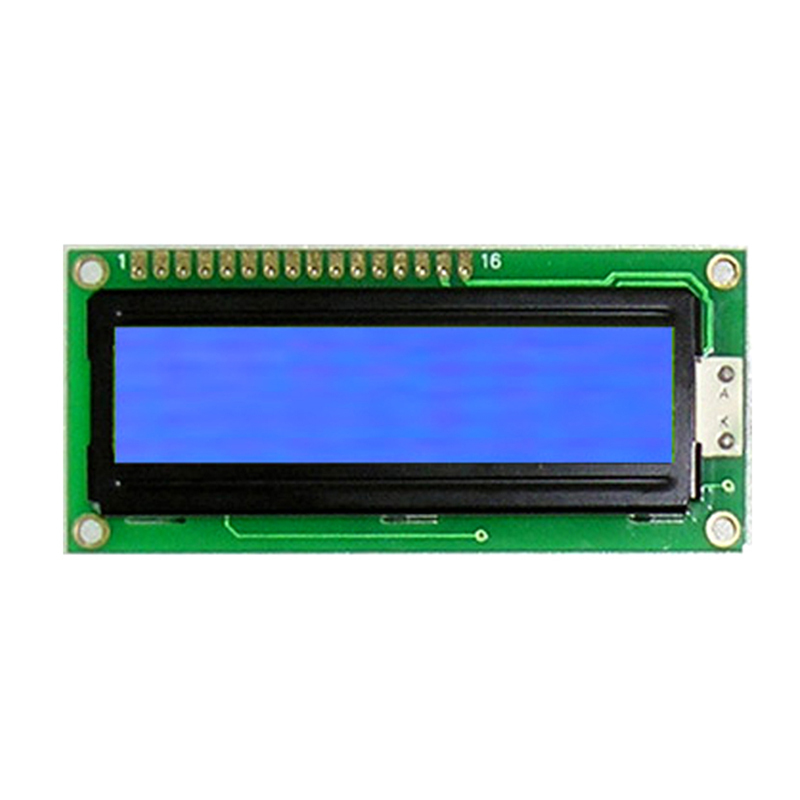

Character LCD Stn Blue 5V 16X1 COB Character LCD Display

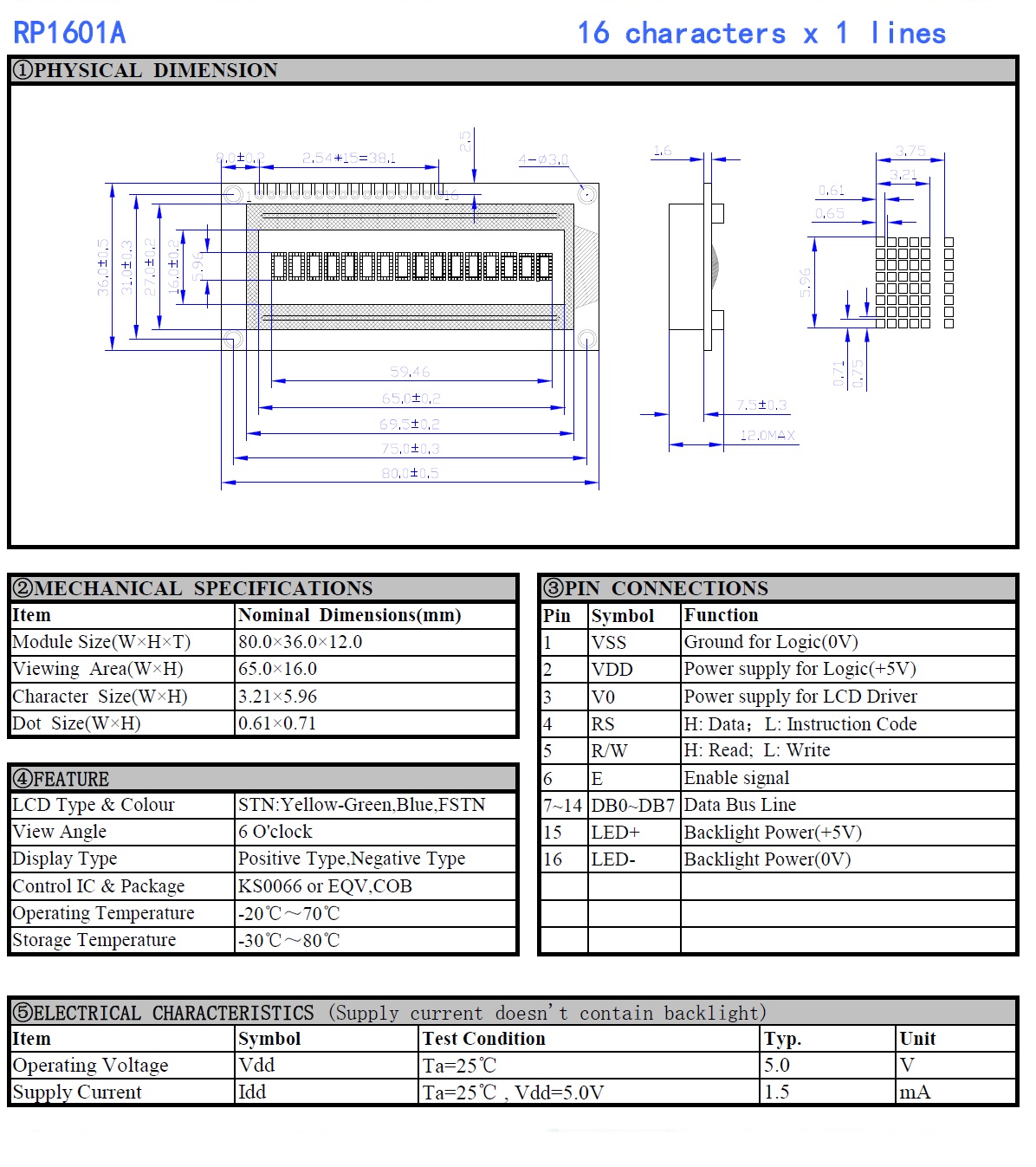

Model: RP1601A
DotS: 16 x 1
Module size: 80 x 36 x 12mm
Viewing Area: 65 x 16 mm
Description
 Character LCD Stn Blue 5V 16X1 COB Character LCD Display
Model: RP1601A
Dots: 16 x 1
LCM Type COB
Module Size 80 x 36 x 12mm
Viewing Area 65 x 16 mm
Character Size 3.21 x 5.96 mm
Dot Size(W*Hmm) 0.61 x 0.71 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
