Character LCD Display

Factory price lcd 0802 0802a portable lcd module lcd 8x2

Item No.: RPB0802A
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description

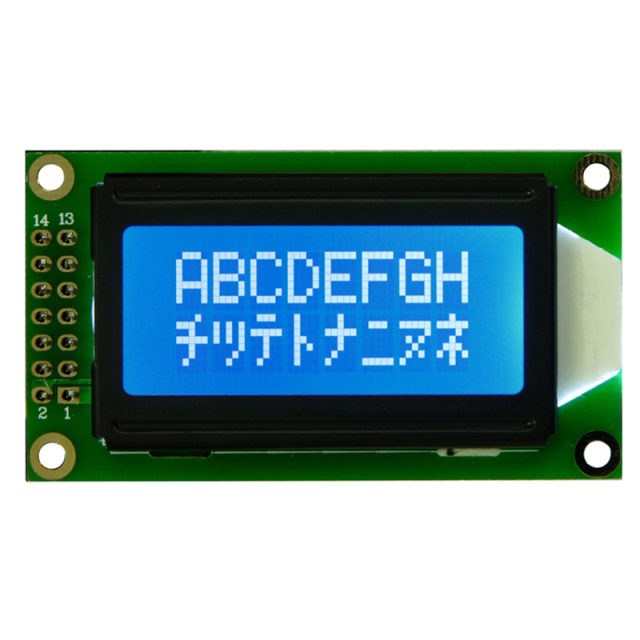

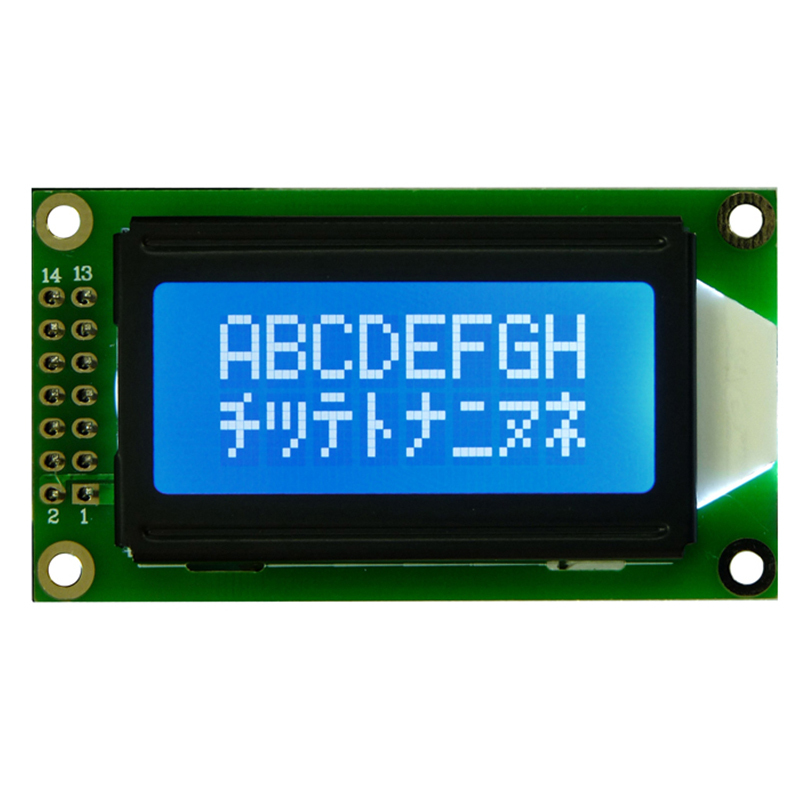

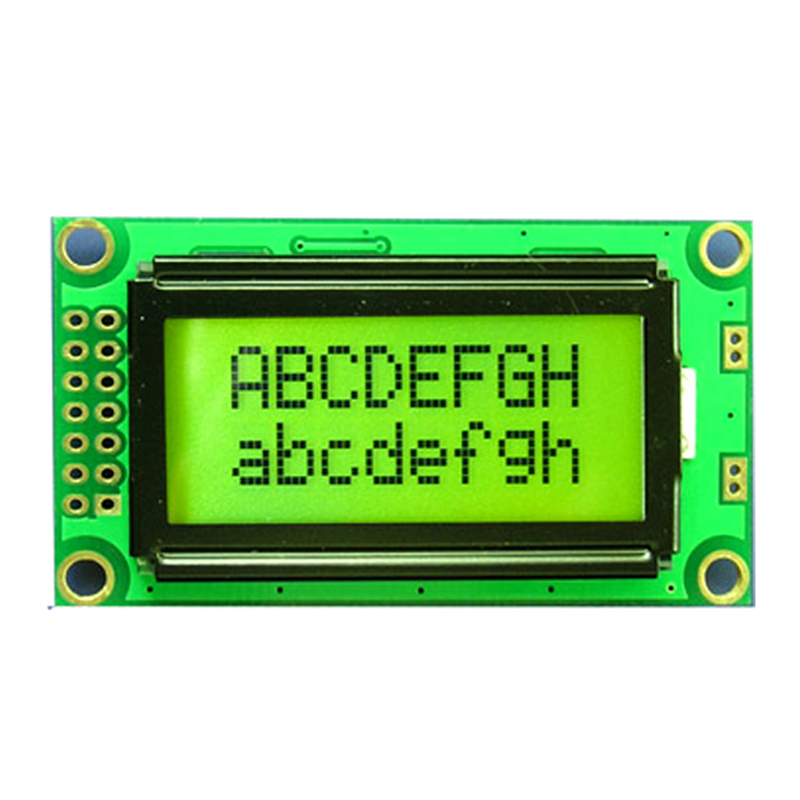

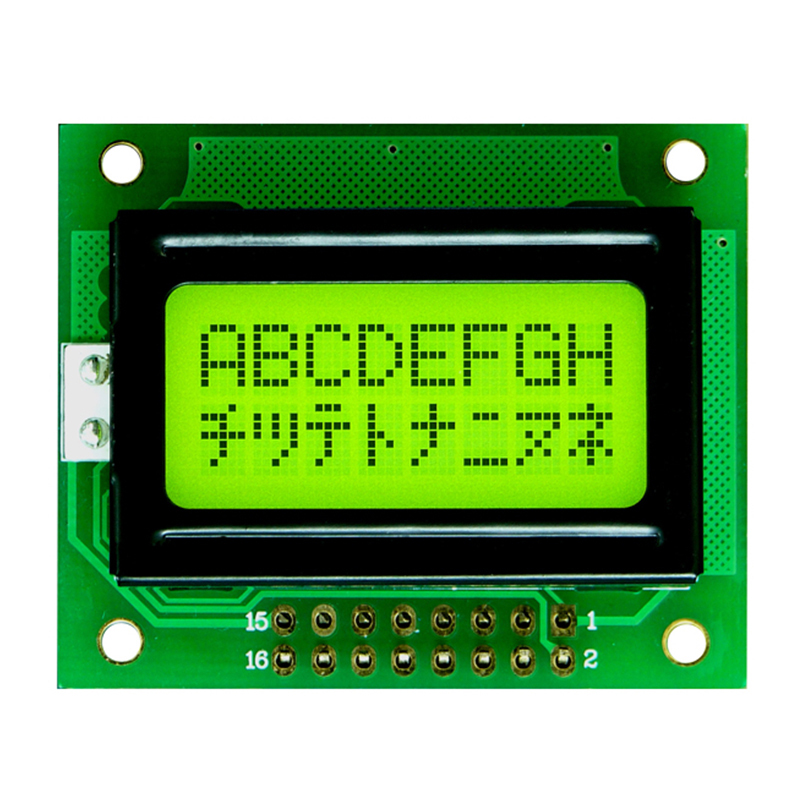

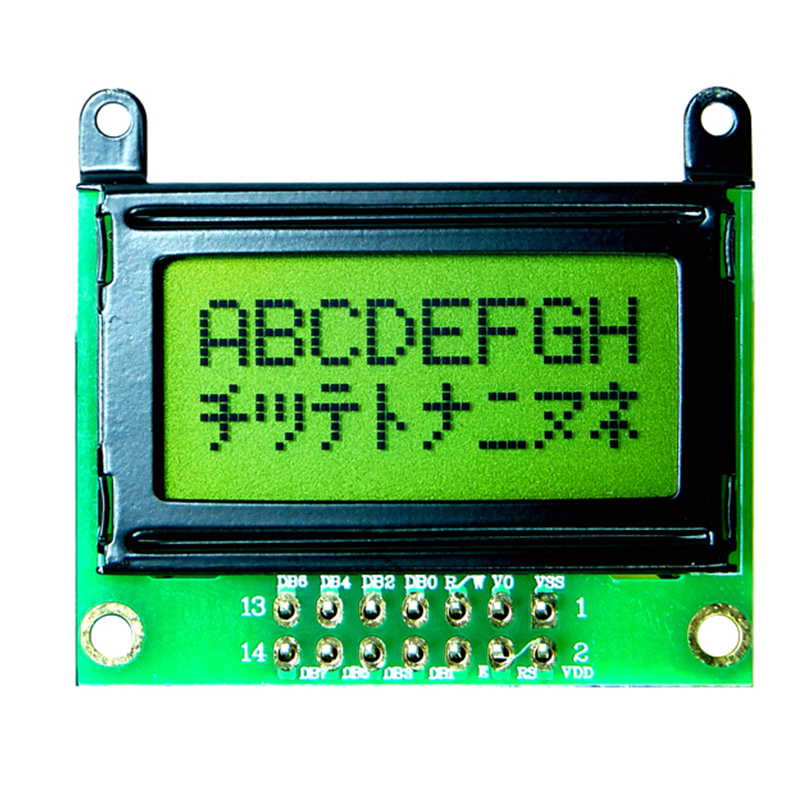

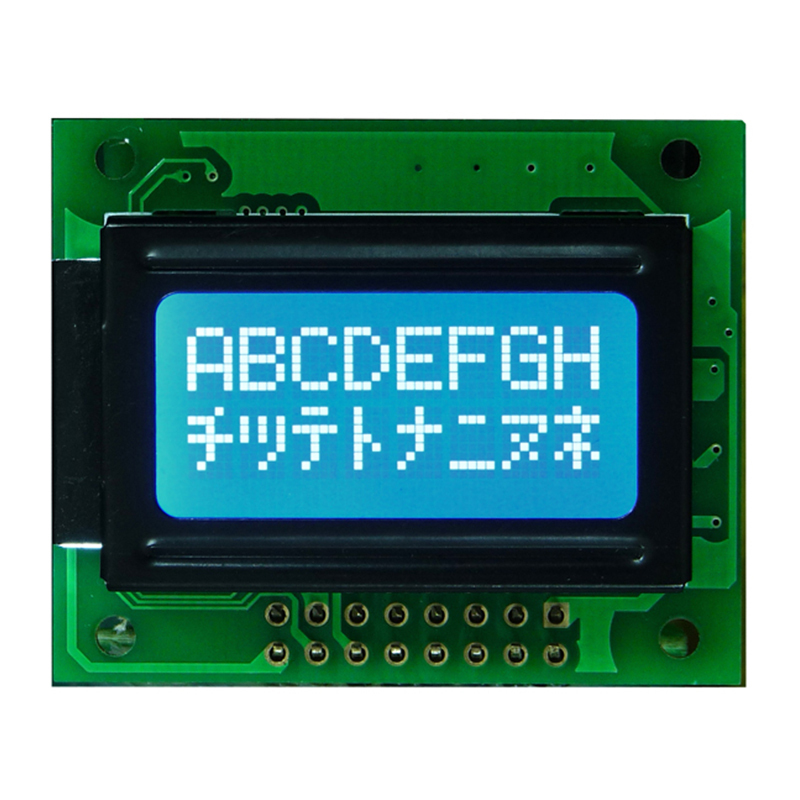

 Character lcd display module 0802 lcd 8x2 stn Blue/yellow-green mode
Model: RPB0802A
Dots: 8 x 2
LCM Type COB

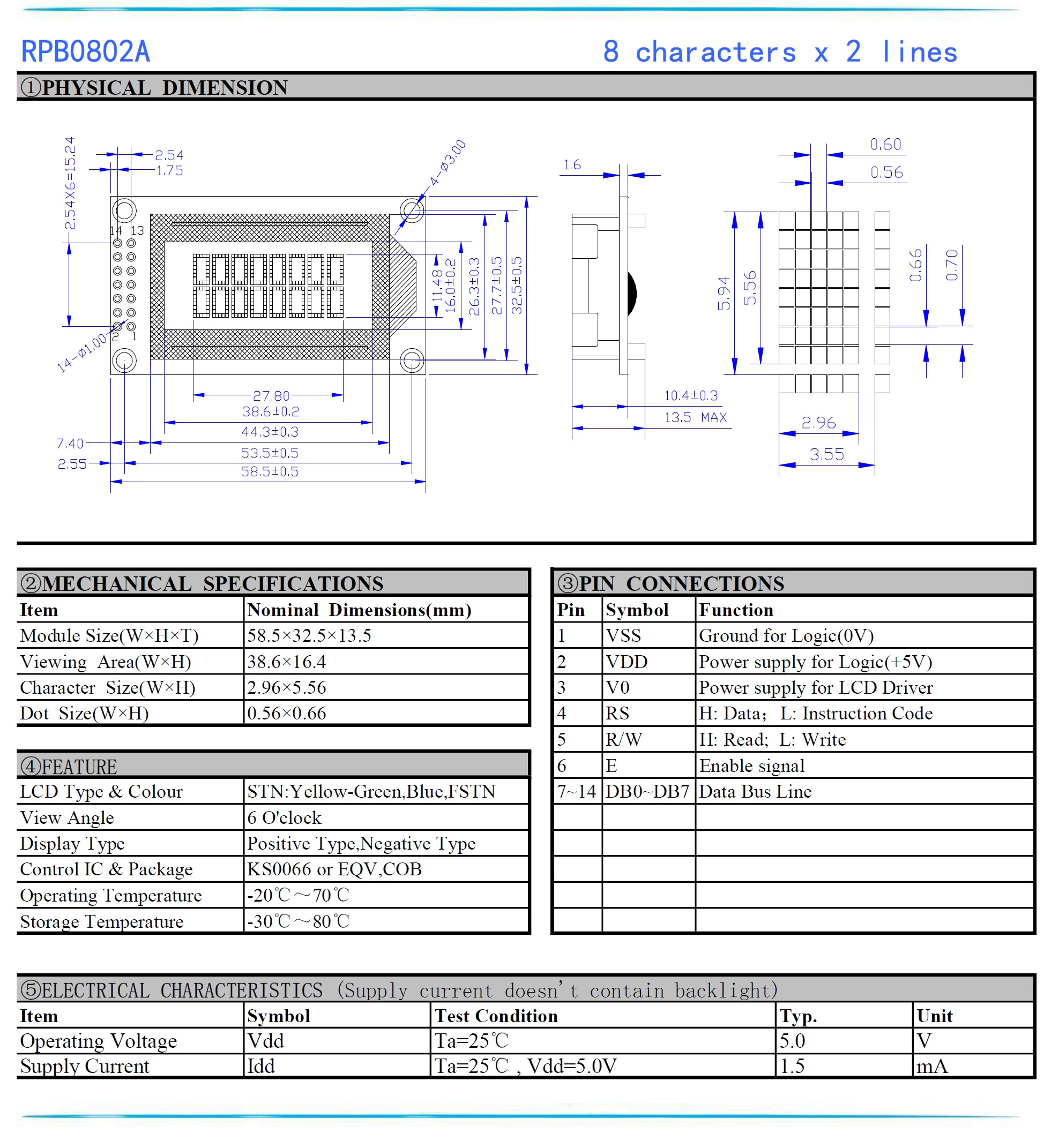

Module Size 58.5 x 32.5 x 13.5mm
Viewing Area 38.6 x 16.4 mm
Character Size 2.96 x 5.56 mm
Dot Size(W*Hmm) 0.56 x 0.66 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -10 ~ +70ºC
