Character LCD Display

Character lcd 2002 20x2 STN/FSTN COB lcd display module

Item No.: RP2002A
Model: RP2002A
DotS: 20 x 2

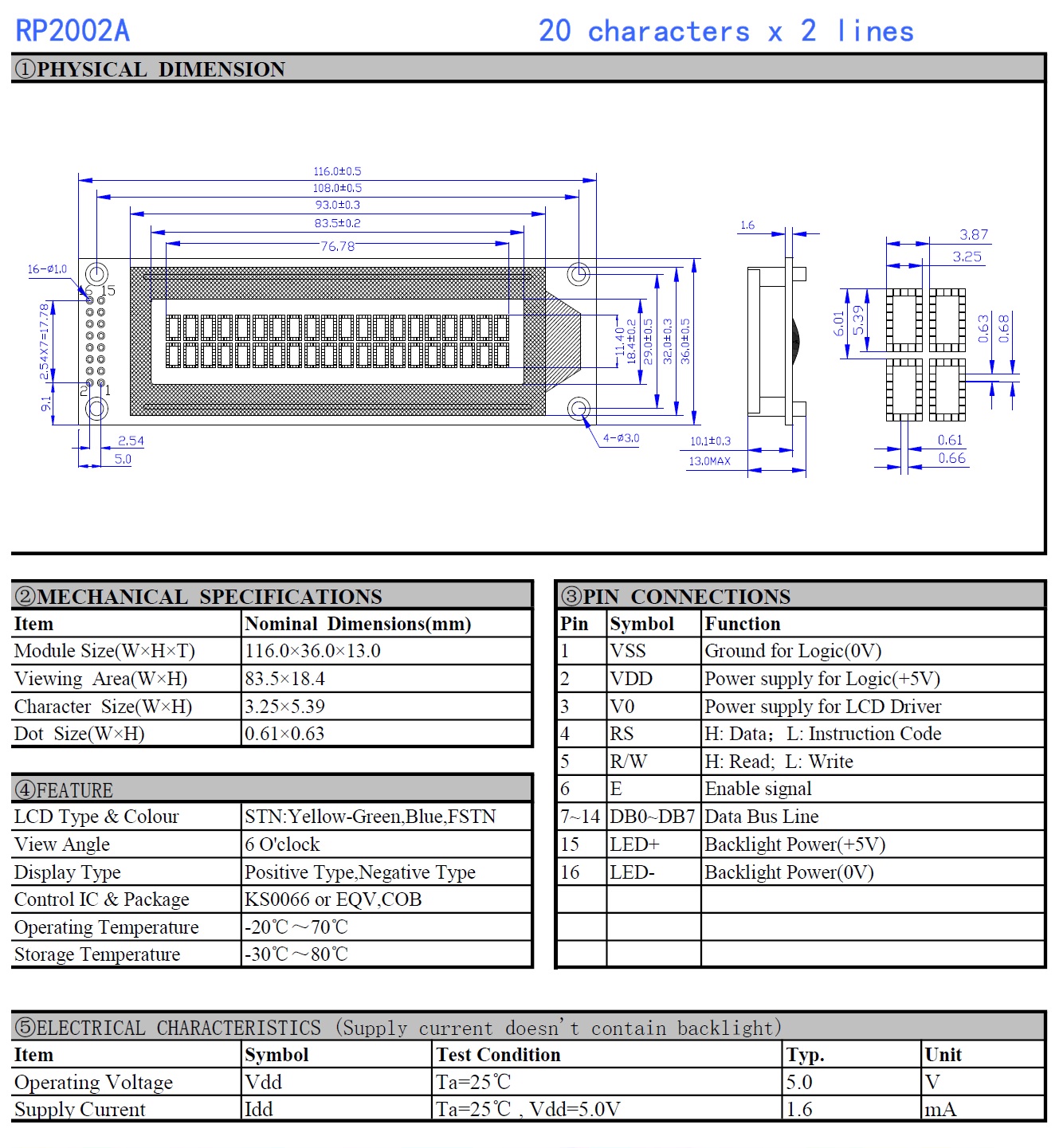

Module size: 116 x 36 x 13mm
Viewing Area: 83.5 x 18.4 mm
Description

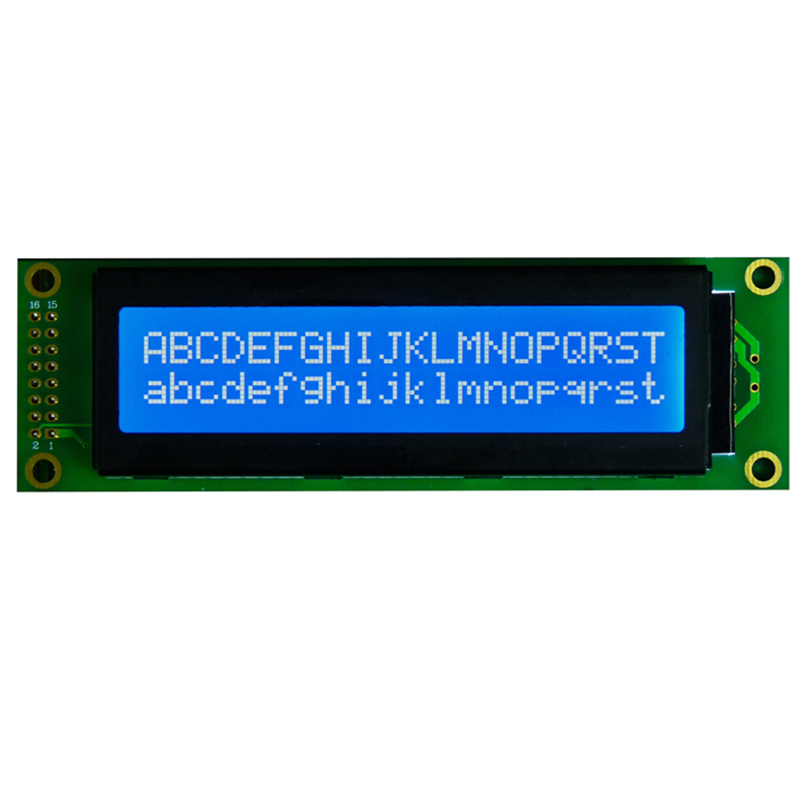

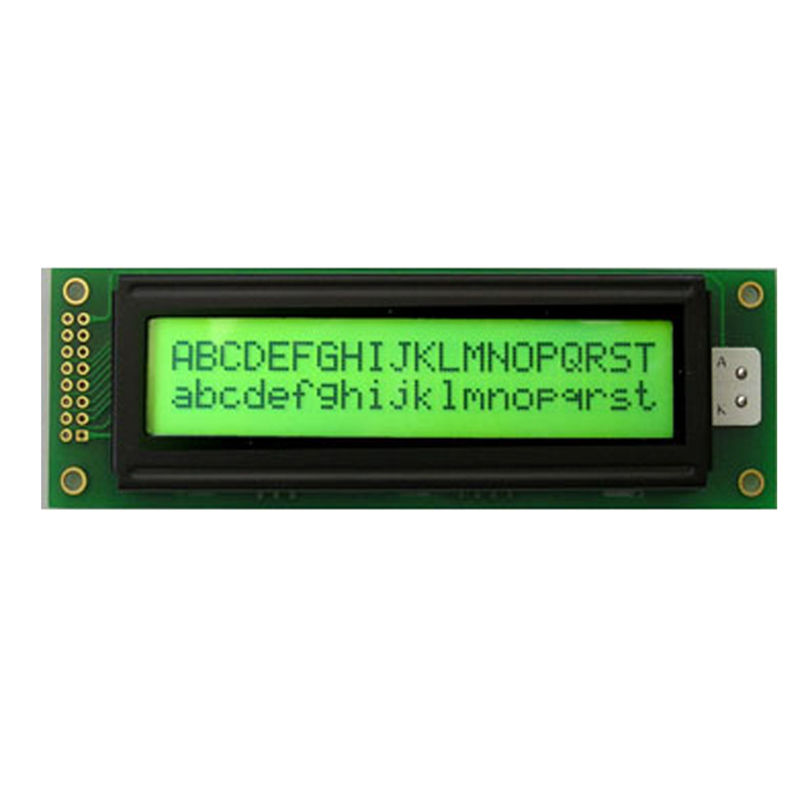

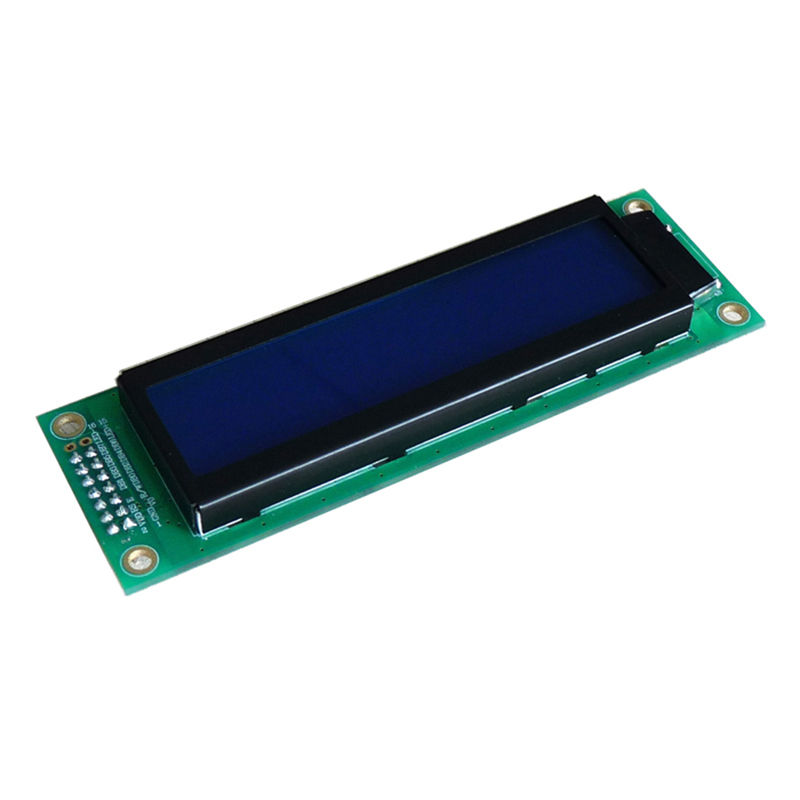

 Character lcd 2002 20x2 STN/FSTN COB lcd display module
Model: RP2002A
Dots: 20 x 2
LCM Type COB
Module Size 116 x 36 x 13mm
Viewing Area 83.5 x 18.4 mm
Character Size 3.25 x 5.39 mm
Dot Size(W*Hmm) 0.61 x 0.63 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type TRANSMISSIVE
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
