Character LCD Display

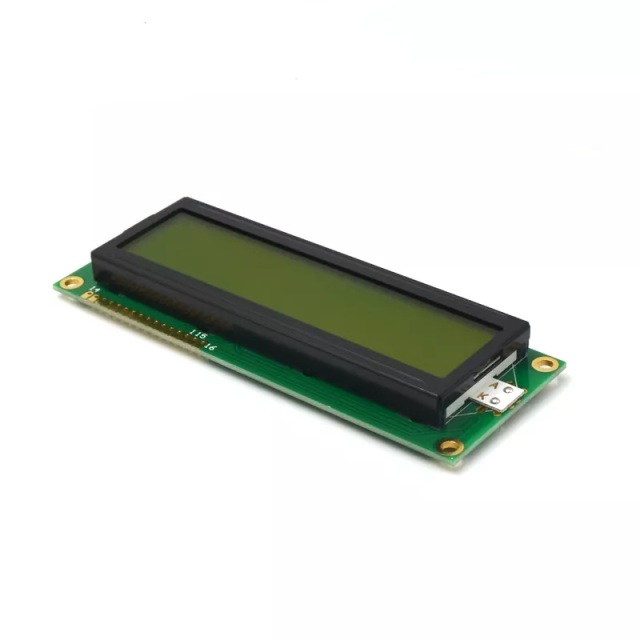

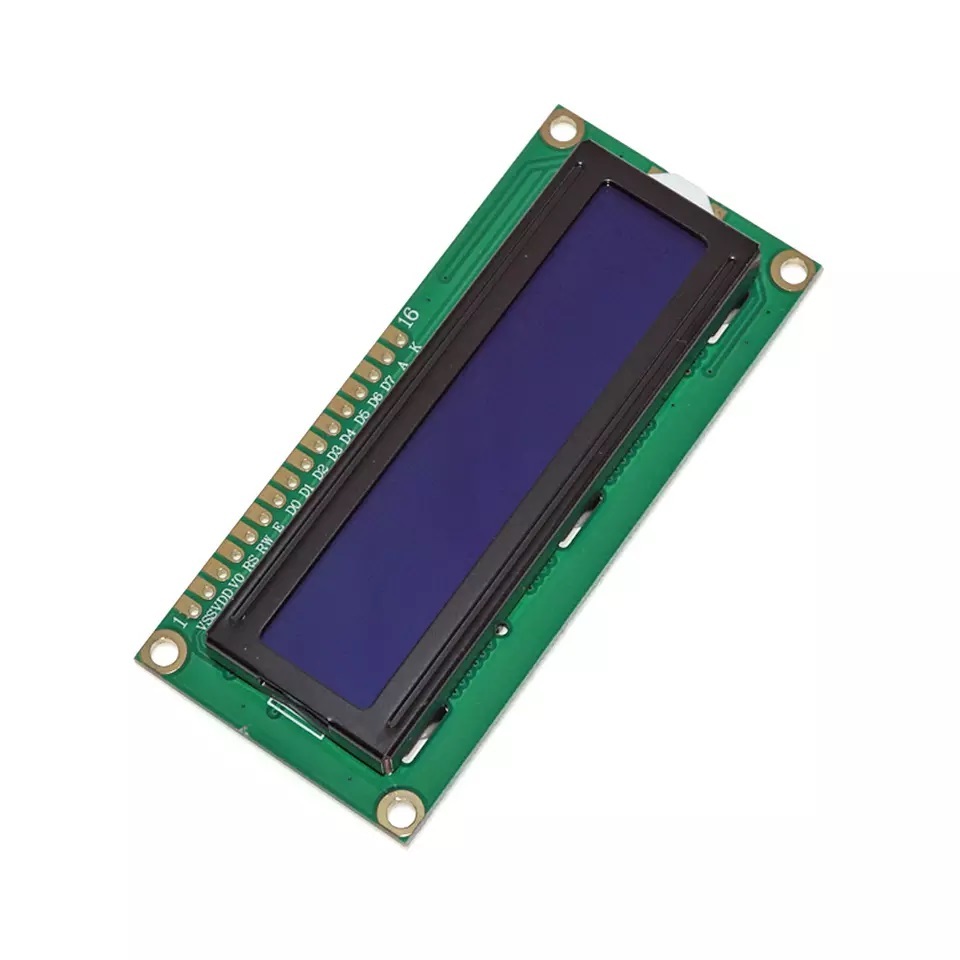

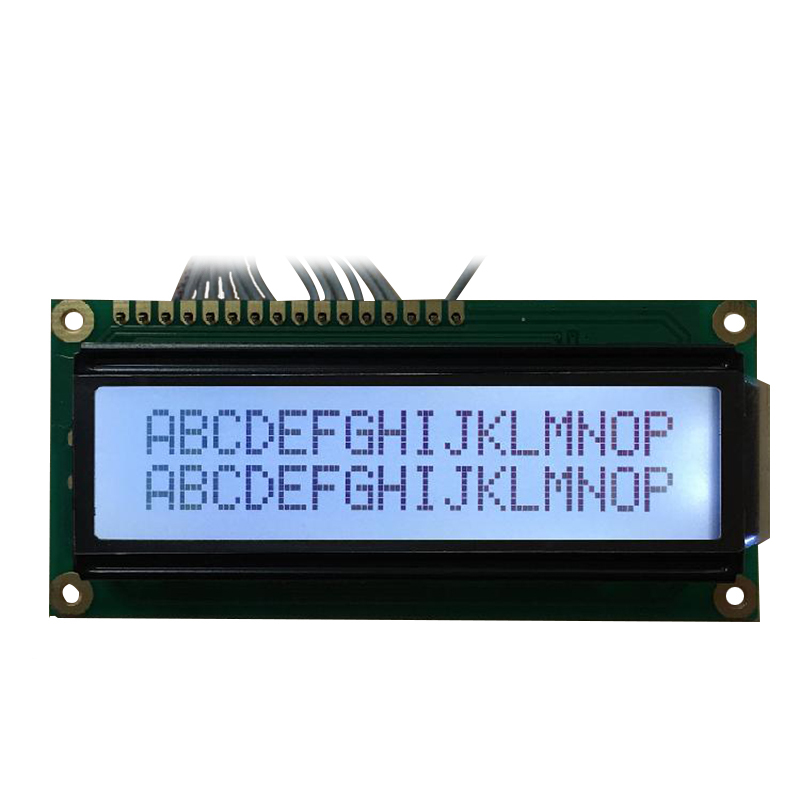

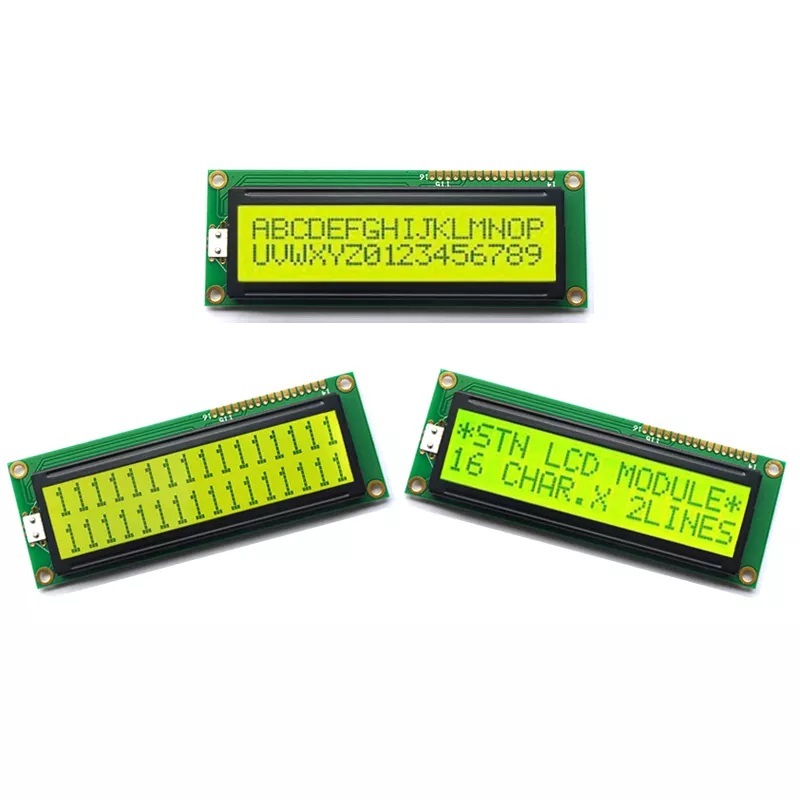

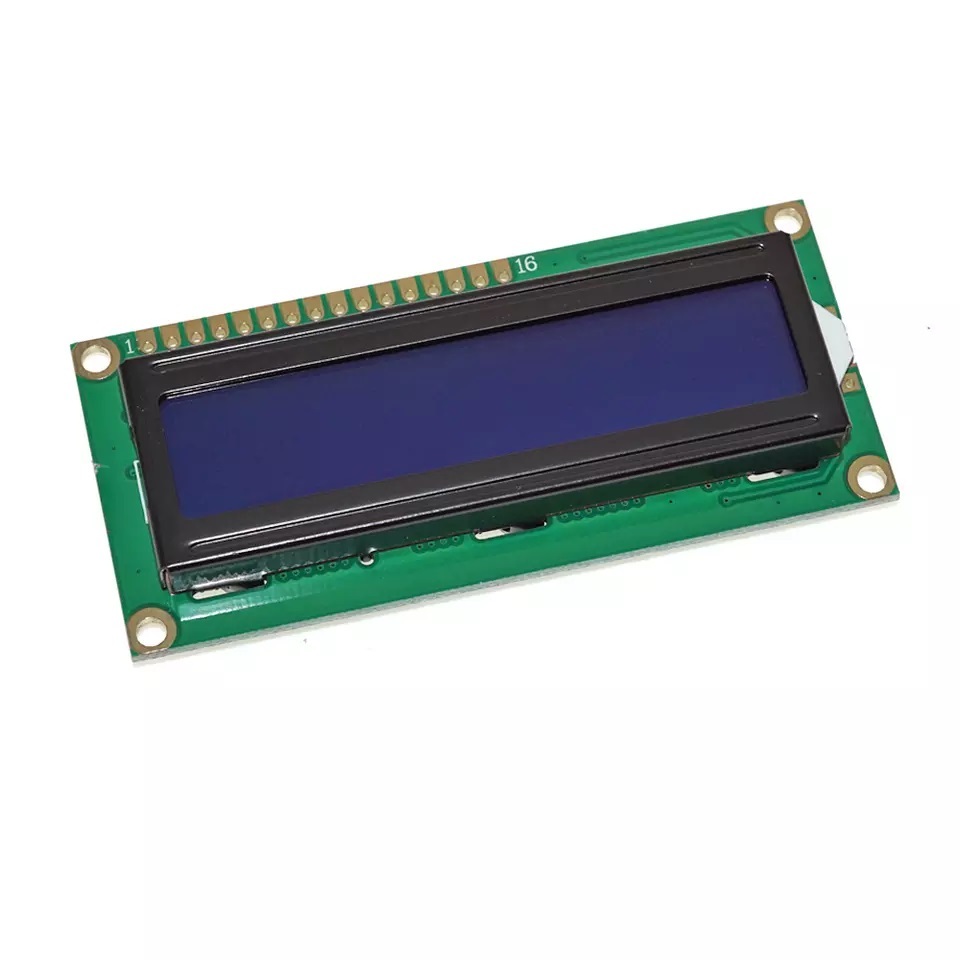

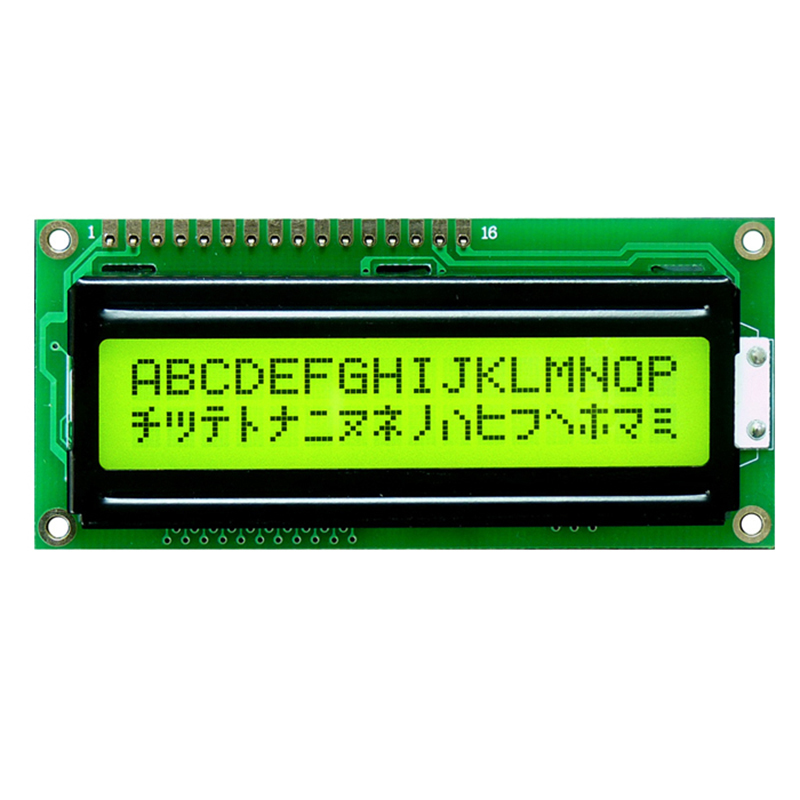

Character 1602 Lcd Display Module 16x2 Monochrome Display

Item No.: RP1602B
Reaper LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and
Description
Character 1602 Lcd Display Module 16x2 Monochrome Display
Model: RP1602B

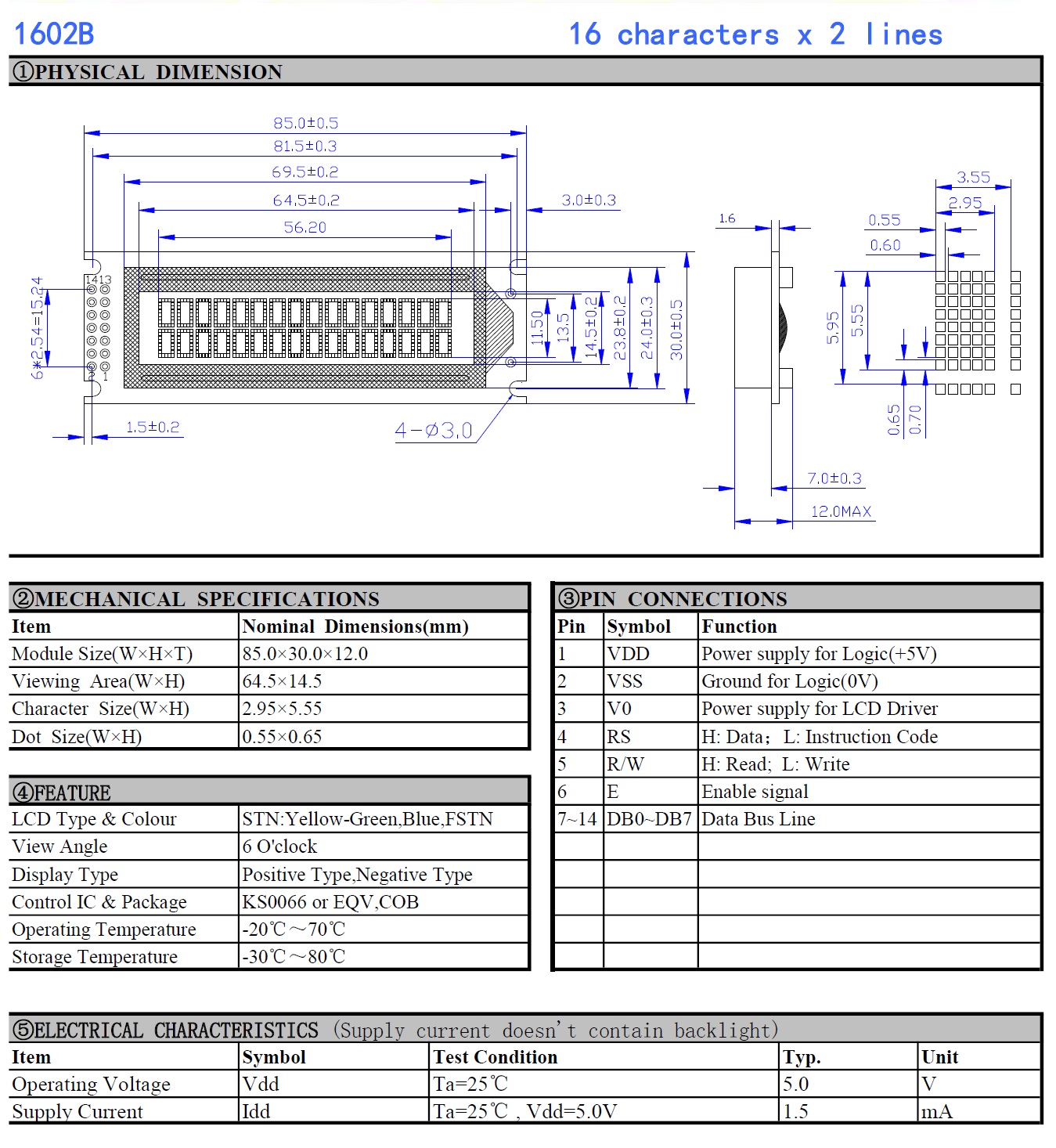

Dots: 16 x 2
LCM Type COB
Module Size 85 x 30 x 12mm
Viewing Area 64.5 x 14.5 mm
Character Size 2.95 x 5.55 mm
Dot Size(W*Hmm) 0.55 x 0.65 mm
Controller KS0066 or equivalent
LCD Type FSTN,STN BLUE/Y-G
Display Type Positive or Negative
Operating Voltage 5V
Storage Temperature: -20 ~ +70ºC
