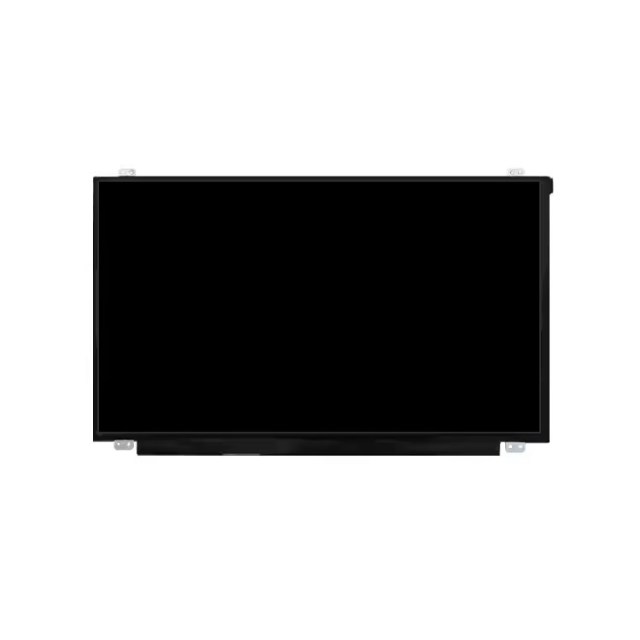

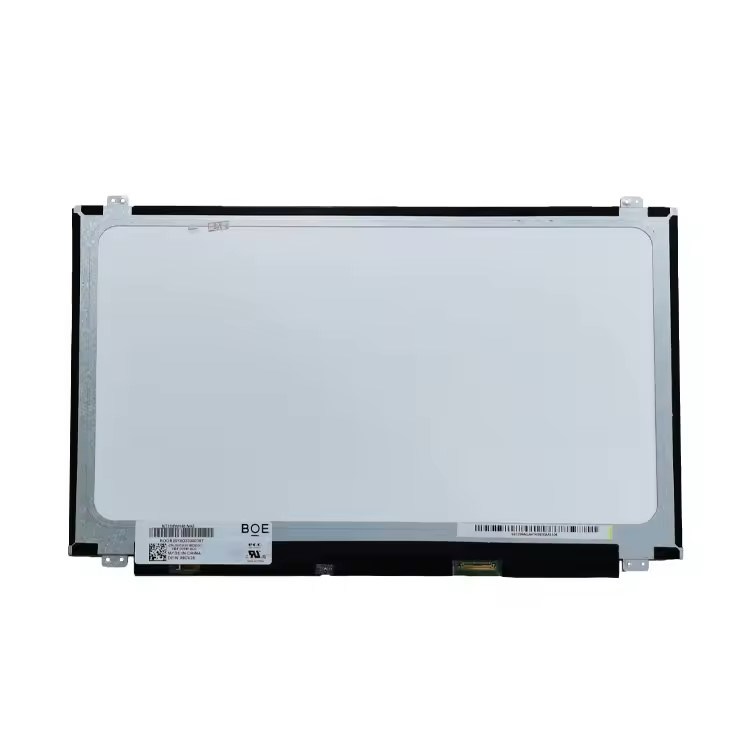

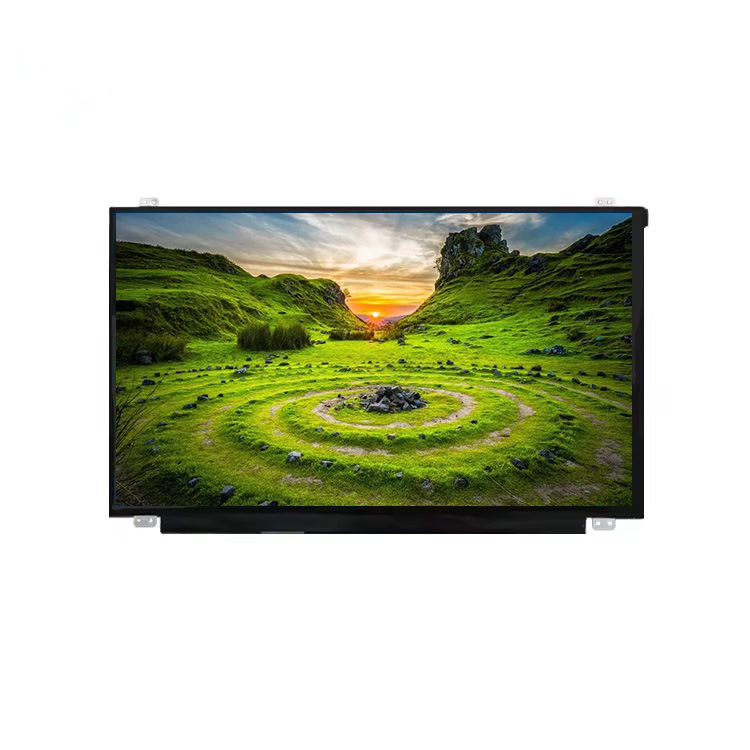

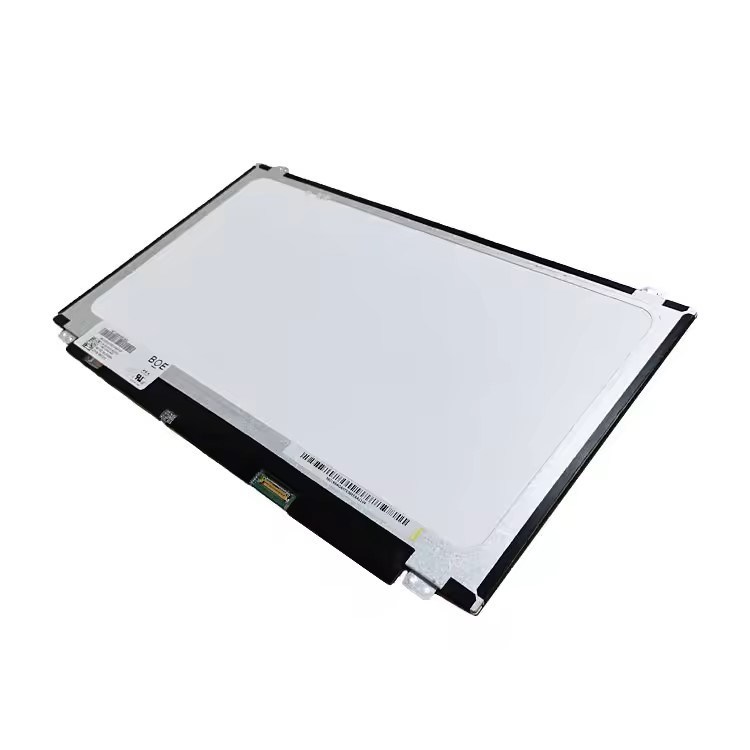

Boe 15.6 Inch 1366X768 HD Slim Edp 30pin LCD Screen Nt156whm-N42 Display PC Computer LCD Monitor Laptop Screen
| Module number |
NT156WHM-N42 |
| Brand |
BOE |
| Size |
15.6 inch |
| Type |
a-Si TFT-LCD, LCM |
| Application |
laptop |
| Pixel Number |
1366(RGB)×768(WXGA) |

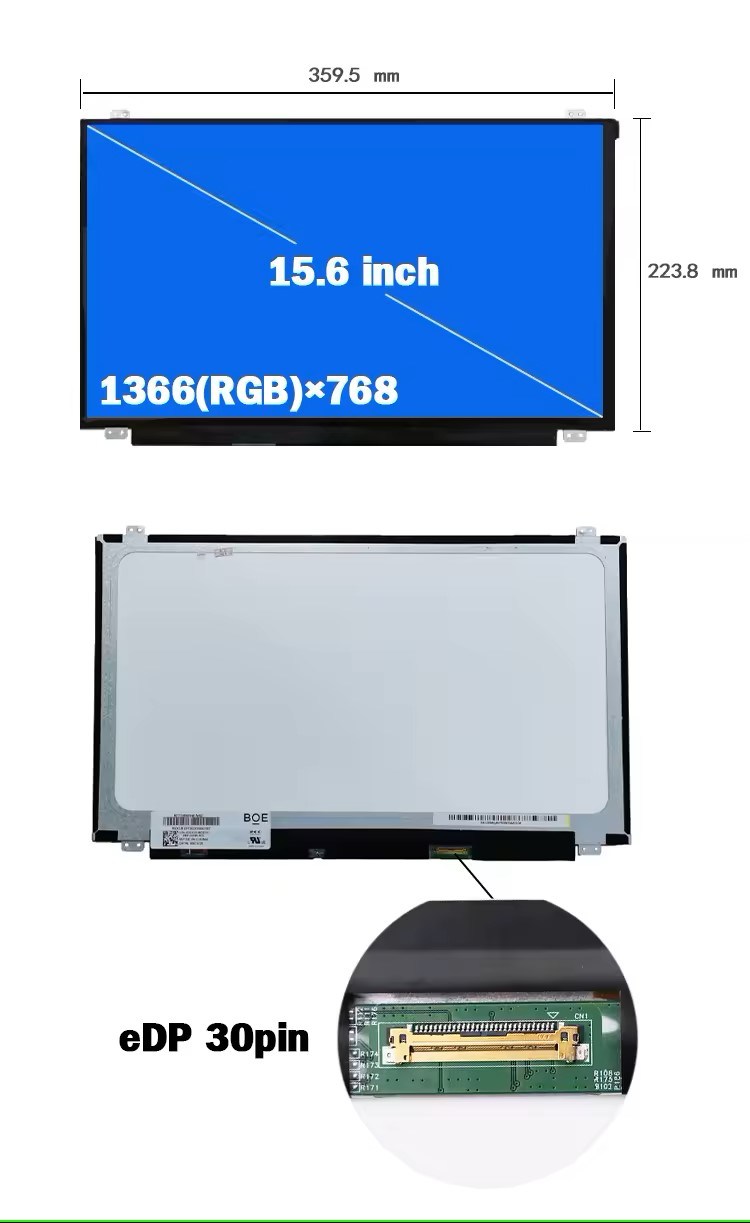

| Outline Dim(mm) |
359.5×223.8mm (H×V) |
| Active Area(mm) |
344.16×193.59mm (H×V) |
| Depth(mm) |
3.05/3.2(Max.) mm |
| Shape Style |
Slim(PCBA Flat, T≤3.2mm) |
| Aspect Ratio |
16:9(H:V) |
| Surface Treatment |
Antiglare,Hard coating (3H) |
| Luminance(cd/m²) |
220cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| Viewing Angle |
45/45/20/40(Typ.)(CR≥10) |
| Work Mode |
TN, Normally White, Transmissive |
| Response Ratio |
12(Typ.)(Tr+Td) (ms) |
| Color Depth |
262K(6-bit) |
| Refresh Rate |
60Hz |
| Video Connector |
EDP 30pins |
|
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
