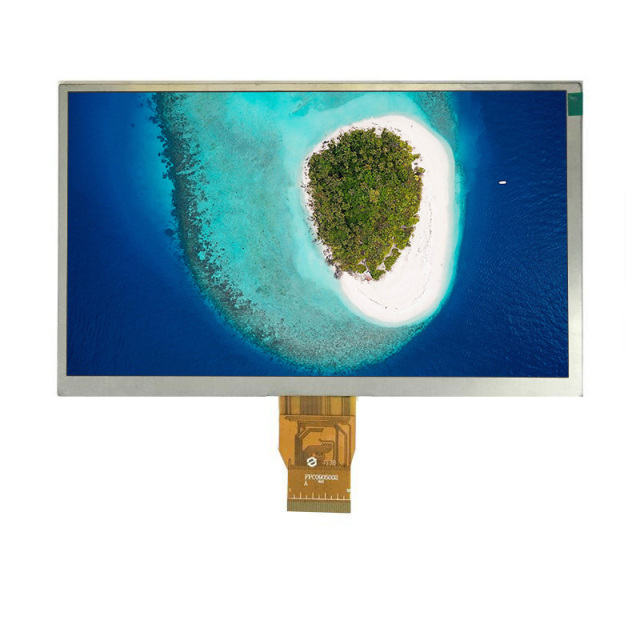

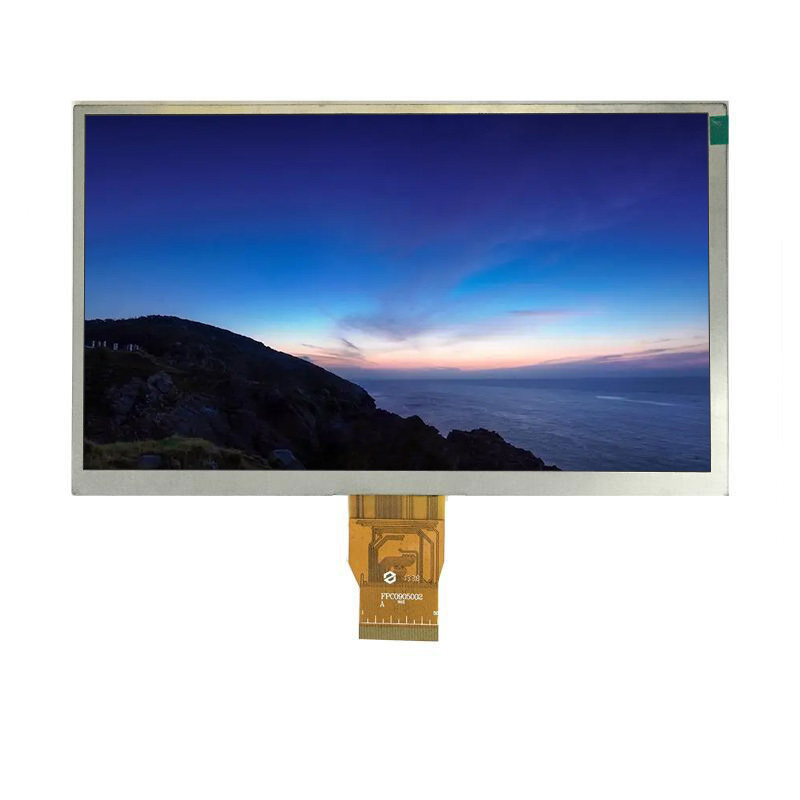

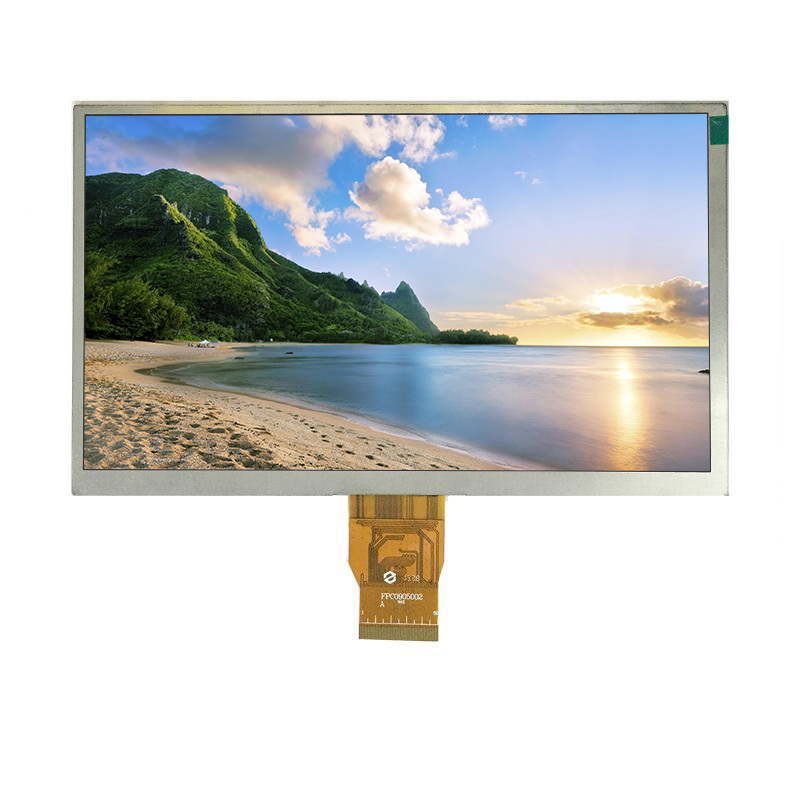

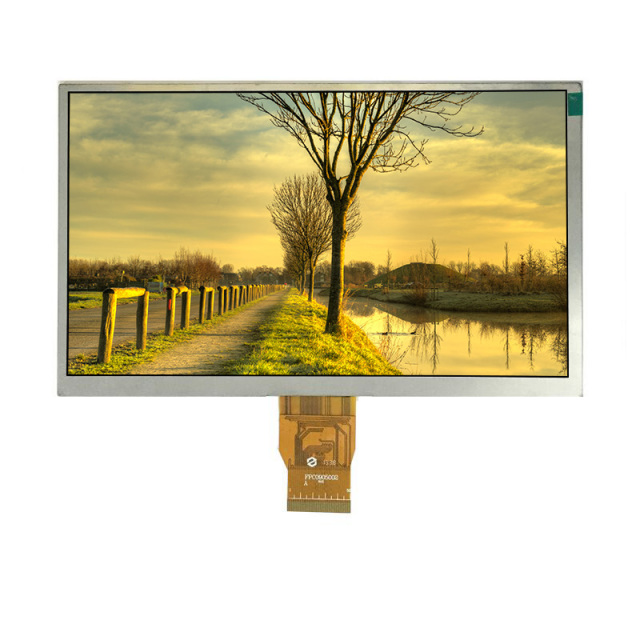

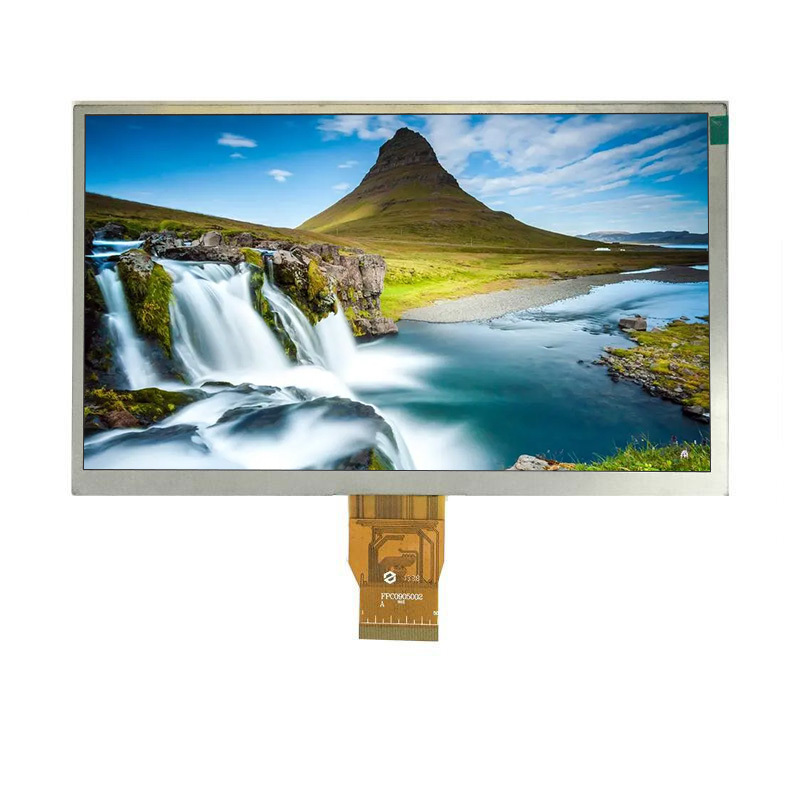

9.0 inch TFT LCD Display Module Digital Interface Optional Touch Screen

9.0 inch TFT LCD display,it is can be assembled with RTP and CTP,it is used to smart device,lcd monitor,industrial application.
9.0 inch TFT LCD Display Module Digital Interface Optional Touch Screen
Module number RP-901A-102C
Resolution 800 × (RGB) × 480
Dot pitch 0.0825(w)X0.2327(H)mm
Active Area 198.000(w)x111.696(H)mm
Panel Size 206.7(w)x122.93(H)x1.43(D)
Pixel Arrangement RGB-stripe
Surface treatment Anti-Glare
Electrical Interface Digital
Brightness 450(cd/m2)
Contrast ratio 500:1
Panel power consumption 0.360W(Typ)
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -20-70(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.2M
Backlight lifetime 20k hrs(Min.)
Driver element

a-Si TFT active matrix

Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
