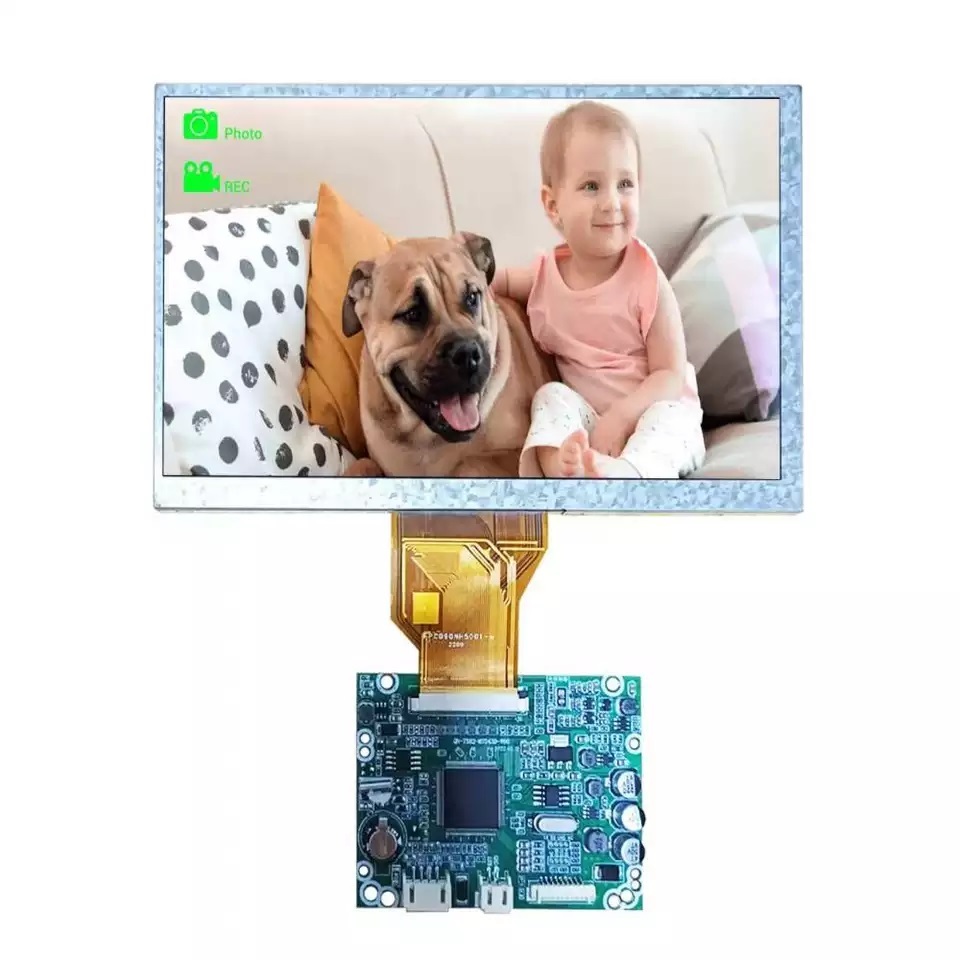

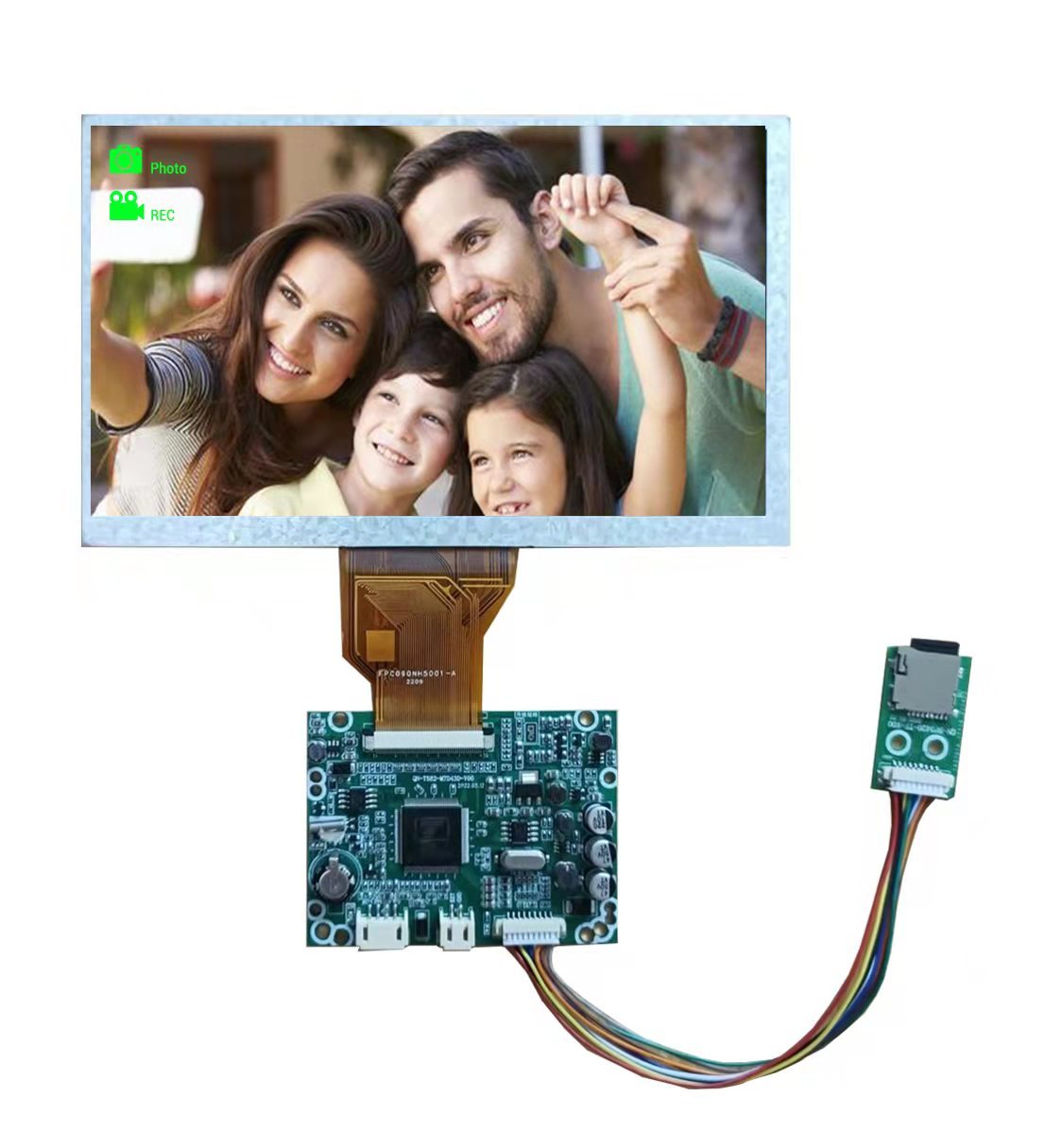

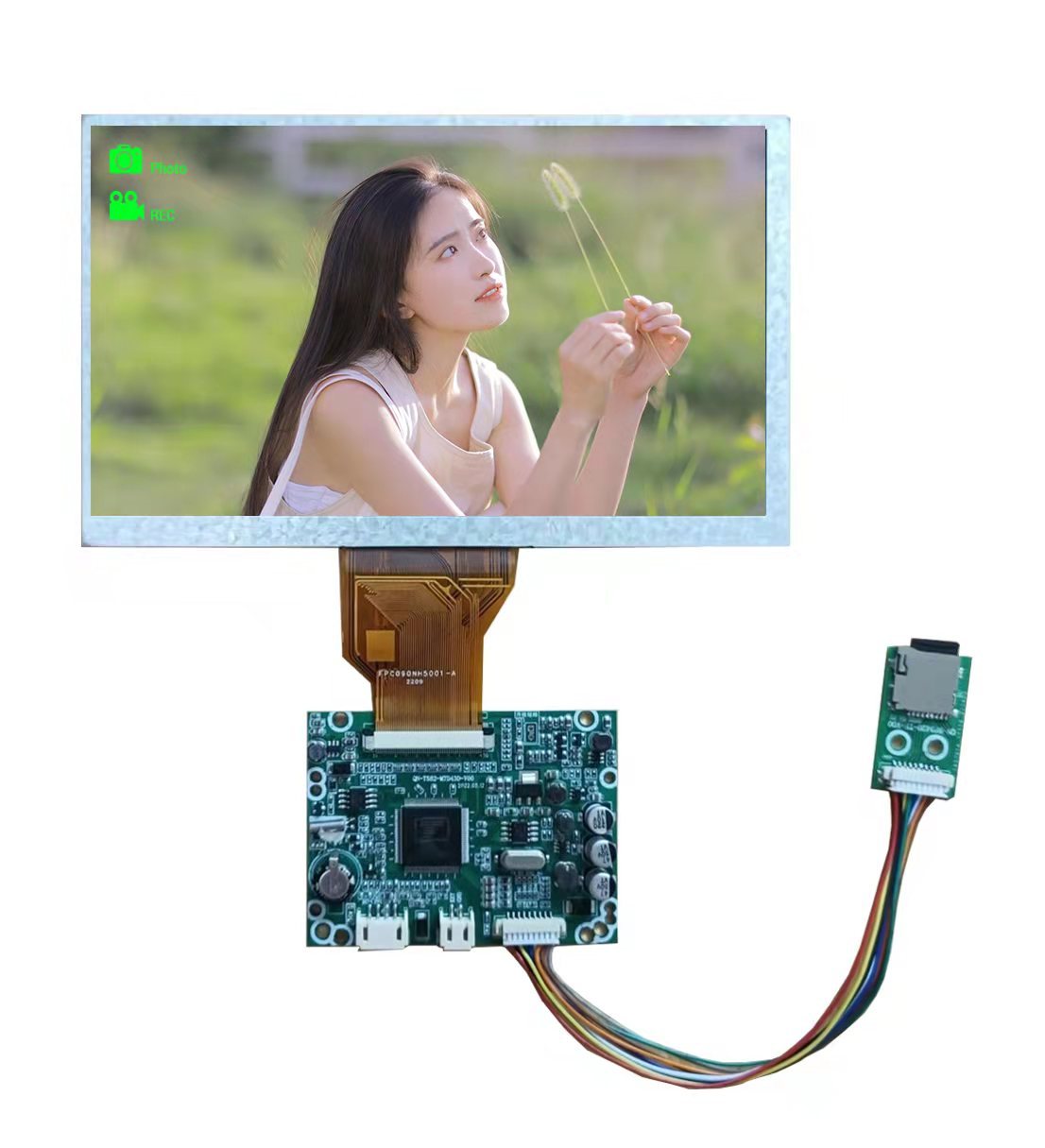

7inch Cm/HS TFT LCD Display with VDP Controller Board Apply for Home Appliance video Door Phone

Item No.: RP070MA-DVR
RP070MA-V0 TFT module is combined with 7inch lcd display
and controllerboard; support both PAL system and NTSC, which
can be automatically converted. The whole module use high light white LED as back-light,
which has low consumption and disturbances.
Description
7inch Cm/HS TFT LCD Display with DVR Controller Board Apply for Home Appliance video Door Phone

1. INTRODUCTION
RP070MA module is combined with RP01PA PCB board
and HS 7" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.

2.Features
Model: RP070MA-V0
Application Video Door Phone
Resolution 800*3(RGB)*480
Start Time 1.6±0.5 Sec
Signal Interface  PAL/NTSC
Signal Amplitude Min 0.5Vp-p/Standard: 1.0Vp-p  Max: 2.0Vp-p
Adjust Type  VR and KEY
Working Voltage Min:DC 9V/Standard: DC12V  Max: DC18V
Working Current DC 260mA±20mA (DC12V)
Power Consumption 2.2W(TYP)
Viewing Angle(U/D/R/L) (50/70/70/70)
Panel Outline Dimensions 165.0(W)*100.0(H)*3.5(T)mm
ESD Level Contact +/-6KV,Air  +/-8KV
Operating Temperature: -20 ~ +55ºC
Storage Temperature: -30 ~ +65ºC



Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
