7.5 Inch 800*480 Pixels Display Module E-Paper Epaper Display Screen E-Ink Display

Name: 7.5 Inch 800*480 Pixels Display Module E-Paper Epaper Display Screen E-Ink Display
Brand: reaperlcd
SKU: RPDEPG75001
Availability: InStock
Rating: 5 (1 reviews)

No.RPDEPG75001

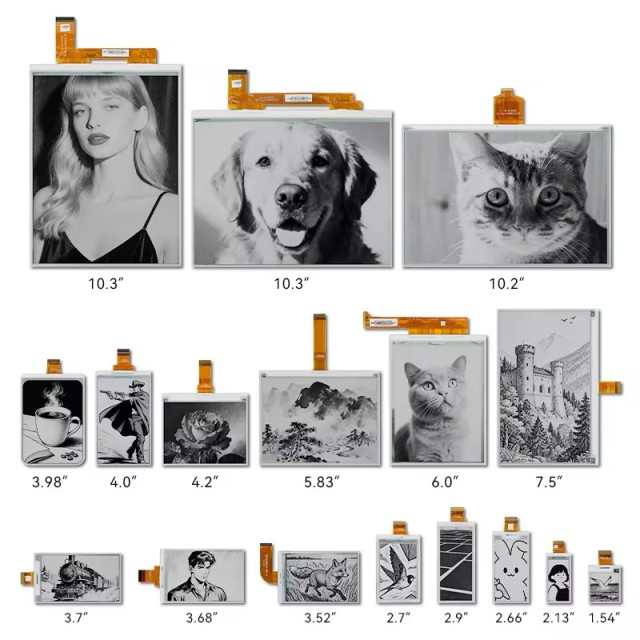

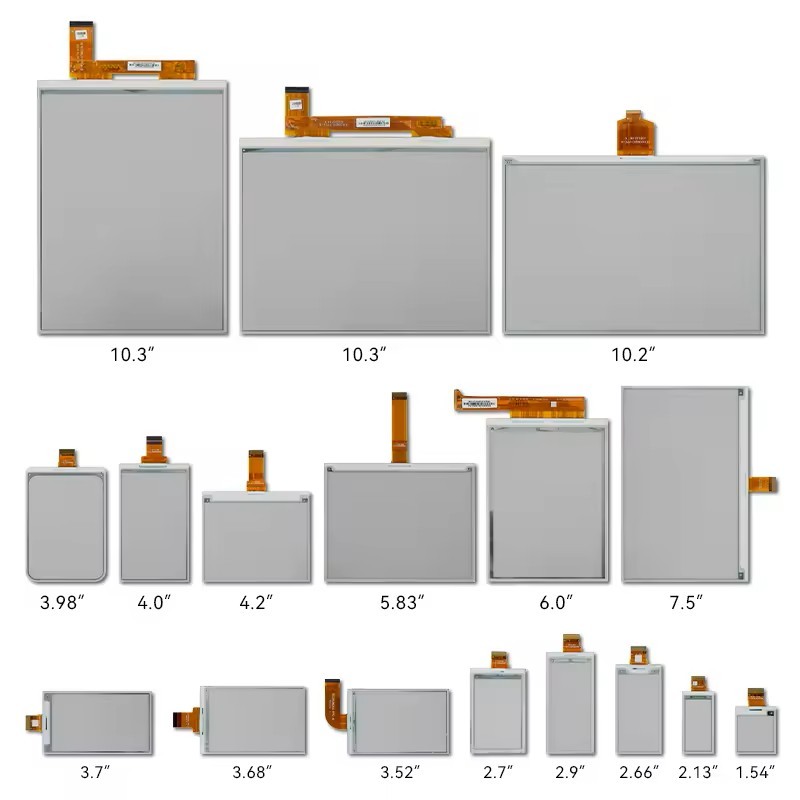

Reaper standard E-paper display are available in various sizes from 2.13" to 13.3' E-paper, such as 2.13", 2.9", 3.52" , 4.2" , 6 inch, 7.5 inch,10.2 inch,13.3 inch E-Ink Display. Customizable touch panel.

GET A QUOTE

Description

7.5 Inch 800*480 Pixels Display Module E-Paper Epaper Display Screen E-Ink Display

Application	RPDEPG75001
Display Size:	7.5 inch
Physical Dimension:	170.2111.21.25
Resolution:	800*480
Display Color:	Black/White/Red
Pixel Pitch	0.204*0.204
Source Category	Exist
Gray Scale:	16
Response Time	500~800ms
Communication Interface type	parellel interface
EPD Working Voltage	3.0~3.6V
CTP Power Consumption(Refresh)	33 mW
CTP Power Consumption(Sleep)	1.65 mW
Connector EPD	34 Pin FPC, Gap 0.5mm
Connector CTP	8 Pin FPC,Gap 0.5mm
weight	76g
Source Category	Exist
View Angle	Nearly 180 degree viewing angle
Operating Temp	0-50ºC
Display Technology	Dot-matrix E-ink Epaper Display
Application Scenario	Readers, Tablets
Invoice	Supply
Place of Origin	Guangdong, China

Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
