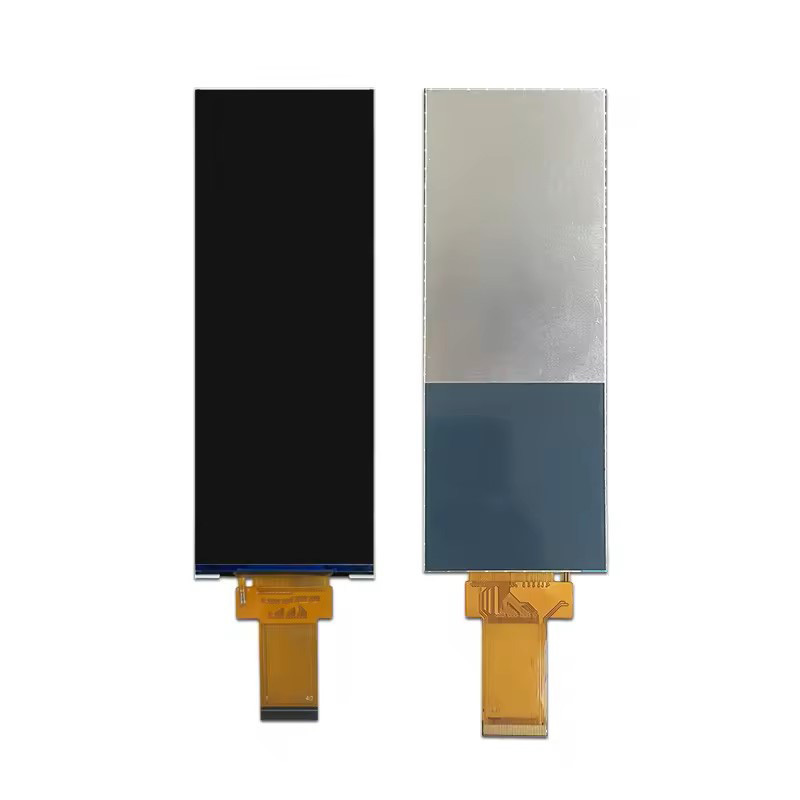

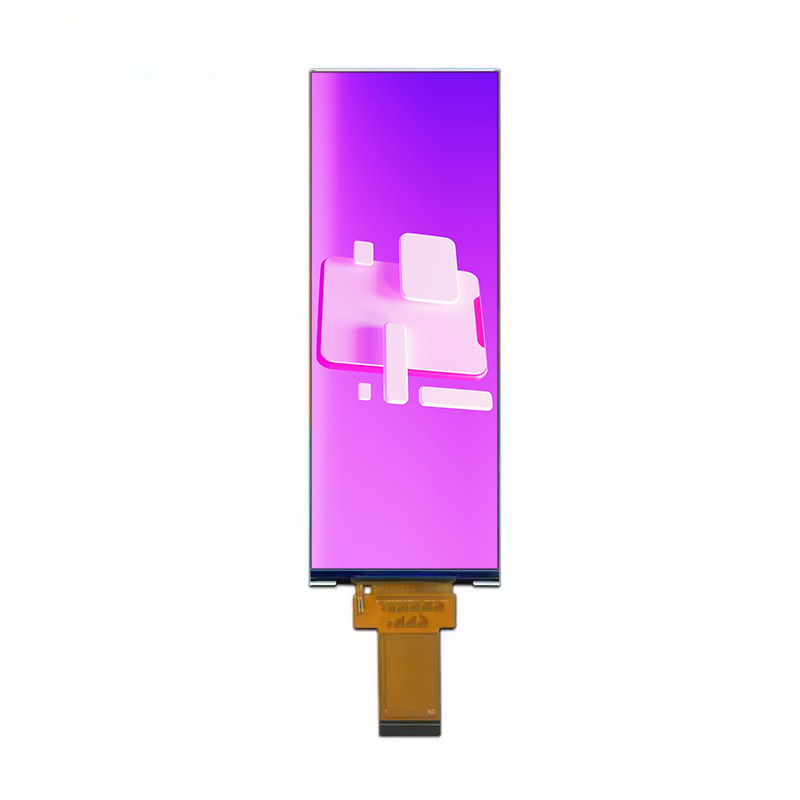

6.2 Inch 360*960 Resolution IPS TFT LCD Module Display Full View Bar LCD Screen
1. INTRODUCTION
RP620002B0 is an 6.2 inch long bar scale full color TFT LCD screen with a resolution of 360*960, IPS full view high-definition highlight effect, wide temperature -20+70 working temperature, and brightness of 800cd/m2. This product is independently designed, developed, and produced, providing professional full process technical support services, first-class production quality control, and professional after-sales service guarantee. This product is widely used in refrigerator display panels, washing machine display panels, electric vehicle dashboards, shelf advertising displays, car displays, computer sub screens, and other products.

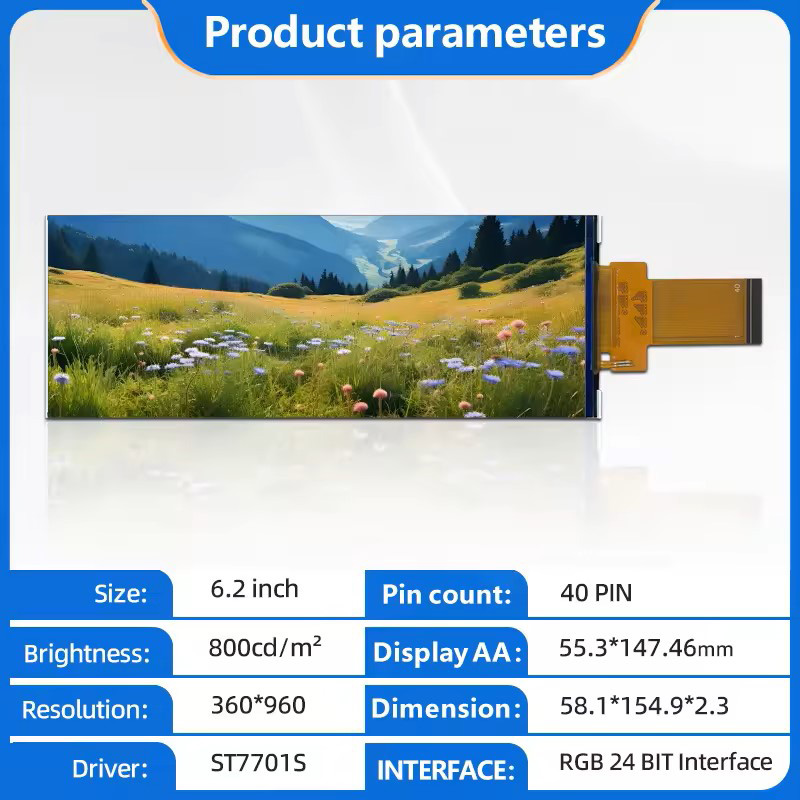

2.Features
| Model: |
RP620002B0 |
|
| Size |
6.2 |
inch |
| LCD Type |
Normally black |
|
| Drive Element |
TFT active matrix |
|
| Number of Pixels |
360*3RGB(H)X960(V) |
Dots |
| Pixel Arrangement |
RGB stripe |
|
| Pixel Pitch (W*H) |
0.1536(H) X 0.1536(V) |
mm |

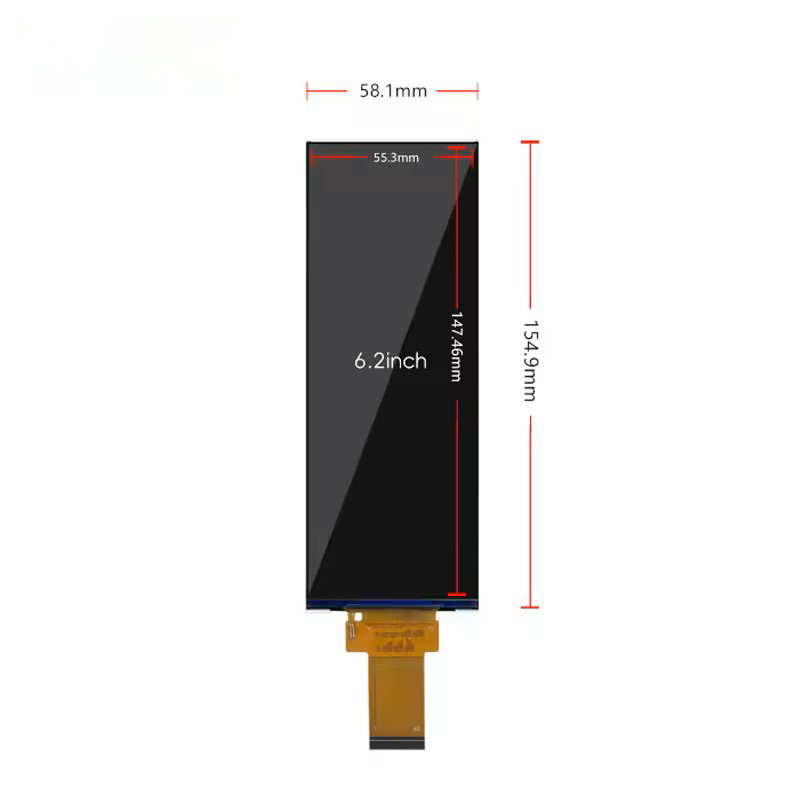

| Active Area |
55.3(H) *147.46(V) |
mm |
| LCM Mechanical Outline Size(W*H*T) |
58.1*154.9*2.3 |
mm |
| Viewing Direction |
ALL O'CLOCK |
|
| LCM Driver IC |
ST7701S |
|
| LCM Interface |
RGB 24 BIT Interface |
|
| LCM Pin Count |
40pin |
|
| Backlight LED |
12 |
pcs |
| Backlight Current |
80 |
ma |
| Backlight Voltage |
18 |
V |
| Luminance |
800 |
cd/m2 |
| Operating Temperature: |
-20 ~ +70ºC |
|
| Storage Temperature: |
-30 ~ +80ºC |
|
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
