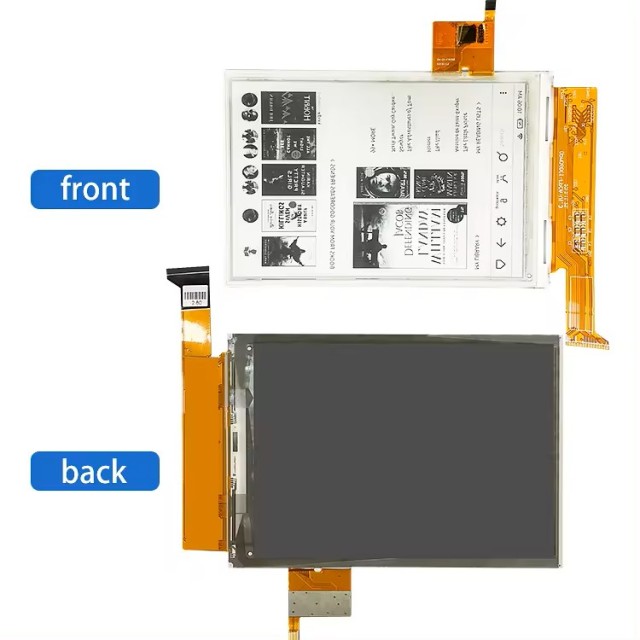

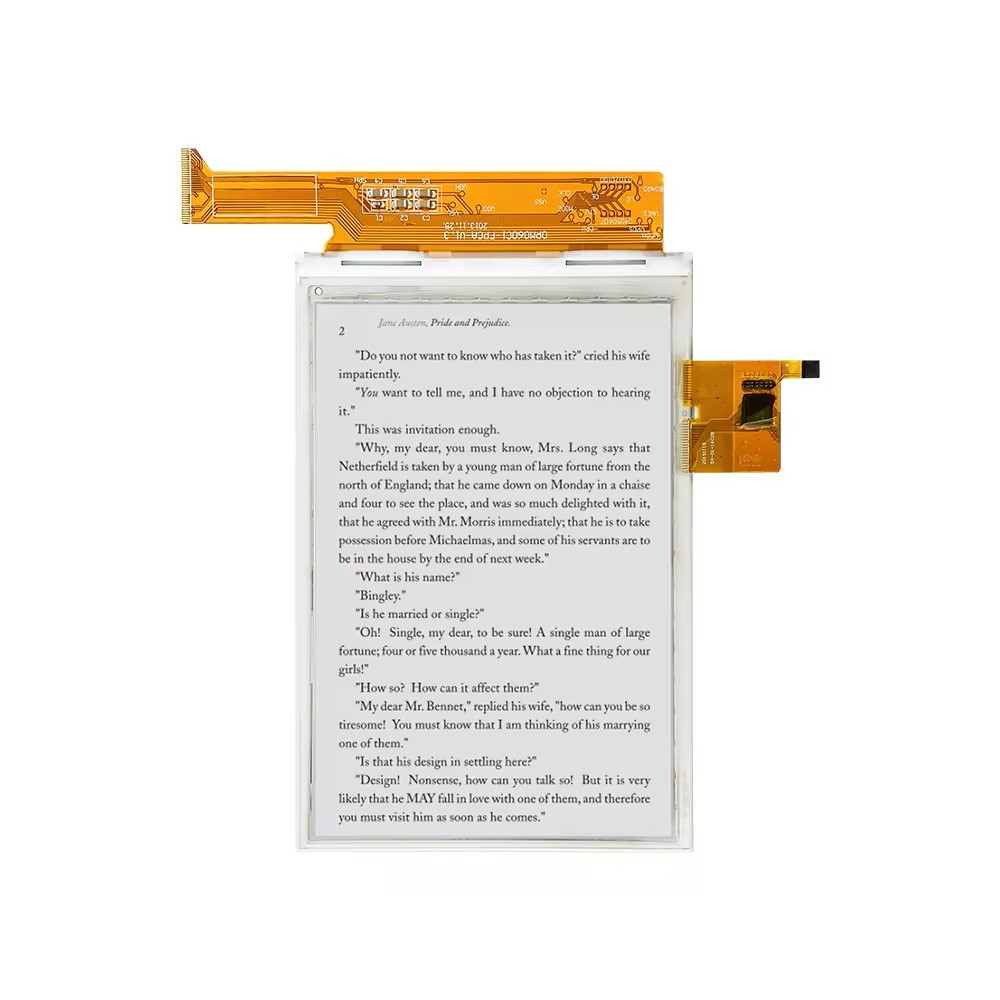

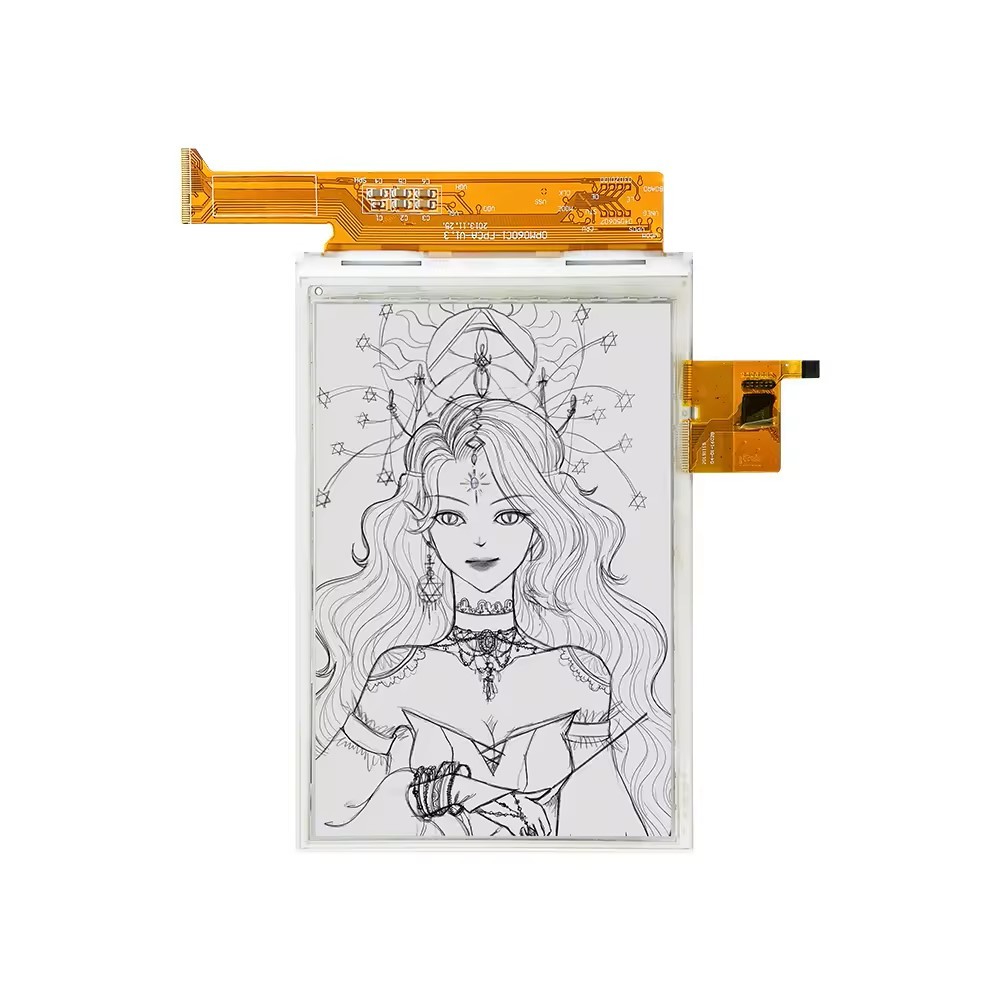

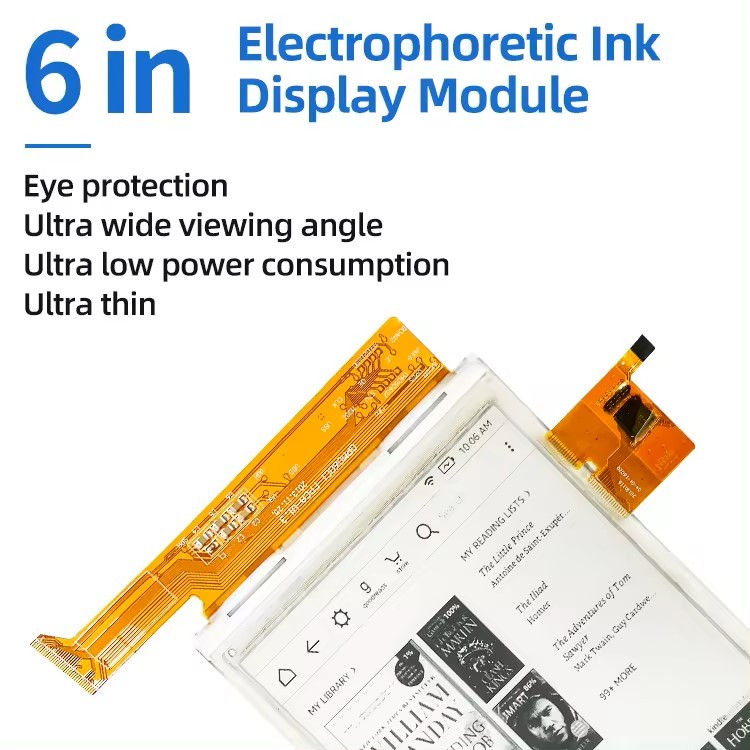

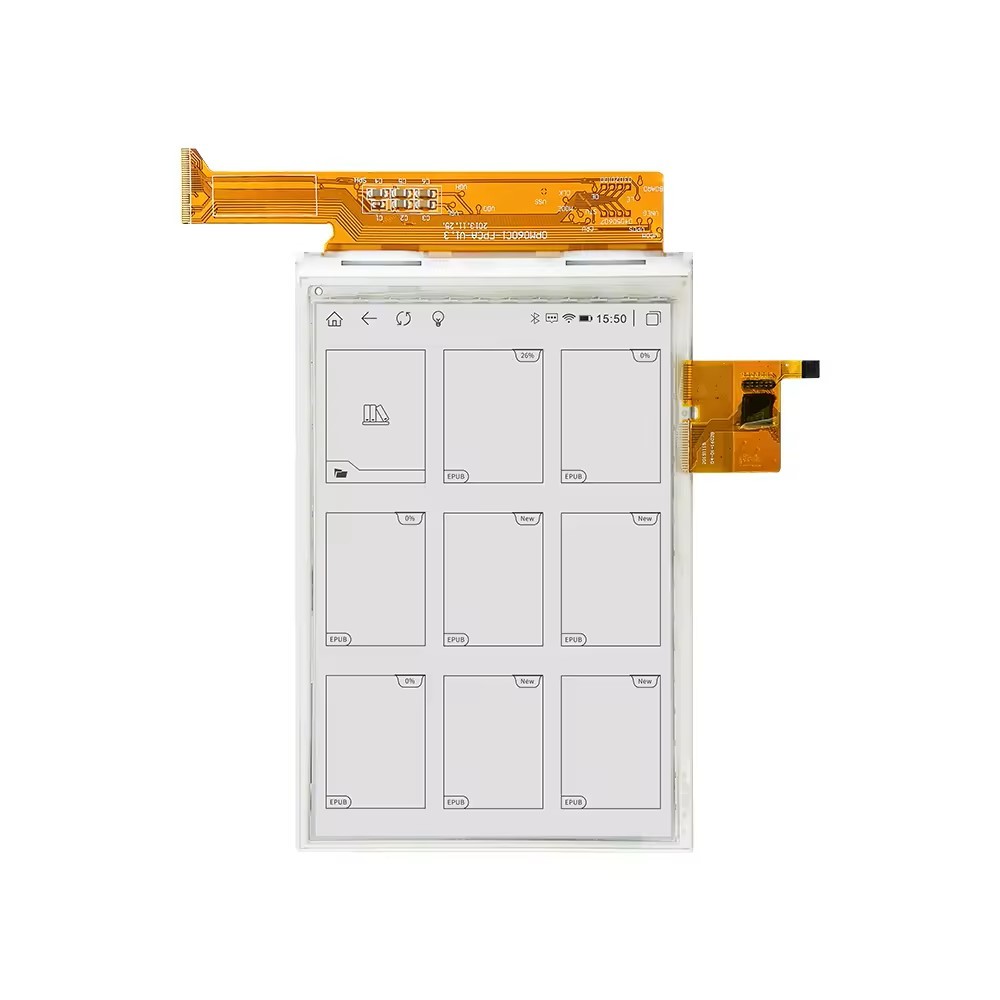

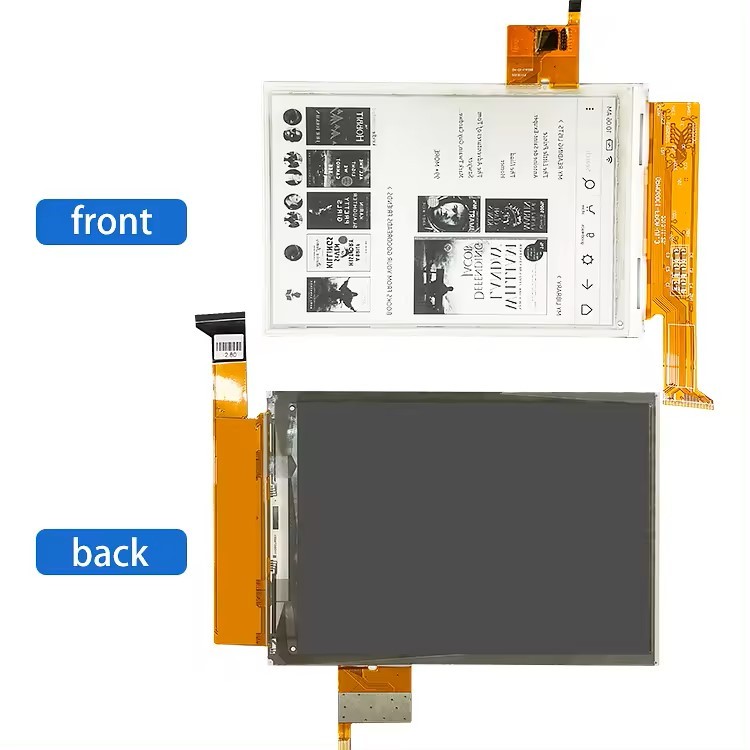

6.0 Inch E-Paper Display Module Optional Capacitive Touch Screen, Black White Eye Protection, Ultra Wide Viewing Angle, Low Power Consumption

Name: 6.0 Inch E-Paper Display Module Optional Capacitive Touch Screen, Black White Eye Protection, Ultra Wide Viewing Angle, Low Power Consumption
Brand: reaperlcd
SKU: RP0600N01-A0
Availability: InStock
Rating: 5 (1 reviews)

No.RP0600N01-A0

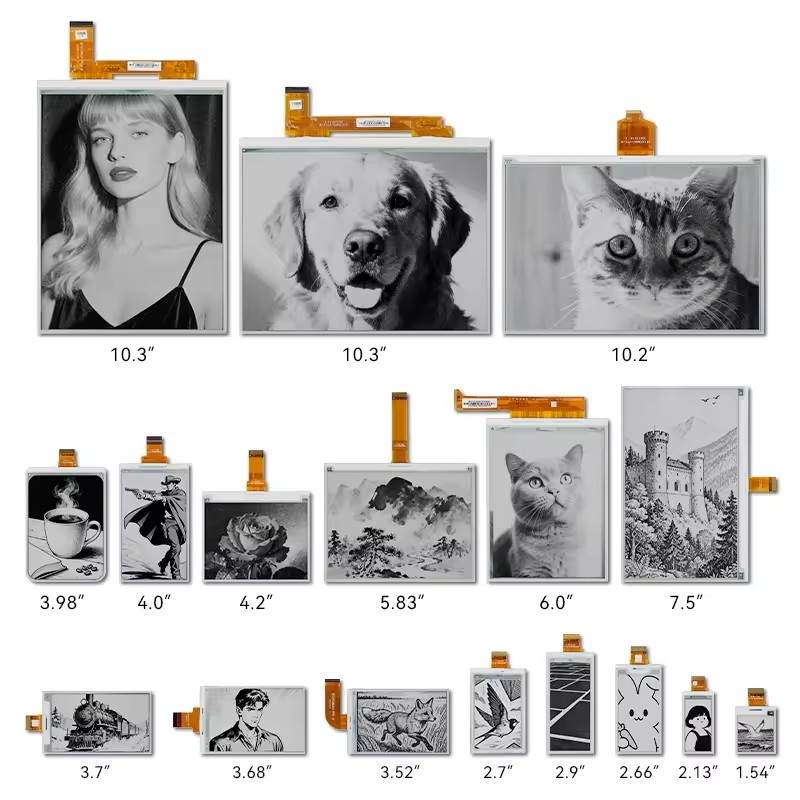

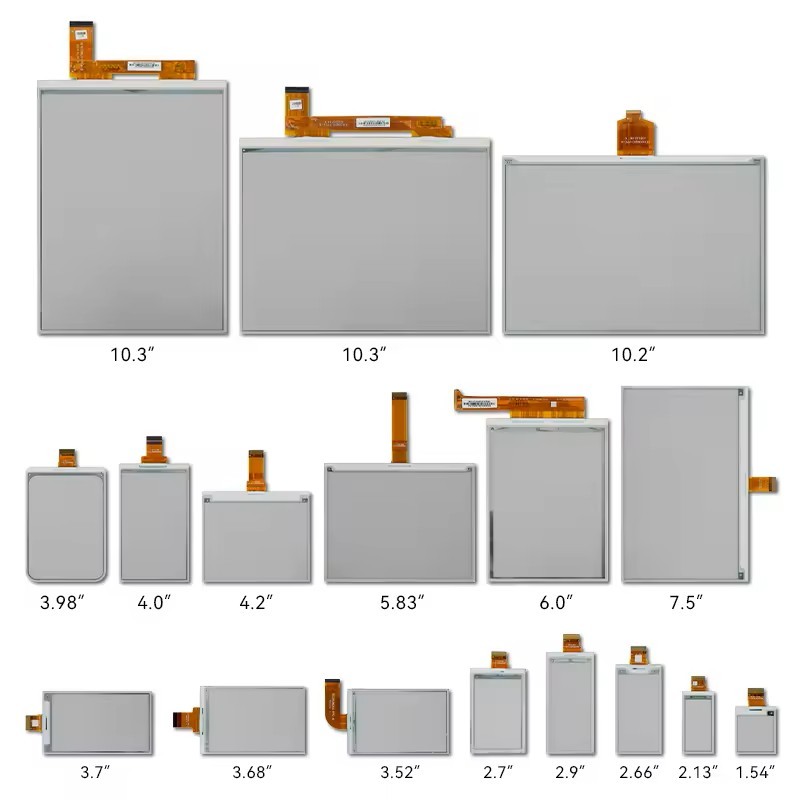

Reaper standard E-paper display are available in various sizes from 2.13" to 13.3' E-paper, such as 2.13", 2.9", 3.52" , 4.2" , 6 inch, 7.5 inch,10.2 inch,13.3 inch E-Ink Display. Customizable touch panel.

GET A QUOTE

Description

6.0 Inch E-Paper Display Module Optional Capacitive Touch Screen, Black White Eye Protection, Ultra Wide Viewing Angle, Low Power Consumption

Application	RP0600N01-A0
Display Size:	6.0 inch
Physical Dimension:	1021392
Resolution:	758*1024
Display Color:	Black/White
Pixel Pitch	0.119*0.119
Source Category	Exist
Gray Scale:	16
Response Time	500~800ms
Communication Interface type	parellel interface
EPD Working Voltage	3.0~3.6V
CTP Power Consumption(Refresh)	33 mW
CTP Power Consumption(Sleep)	1.65 mW
Connector EPD	34 Pin FPC, Gap 0.5mm
Connector CTP	8 Pin FPC,Gap 0.5mm
weight	67g
Source Category	Exist
View Angle	Nearly 180 degree viewing angle
Operating Temp	0-50ºC
Display Technology	Dot-matrix E-ink Epaper Display
Application Scenario	Readers, Tablets
Invoice	Supply
Place of Origin	Guangdong, China

Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
