TFT LCD Display with controller board

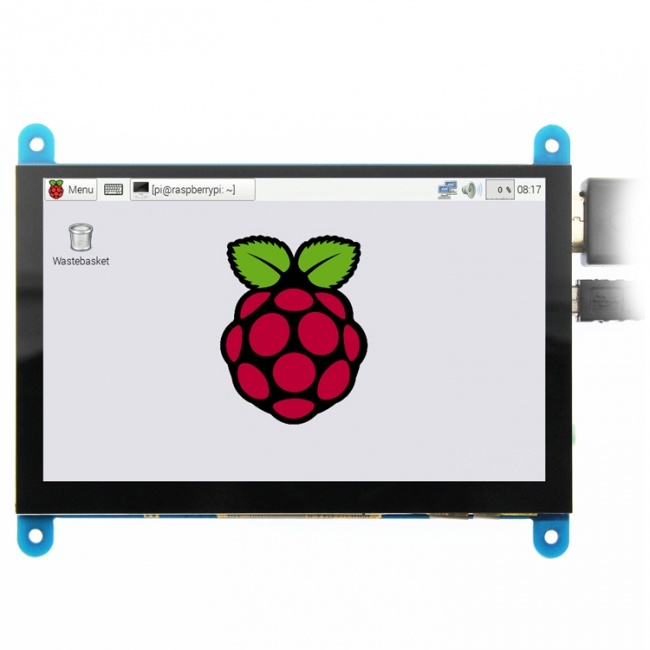

5inch HDMI Display 800x480 with 5point capacitive touch screen Support Raspberry Pi, Bb Black, Banana Pi and Other Mainstream Mini PC

Item No.: RPMPI5001
Model: RPMPI5001
Resolution: 800 × 480 (dots)
Touch: five-point capacitive touch
Product Size: 121.11*95.24 (mm)
Package Size: 153*135*51 (mm)
Rough Weight: 259 (g)
Power Dissipation: 0.30A*5V
Description
5inch HDMI Display 800x480 with 5 Point Capacitive Touch Screen Support Raspberry Pi, Bb Black, Banana Pi and Other Mainstream Mini PC

Product Description

  • 5"standard display, 800x480 resolution,maximum HDMI resolution 1920X1080 is supported
  • Capacitive touch screen, support 5 point touch maximum
  • Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
  • It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
  • It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
  • Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
  • Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
  • Support HDMI audio output

Product Parameters

  • Size: 5.0 (inch)
  • SKU: MPI5001
  • Resolution: 800 × 480 (dots)
  • Touch: 5 point capacitive touch
  • Audio output: support

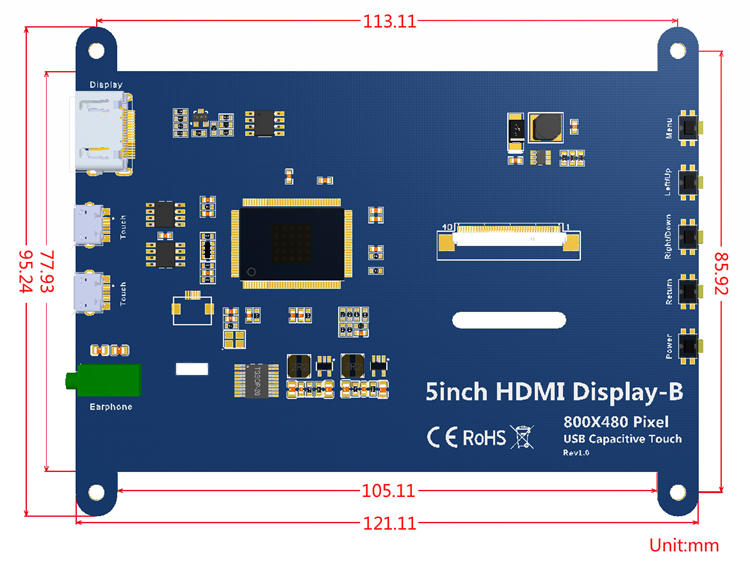

  • Dimensions: 121.11*95.24 (mm)
  • Package Size: 153*135*51 (mm)
  • Rough Weight(Package containing): 259 (g)
  • Power Dissipation: 0.30A*5V

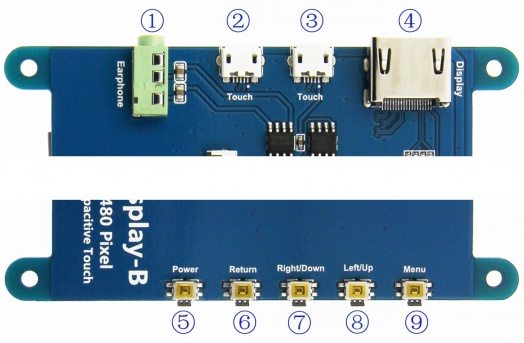

Hardware Description


① Earphone: 3.5mm Audio output interface
②&③ Touch: USB connector ( For power supply and touch output, the functions of the both are the same, can just use one of them)
④ Display: HDMI interface ( For connecting motherboard and LCD monitor)
⑤ Power: Turn on or off display and backlight to save power consumption
⑥ Return: Return (Only valid in the OSD Settings menu)
⑦ Right/Down: Direction Right/Down (Backlight shortcut key)
⑧ Left/Up: Direction Left/Up (Backlight shortcut key)
⑨ Menu: Open the OSD / Select key (Only valid in the OSD Settings menu)
