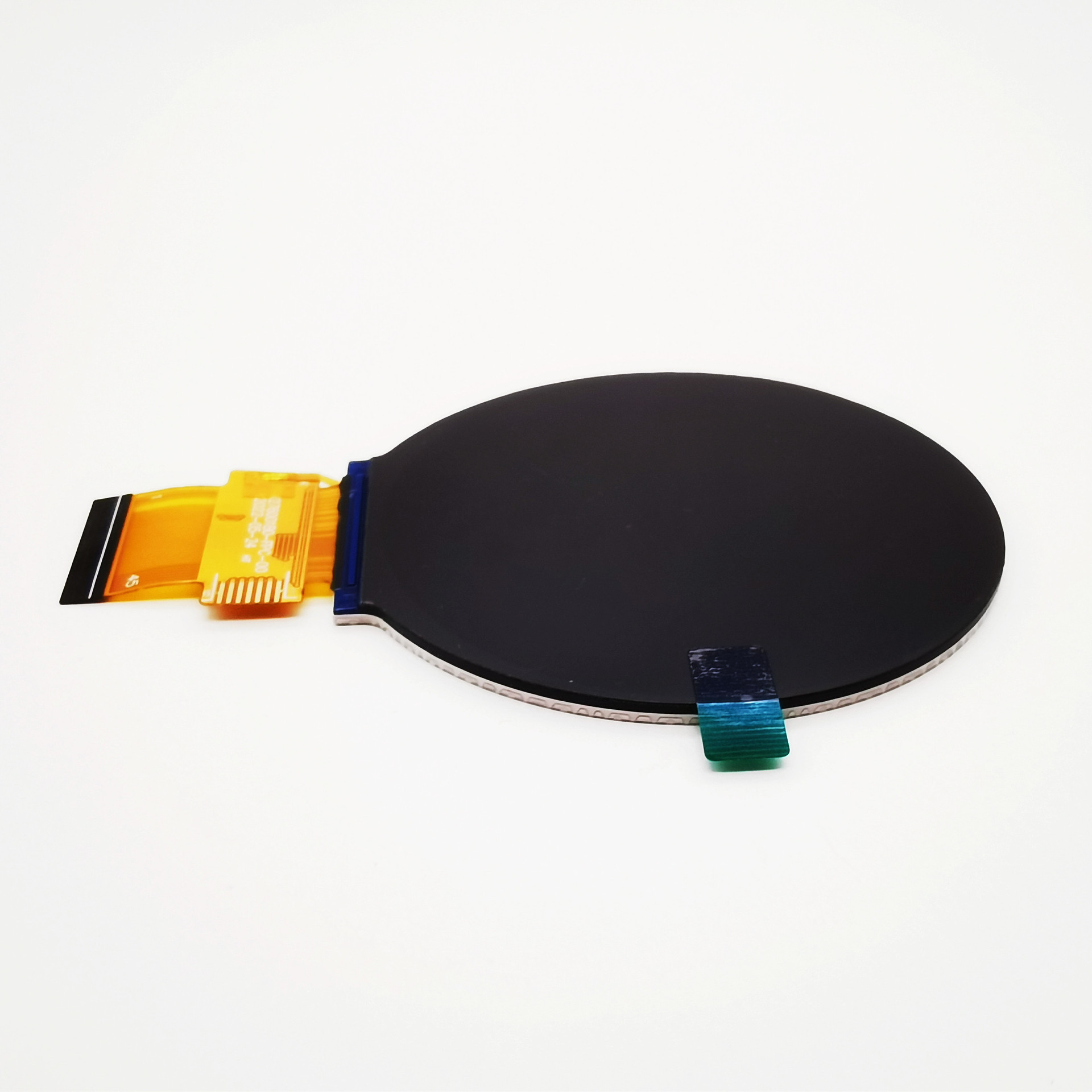

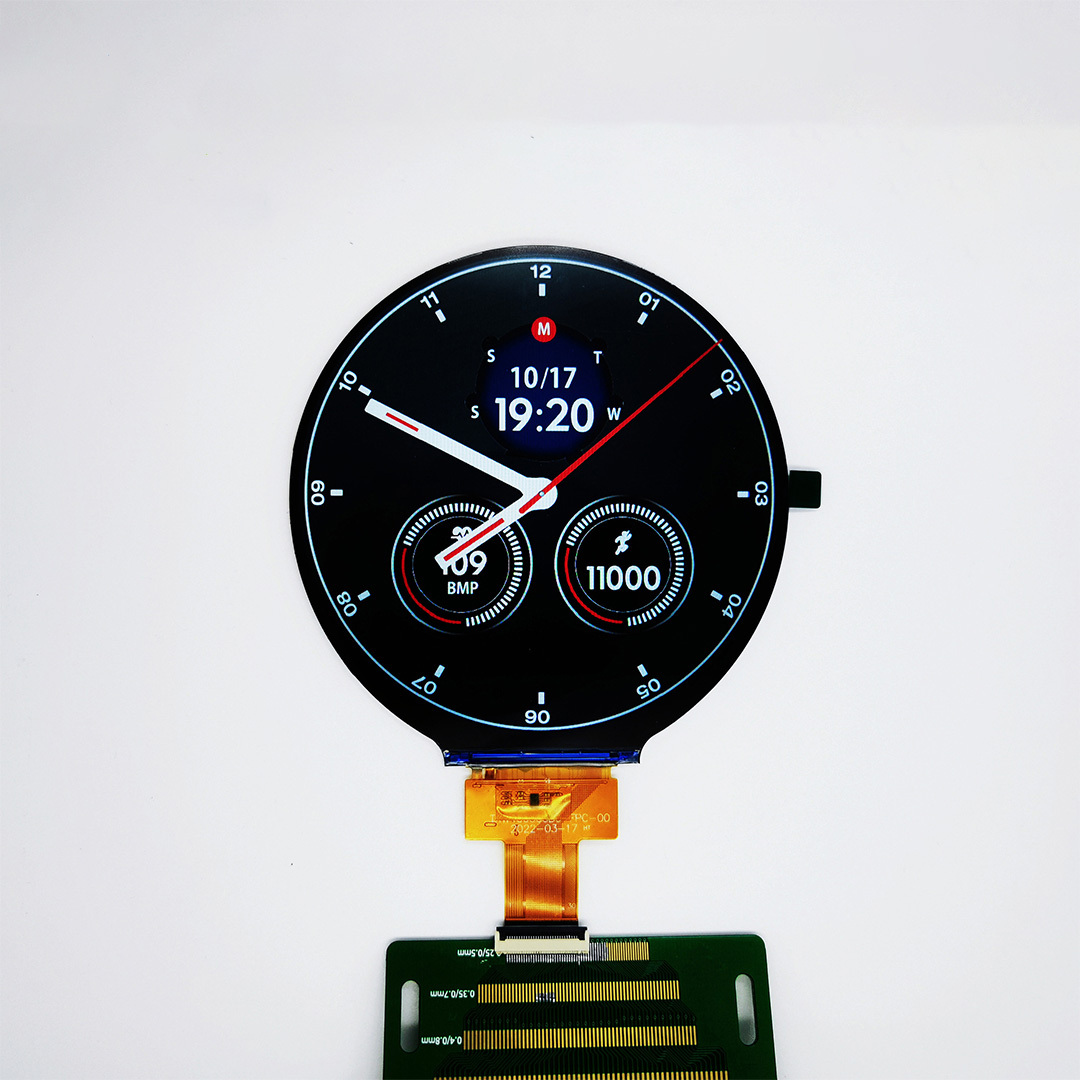

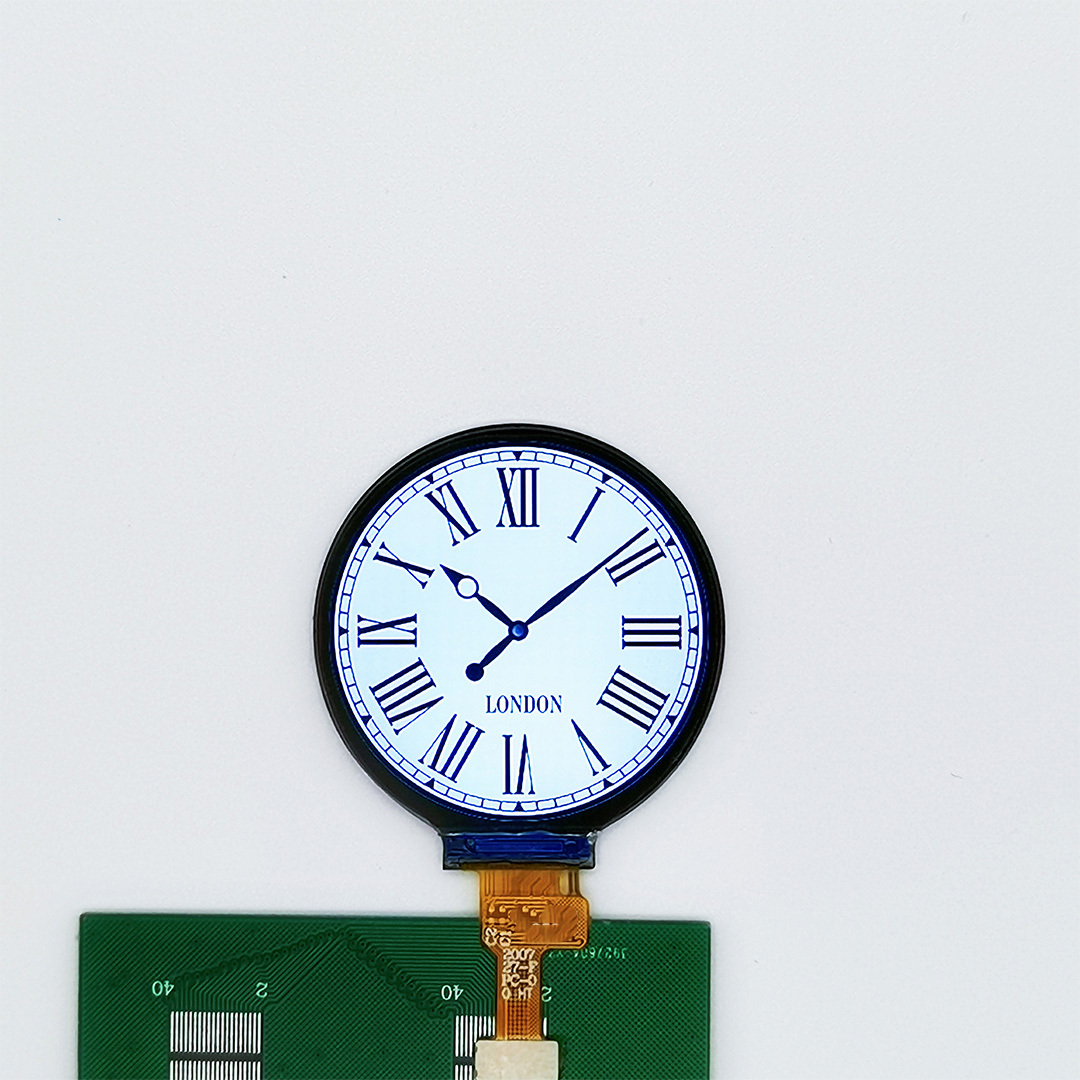

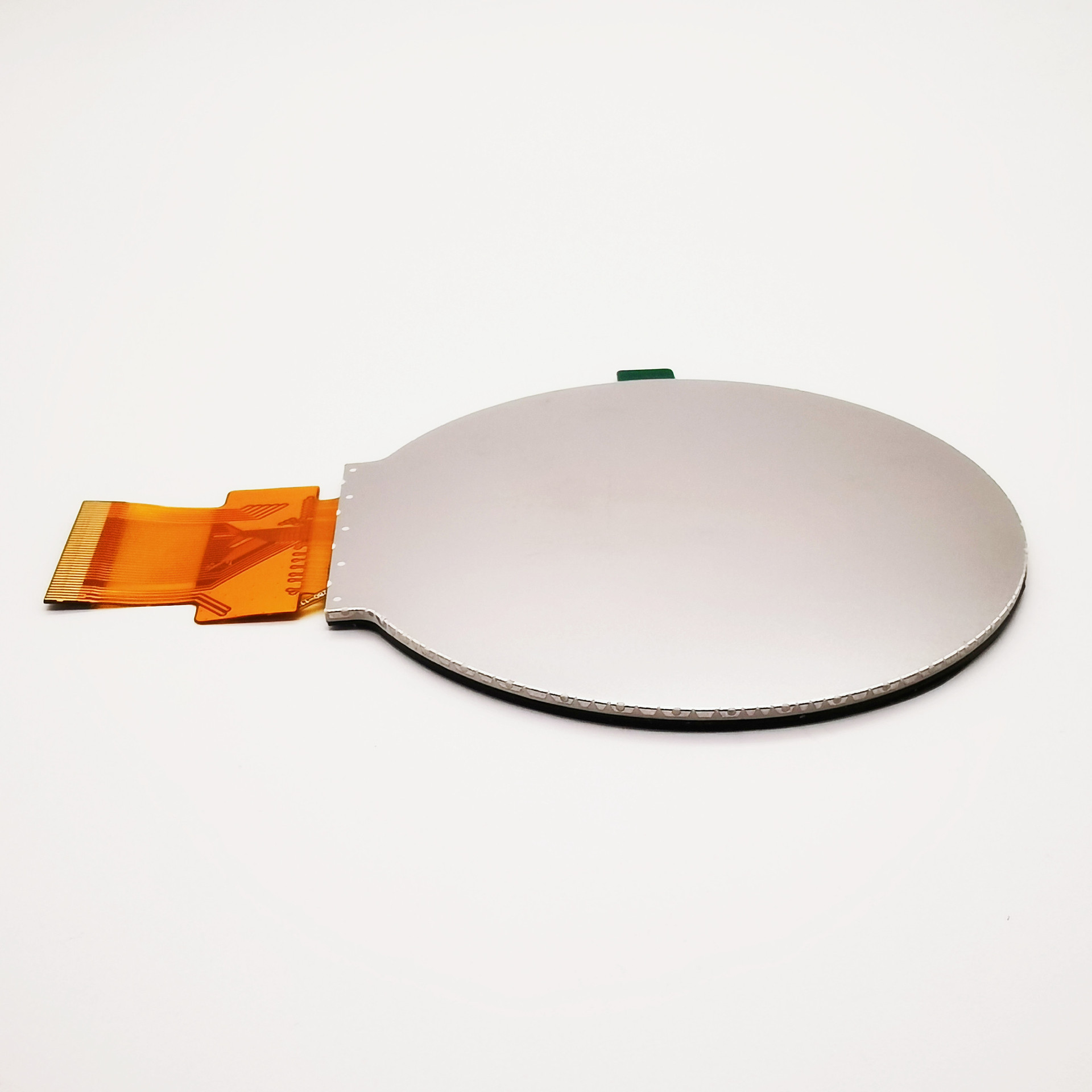

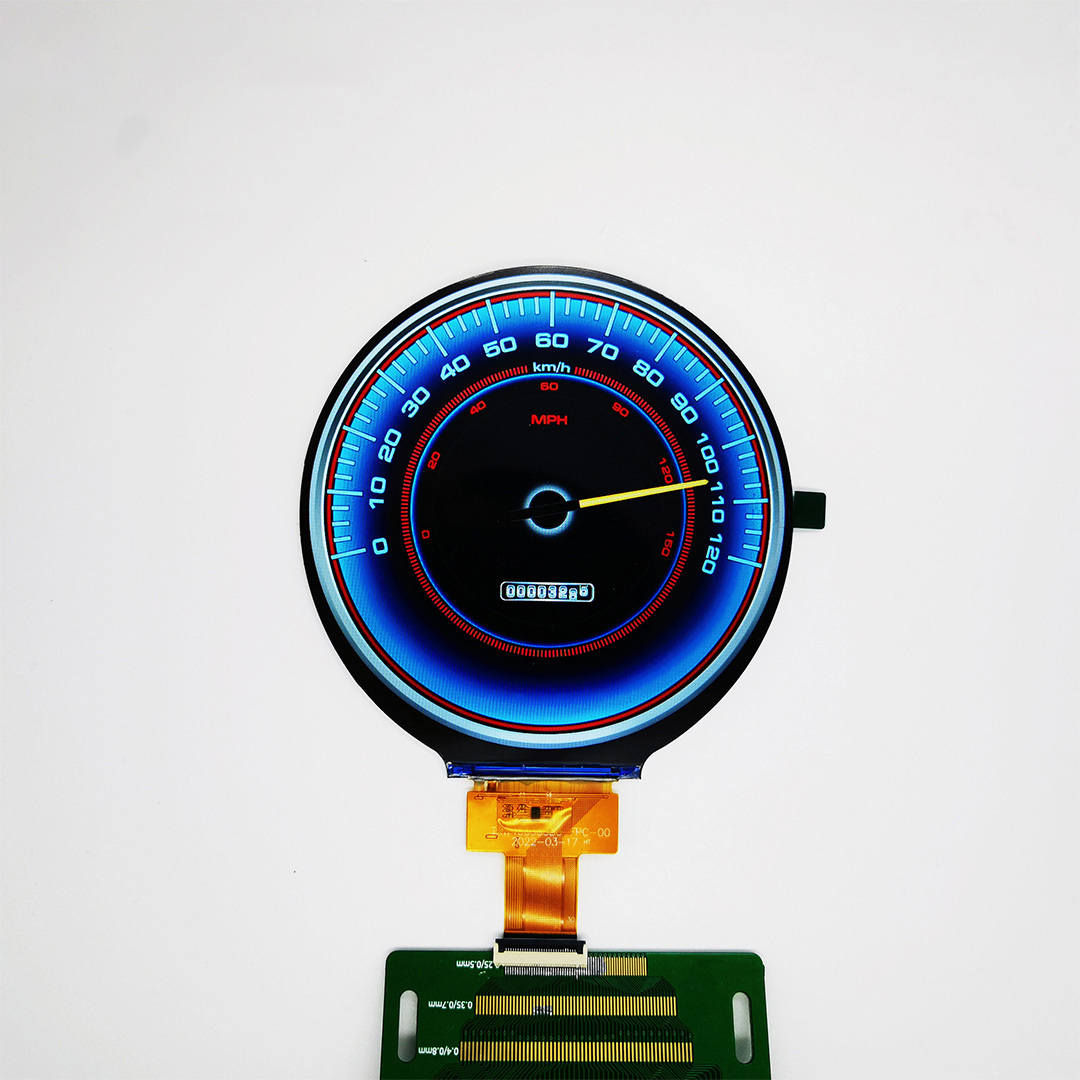

4inch Round HD LCD Display Module 720X720 RGB24bit Interface
1. INTRODUCTION
RP400003B0 is a 4.0 inch circular full color TFT LCD display screen that can be equipped with capacitive touch full fit, with a resolution of 720 * 720, IPS full angle high-definition highlight display effect, wide temperature -20+70 working temperature, 450cd/m2 brightness, MIPI interface, customizable FPC, touch and backlight structure.
2.Features
| Model: |
RP400005B0 |
| Application |
Smart home, kitchen appliances, instrument displays, security access control, children's education, medical equipment |
| Resolution |
720*3(RGB)*720 |
| Drive element |
TFT active matrix |
| Mechanical OutlineSize(W*H*T) |
105.6*109.87mm |
| LCM Driver IC |
NV3052C |
| LCM interface |
RGB 24 BIT Interface |
| Lcm pin n count |
40pin |
| Backlight current |
40ma |
| Backlight leds |
6pcs |
| Viewing Angle(U/D/R/L) |
(85/85/85/85) |
| Backligh voltage |
18V |
| Lumens degrees |
450cd/m² |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
