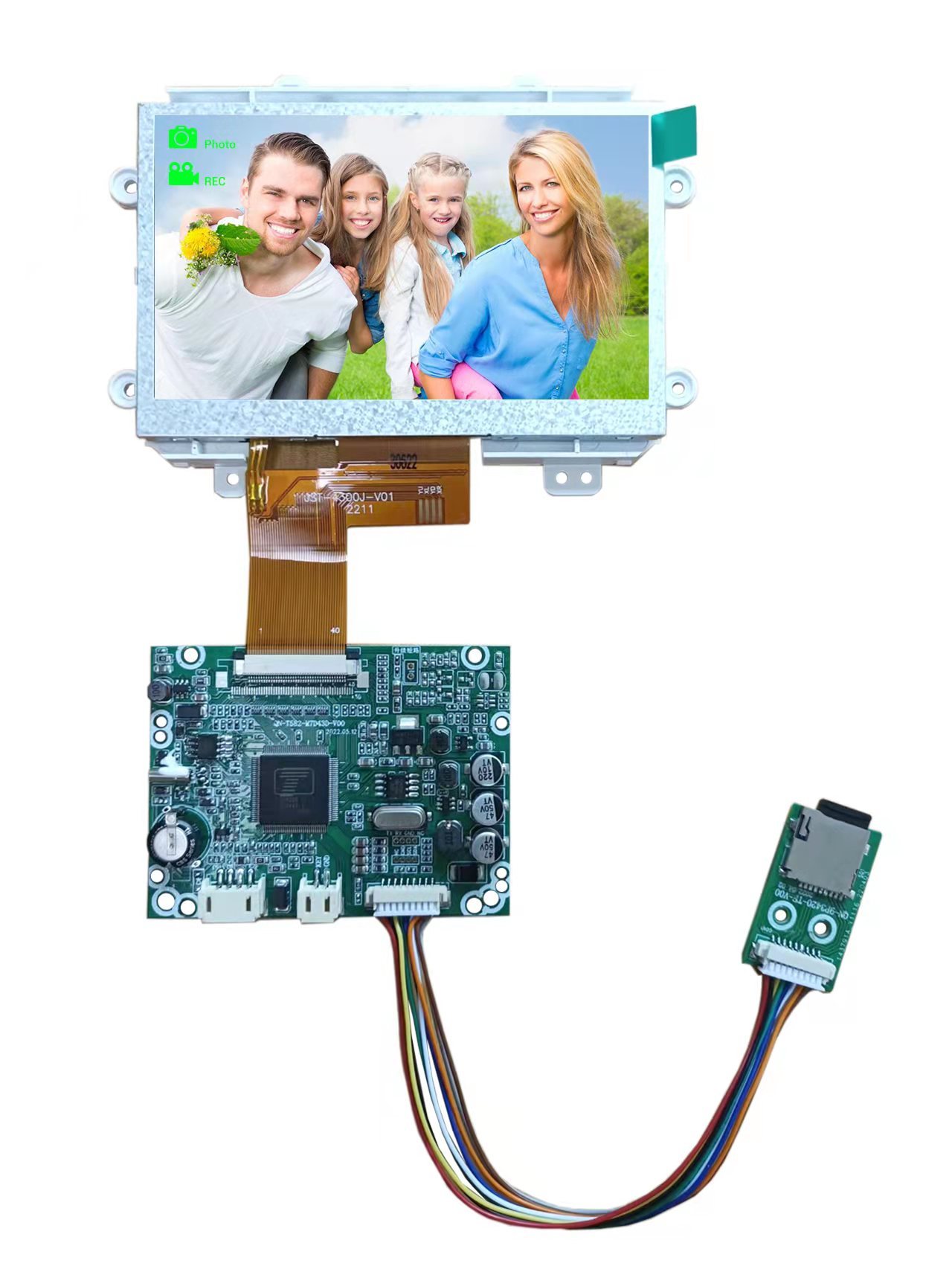

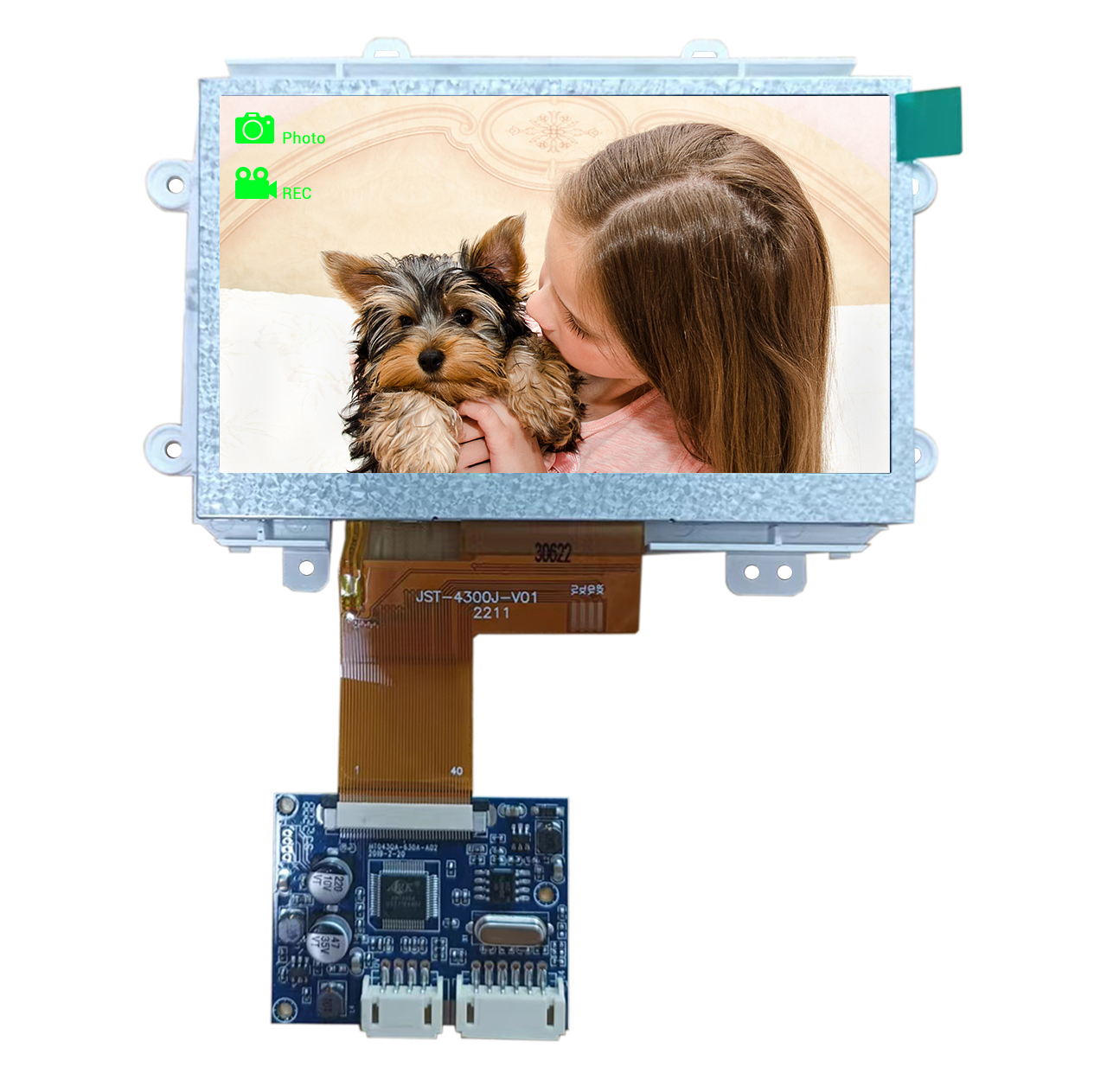

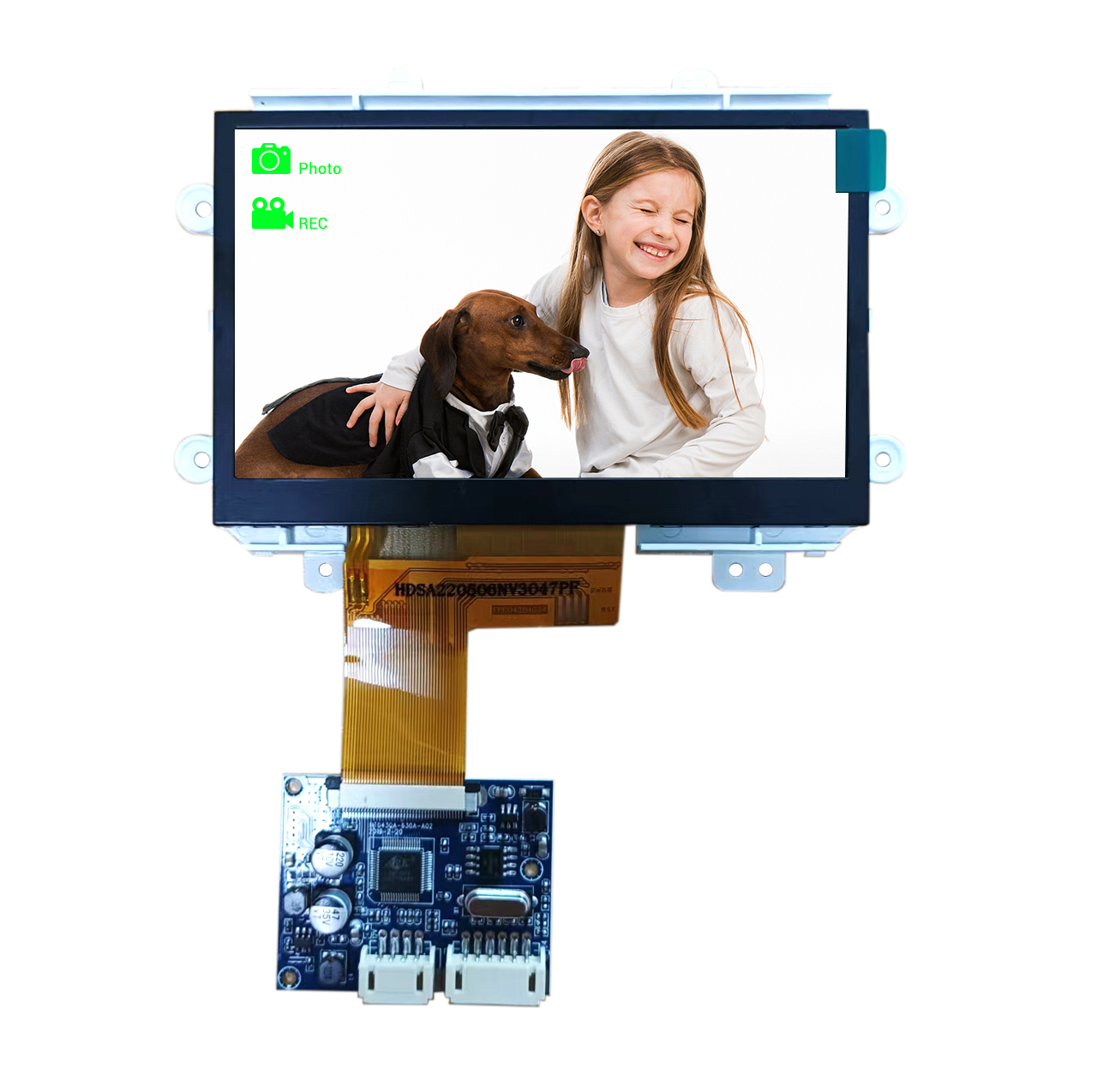

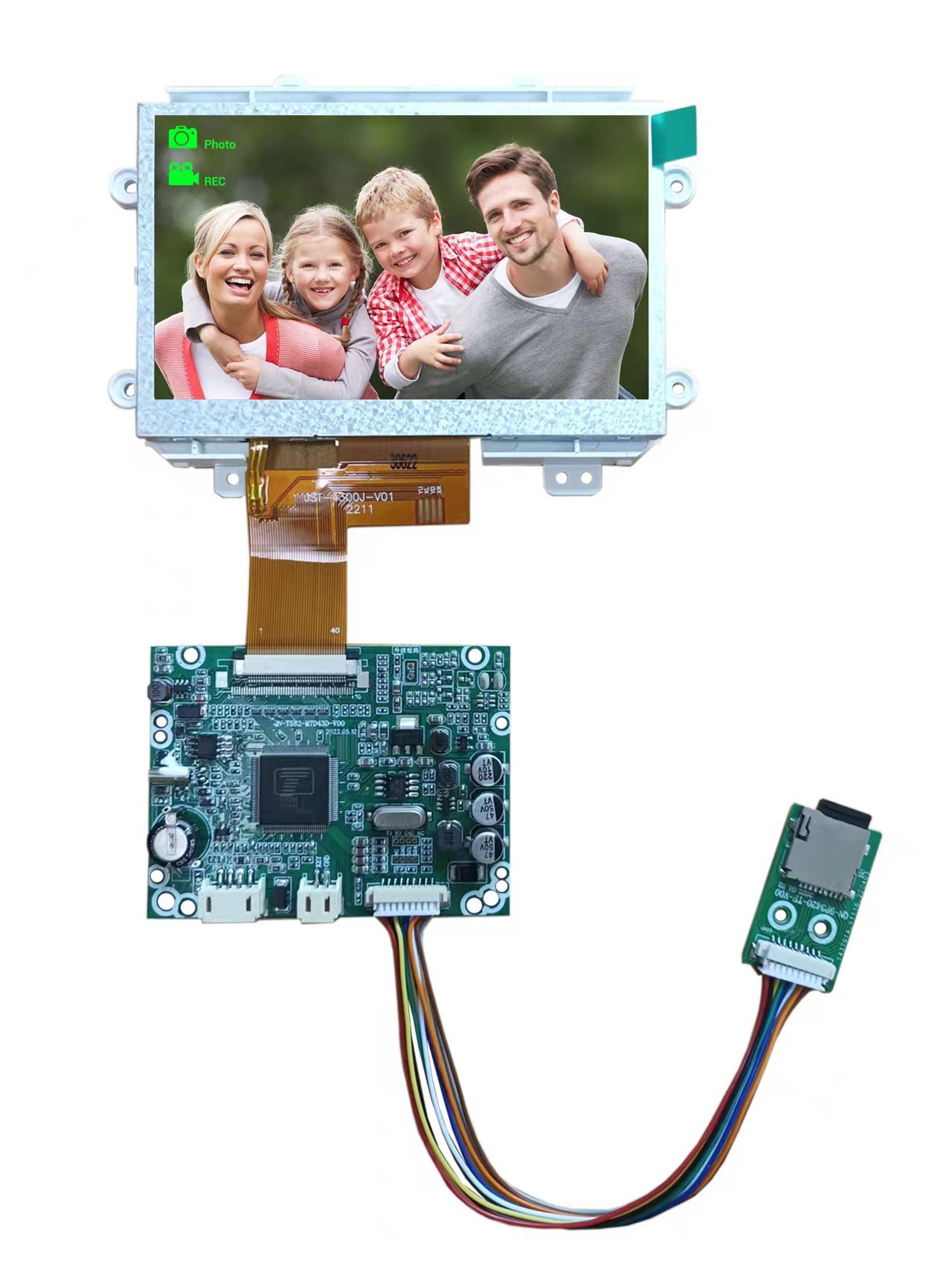

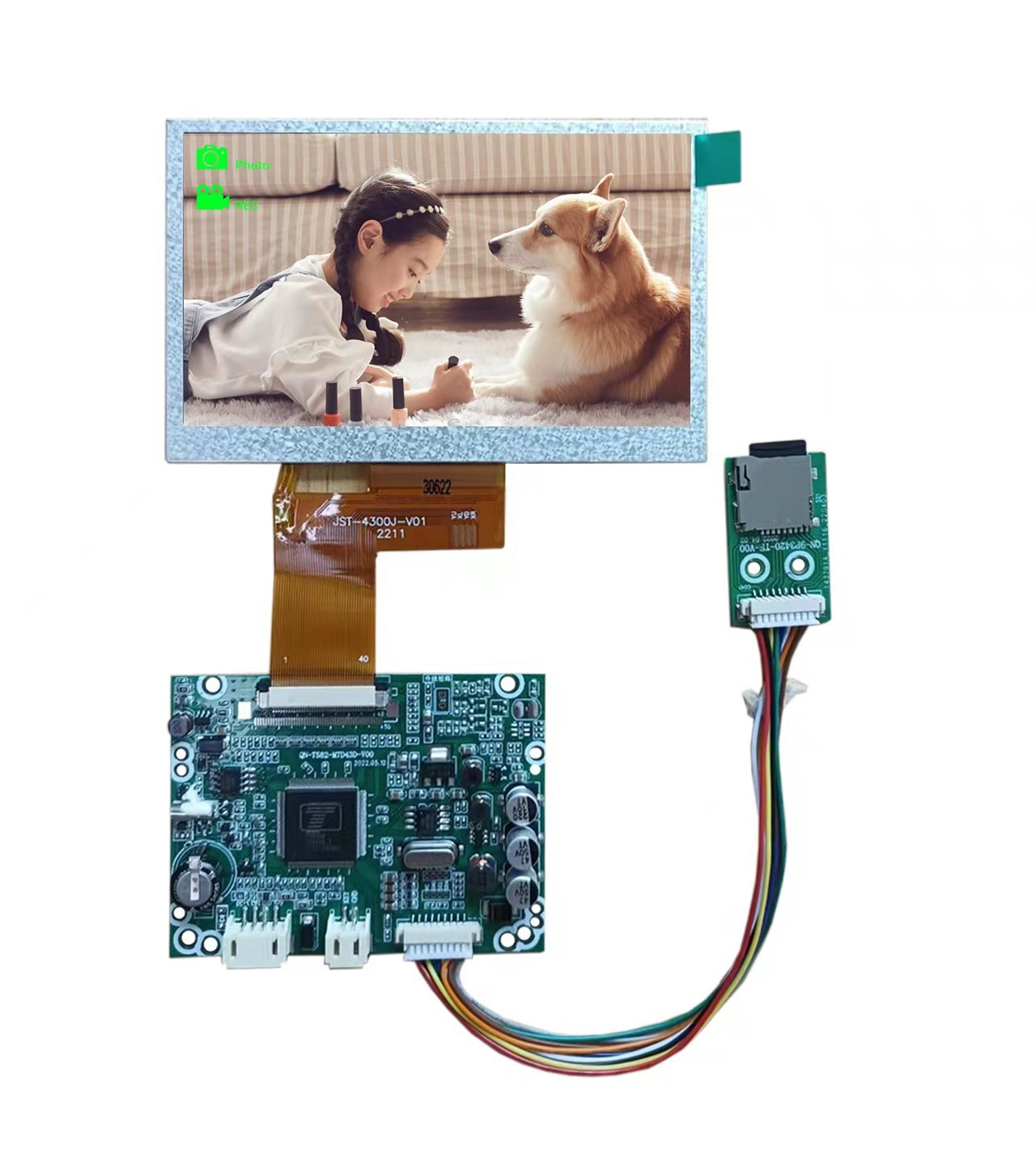

4.3inch TFT LCD Display with DVR Driver Board Apply for Video Door Phone

RP043MA-V0 TFT module is combined with 4.3inch lcd display
and controllerboard; support both PAL system and NTSC, which
can be automatically converted. The whole module use high light white LED as back-light,
which has low consumption and disturbances.
Description
4.3inch TFT LCD module with DVR Driver Board Apply for Video Door Phone and Automative

1. INTRODUCTION
RP043DA module is combined with RP043MA PCB board
and HS 4.3" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.
2.Features
Model: RP043MA-V0
Application Video Door Phone
Resolution 480*3(RGB)*272
Start Time 1.6±0.5 Sec
Signal Interface  PAL/NTSC
Signal Amplitude Min 0.5Vp-p/Standard: 1.0Vp-p  Max: 2.0Vp-p
Adjust Type  VR and KEY
Working Voltage Min:DC 9V/Standard: DC12V  Max: DC18V
Working Current DC 90mA±20mA (DC12V)
Power Consumption 1.08W(TYP)
Viewing Angle(U/D/R/L) (40/50/60/60)
Panel Outline Dimensions 105.5(W)*67.1(H)*3.0(T)mm
ESD Level Contact +/-6KV,Air  +/-8KV
Operating Temperature: -20 ~ +55ºC
Storage Temperature: -30 ~ +65ºC


Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
