4.3inch TFT LCD module with DVR Driver Board Apply for Video Door Phone and Automative
1. INTRODUCTION

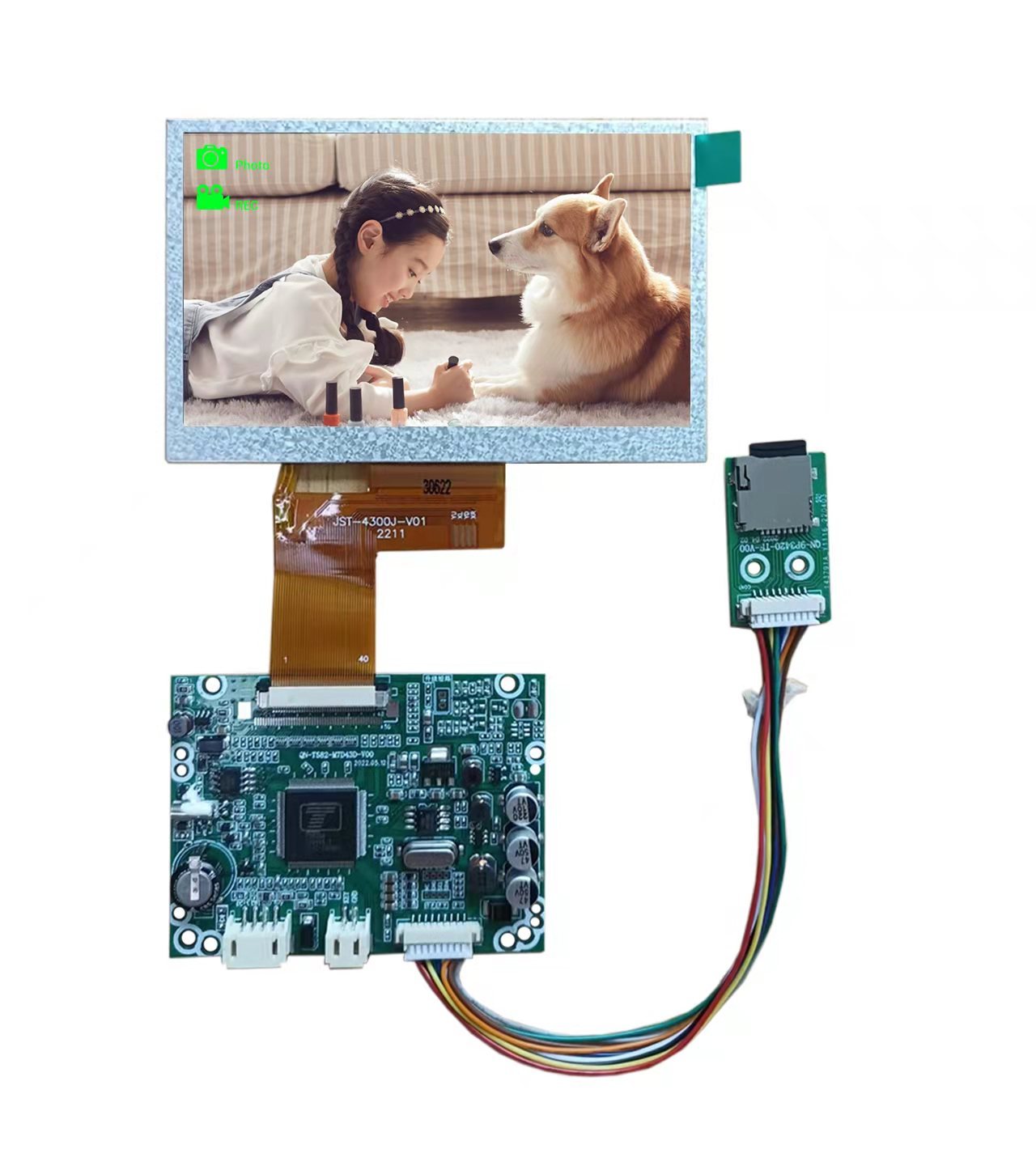

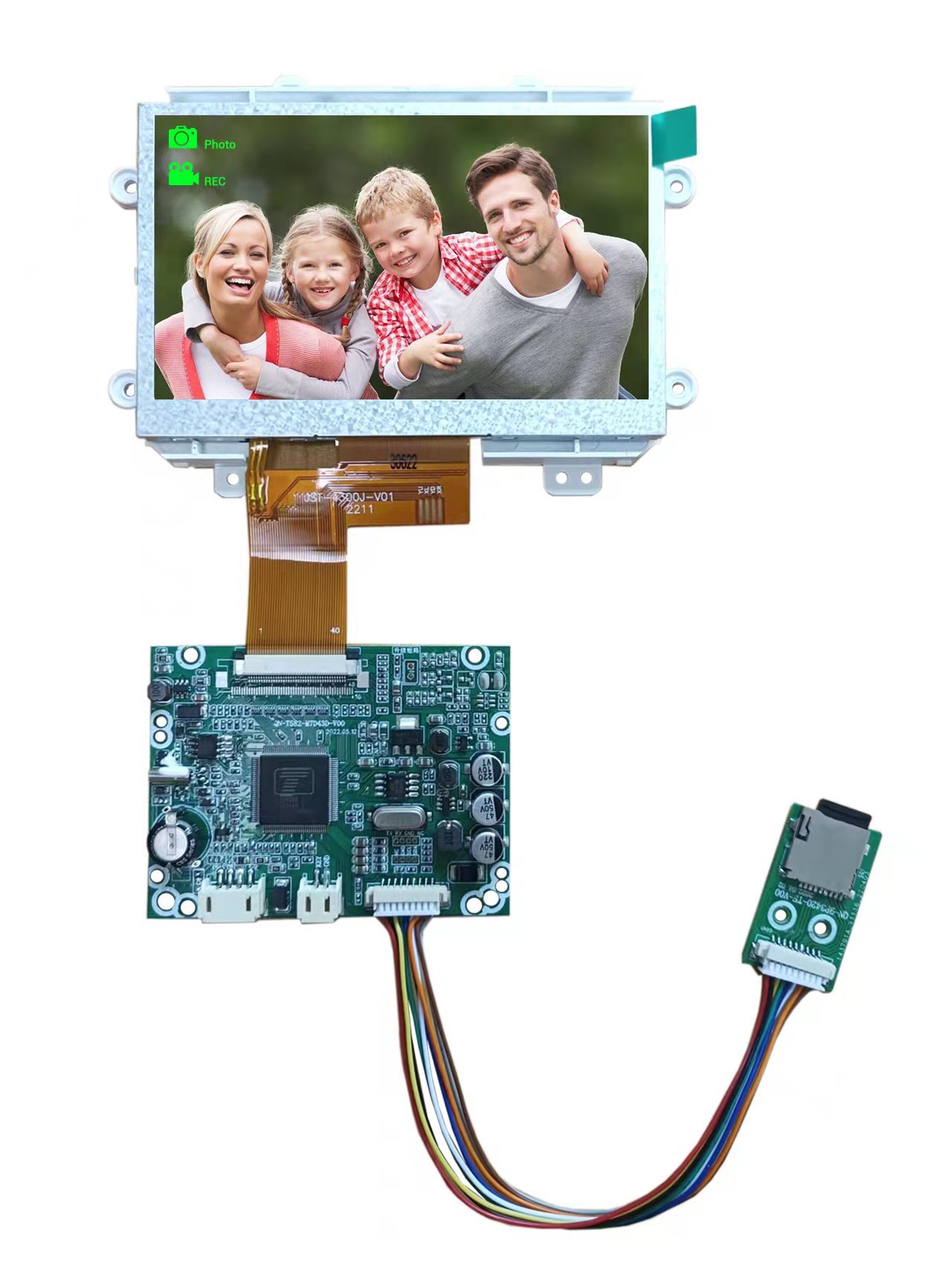

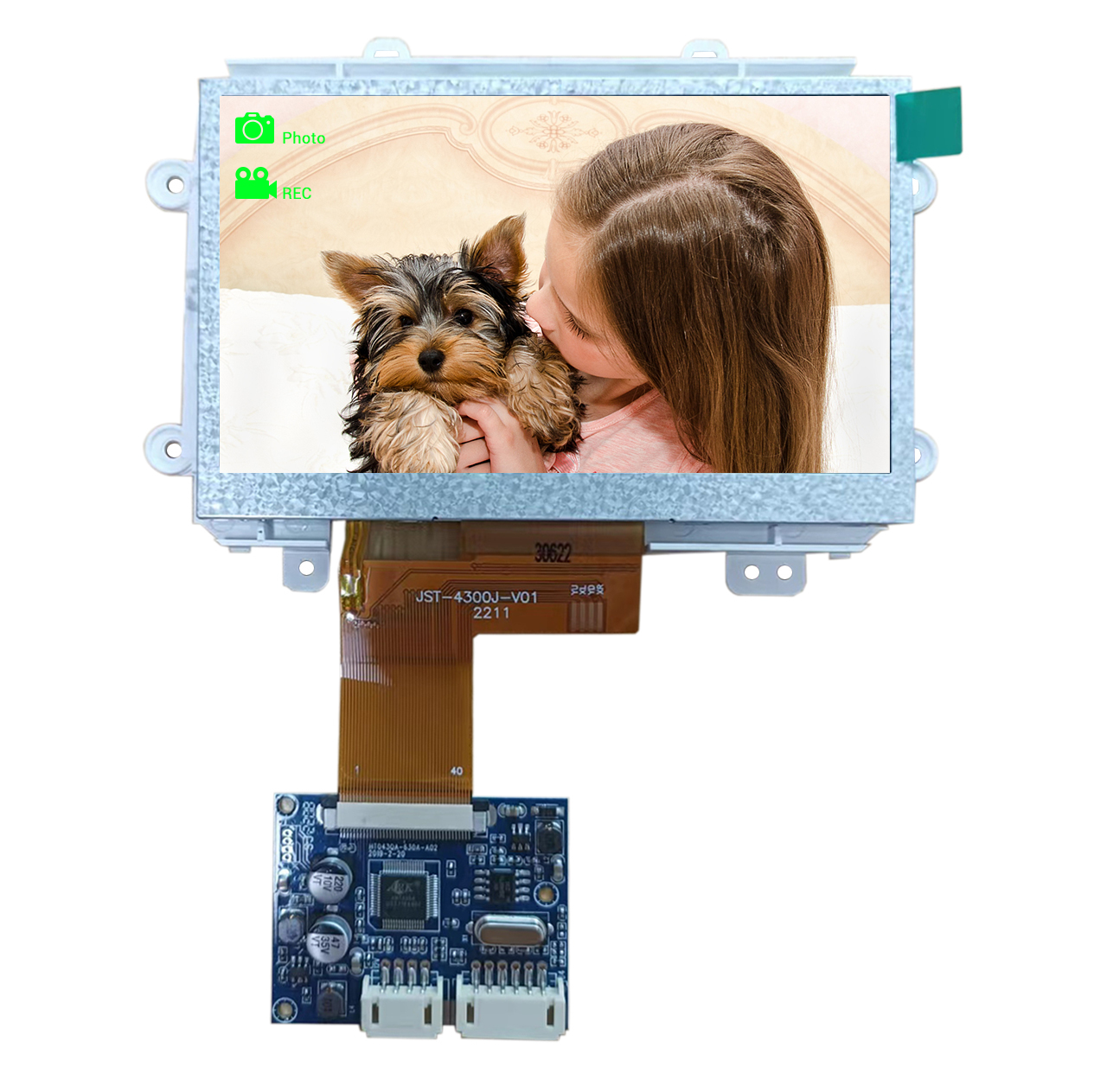

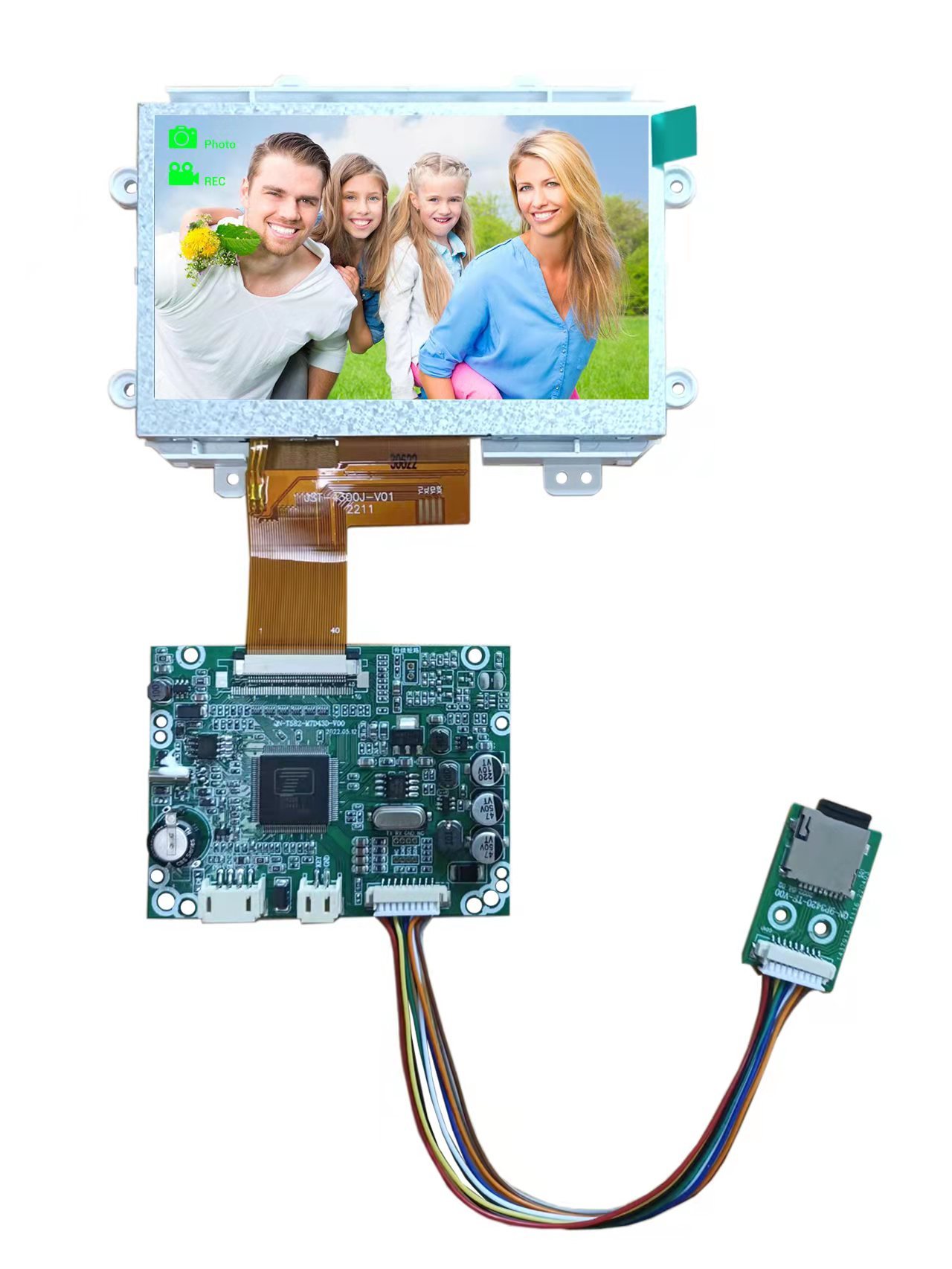

RP043DA module is combined with RP043MA PCB board
and HS 4.3" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.
2.Features
| Model: |
RP043MA-V0 |
| Application |
Video Door Phone |
| Resolution |
480*3(RGB)*272 |
| Start Time |
1.6±0.5 Sec |
| Signal Interface |
PAL/NTSC |
| Signal Amplitude |
Min 0.5Vp-p/Standard: 1.0Vp-p Max: 2.0Vp-p |
| Adjust Type |
VR and KEY |
| Working Voltage |
Min:DC 9V/Standard: DC12V Max: DC18V |
| Working Current |
DC 90mA±20mA (DC12V) |
| Power Consumption |
1.08W(TYP) |
| Viewing Angle(U/D/R/L) |
(40/50/60/60) |
| Panel Outline Dimensions |
105.5(W)*67.1(H)*3.0(T)mm |
| ESD Level |
Contact +/-6KV,Air +/-8KV |
| Operating Temperature: |
-20 ~ +55ºC |
| Storage Temperature: |
-30 ~ +65ºC |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
