3.5inch HDMI Display 480x320 with resistive touch screen support Rasberry Pi

HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support HDMI  signal output. This series display modules come with a control board with a HDMI signal interface output; i
Description

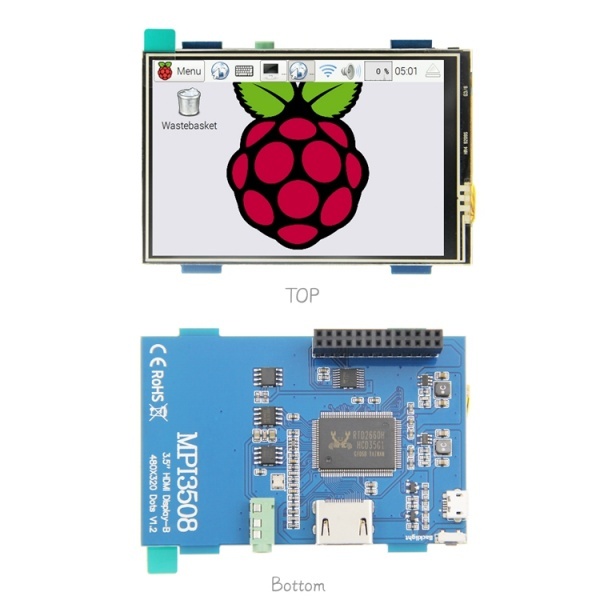

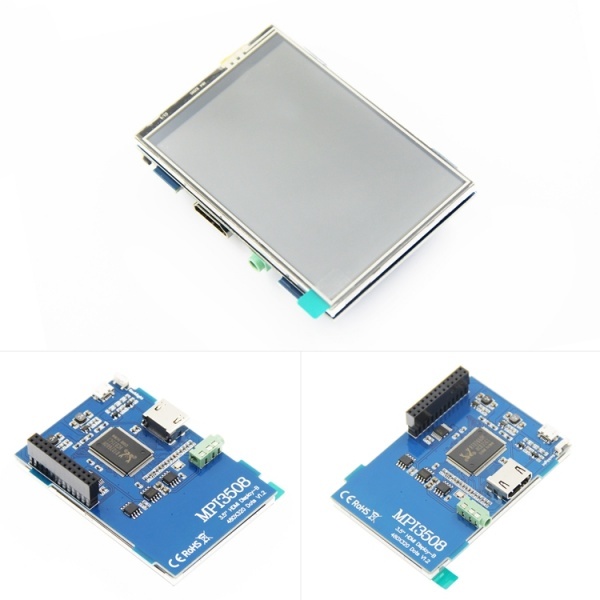

3.5inch HDMI Display 480x320 with Resistive Touch Screen Support Raspberry Pi

Product Description

  • 3.5inch standard display, support HDMI input, refresh rate above 60FPS
  • Physical resolution 480x320, configurable software resolution up to 1920x1080
  • It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
  • It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on

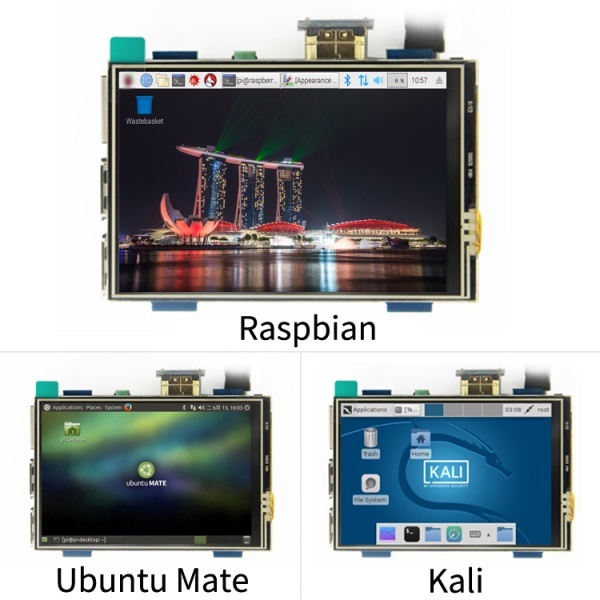

  • Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
  • Work as a PC monitor, support Win7, Win8, Win10 system (No touch Function)
  • Support HDMI audio output,Backlight brightness can be adjusted
  • CE, RoHS certification

Product Parameters

  • Size: 3.5(inch)
  • SKU: MPI3508
  • Physical Resolution: 480×320(dots)
  • Software adjustable resolution: 480×320~1920×1080(dots)
  • Touch: Resistance Touch
  • Power Dissipation: 0.20A*5V (Brightness @100%)
  • Product Size: 85.5*60.6(mm)
  • Package Size: 143*134*51 (mm)
  • Rough Weight(Package containing): 142(g)
  • 0.15A*5V (Backlight close)

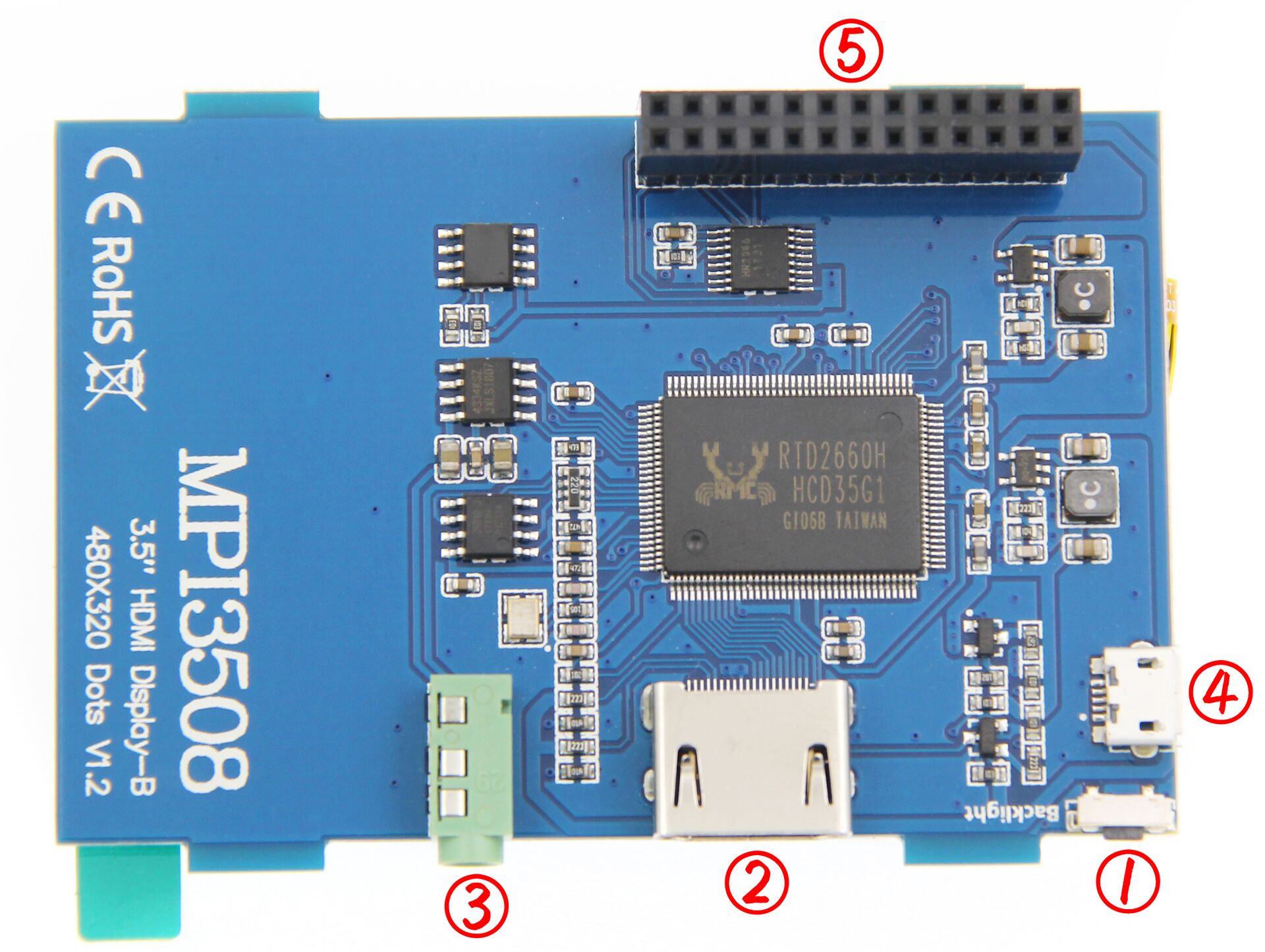

Hardware Description

Backlight button: backlight brightness adjustment button, short press backlight changes by 10%, long press 3 seconds to close backlight

HDMI interface: HDMI signal input interface

Amplifier interface: HDMI audio output interface

USB power supply interface: provide power for ordinary display (5V 1A)

Transaction raspberry pie 26PIN base: gets power and return touch from this area when used as a raspberry pie monitor
