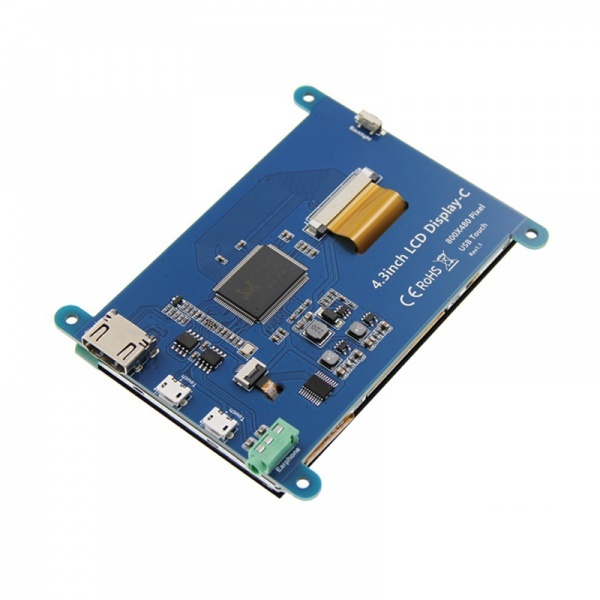

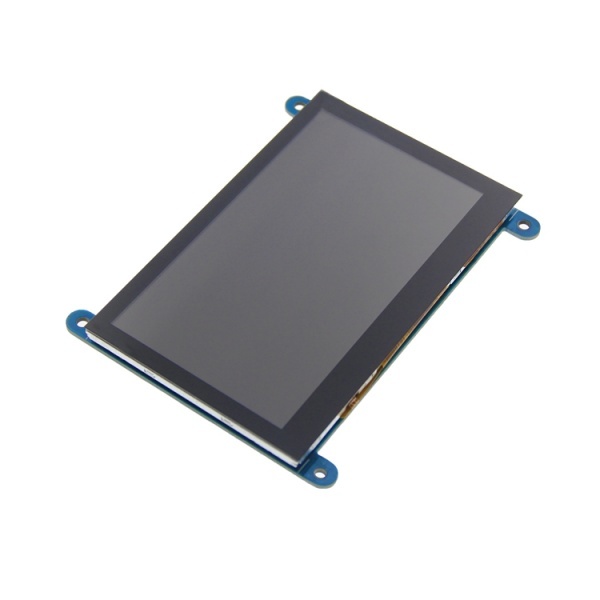

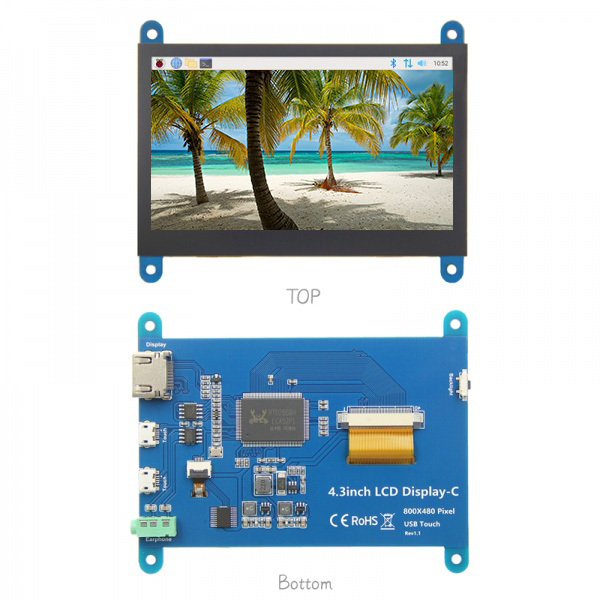

4.3inch HDMI Display 800x480 with 5 Point Capacitive Touch Screen Support Raspberry Pi, Bb Black, Banana Pi and Other Mainstream Mini PC
Product Description
- 4.3"standard display, 800x480 resolution，maximum HDMI resolution 1920X1080 is supported
- Capacitive touch screen, support 5 point touch maximum
- Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
- It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
- It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
- Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
- Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
- Support HDMI audio output
Product Parameters
- Size: 4.3 (inch)
- SKU: RPMPI5001
- Resolution: 800 × 480 (dots)
- Touch: 5 point capacitive touch
- Audio output: support
- Dimensions: 106*85.31 (mm)
- Rough Weight(Package containing): 219 (g)

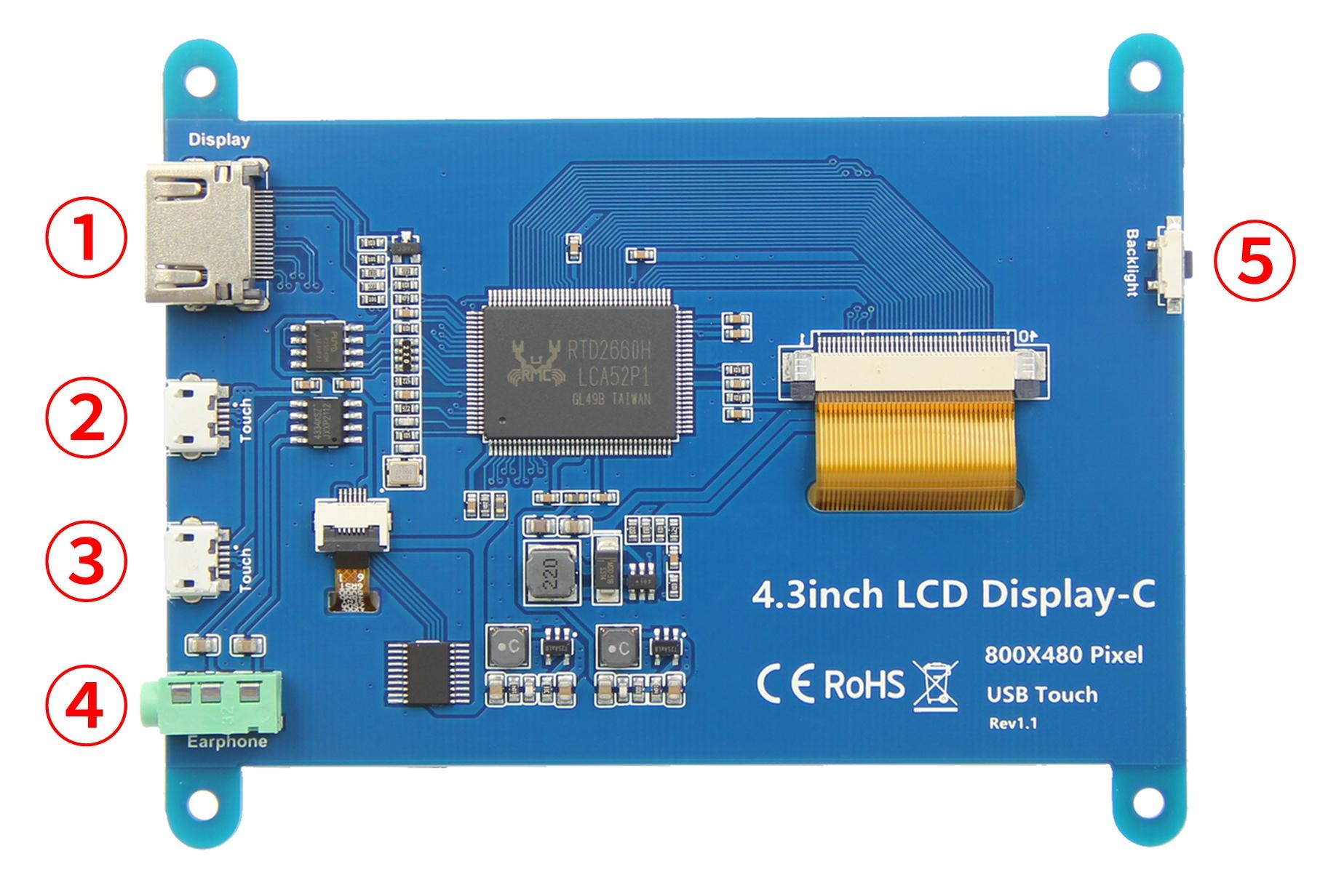

Hardware Description
① Display: HDMI Interface(for connecting motherboard and LCD monitor)
②&③ Touch: USB connector ( For power supply and touch output, the functions of the both are the same, can just use one of them)
④ Earphone: 3.5mm audio output interface
⑤ Backlight: Backlight brightness adjustment button,short change backlight changes by 10%,long press 3 seconds to close backlight
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
