4.3inch Cm/HS TFT LCD Display with Driver Board Apply for Video Door Phone and Automative
1. INTRODUCTION

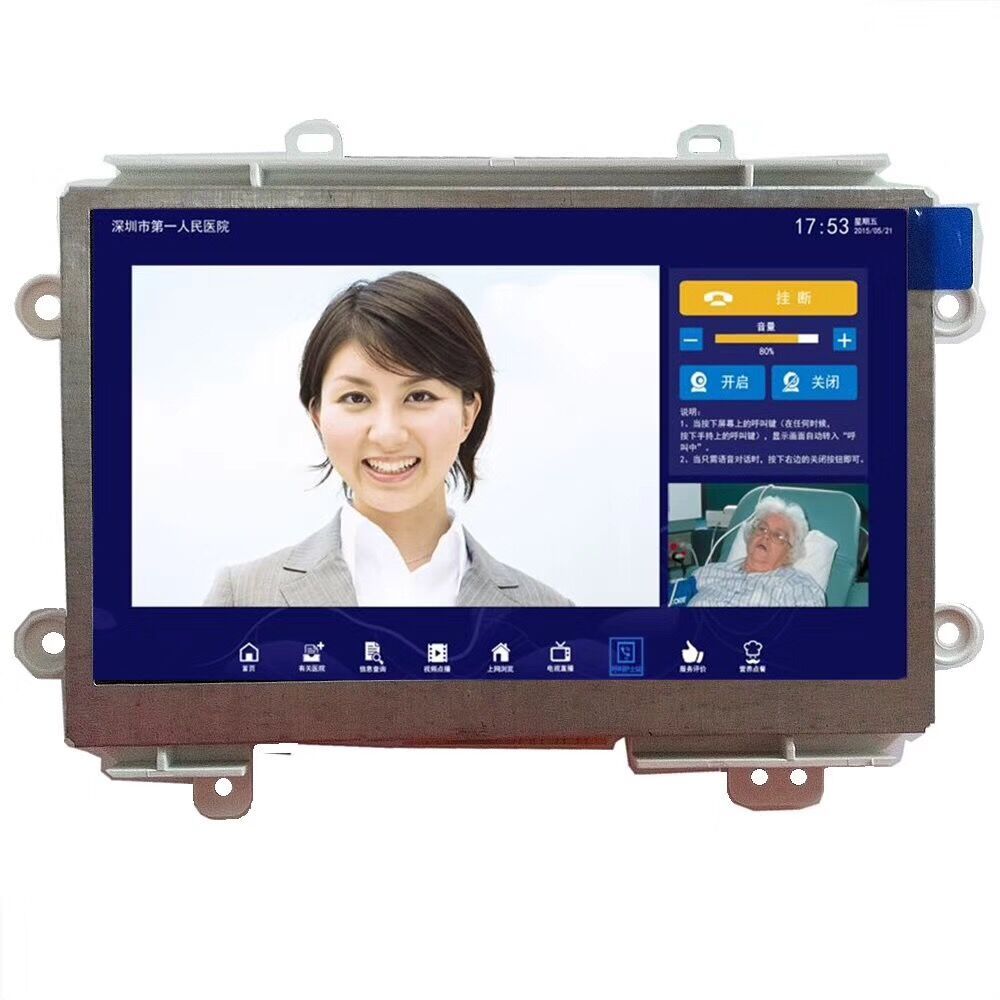

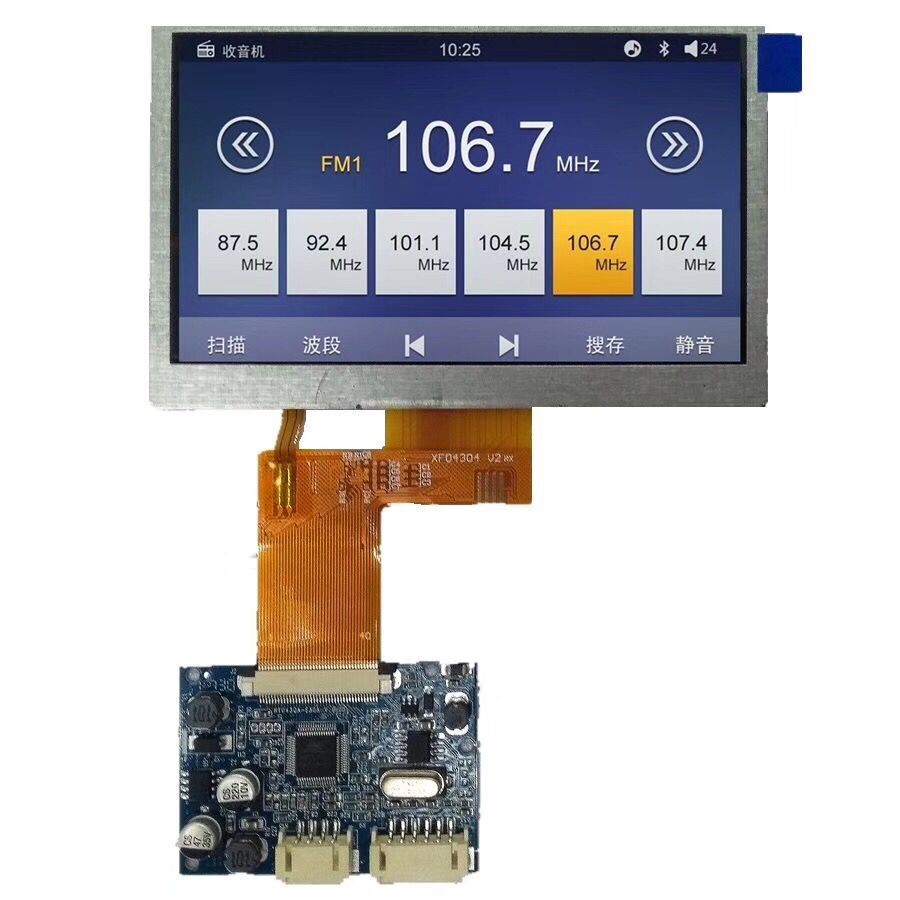

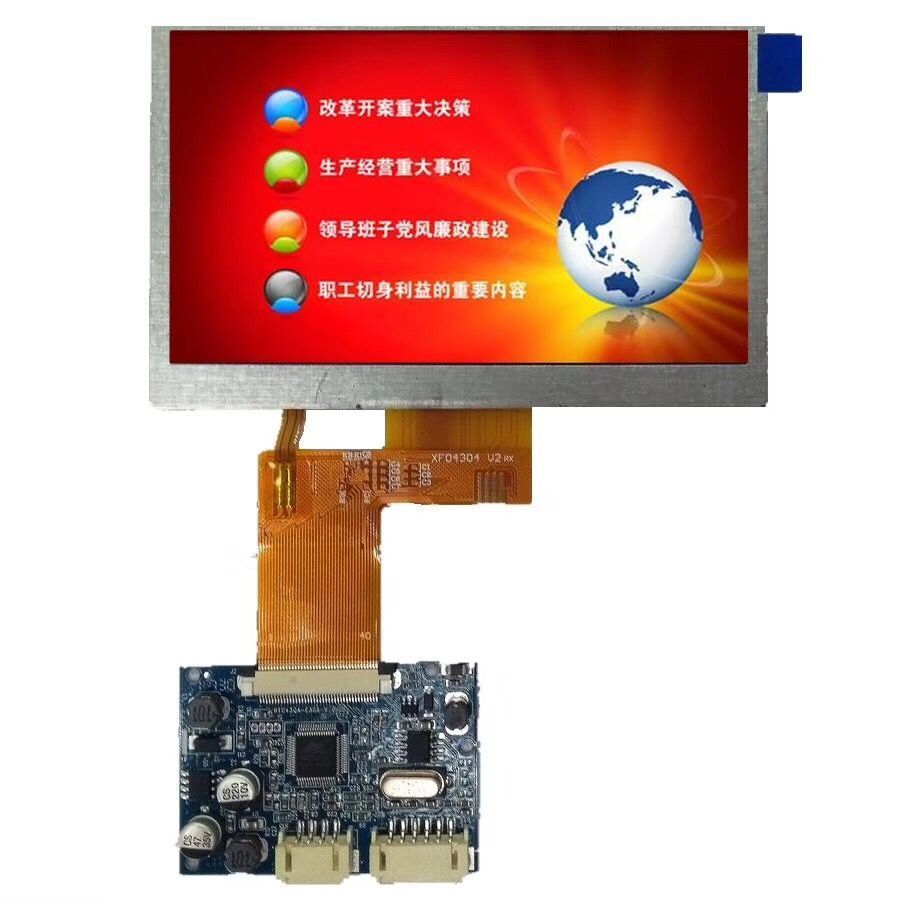

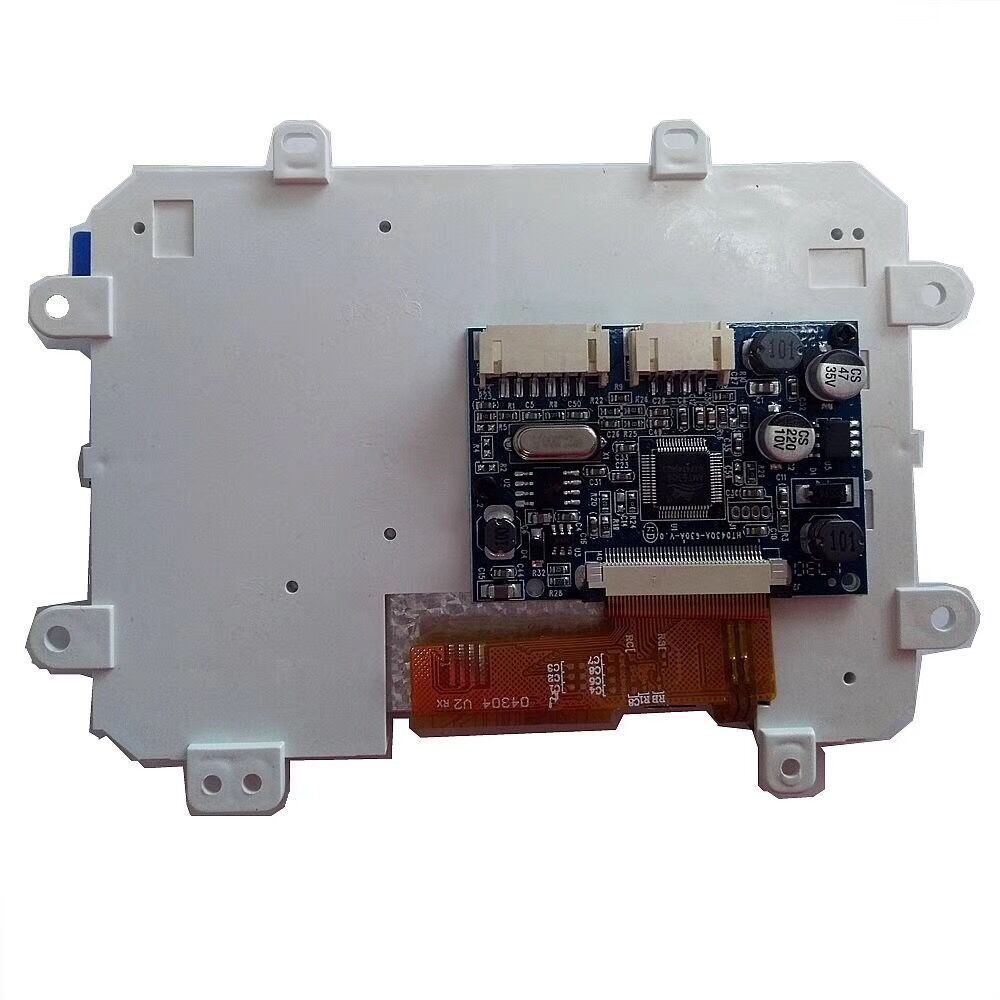

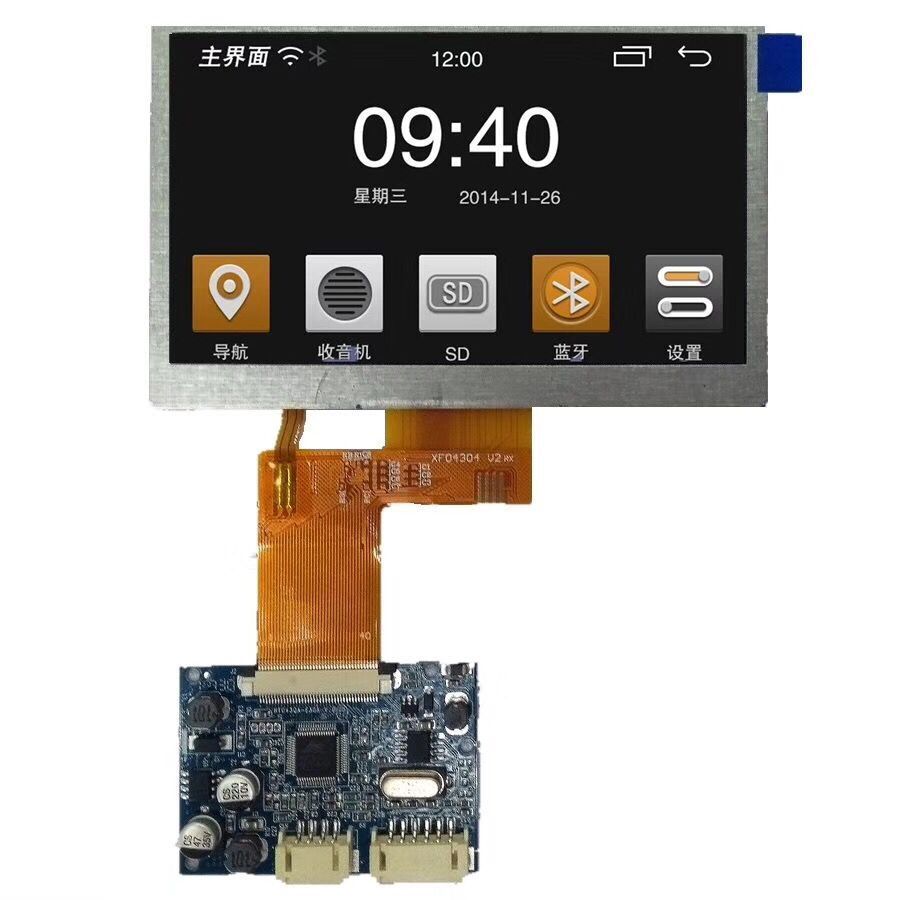

RP043DA module is combined with RP043MA PCB board
and HS 4.3" digital lcd panel, support both PAL system and NTSC , which can be
automatically converted. The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.
2.Features
| Model: |
RP043MA-V0 |
| Application |
Video Door Phone |
| Resolution |
480*3(RGB)*272 |
| Start Time |
1.6±0.5 Sec |
| Signal Interface |
PAL/NTSC |
| Signal Amplitude |
Min 0.5Vp-p/Standard: 1.0Vp-p Max: 2.0Vp-p |
| Adjust Type |
VR and KEY |
| Working Voltage |
Min:DC 9V/Standard: DC12V Max: DC18V |
| Working Current |
DC 90mA±20mA (DC12V) |
| Power Consumption |
1.08W(TYP) |
| Viewing Angle(U/D/R/L) |
(40/50/60/60) |
| Panel Outline Dimensions |
105.5(W)*67.1(H)*3.0(T)mm |
| ESD Level |
Contact +/-6KV,Air +/-8KV |
| Operating Temperature: |
-20 ~ +55ºC |
| Storage Temperature: |
-30 ~ +65ºC |
