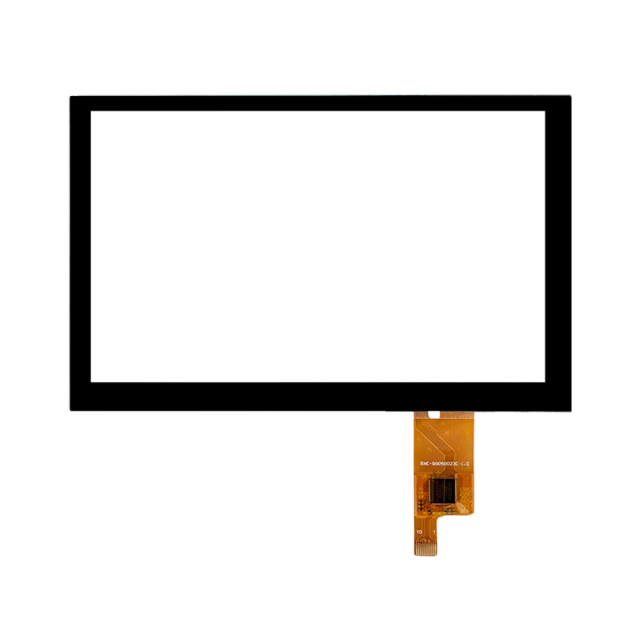

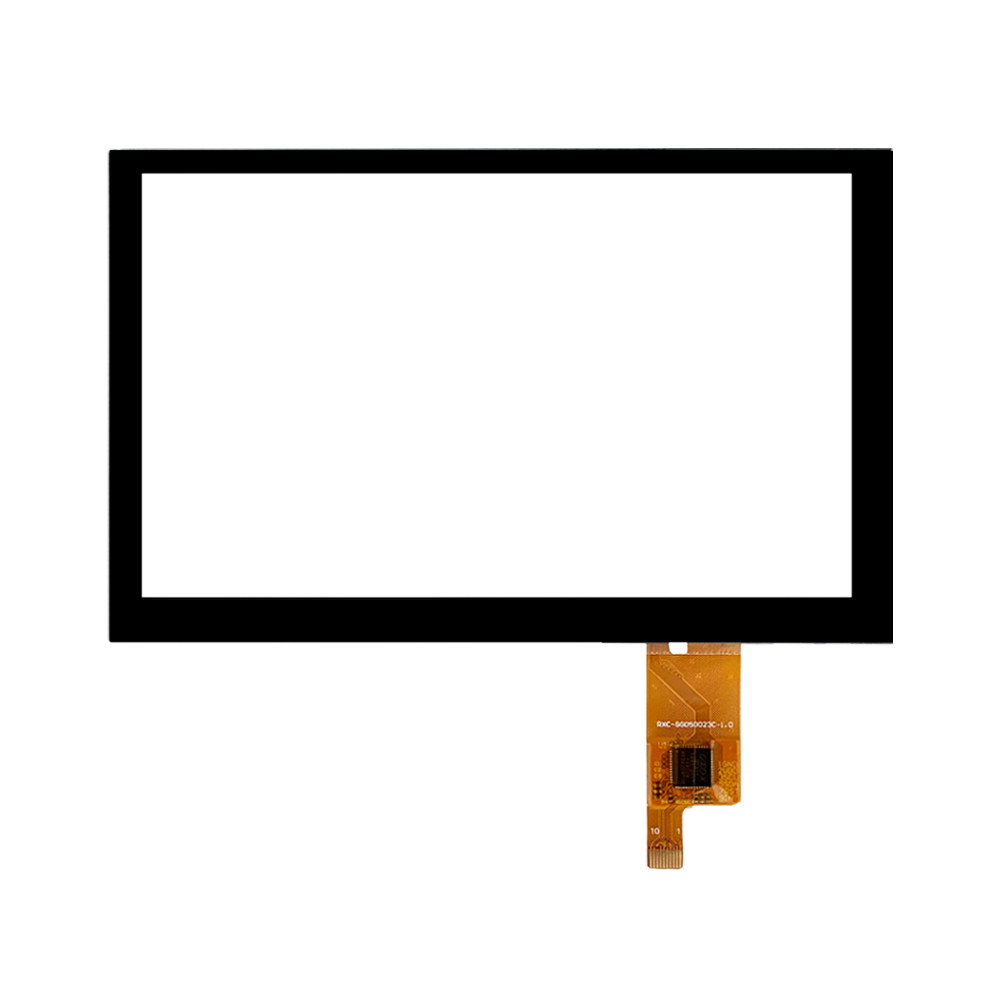

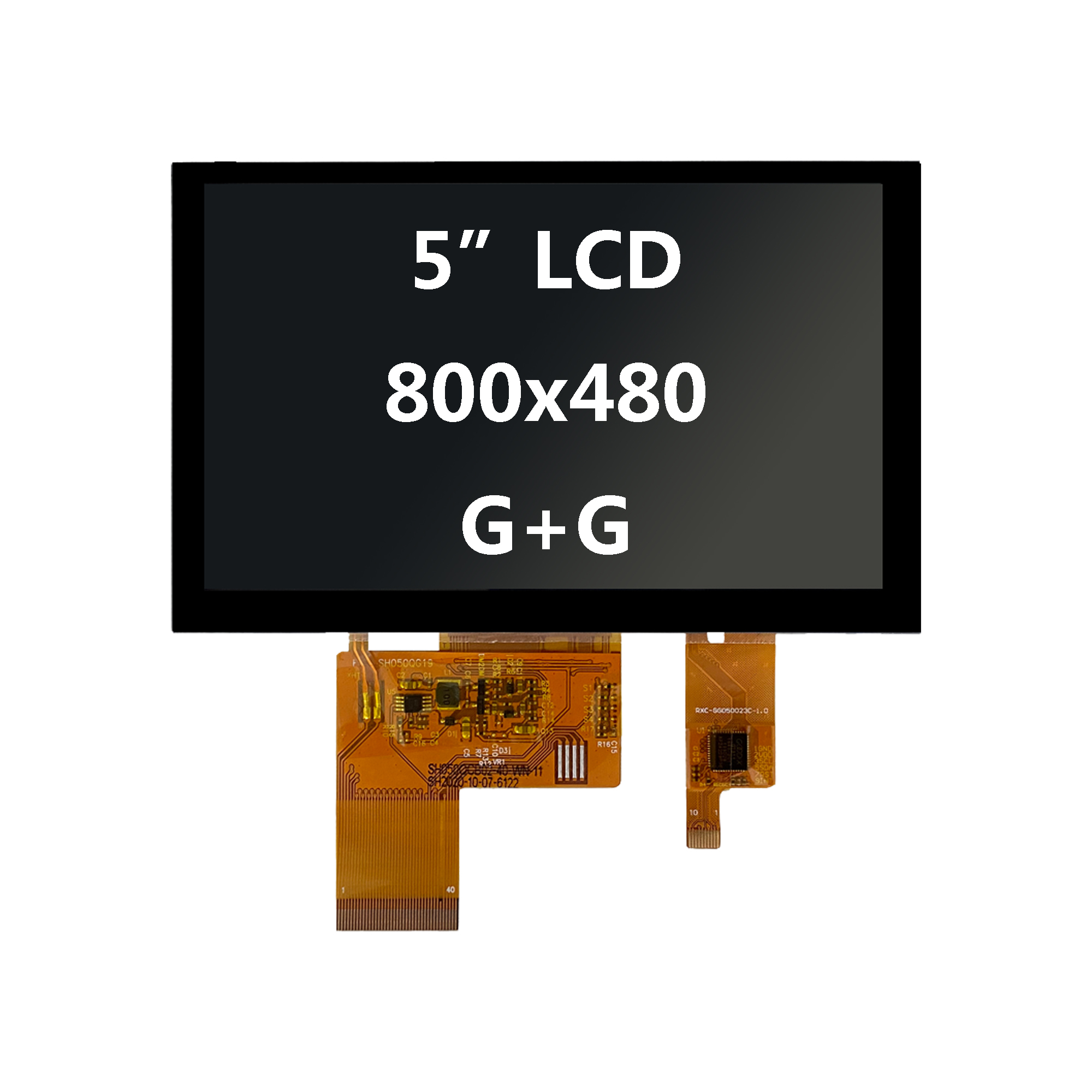

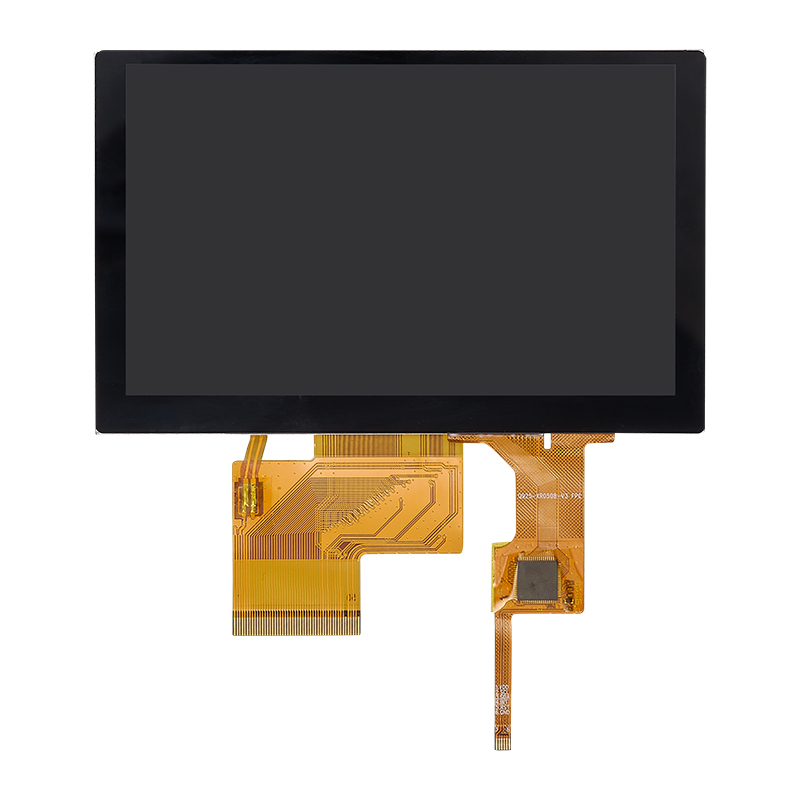

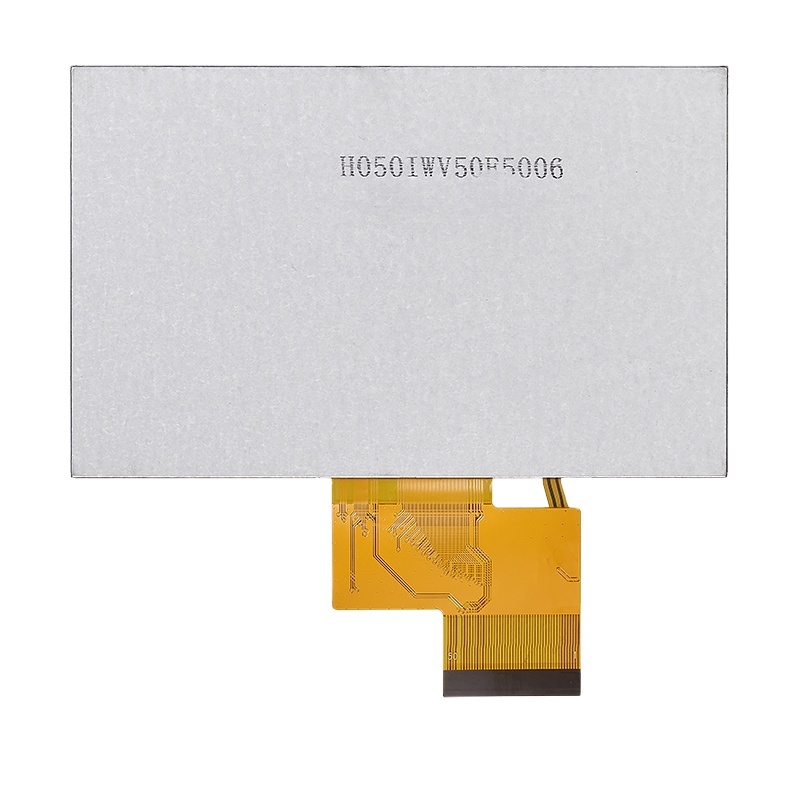

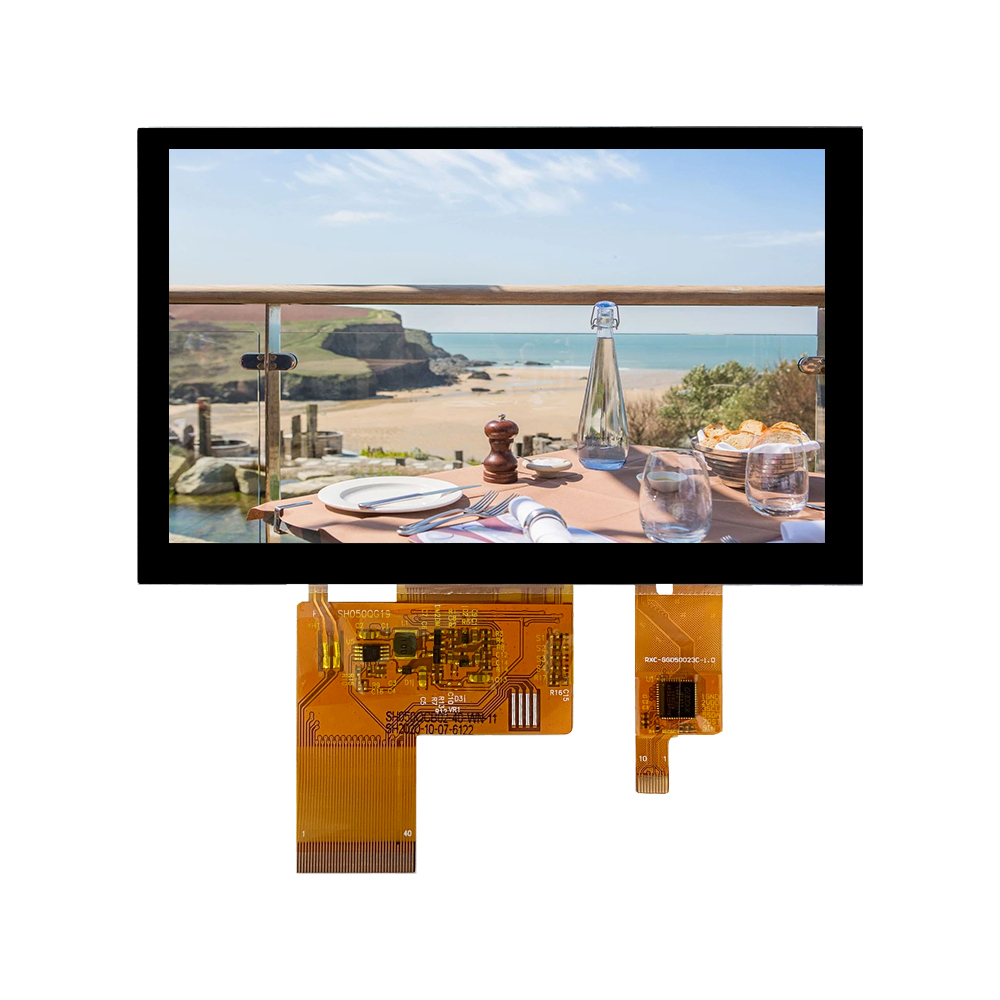

PCAP Touch panel 5" TFT LCD Screen display module with capacitive touch screen
| Model: |
RP050HD40N05-GG15 |
| Panel Size |
5 inch |
| LCD Type |
TFT TRANSMISSIVE |
| Module Size |
120.7(W)*75.9(H)*4.6(T) mm |
| Display Area |
108*64.8 mm |
| Number of Dots |
800×(RGB)×480Dots |
| Best Viewing Direction |
All |
| Display Type |
16.7M |
| LED Numbers |
12 White leds |
| Operating Temperature: |
-20 ~ +70ºC |
| Storage Temperature: |
-30 ~ +80ºC |
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
