TFT LCD Display

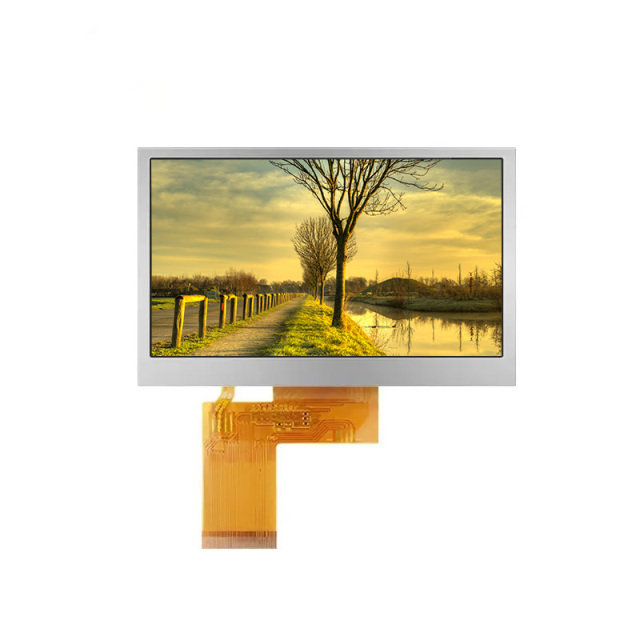

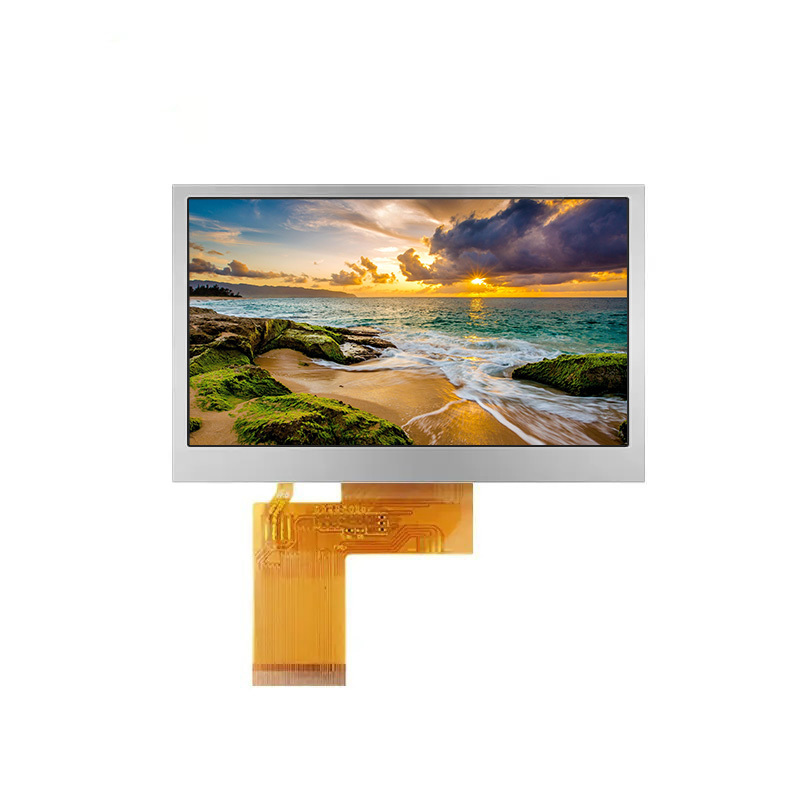

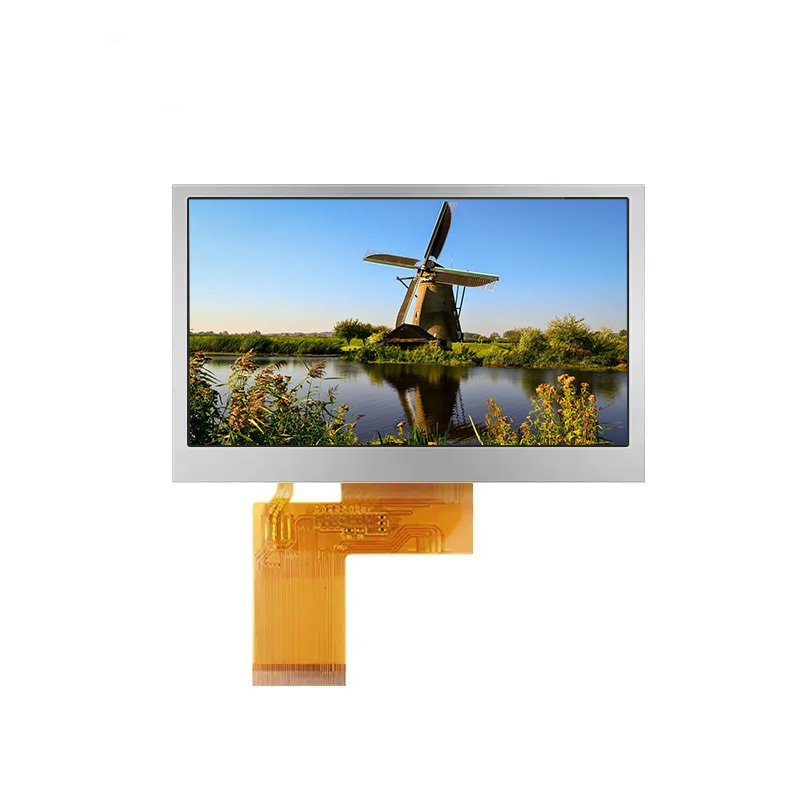

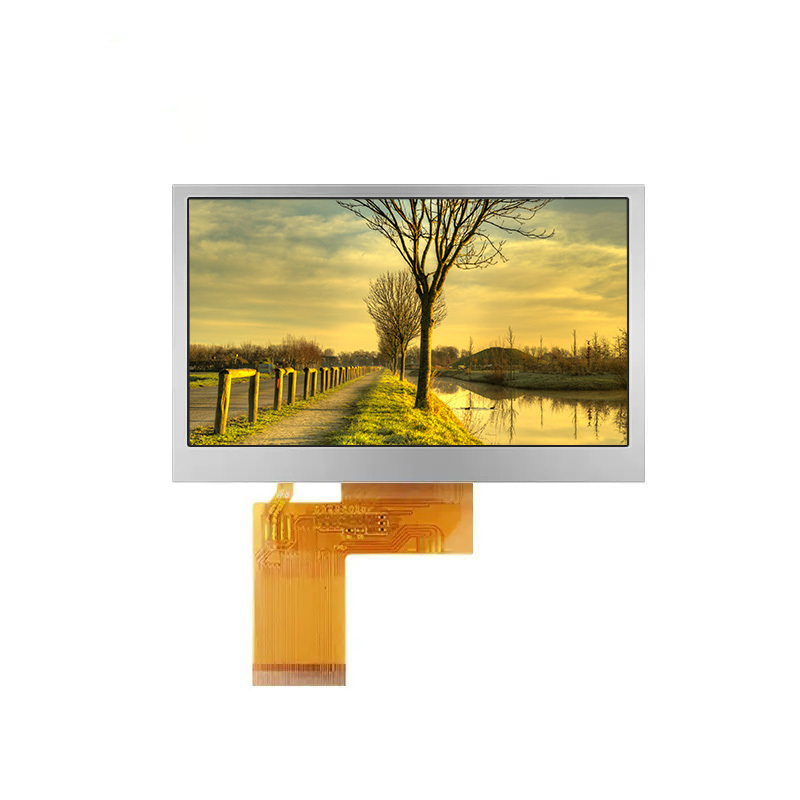

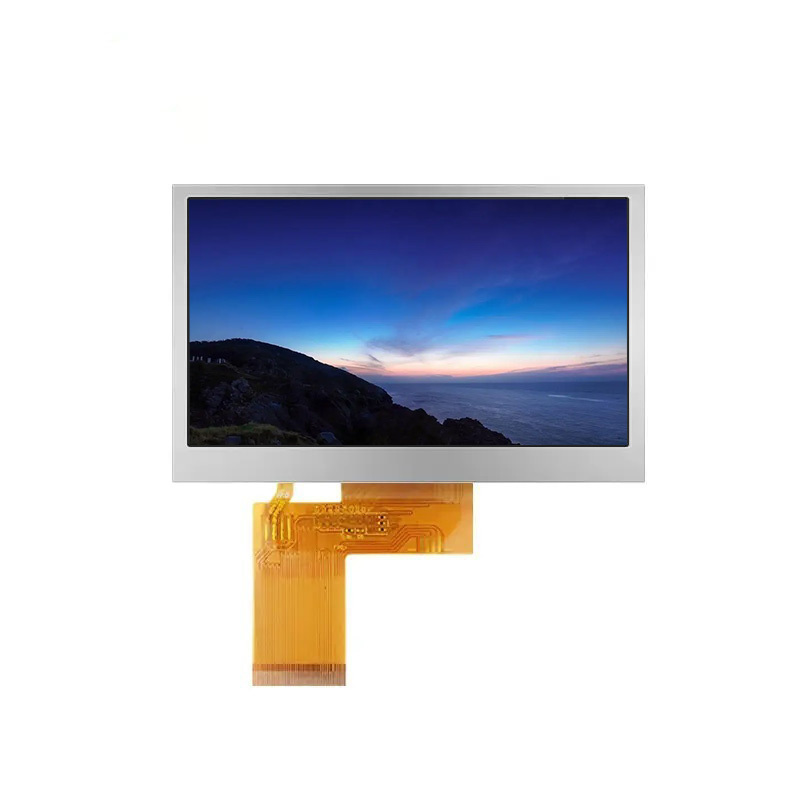

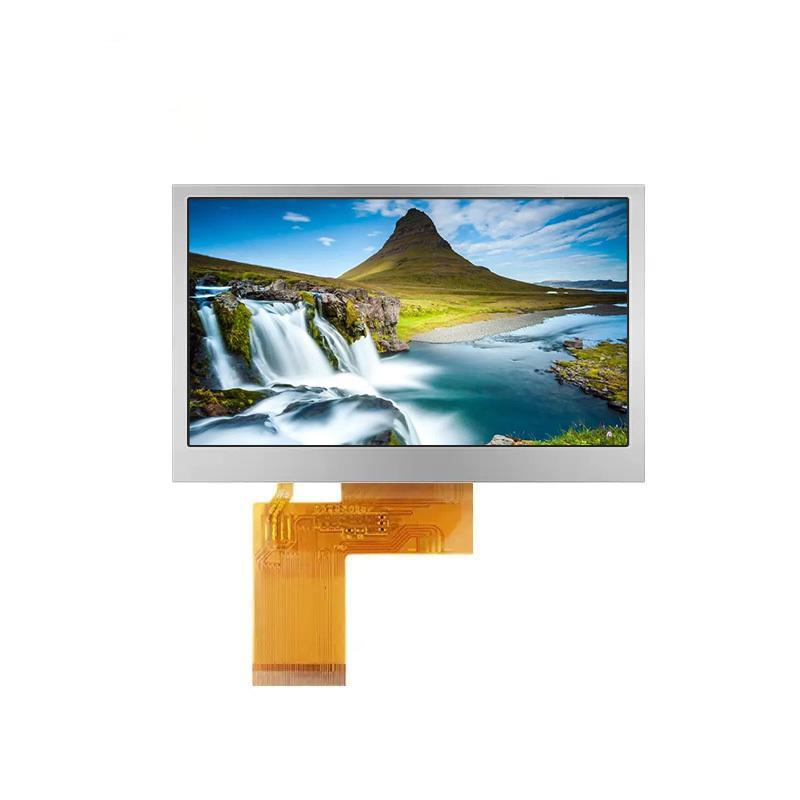

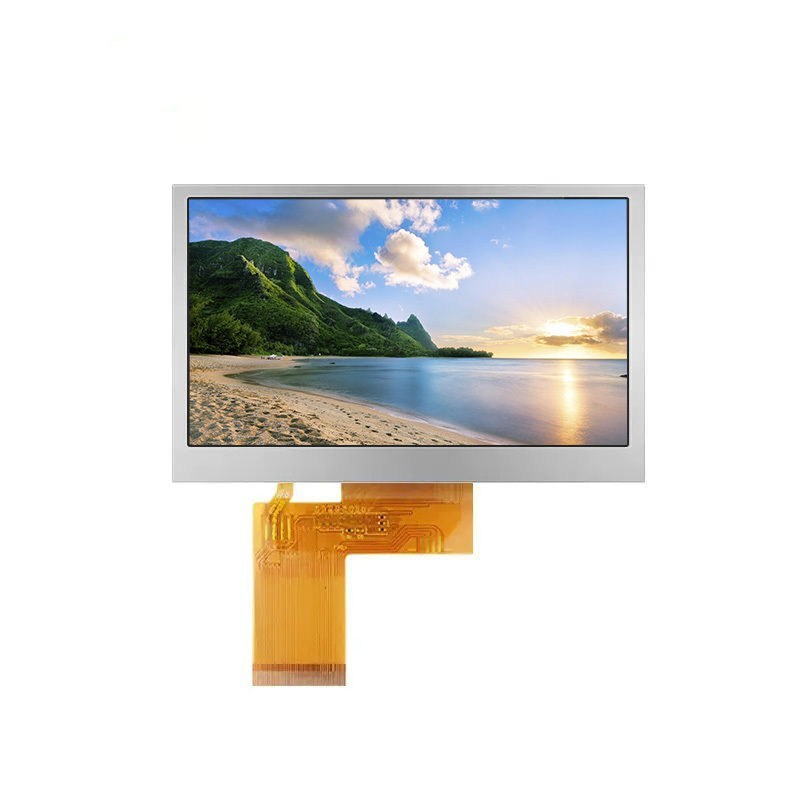

4.3inch 480x272 IPS display optional touch screen and high brightness 1000CD

Item No.: RP043D40N03A-IPS
RP043D40N03A-IPS is a 4.3inch IPS lcd display,resolution 480*272,interface RGB40pin,it is optional resistive touch screen and capacitive touch panels,and can be customized for high brightness,sunlight readble.
4.3inch 480x272 IPS display optional touch screen and high brightness 1000CD
Model: RP043D40N03A-IPS
Panel Size 4.3 inch
Module Size 105.5(W)*67.1(H)*3.0(T) mm
Display Area 95.04*53.86 mm
Number of Dots 480×(RGB)×272 Dots
Best Viewing Direction ALL
LED Numbers  7 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
