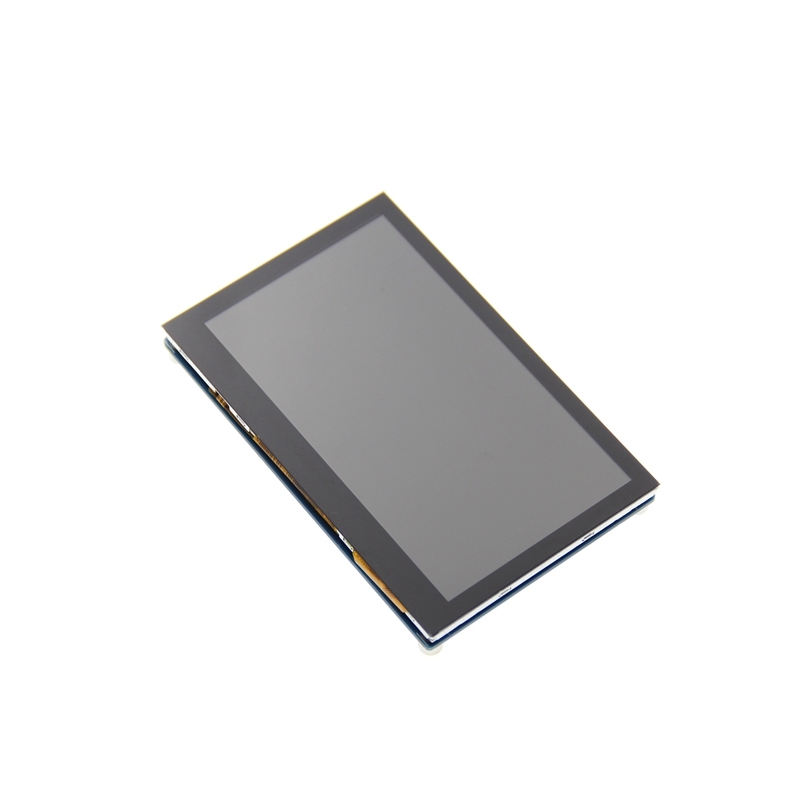

4.3 Inch IPS TFT LCD Screen 800X480 Mipi Dsi Interface Capacitive Touch Panel Raspberry Pi Dsi Display

Item No.: RP430DSI025
MIPI DSI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or desktop/laptops) which support MIPI DSI  signal output. This series display modules come with a control board with a MIPI DSI signal interfa
Description
4.3 Inch IPS TFT LCD Screen 800X480 Mipi Dsi Interface Capacitive Touch Panel Raspberry Pi Dsi Display

Product Description

  • 800*480 resolution capacitive touch IPS screens
  • Raspberry Pi MIPI DSI interface direct output, plug and play, no need to install driver

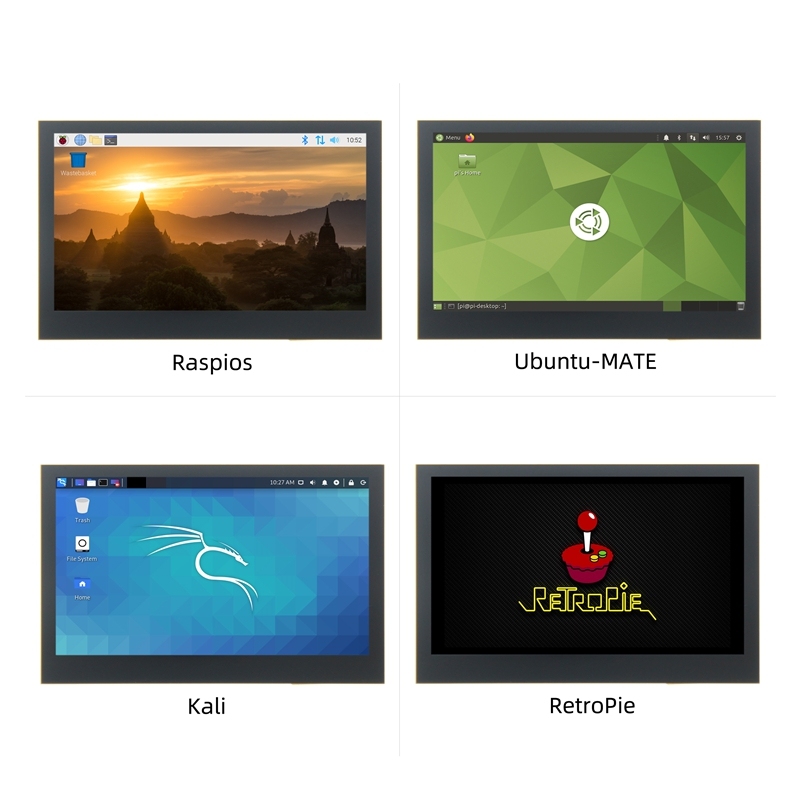

  • Support for official system Raspbian, 2 points to zoom the page
  • Support Ubuntu/Kali/Win10 IoT, single touch
  • Support Retropie
  • Backlight brightness adjustment button
  • Support PWM backlight brightness adjustment, adapt to different use environment

Parameter
Name Descriptions
LCD Type IPS TFT
LCD Size 4.3inch
LCD Resolution 800*480
LCD Interface type RGB888
Module Interface Type MIPI DSI
Touch screen type Capacitive touch screen
Viewing Angle IPS:Whole perspective
Active Area 95.04*53.86 (mm)
Working Voltage 3.3V
Maximum Operating Current 220mA
Operating Temperature -20ºC-70ºC

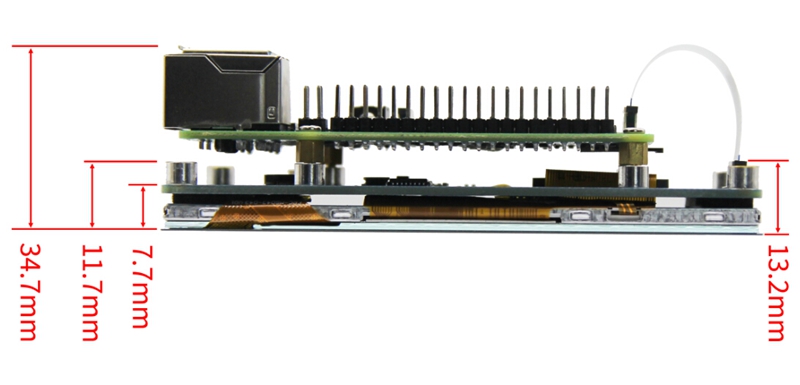

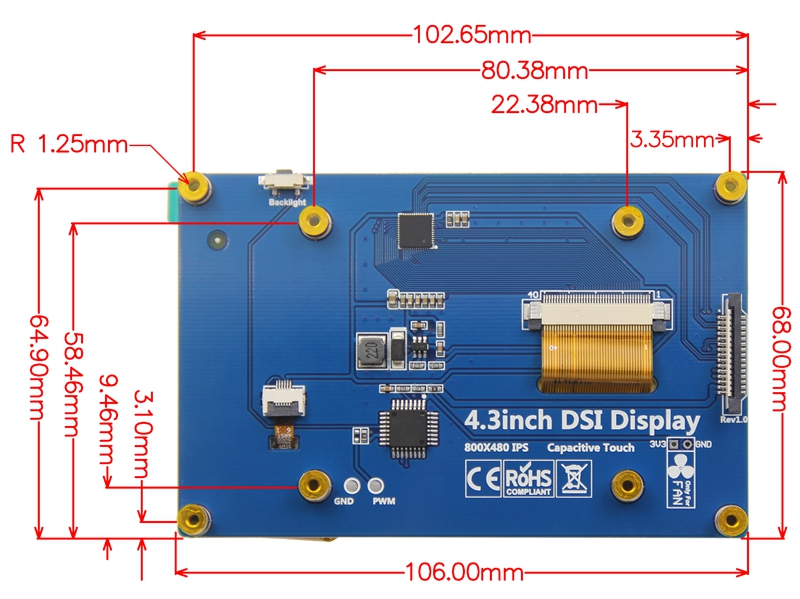

Module Size 106.00*68.00 (mm)
Module Weight (net weight) 97g
Package Size 134*98*52(mm)
Package Weight 140g



Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
