TFT LCD Display

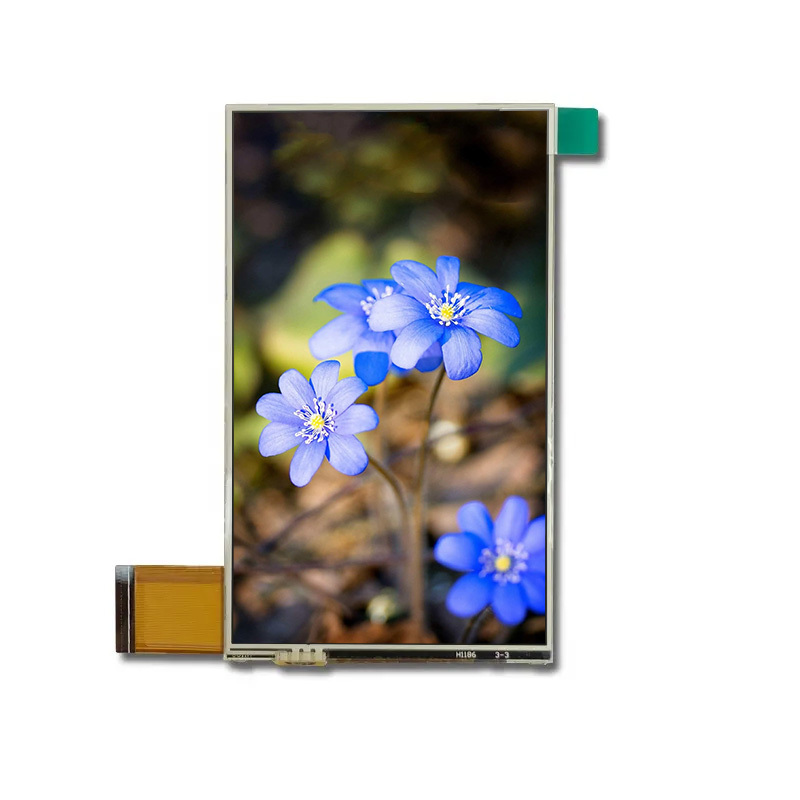

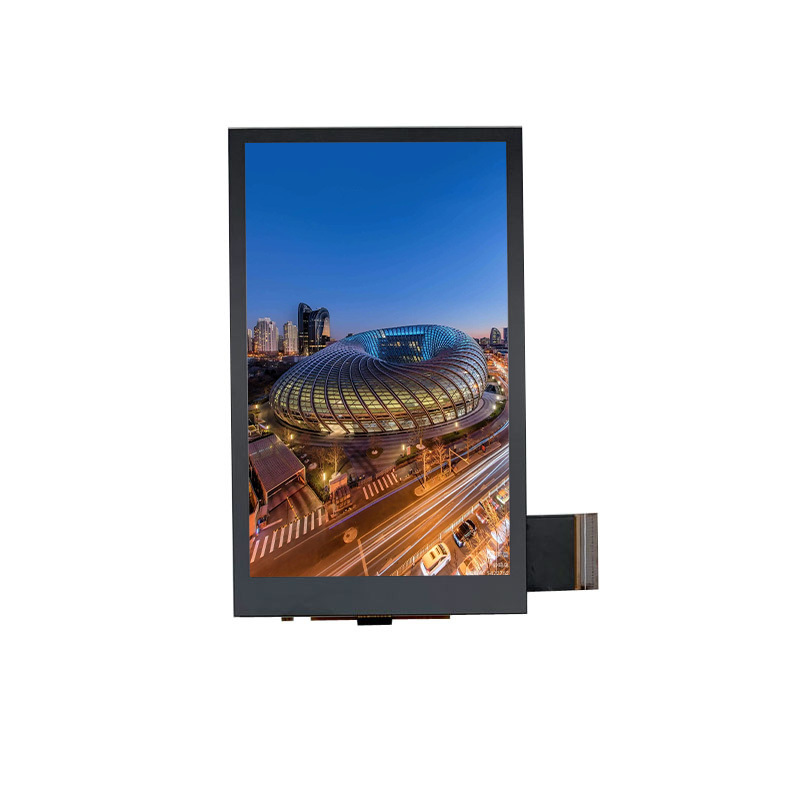

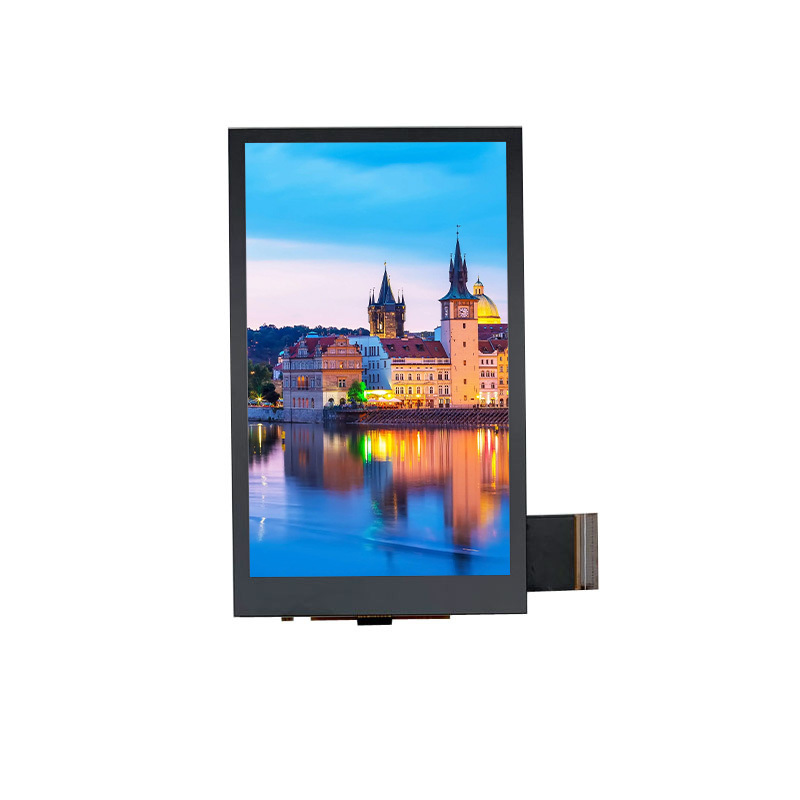

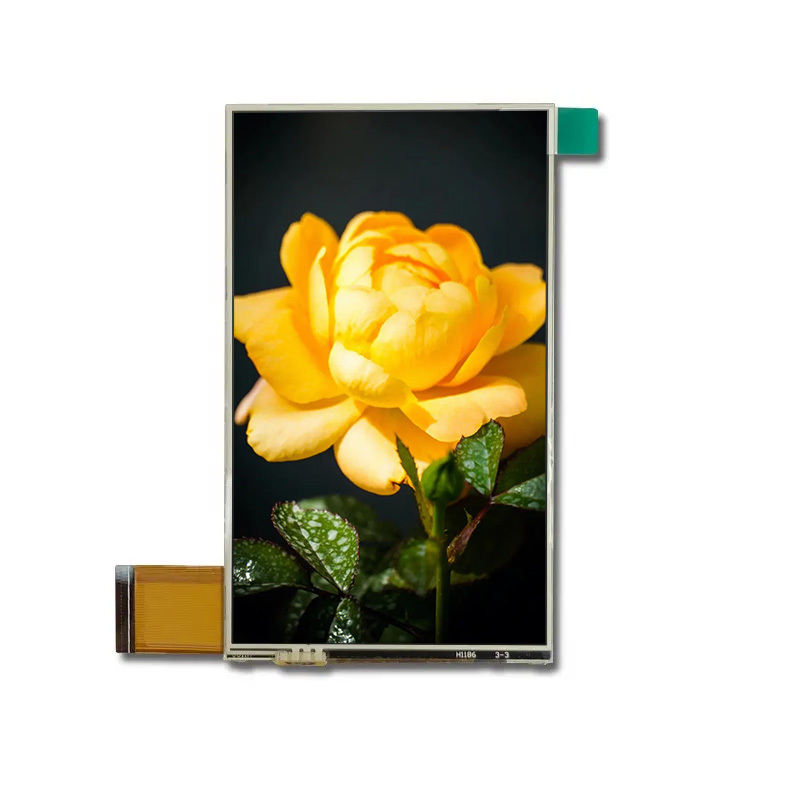

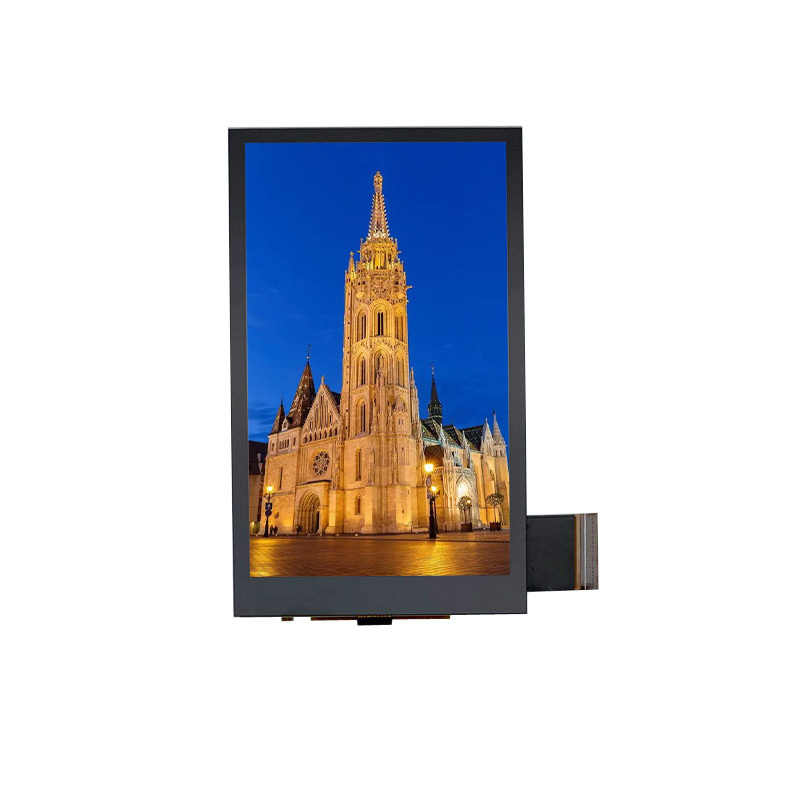

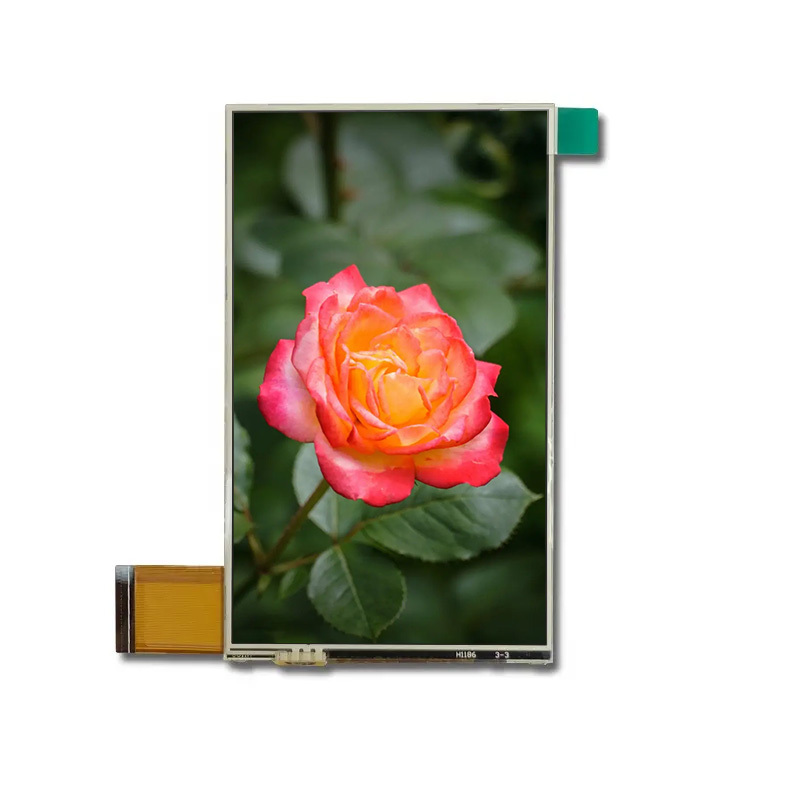

3.97inch IPS 480*800 LCD Display Module RGB18bit Interface, Optional Resistive or Capacitive Touch Screen

3.97inch IPS 480*800 LCD Display Module RGB18bit Interface, Optional Resistive or Capacitive Touch Screen,Used for handheld devices, POS, video doorbells, instruments, etc
Description
3.97inch IPS 480*800 LCD Display Module RGB18bit Interface, Optional Resistive or Capacitive Touch Screen
Module number RP3978-01
Resolution 480 × (RGB) × 800
Viewing direction ALL
Active Area 51.84(W) *86.40(H)
Dimensional Outline 57.14(W )*96.85 (H)*2.15(T)
IC/LCM Driver IC ST7701S
Contrast Ratio 1000
Display Colors 16.7M
Interface type RGB18bit
Display Mode Transmissive/IPS
Number of pin 40
Connecting type Plugging type B TO B
Luminance 500cd/m²/optional
Backlight leds 8  pcs
Operate temperature -20-70°C
Storage temperature -30-80(°C)
Backlight type white LED backlight
Backlight lifetime 20k hrs(Min.)

Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.  These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).  Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology
