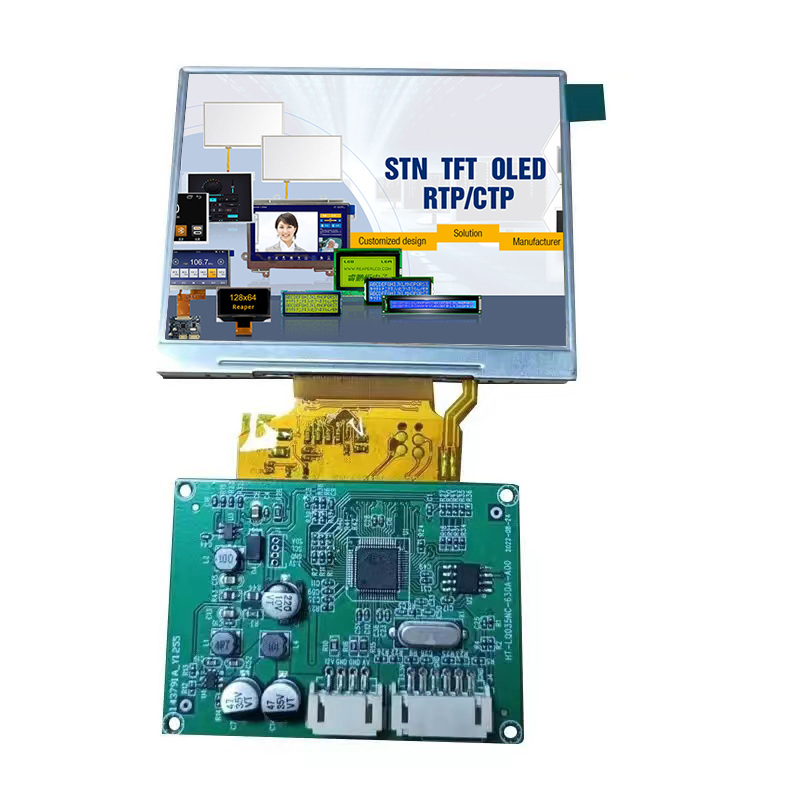

3.5inch TFT LCD Display with Driver Board Apply for Video Door Phone and Automative
1. INTRODUCTION

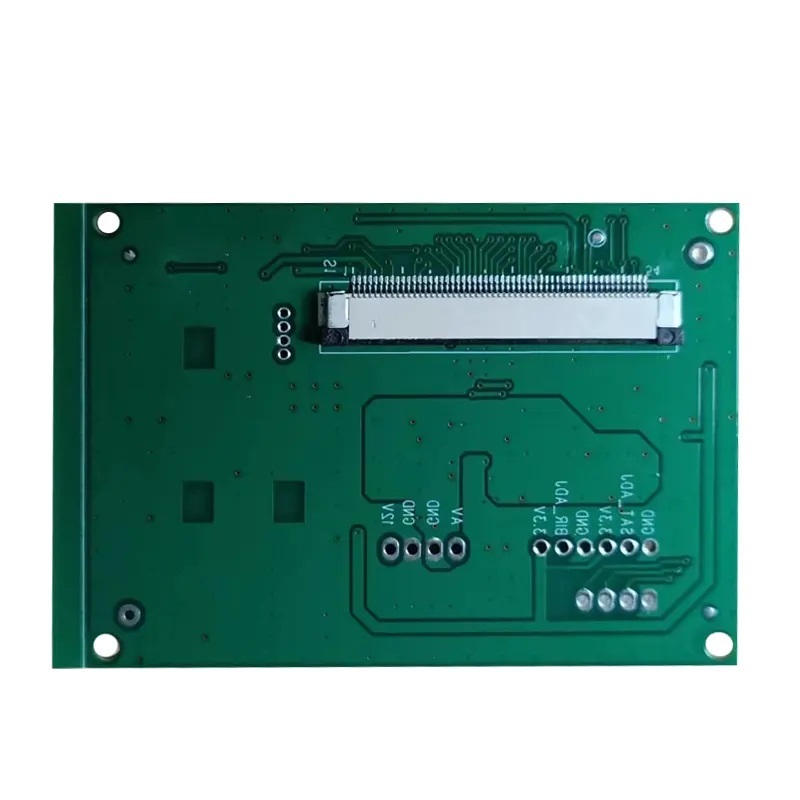

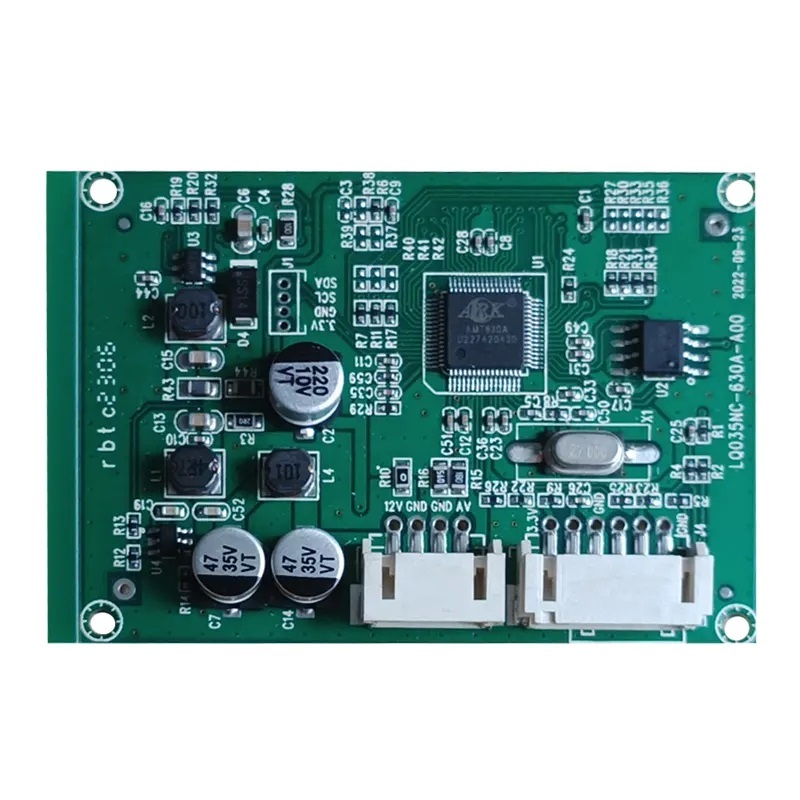

The 3.5 module is a LCD control board designed for digital TFT-LCD
modules, such as LQ035NC111, TM035KDH01 and so on. It can receive 1
channel NTSC/PAL CVBS input .The whole module use high light white LED as backlight,which has
low consumption and disturbances. This TFT module can be used for visual doorbell, video
telephony, automotive displays, portable DVD, instruments, meters and measuring equipment
and etc.
2.Features
Single power supply: +12V /range: +7V~+15V.
Work Temperature: 0ºC~+ 65 ºC.
Default Setting is 1 AV. No key input . No VR adjust input.
Support VR Adjust.
Support OSD Functions: BRI adjust, CNT adjust, SAT adjust, Panel Scale
and so on.
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
