3.5inch SPI TFT LCD Display Module with ILI9488 driver
1. INTRODUCTION
The 3.5inch lcd module uses a 4-wire SPI communication method with a driver IC of ILI9488 and a resolution of 480x320 and a touch function(optional).The module includes an lcd display,backlight control circuitry,and touch screen control circuitry.
2.Features
- 3.5-inch color screen,support 65K color display,display rich colors
- 480X320 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot

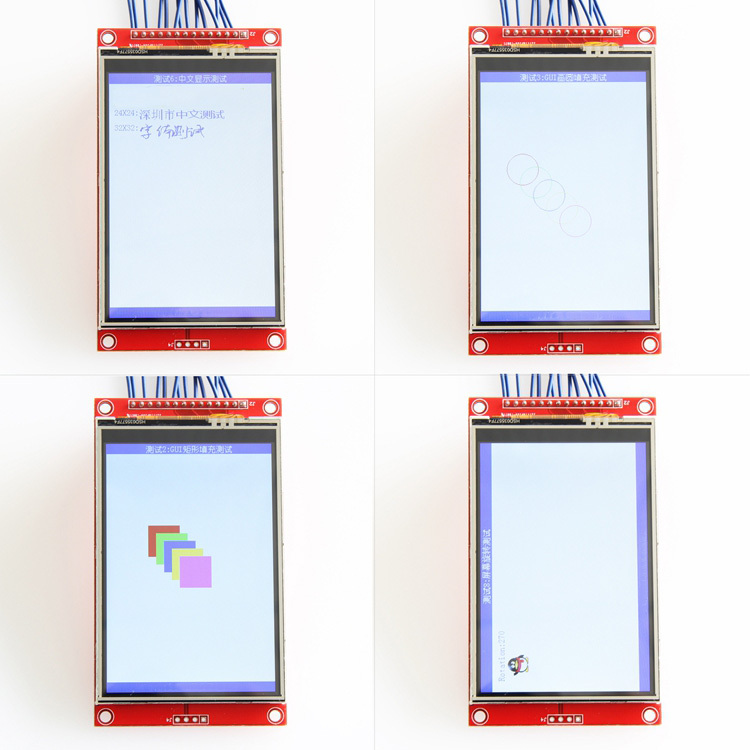

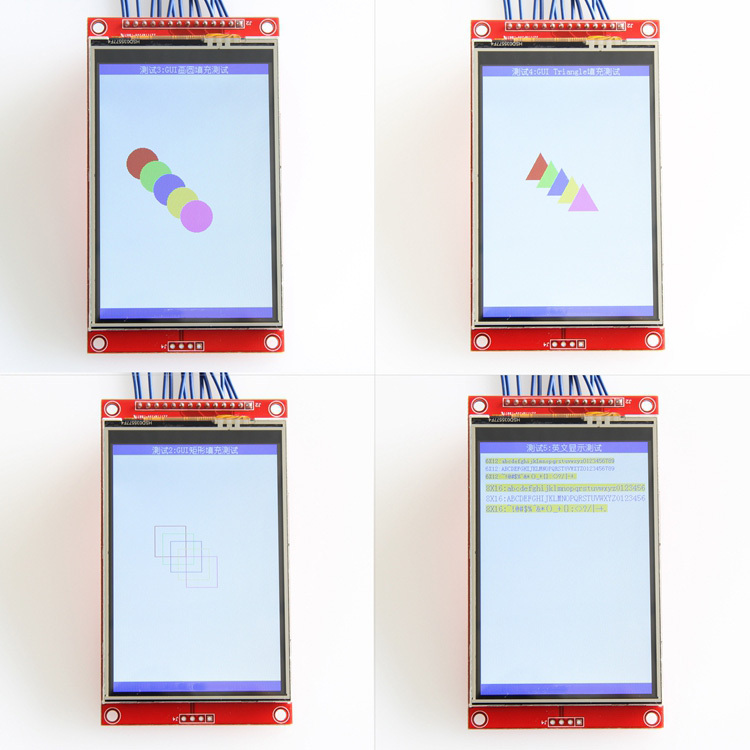

- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
3 Product Summary
| Name |
Parameter |
| Display Color |
RGB 65K color |
| SKU |
have touch screen: RPMSP3520 |
| have no touch screen: RPMSP3521 |
| Screen Size |
3.5(inch) |
| Type |
TFT |
| Driver IC |
ILI9488 |
| Resolution |
480*320(Pixel) |
| Module Interface |
4-wire SPI interface |
| Active Area (AA area) |
48.96x73.44(mm) |
| Module PCB Size |
56.34x98.0(mm) |
| Operating Temperature |
-20℃~60℃ |
| Storage Temperature |
-30℃~70℃ |
| VCC power voltage |
3.3V~5V |
| Logic IO port voltage |
3.3V(TTL) |
| Power Consumption |
TBD |
| Rough Weight(Package containing) |
No touch: 45(g) / With touch: 57(g) |
4 Interface Definition
