TFT LCD Display

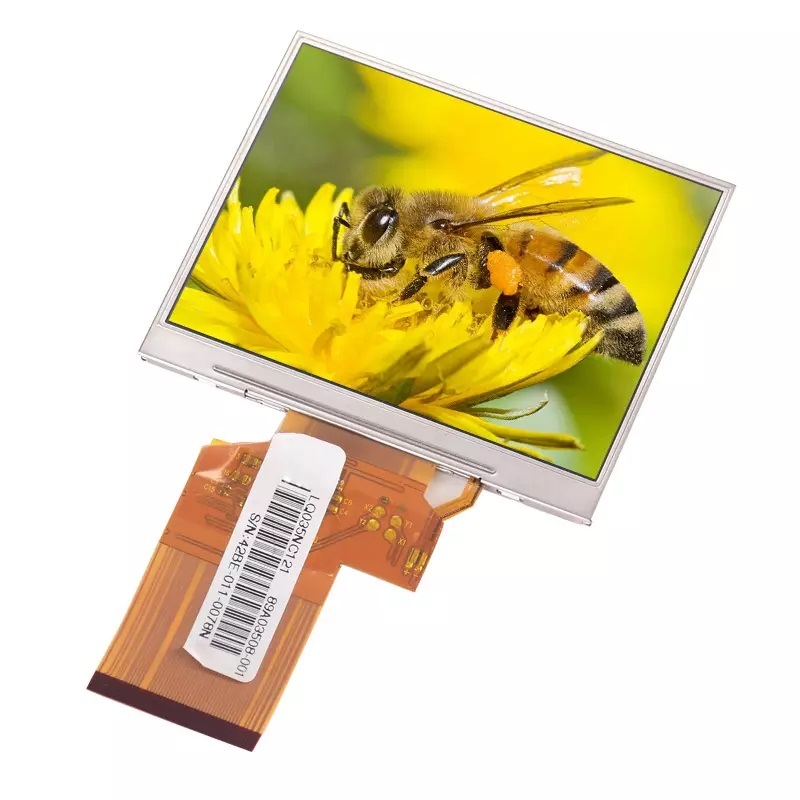

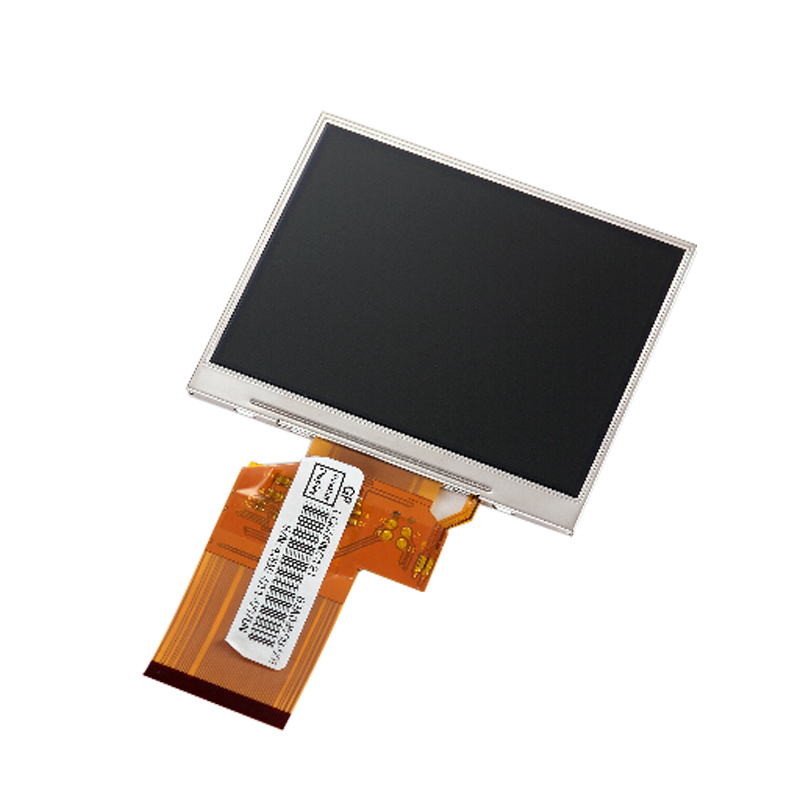

3.5inch 54pin 320X240 Industrial TFT LCD Display compatible with LQ035NC111

Item No.: RP035001-V01
Model: RP035001-V01
Dot Matrix: 320 x 240

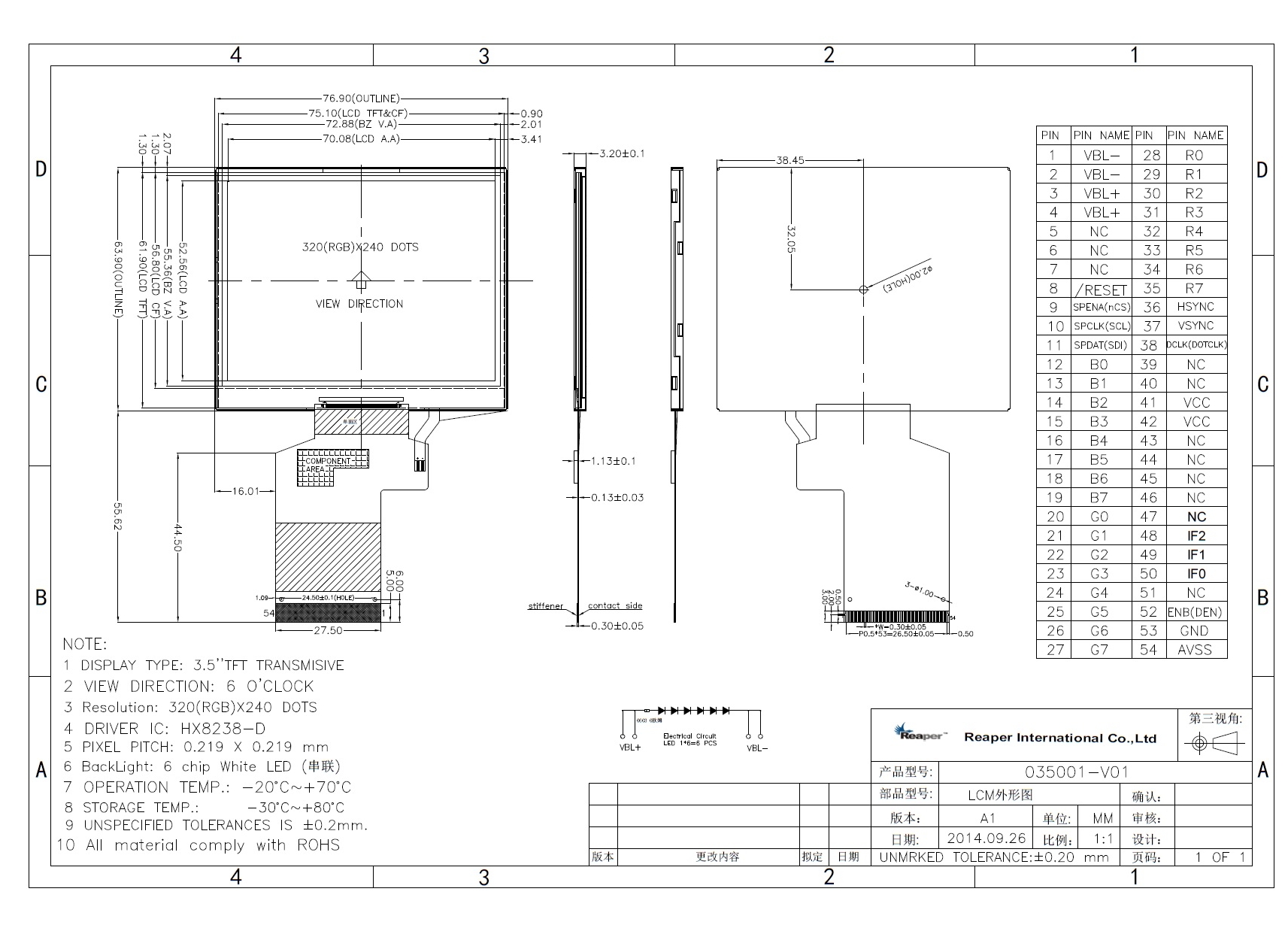

Module size: 76.90(W)x63.90(H)x3.20(T)mm
Active area: 70.08(W)x52.56(H)mm
Description
 3.5inch 54pin 320X240 Industrial TFT LCD Display compatible with LQ035NC111
Model: RP035001-V01

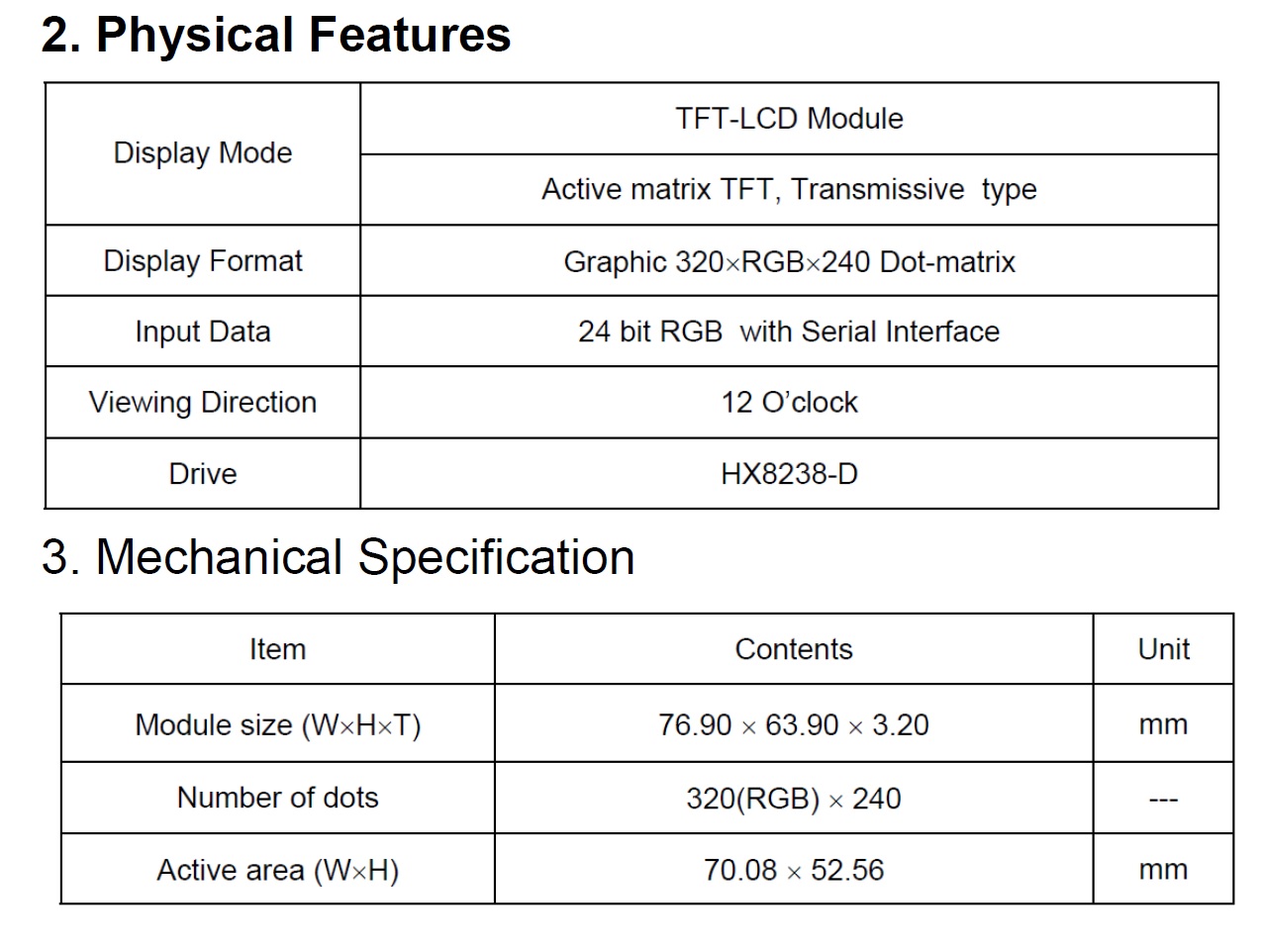

Panel Size 3.5 inch
LCD Type TFT TRANSMISSIVE
Module Size 76.90(W) x63.90(H) x 3.20(T)mm
Display Area 70.08(W) x52.56(H)mm
Resolution 320×(RGB)×240 Dots
Best Viewing Direction 12 O'clock
Driver IC HX8238-D
LED Numbers 6 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
