TFT LCD Display

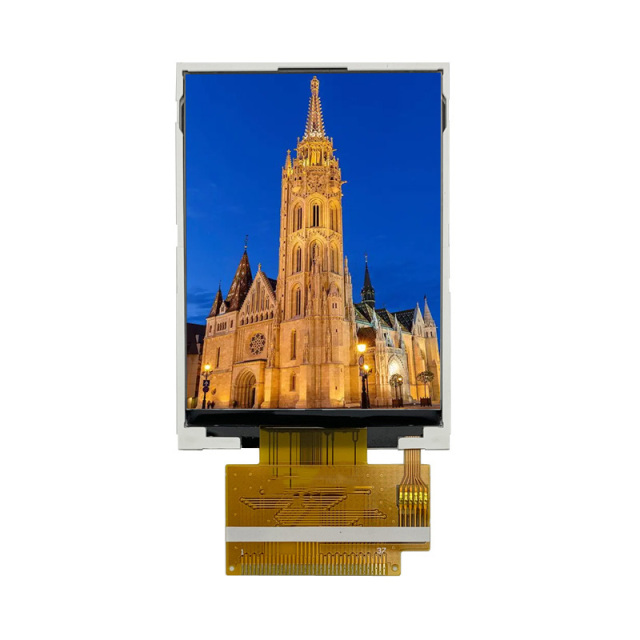

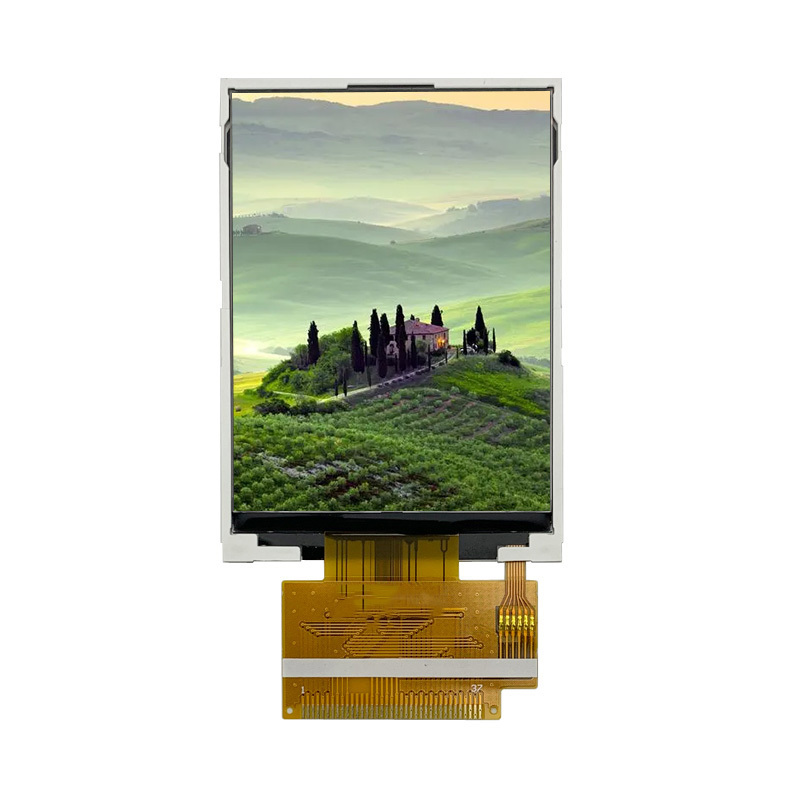

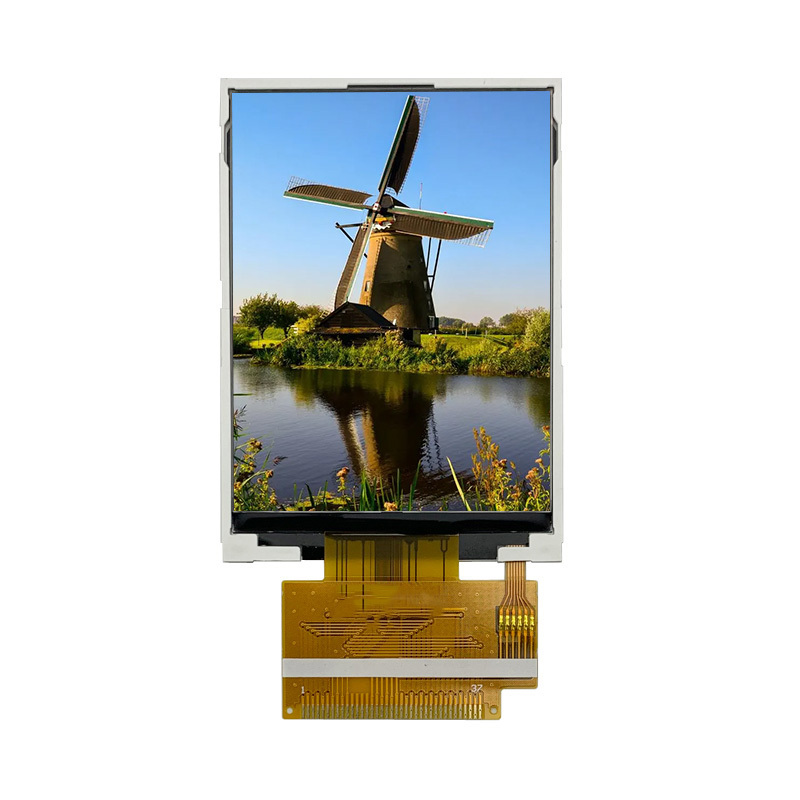

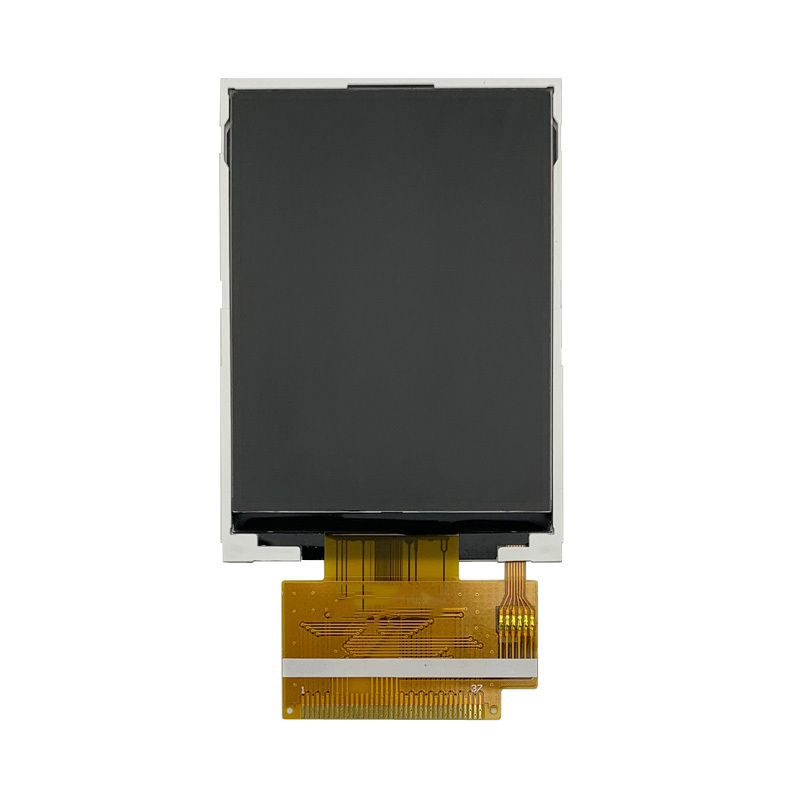

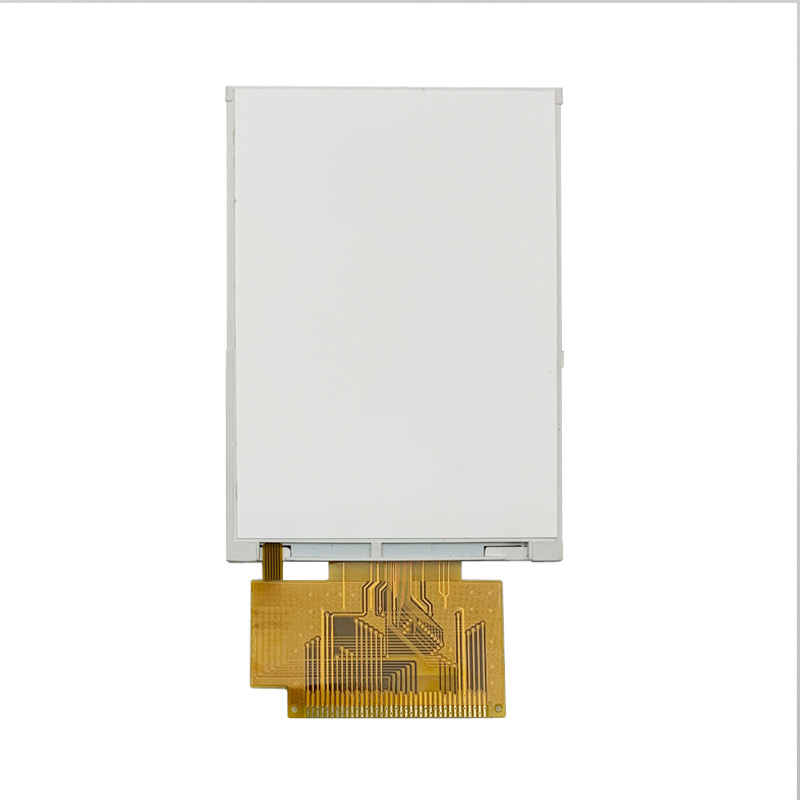

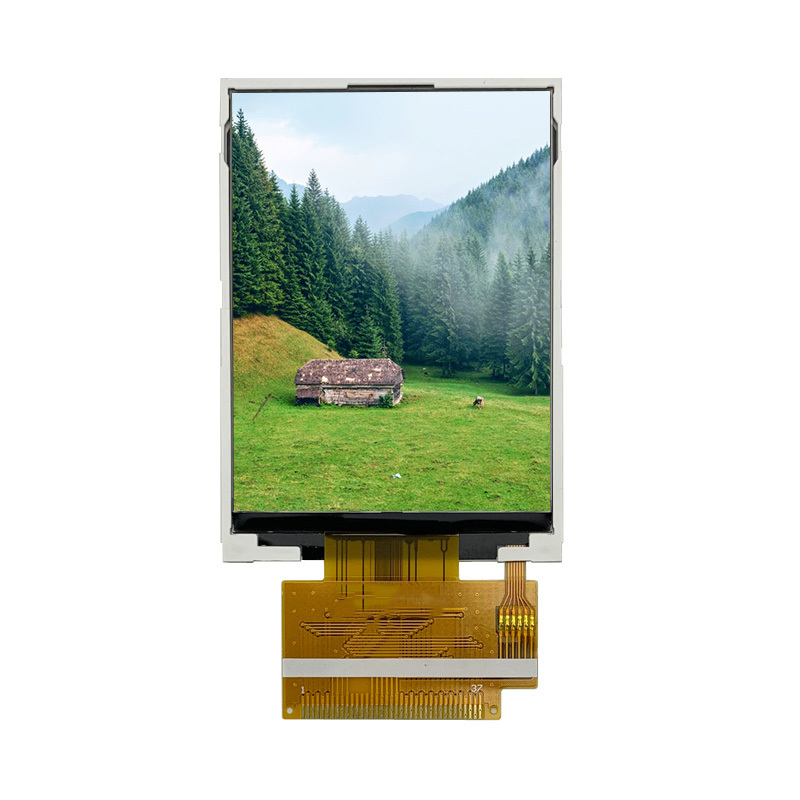

3.2 Inch TFT LCD Display/LCD Screen/LCD Module Optional Touch, for Smarthomes, Handheld Devices, Instruments, etc

Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display.
Description
3.2 Inch TFT LCD Display/LCD Screen/LCD Module Optional Touch, for Smarthomes, Handheld Devices, Instruments, etc
Model: RP320A-101A
Panel Size 3.2 inch
LCD Type a-Si TFT
LCD Mode TN/Normal White
Module Size 55.04 x77.70 x 2.40mm
Display Area 48.60 x 64.80mm
Number of Dots 240×(RGB)×320 Dots
Pixel arrangement RGB Stripe
Dot Pitch ( W×H ) 0.2025 x 0.2025
Color depth 262K(MAX)
Interface 16bit MCU
Backlight Type LED x 5
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
