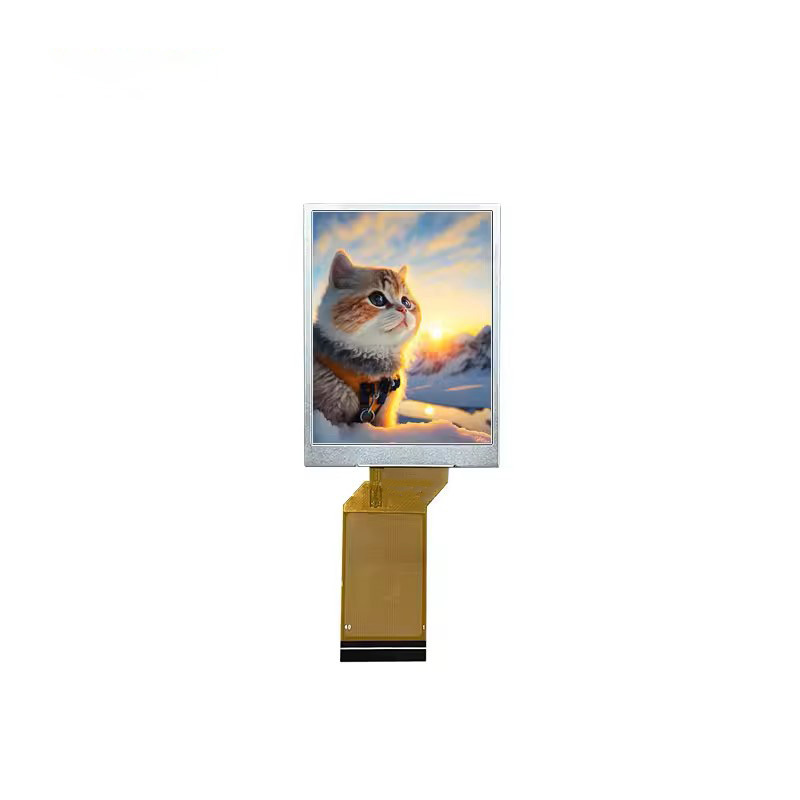

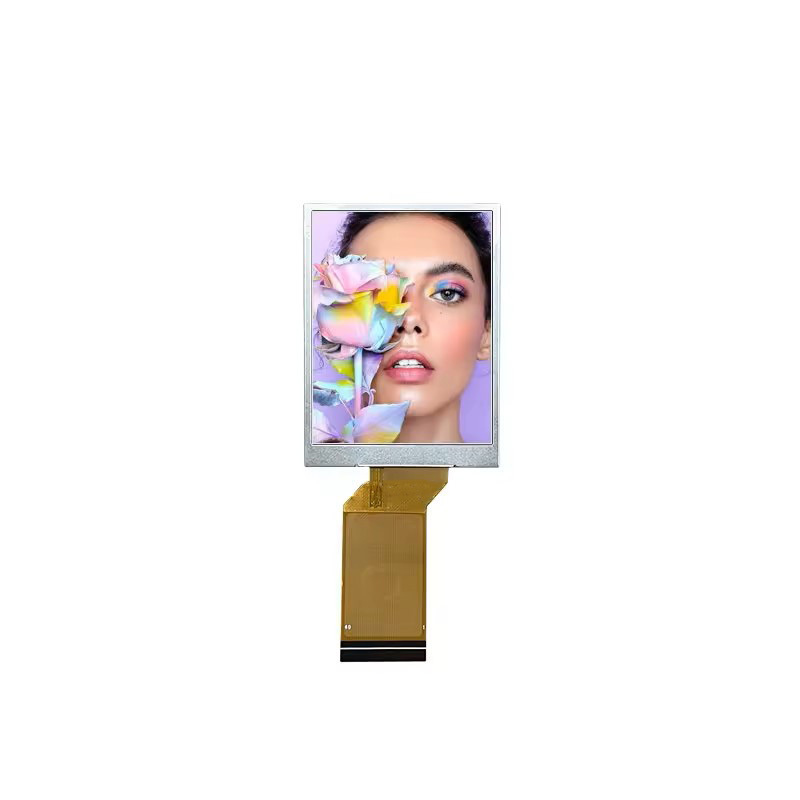

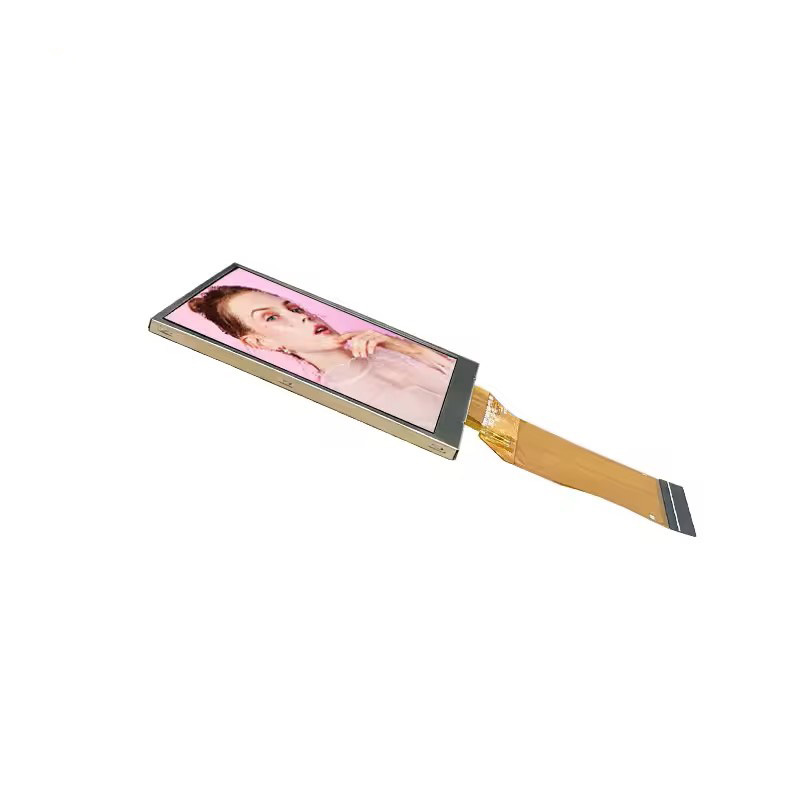

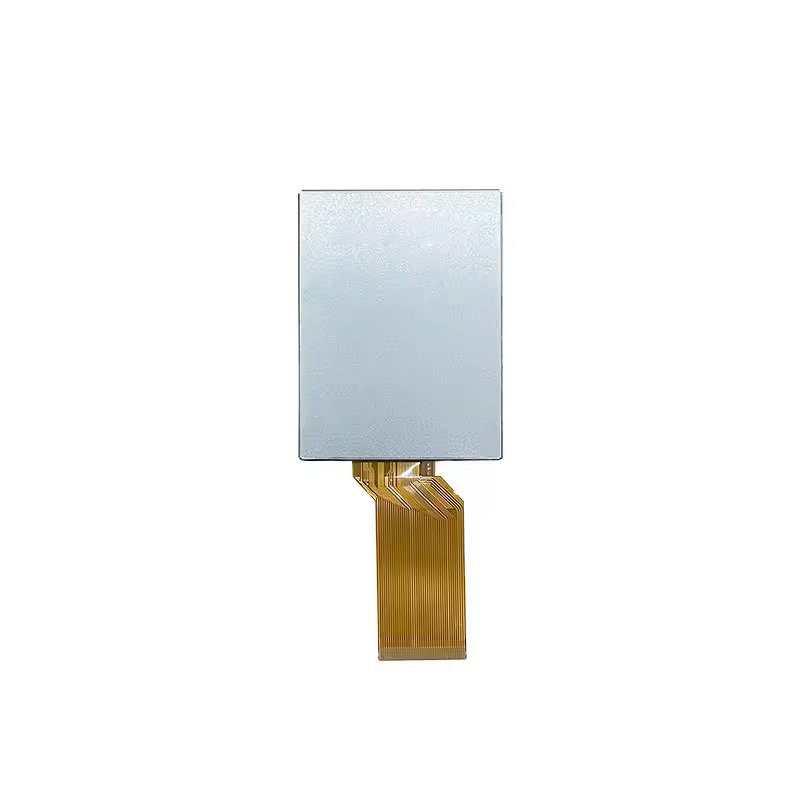

2.7 Inch HD IPS TFT LCD Screen Daylight Viewable Ultra Wide Viewing Angle RGB Interface Display
| Model Number |
RP270005G0 |
| Size |
2.7 inch |
| LCD Type |
Normally black
|
| Drive Element |
TFT active matrix |
| Number of Pixels |
960*3RGB(H)X240(V) Dots |
| Pixel Arrangement |
RGB stripe |
| Pixel Pitch (W*H) |
0.16875*0.16875 mm |
| Active Area |
54*40.5 mm |
| LCM Mechanical Outline Size(W*H*T) |
63.9*47*2.73 mm |
| Viewing Direction |
12 O'CLOCK |
| LCM Driver IC |
ILI8961 |
| LCM Interface |
8 BIT RGB Interface |
| LCM Pin Count |
40 |
| Backlight LED |
2 pcs |
| Backlight Current |
20 ma |
| Backlight Voltage |
8.4-9.6 v |
| Operating Temperature |
-20+70 ºC |
| Storage Temperature |
-30+80 ºC |
| Luminance |
300 Cd/m² |
Brand:
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Reaper TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800). Many of Reaper TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
