TFT LCD Display

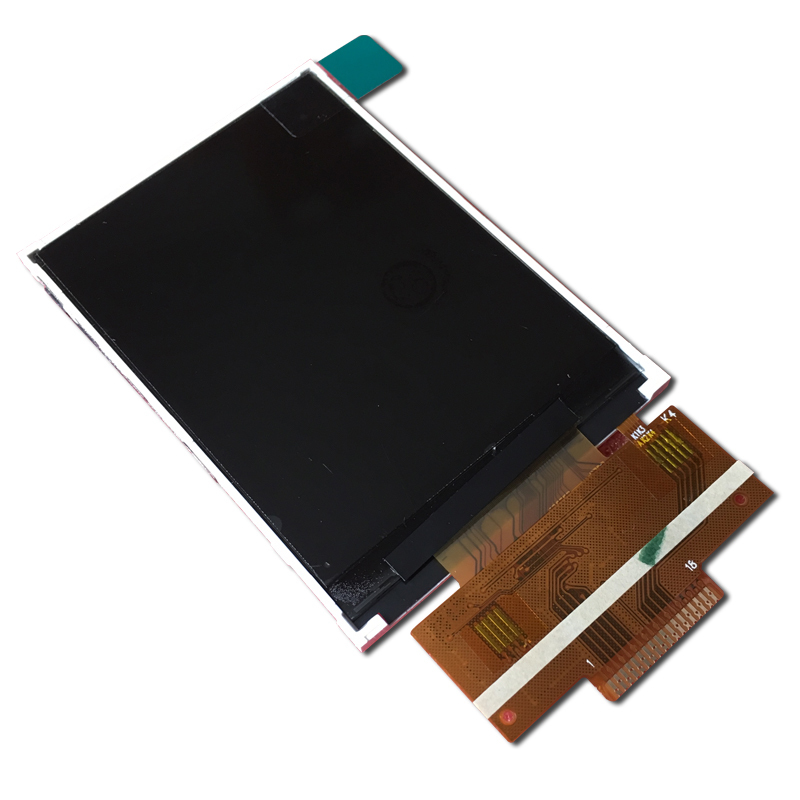

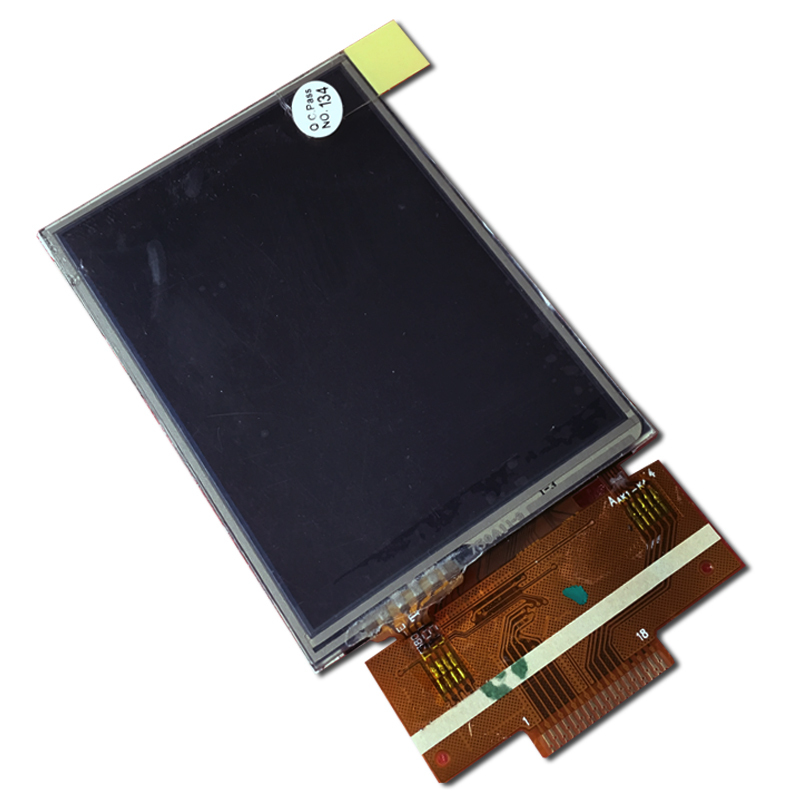

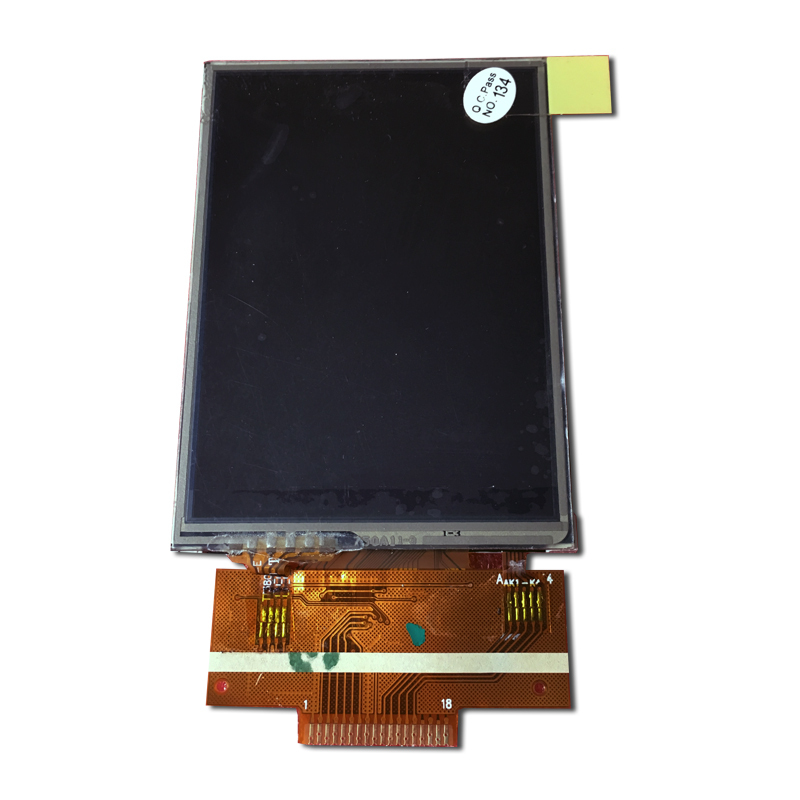

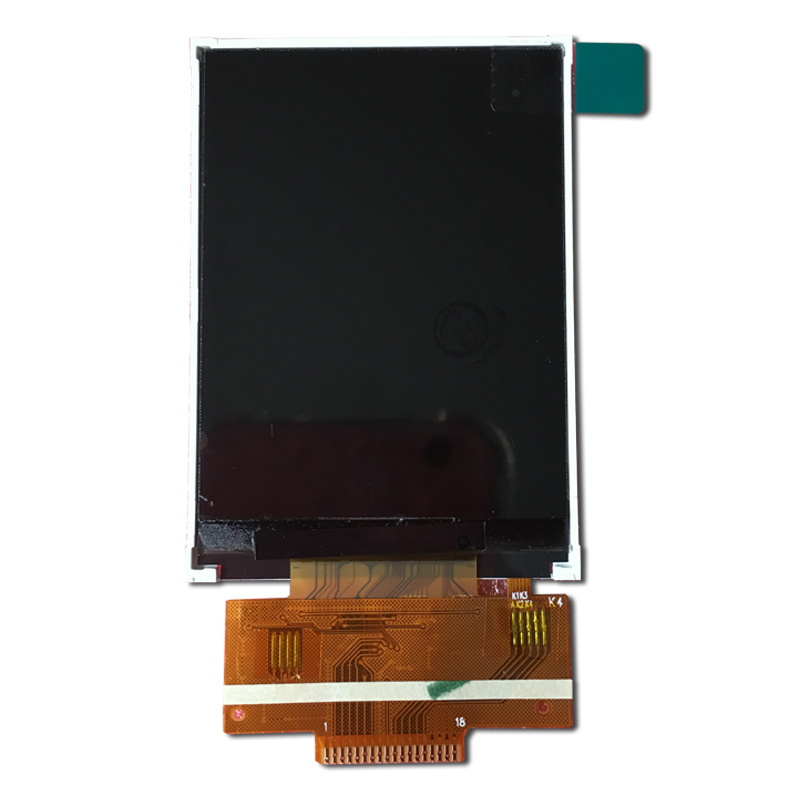

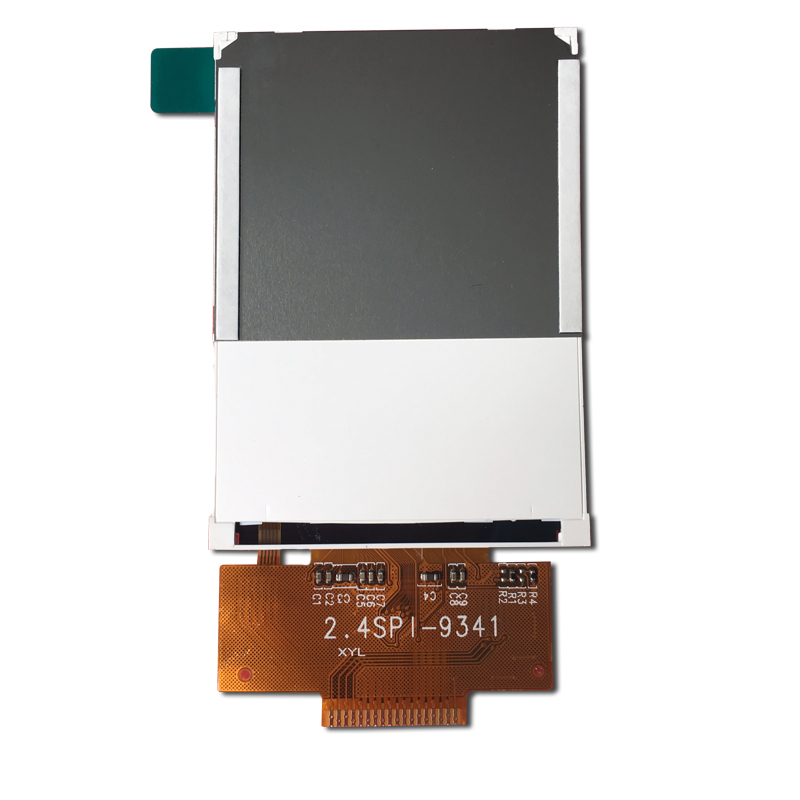

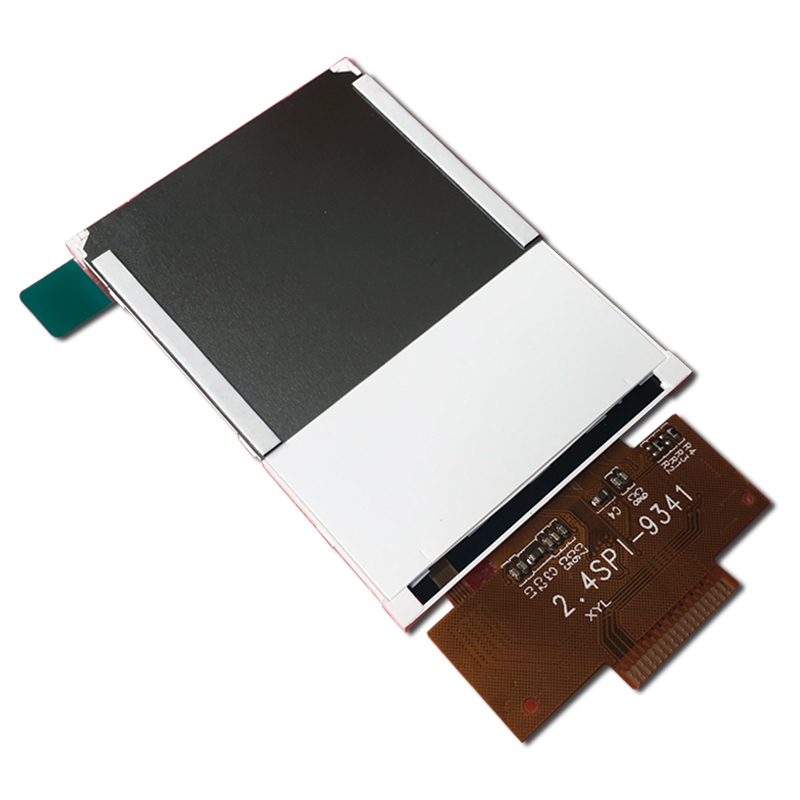

TFT LCD Screen 2.4inch 240x320 Spi Interface TFT LCD optional Resistive Touch Screen

Item No.: RP24TM84A-01
Model: RP24TM84A-01
Dot Matrix: 240 x 320

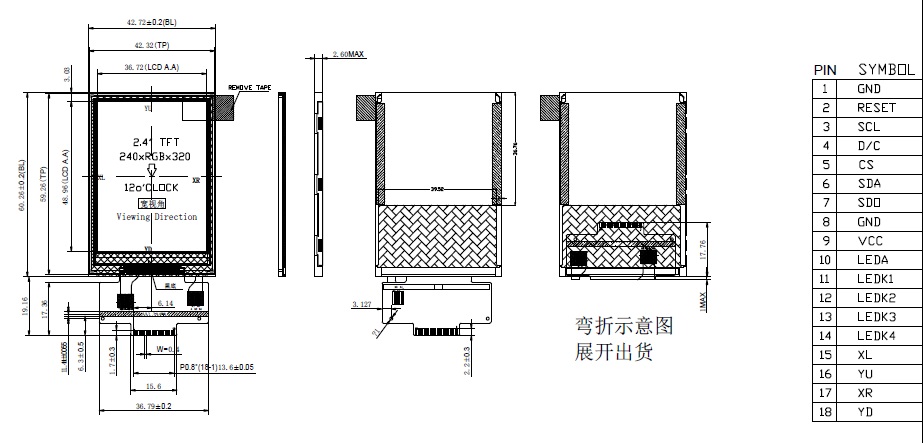

Module size: 42.72(W) x 60.26(H) x 2.60(T)mm
Active area: 36.72(W) x 48.96(H)mm
Description
TFT LCD Screen 2.4inch 240x320 Spi Interface TFT LCD optional Resistive Touch Screen
Model: RP24TM84A-01
Panel Size 2.4 inch
LCD Type TFT TRANSMISSIVE
Module Size 42.72(W) x 60.26(H) x 2.60(T)mm
Display Area 36.72(W) x48.96(H)mm
Number of Dots 240×(RGB)×320 Dots
Best Viewing Direction
6 O'CLOCK
Driver IC ILI9341
LED Numbers 4 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
