TFT LCD Display

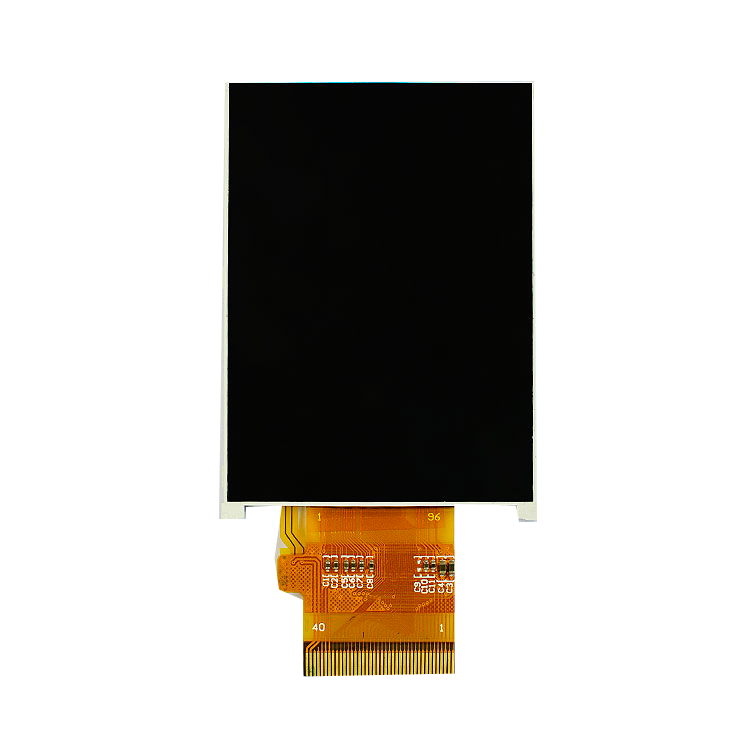

2.4inch TFT LCD Display 240x320 RGB 40pin ILI9341V TFT LCD

Item No.: RPK240B4020
Model: RPK240B4020
Dot Matrix: 240 x 320
Module size: 42.72(W) x 59.46(H) x 2.50(T)mm
Active area: 36.72(W) x 48.96(H)mm
Description
2.4inch TFT LCD Display 240x320 RGB 40pin ILI9341V TFT LCD
Model: RPK240B4020
Panel Size 2.4 inch
LCD Type TFT TRANSMISSIVE
Module Size 42.72(W) x 59.46(H) x 2.50(T)mm
Display Area 36.72(W) x48.96(H)mm
Number of Dots 240×(RGB)×320 Dots
Best Viewing Direction
12 O'CLOCK
Driver IC ILI9341V
LED Numbers 4 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
