TFT LCD Display

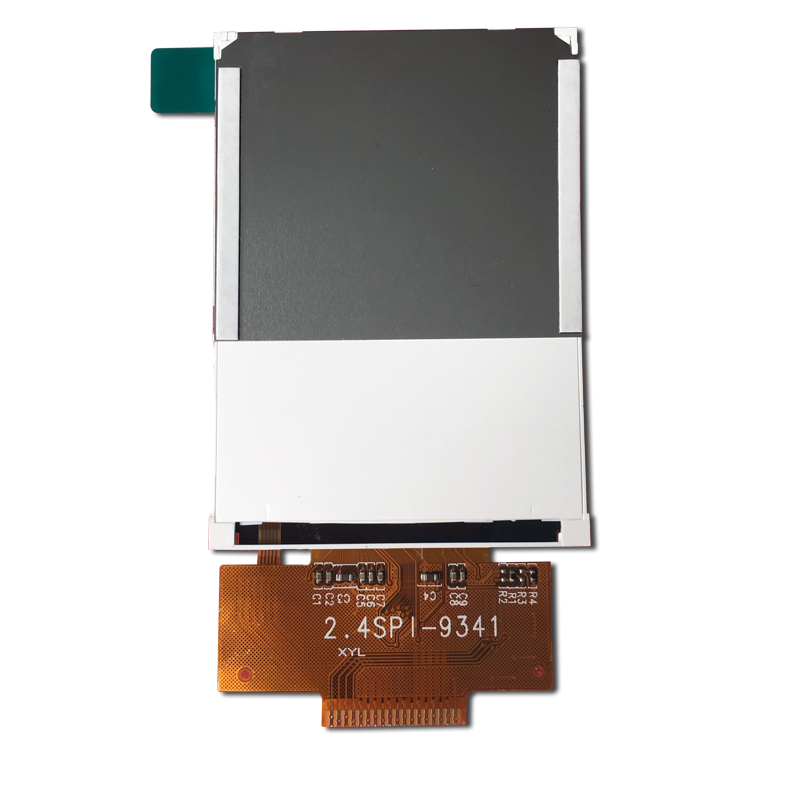

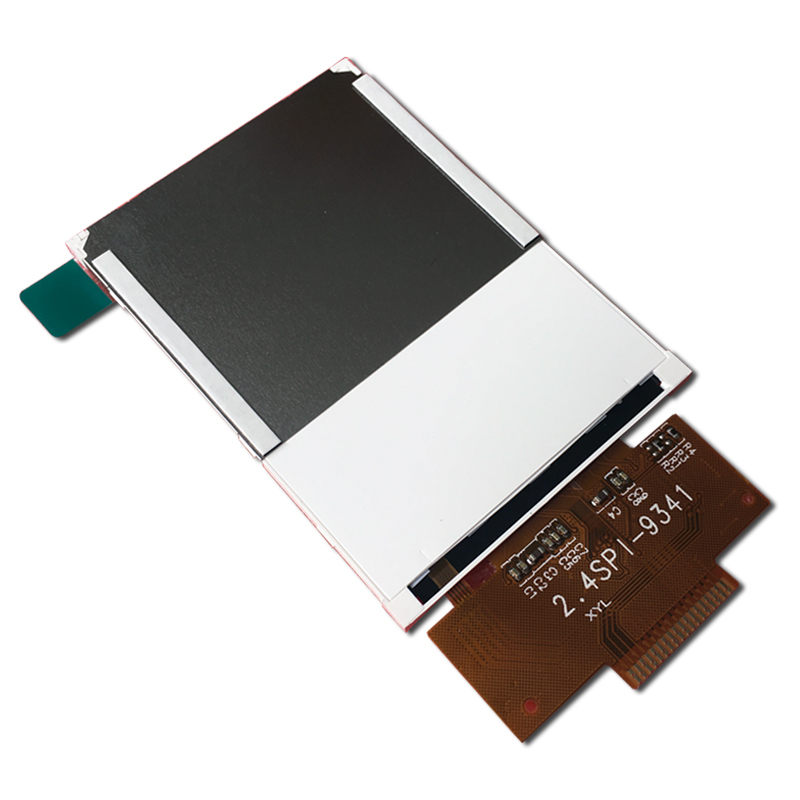

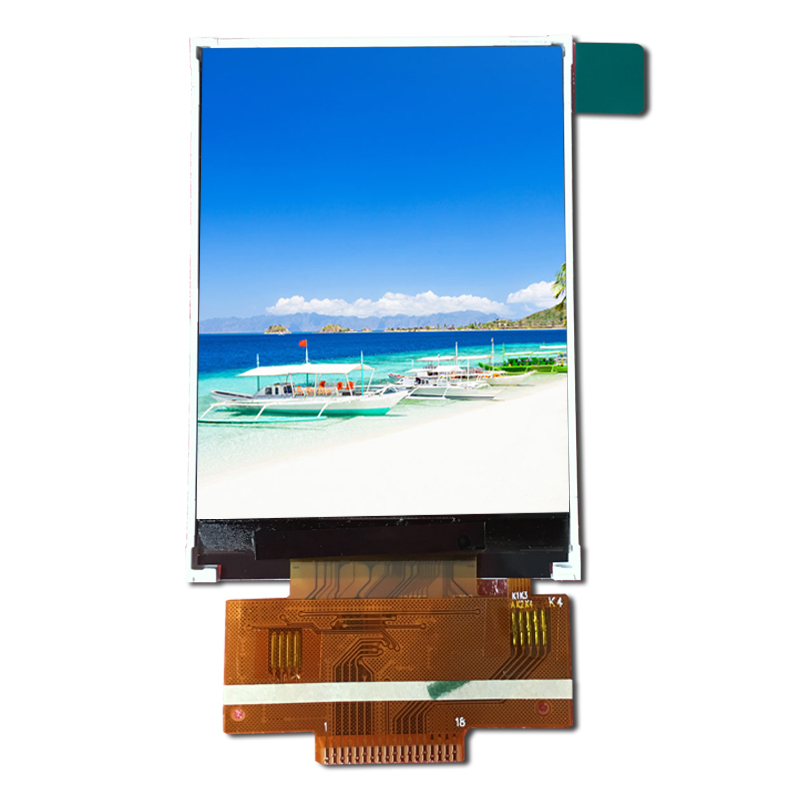

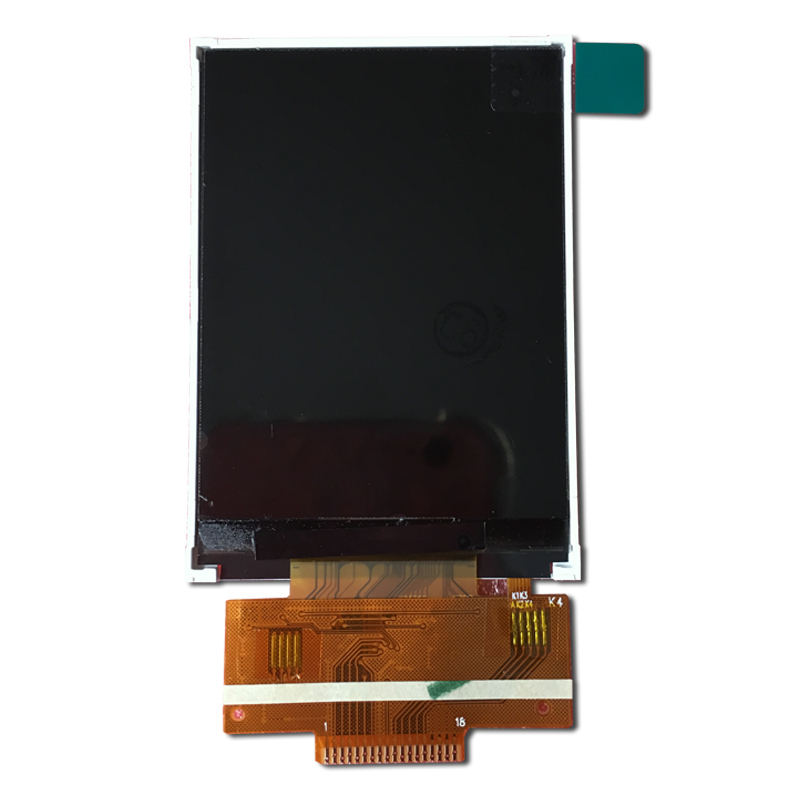

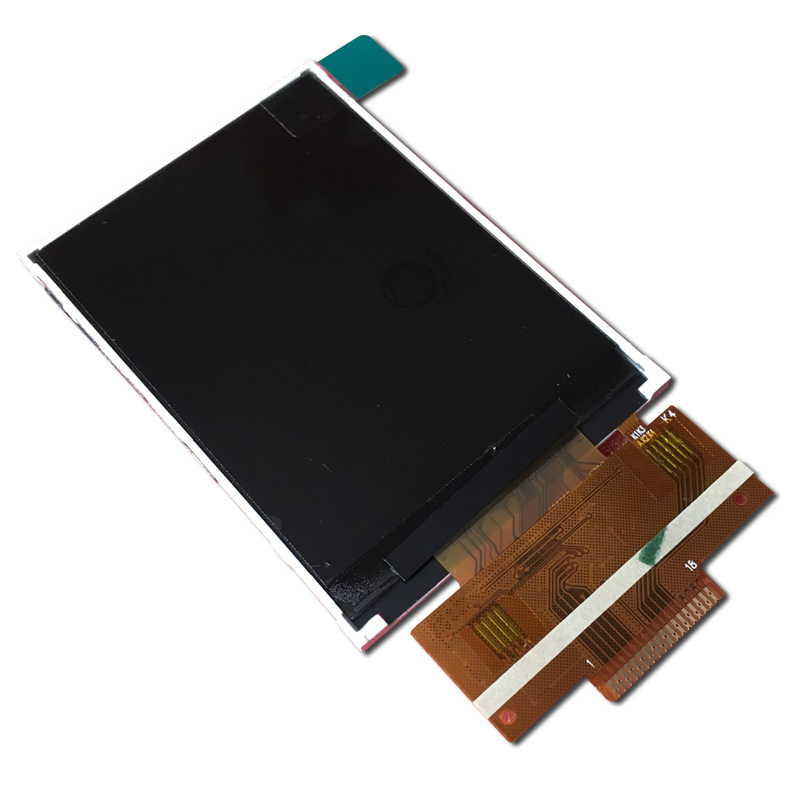

2.4inch TFT 18 pins LCD SPI color screen 240*320 with touch panel display ILI9341 driver

Model: RPH24TM84A
Dot Matrix: 240 x 320

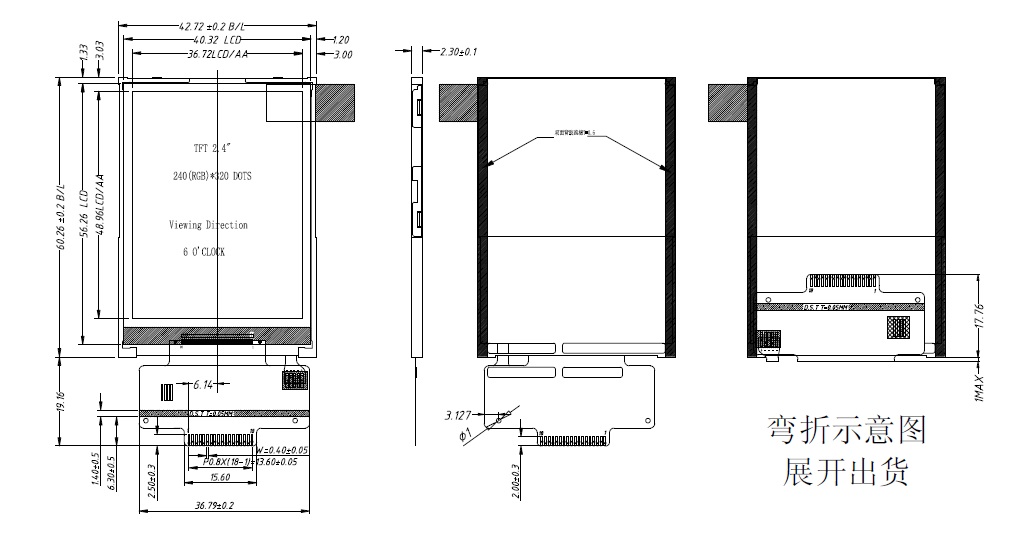

Module size: 42.72(W)x60.26(H)x2.6(T)mm
Active area: 36.72(W)x48.96(H)mm
Description
2.4inch TFT 18 pins LCD SPI color screen 240*320 with touch panel display ILI9341 driver
Model: RPH24TM84A

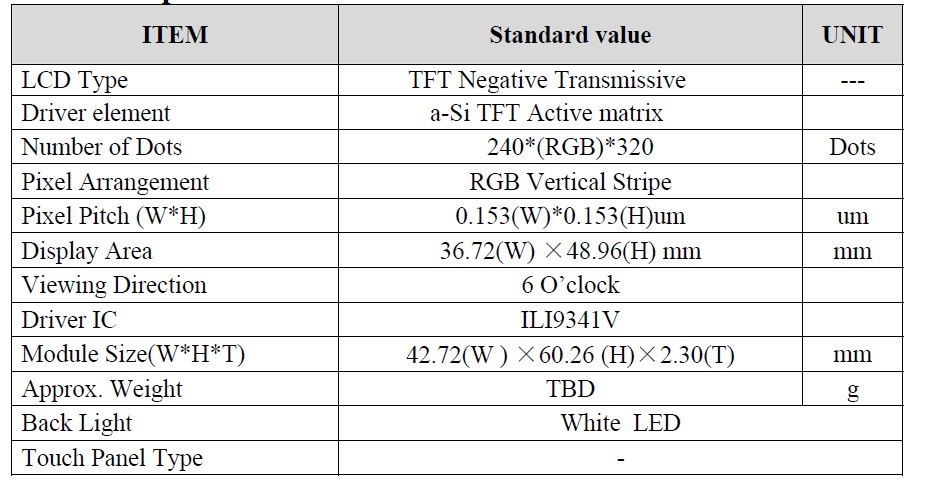

Panel Size 2.4 inch
LCD Type TFT TRANSMISSIVE
Module Size 42.72(W) x60.26(H) x 2.60(T)mm
Display Area 36.72(W) x48.96(H)mm
Number of Dots 240×(RGB)×320 Dots
Best Viewing Direction 12 O’clock
Driver IC ILI9341V
Display Type 262K
LED Numbers  4 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
