Graphic LCD Display

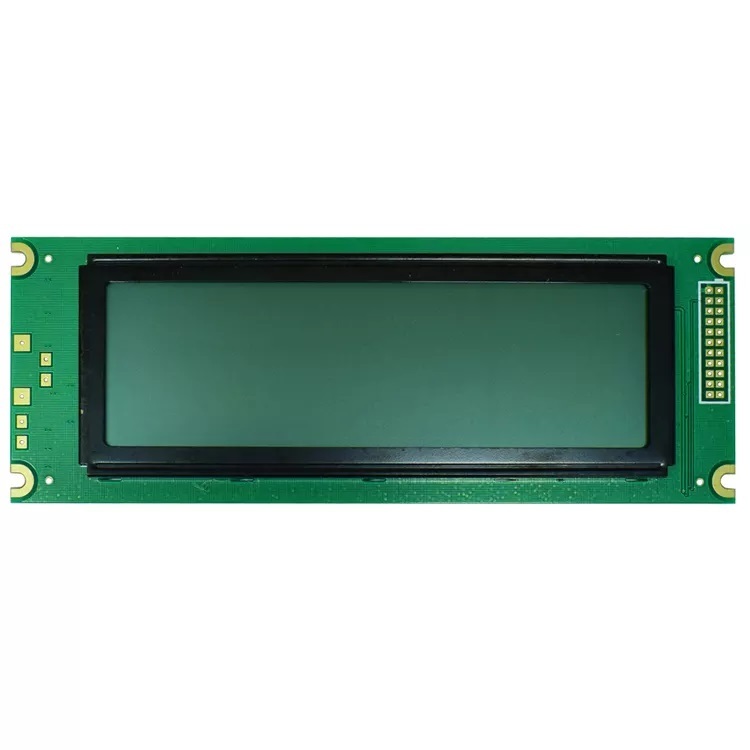

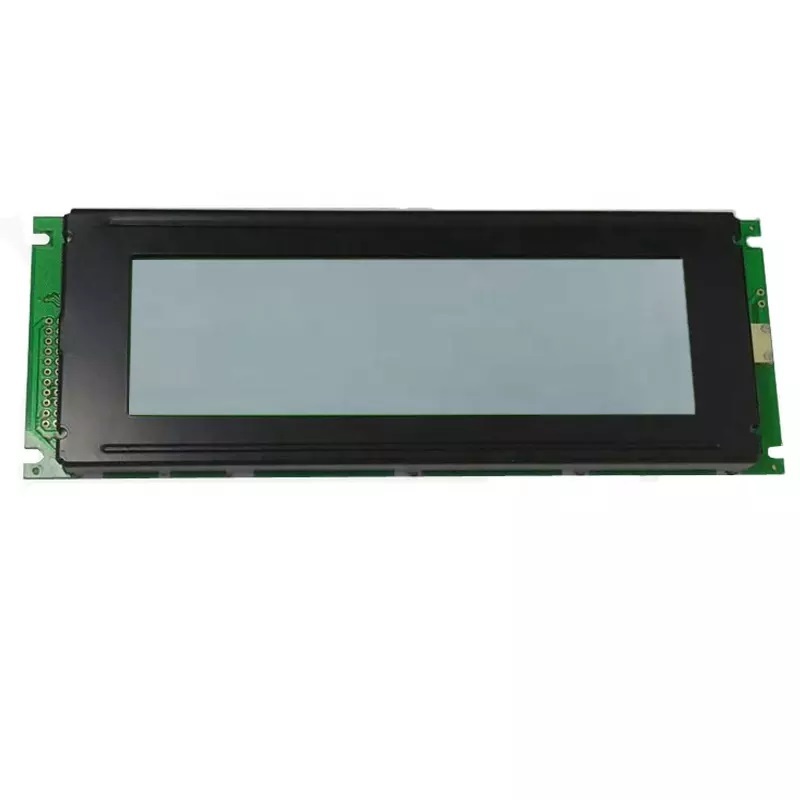

240x64 dots 24064 graphic lcd module display

Item No.: RP24064A
Reaper's graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128x64, 128x128, 144x32, 160x128, 160x160, 160x32, 160x80, 192x64, 192x128, 240x64, 320x240 and etc.
Description
240x64 dots 24064 graphic lcd module display
Model: RP24064A
Dots: 240 x 64
LCM Type COB
Module Size 180 x 65 x 16 mm
Viewing Area 133 x 39 mm
Active Area 127.16 x 33.88 mm
Dot Pitch 0.53 x 0.53 mm
Dot Size(W*Hmm) 0.49 x 0.49 mm
Controller RA6963 or Equivalent

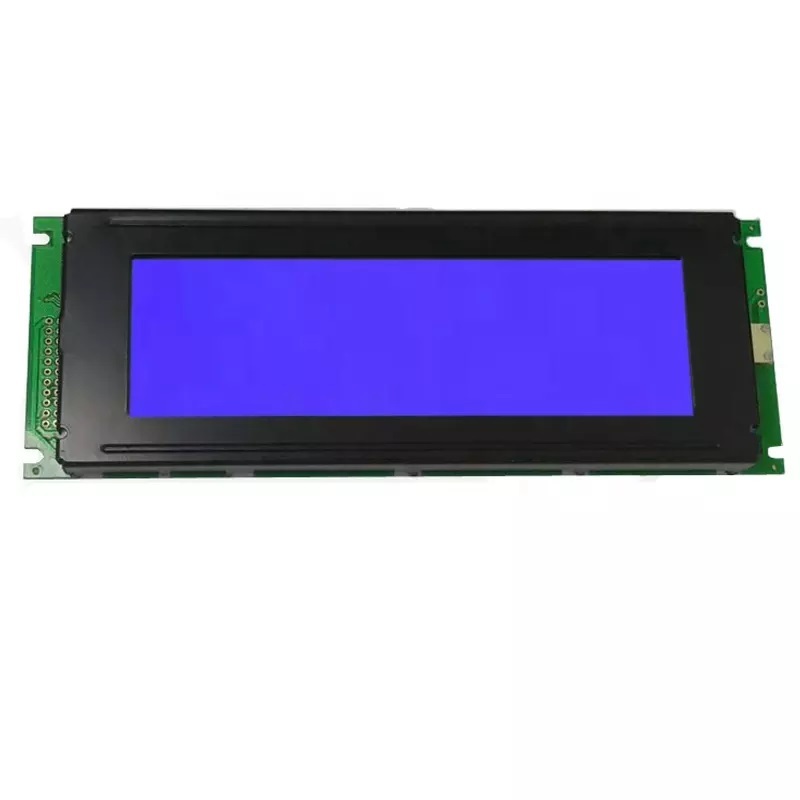

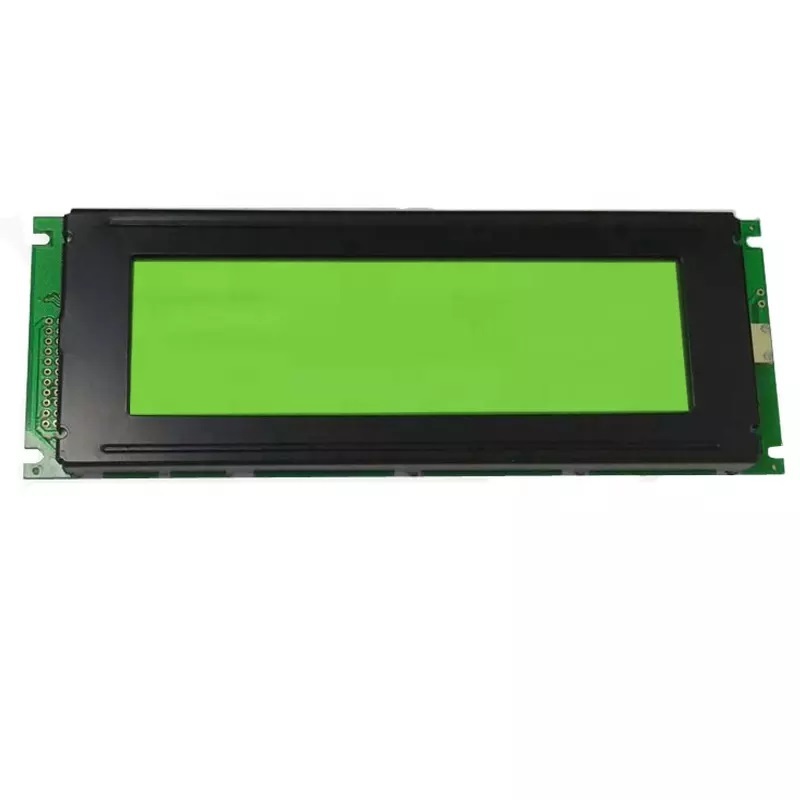

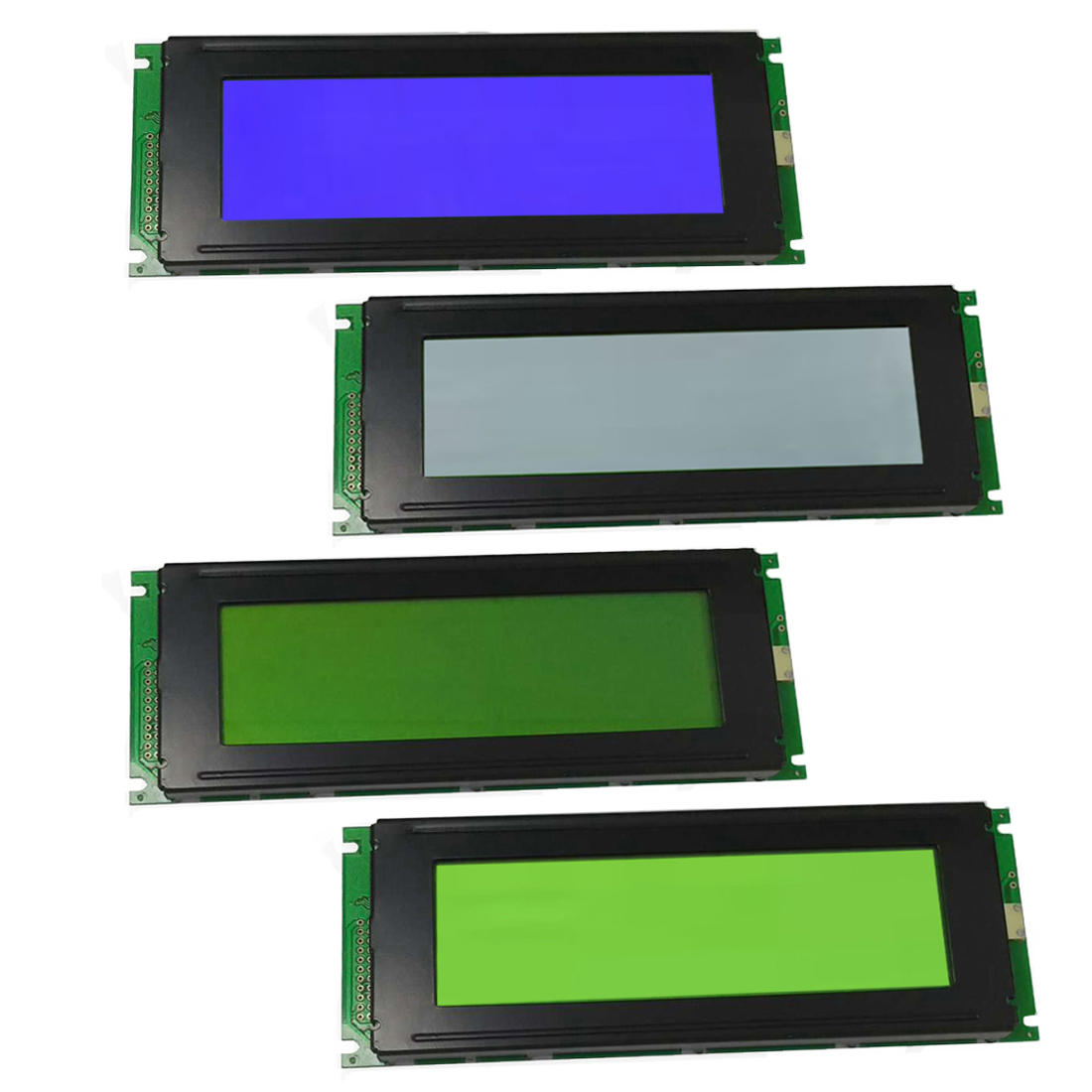

LCD Type STN BLUE/Yellow-Green
Operating Voltage 5V or 3.3V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
