TFT LCD Display

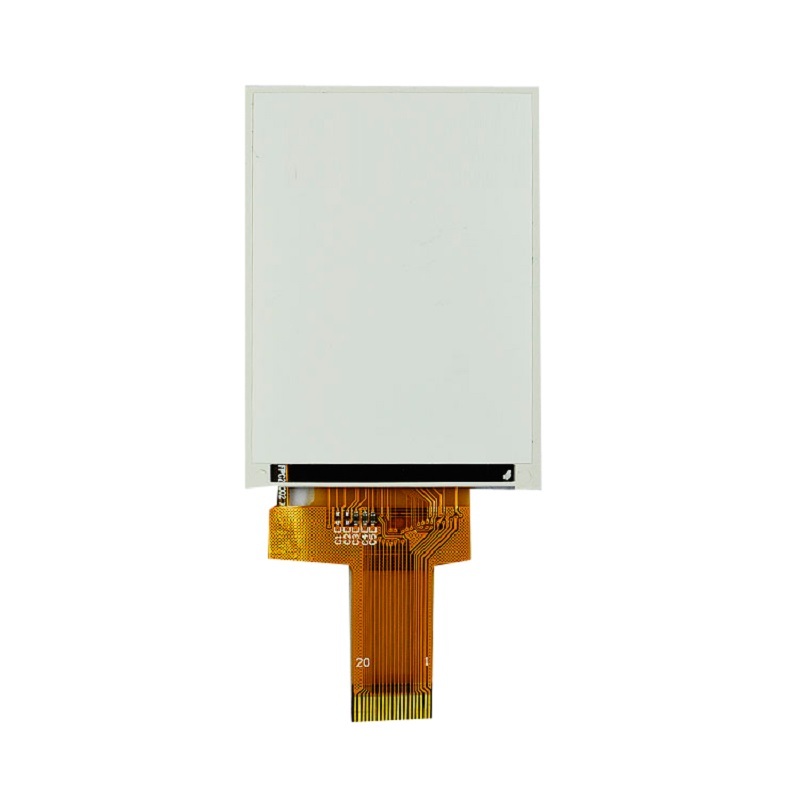

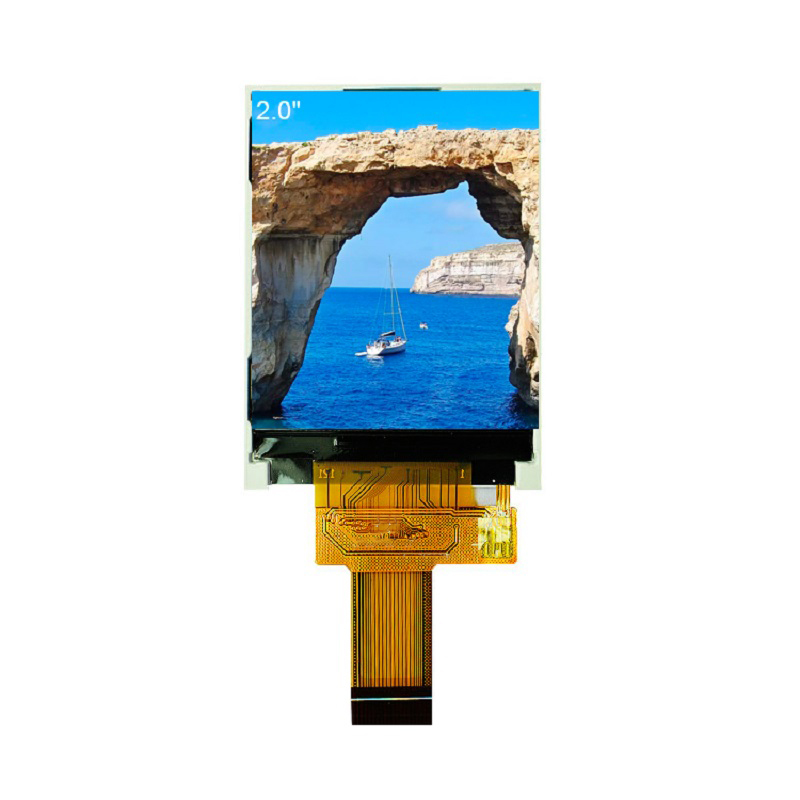

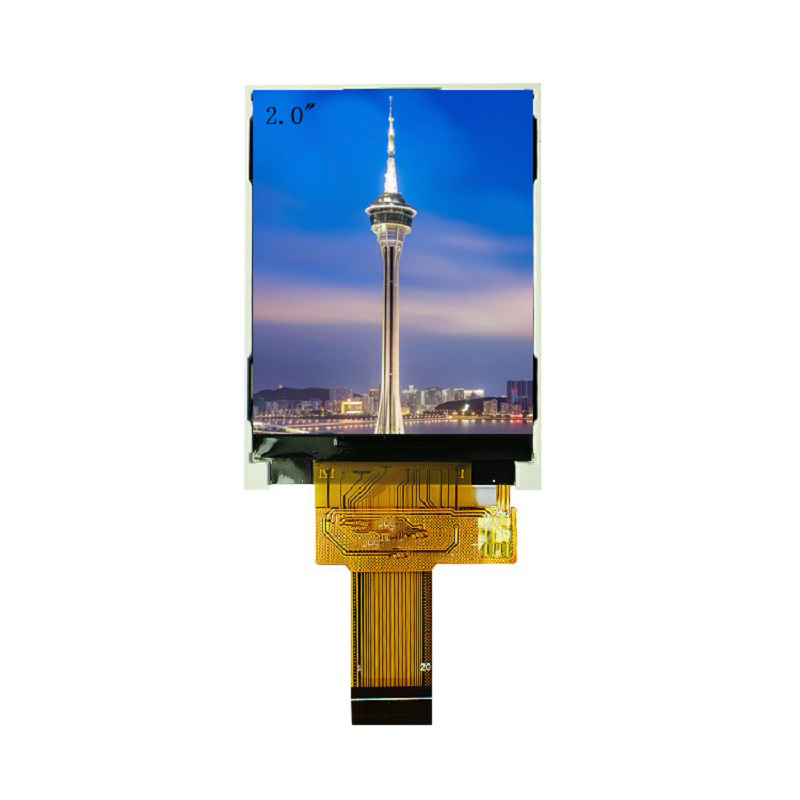

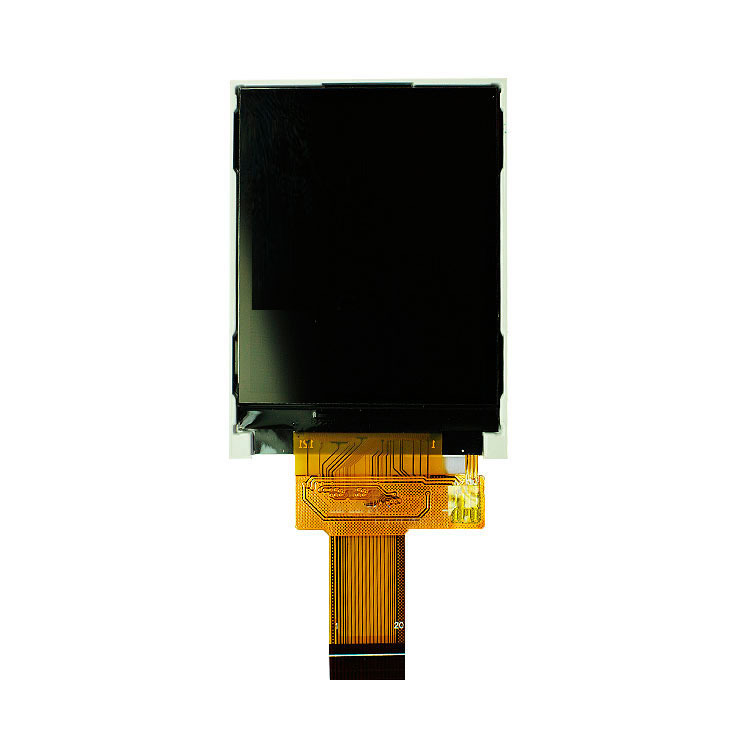

2.0 Inch TFT LCD Display 176X220 Spi/MCU Interface St7775r, Industrial TFT LCD Module

Item No.: RPK200B2008
Model: RPK200B2008
Dot Matrix: 128 x 160
Module size: 37.68(W) x 51.30(H) x 2.20(T)mm
Active area: 31.68(W) x 39.60(H)mm
Description
2.0 Inch TFT LCD Display 176X220 Spi/MCU Interface St7775r, Industrial TFT LCD Module
Model: RPK200B2008
Panel Size 2.0 inch
LCD Type TFT TRANSMISSIVE
Module Size 37.68(W) x 51.30(H) x 2.20(T)mm
Display Area 31.68(W) x39.60(H)mm
Number of Dots 176×(RGB)×220 Dots
Best Viewing Direction 12 O'clock
Driver IC ST7775R
LED Numbers  3 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC
