Graphic LCD Display

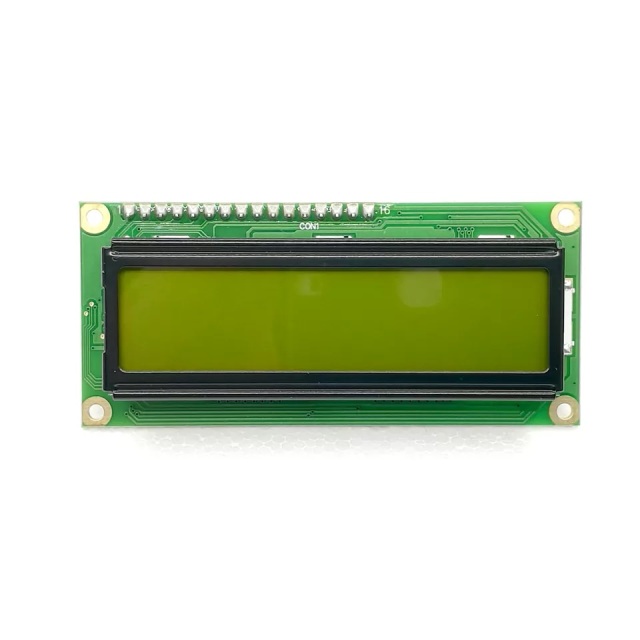

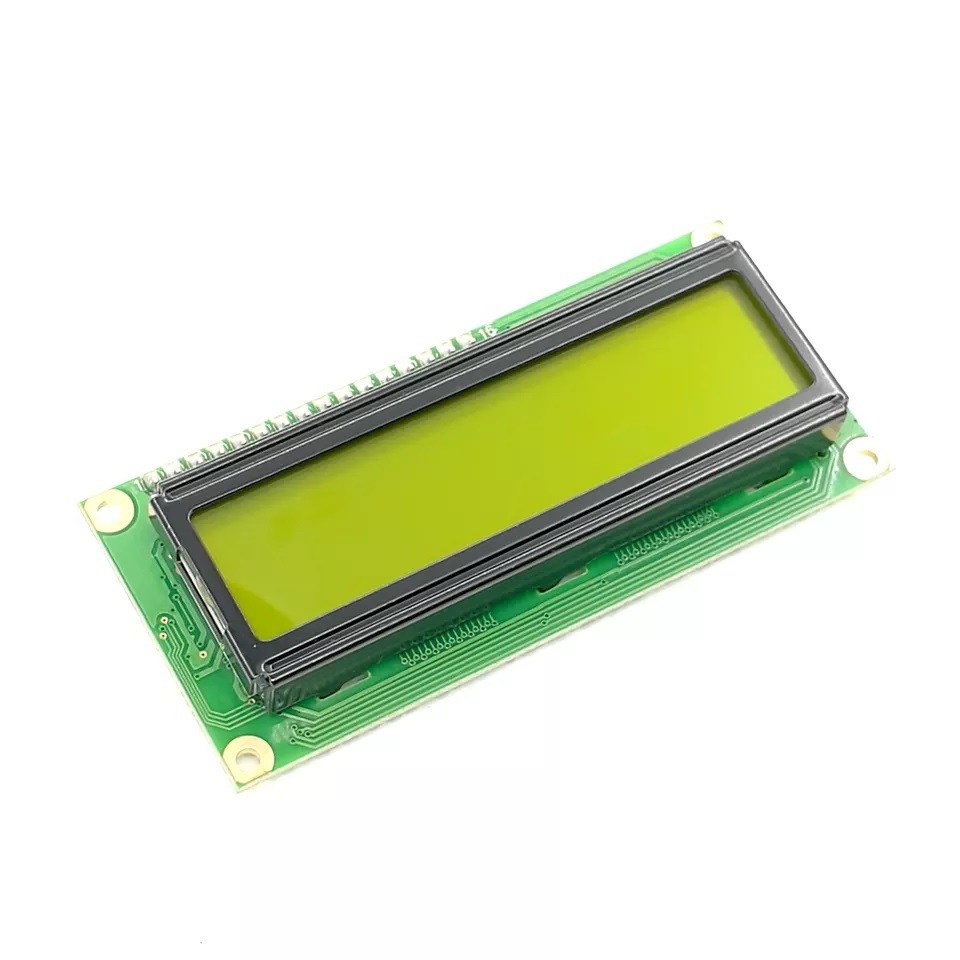

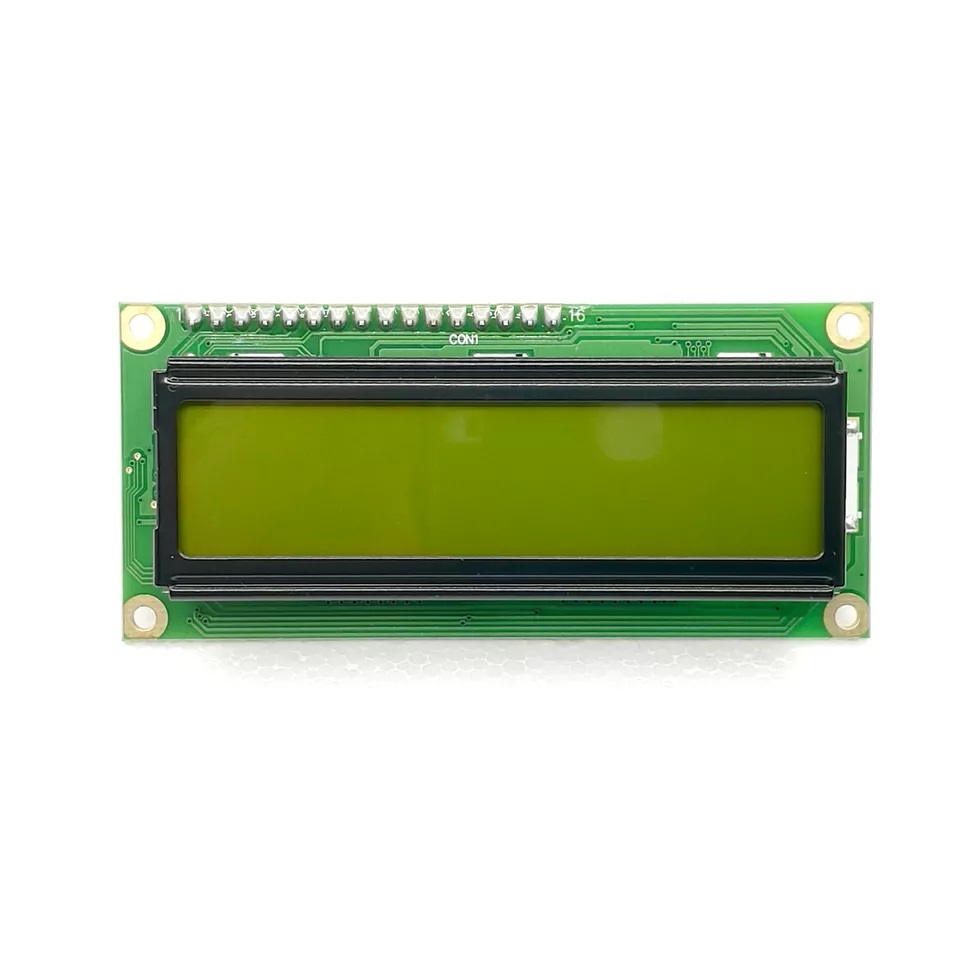

Graphic STN positive transflective COB LCD display 144x32

Item No.: RP14432A
1.144x32 dots includes cursor
2. Built-in controller ST7920
3. +5V power supply
4. 1/32 duty cycle
5. LED can be driven by pin1,pin2,or A and K

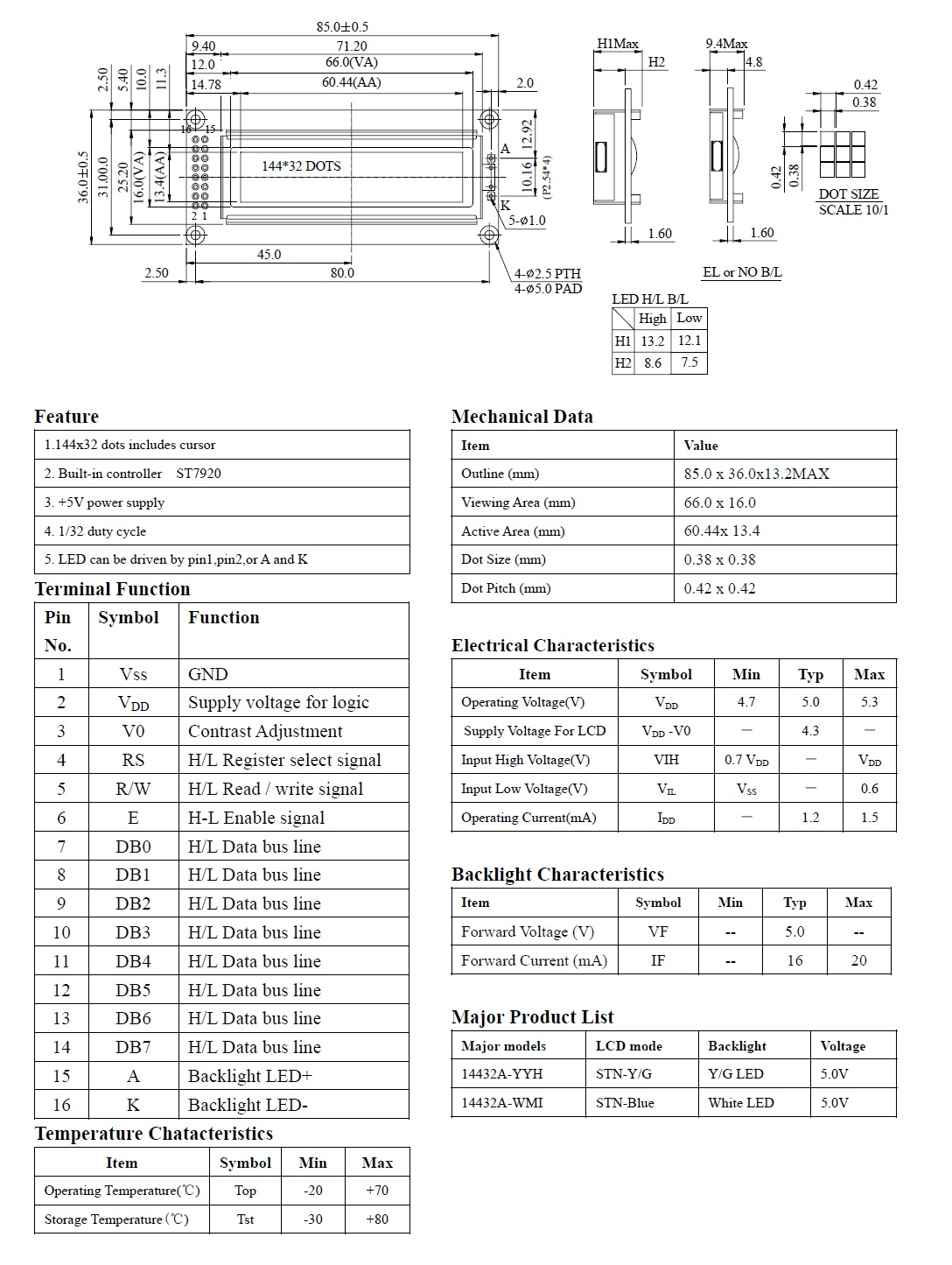

Description
Graphic STN positive transflective COB LCD display 144x32
Model: RP14432A
Dots: 144 x 32
LCM Type COB
Module Size 85.0 x 36.0 x 13.2mm
Viewing Area 66.0 x 16.0 mm
Active Area 60.44 x13.4 mm
Dot Pitch 0.42 x 0.42 mm
Dot Size(W*Hmm) 0.38 x 0.38 mm
Controller
ST7920
LCD Type STN BLUE/Yellow-Green
Operating Voltage 5V
Operating Temperature -20 ~ +70ºC
Storage Temperature -30 ~ +80ºC
