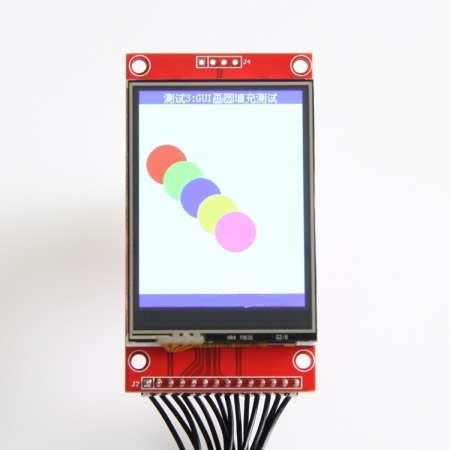

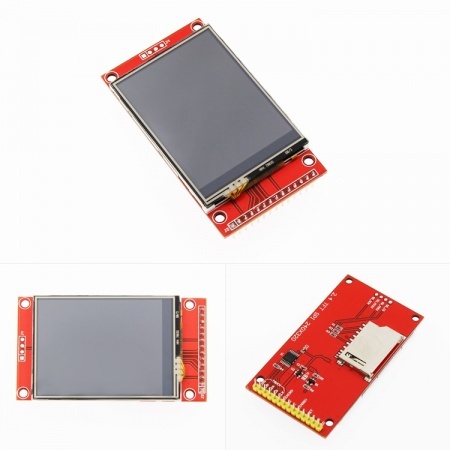

2.4inch SPI LCD Display Module with driver IC ILI9341
1. INTRODUCTION
The lcd module uses a 4-wire SPI communication method with a driver IC of ILI9341 and a resolution of 240x320 and a touch function(optional).The module includes an lcd display,backlight control circuitry,and touch screen control circuitry.
2.Features
- 2.4-inch color screen,support 65K color display,display rich colors
- 320X240 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
3 Product Summary
| Name |
Parameter |
| Display Color |
RGB 65K color |
| SKU |
with touch screen: RPMSP2402 |
| no touch screen: RPMSP2401 |
| Screen Size |
2.4(inch) |
| Type |
TFT |
| Driver IC |
ILI9341 |
| Resolution |
320*240 (Pixel) |
| Module Interface |
4-wire SPI interface |
| Active Area (AA area) |
36.72x48.96(mm) |
| Module PCB Size |
77.18x42.72(mm) |
| Operating Temperature |
-20℃~60℃ |
| Storage Temperature |
-30℃~70℃ |
| VCC power voltage |
3.3V~5V |
| Logic IO port voltage |
3.3V(TTL) |
| Power Consumption |
TBD |
| Rough Weight(Package containing) |
No touch: 26(g) / With touch: 36(g) |

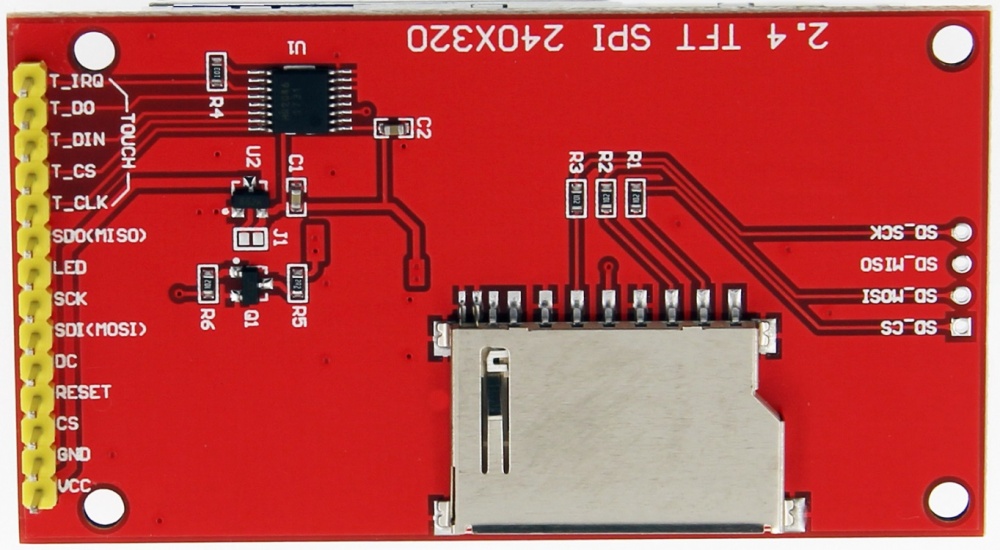

4 Interface Definition
