TFT LCD Display

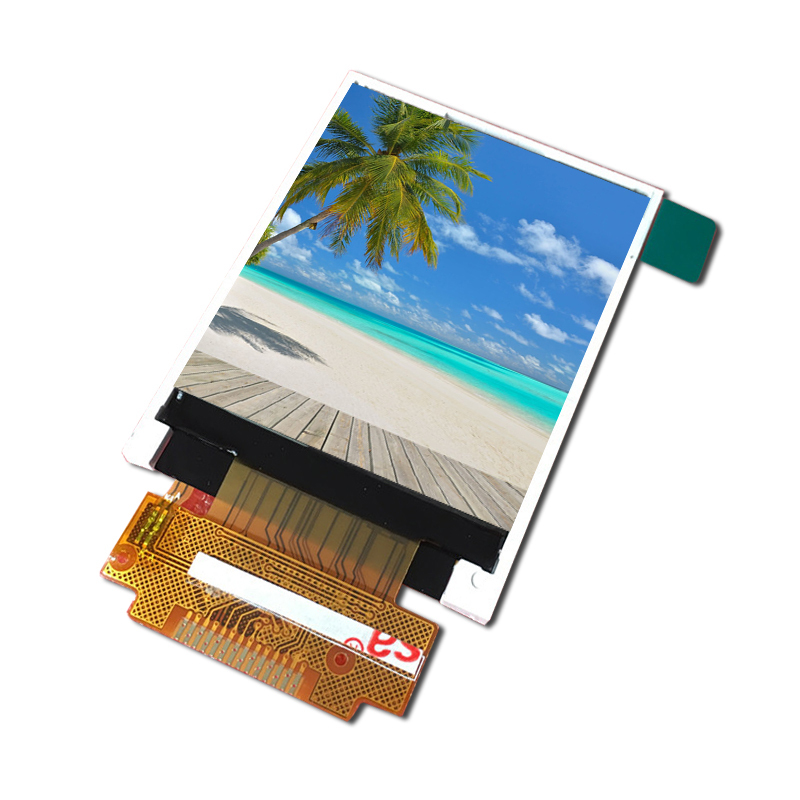

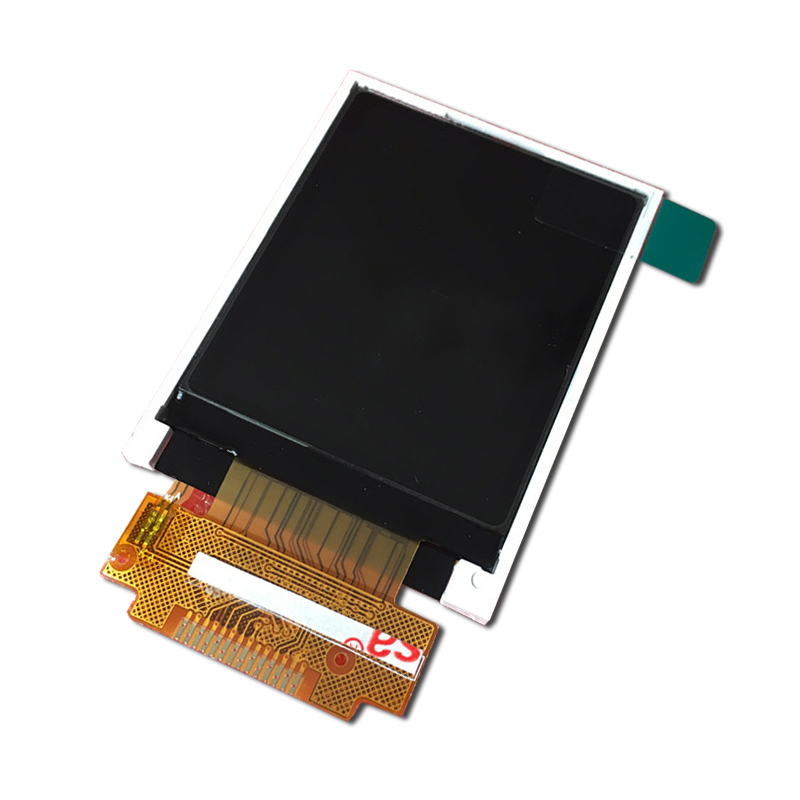

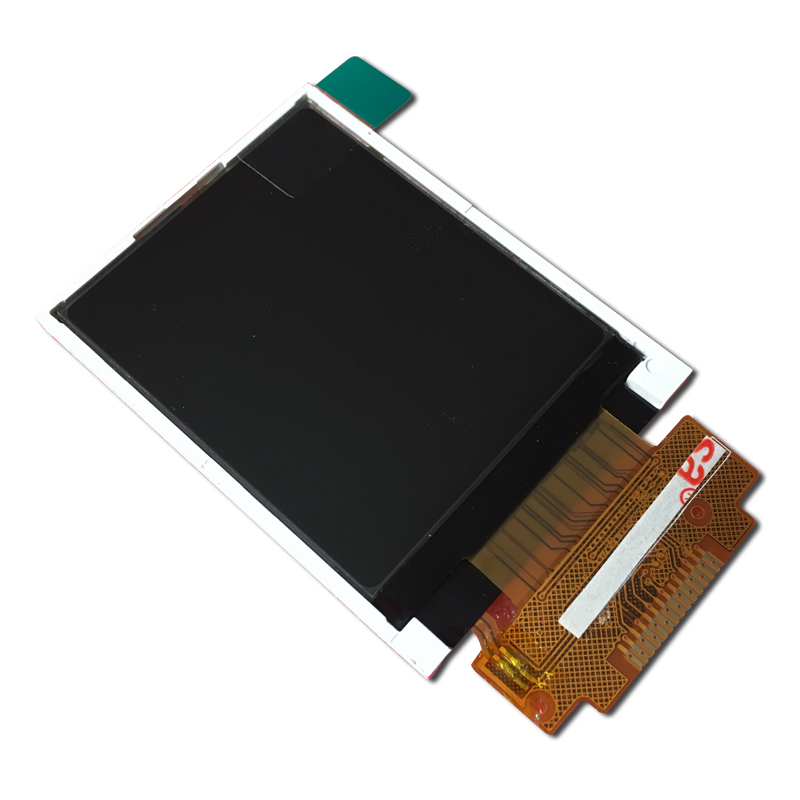

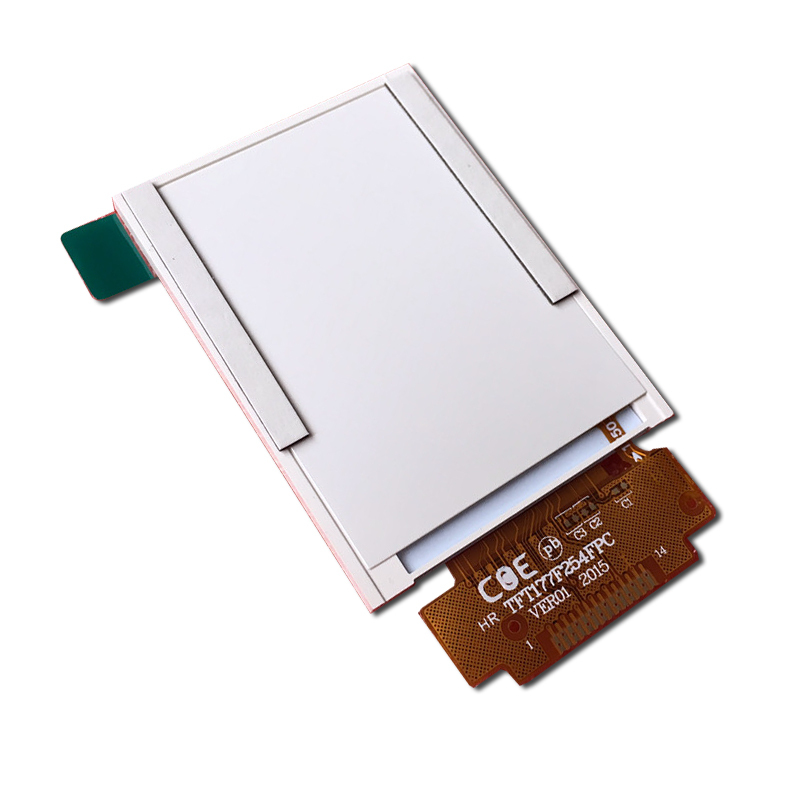

1.77"TFT LCD Display 128*160 Serial SPI with ST7735S controller

Item No.: SX177QQVGA101
Reaper standard TFT-LCD display modules are available in various sizes from 1.77" to 10.4' TFT LCD, such as 2.4" TFT display, 2.8", 3.5" TFT display, 4.3" TFT display, 5 inch display, 7" LCD display,10.1" LCD  display.
Description
 1.77"TFT LCD Display 128*160 Serial SPI with ST7735S controller
Model: RPSX177QQVGA101

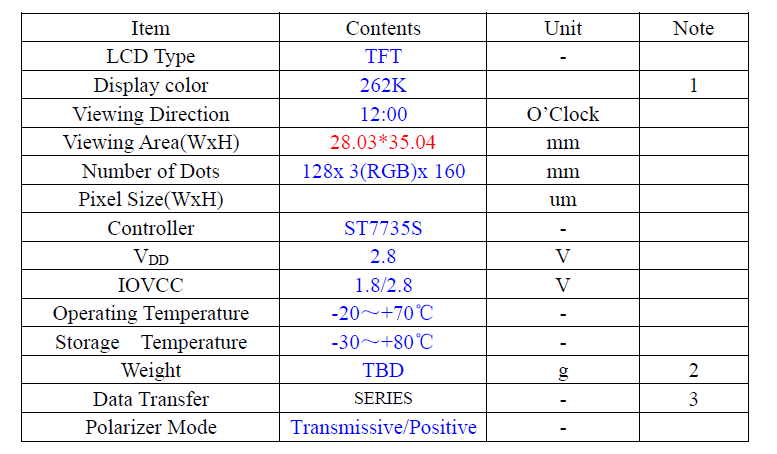

Panel Size 1.77 inch
LCD Type TFT TRANSMISSIVE

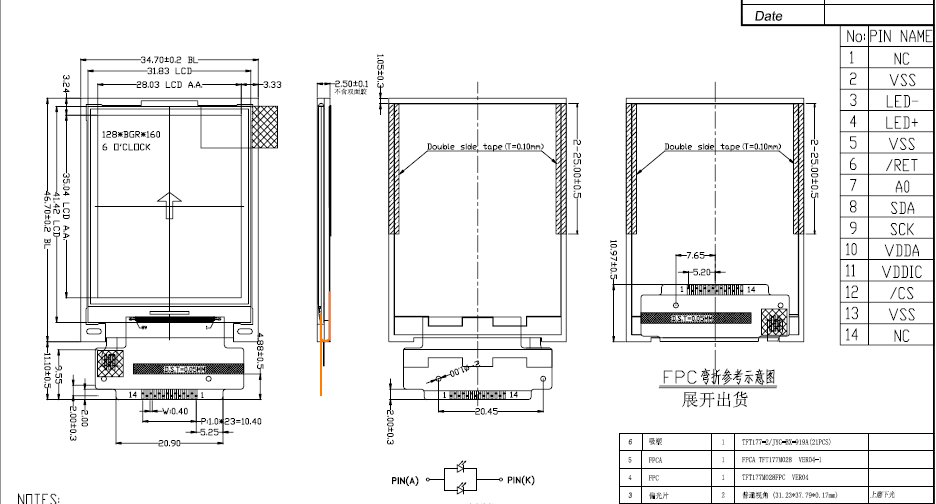

Module Size 34.7(W)*46.7(H)*2.5(T) mm
Display Area 33.48*44.64 mm
Number of Dots 128×(RGB)×160 Dots
Best Viewing Direction 6 O’clock
Driver IC ST7735S
Display Type 262K
LED Numbers 2 White leds
Operating Temperature: -20 ~ +70ºC
Storage Temperature: -30 ~ +80ºC

Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
