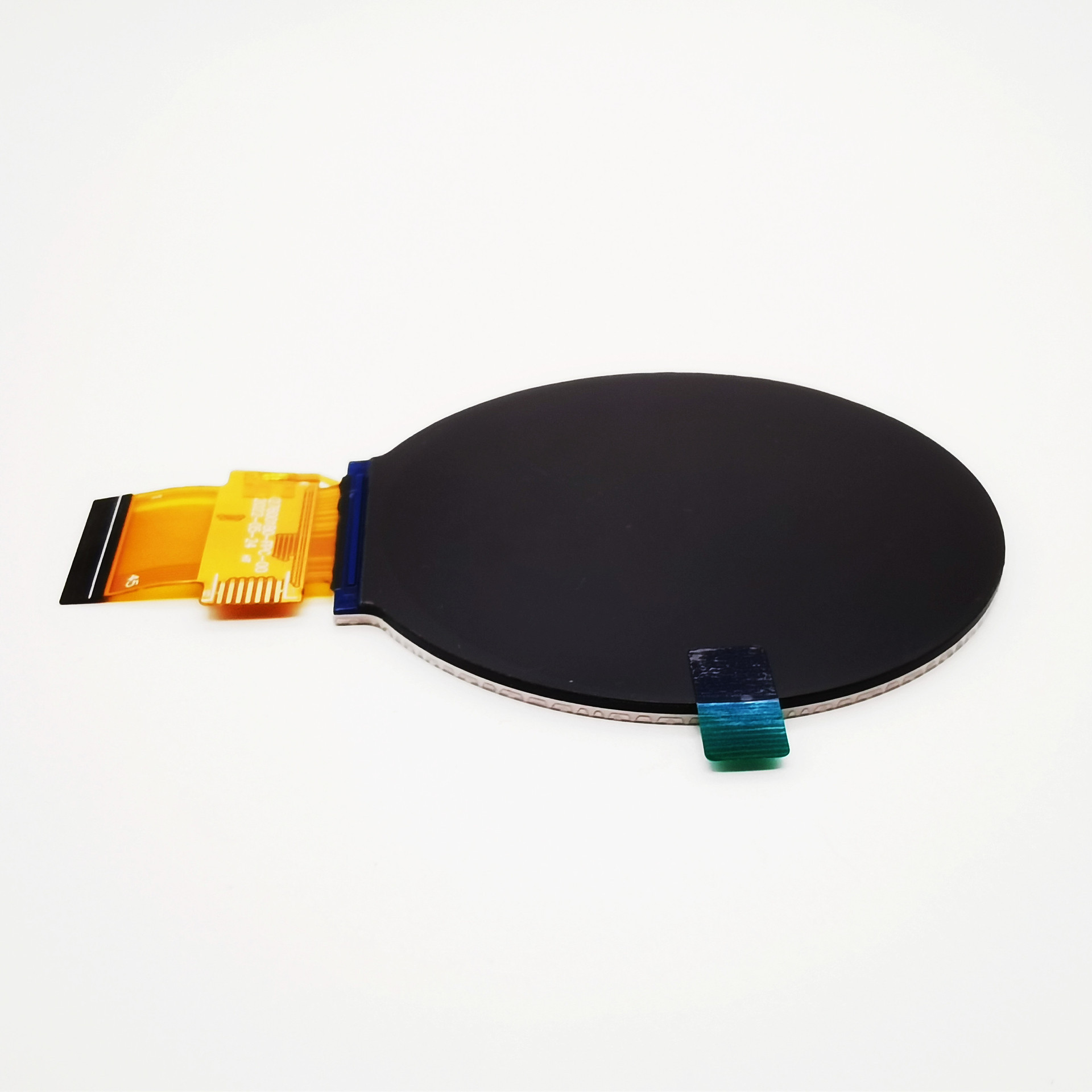

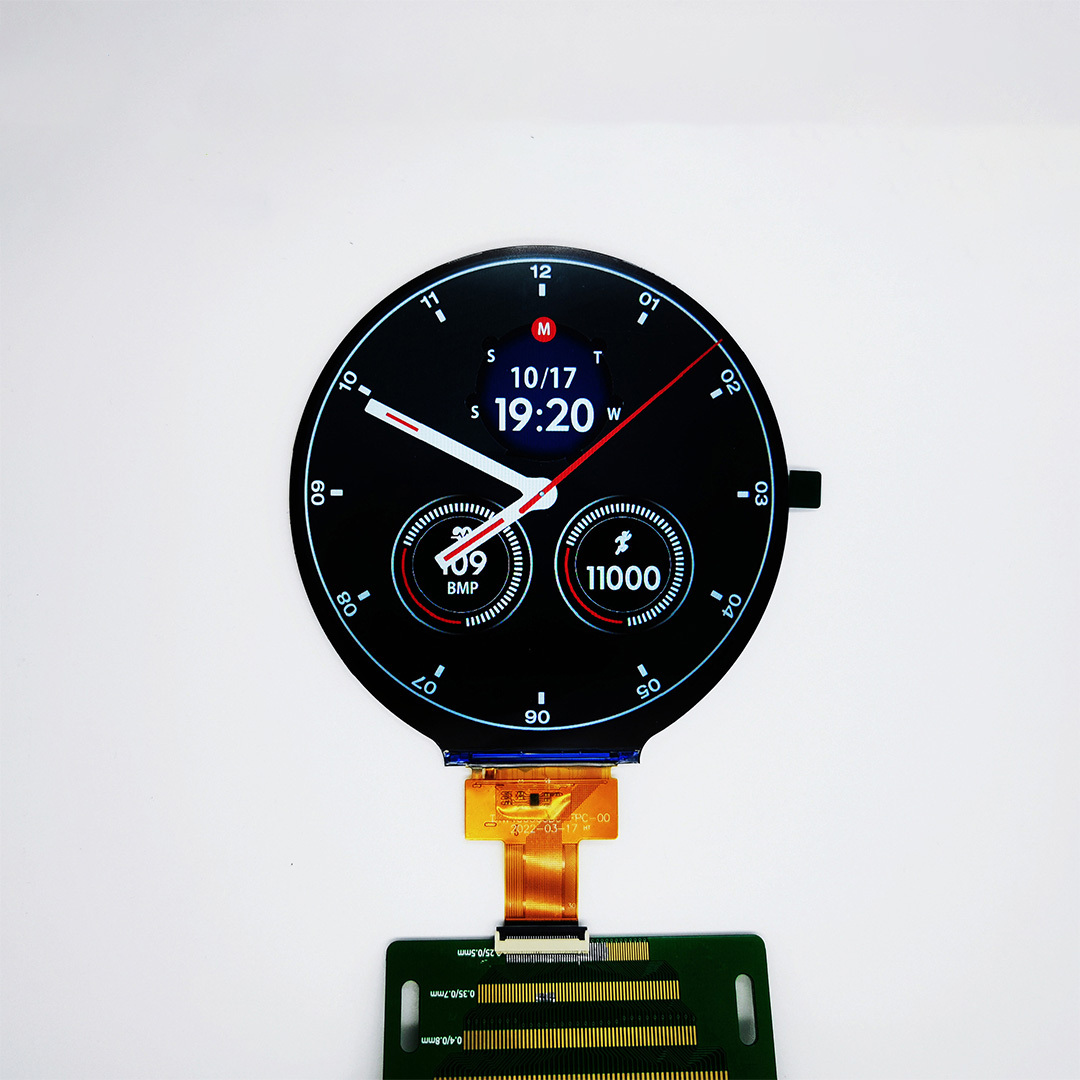

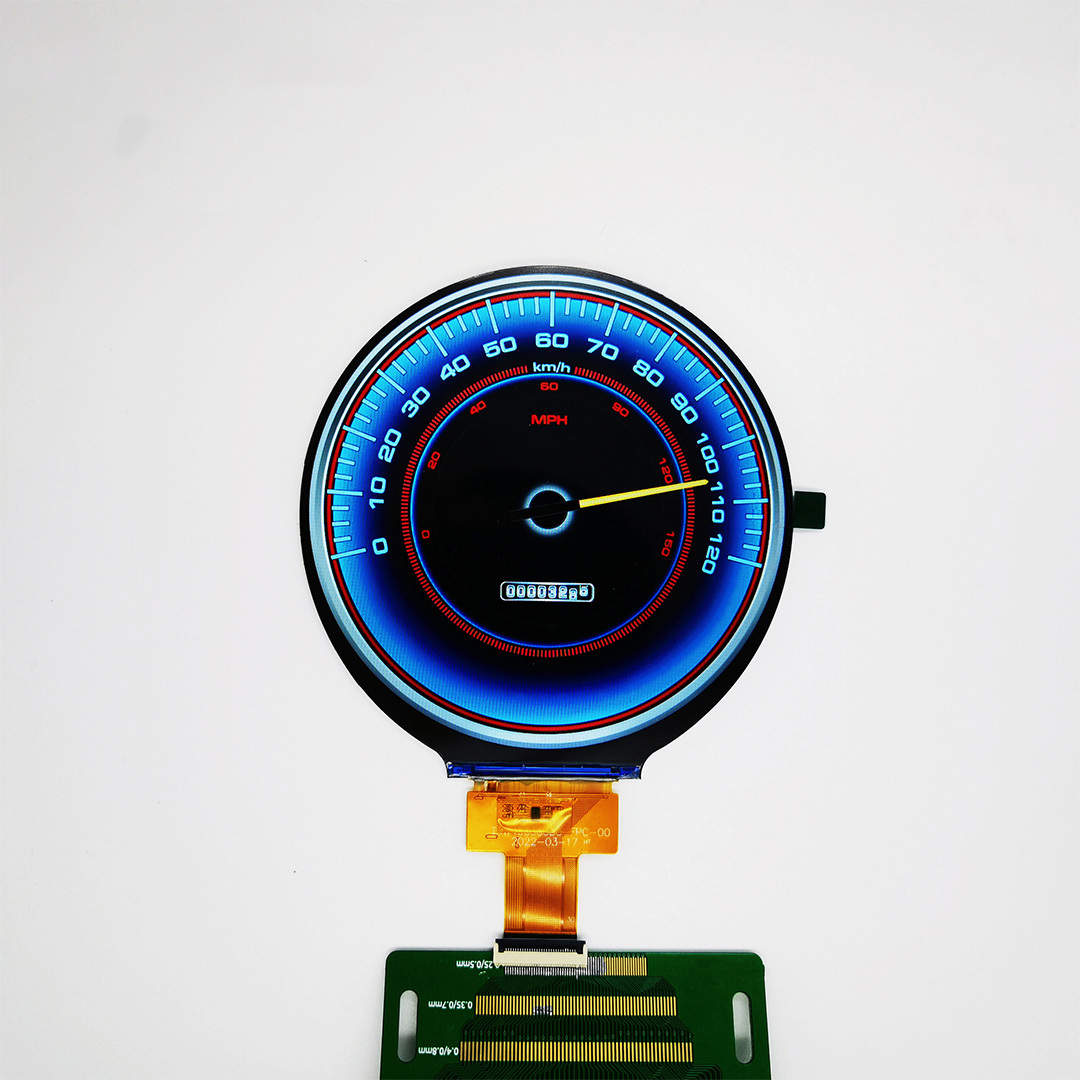

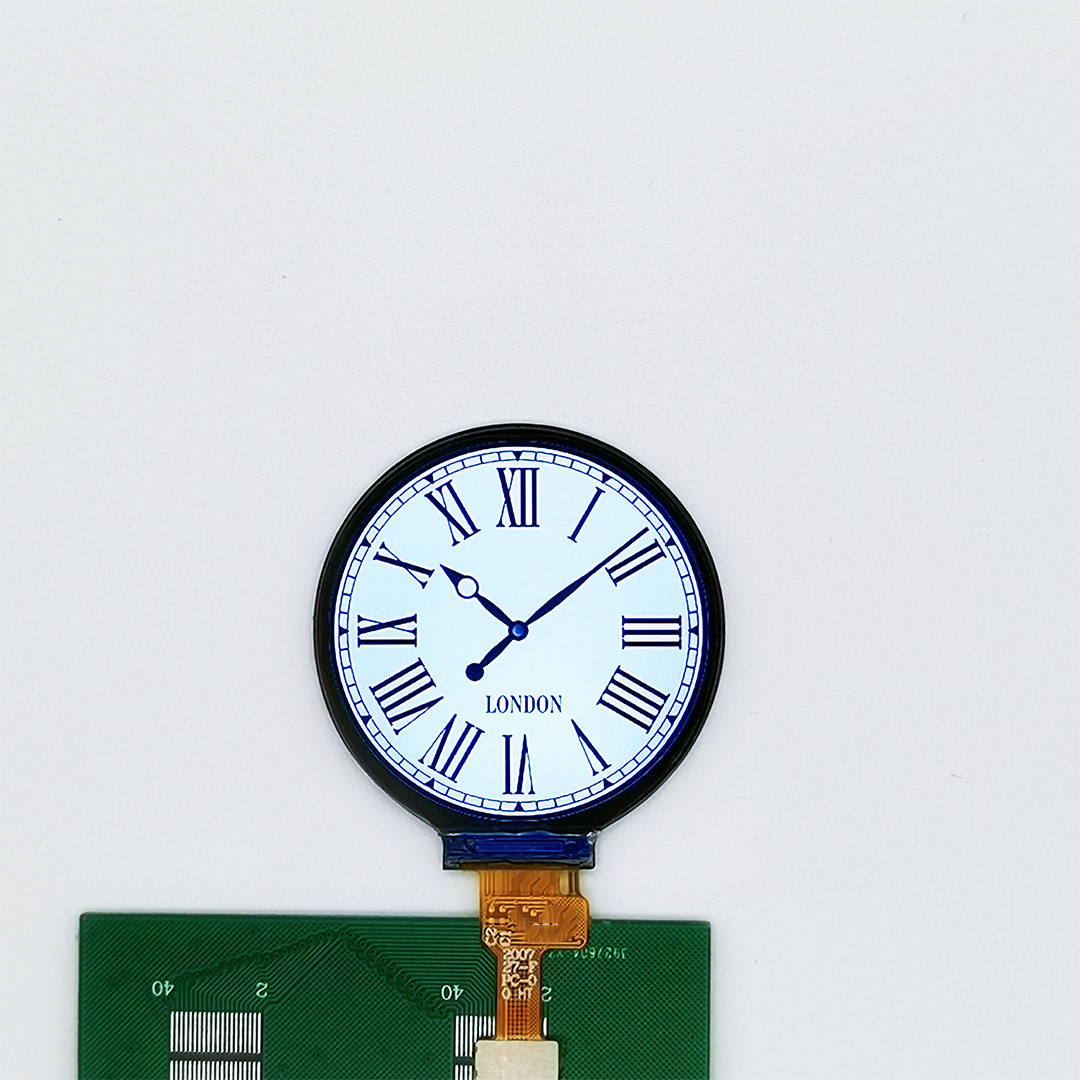

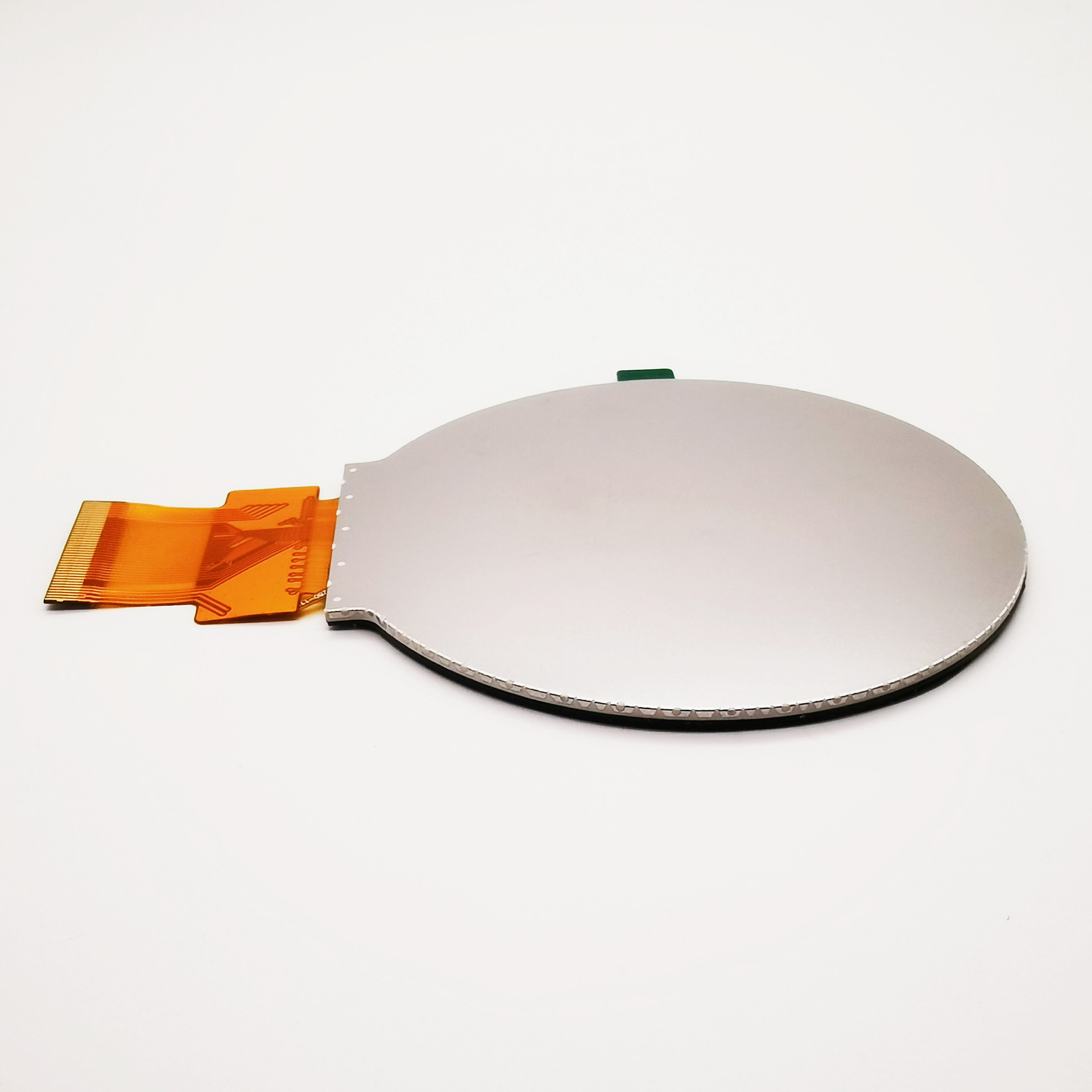

1.6inch Round HD IPS Smartwatch LCD Display Screen, with Capacitive Touch Full Fit

Item No.: RP160001B0
Reaper TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
Description
1.6inch Round HD IPS Smartwatch LCD Display Screen, with Capacitive Touch Full Fit

1. INTRODUCTION
RP160001B0 is a 1.6-inch circular full color TFT LCD display screen that can be equipped with capacitive touch full fit, resolution 400 * 400, IPS full view high-definition highlight effect, wide temperature -20+70 working temperature, and can support customized display brightness, FPC structure, touch and backlight structure. It supports QSPI/RGB565/666/888 and MIPI interface

2.Features
Model Number RP160001B0
size 1.6inch
LCD Type Normally Black
Drive element TFT active matrix
Number of pixels 400*3RGB(H)X400(V)
Pixel arrangement RGB stripe
Pixel Pitch (W*H) 0.0996 * 0.0996mm
Active area Φ 39.84mm
Mechanical OutlineSize(W*H*T) 42.94 * 45.87 * 2.15mm
Viewing direction ALL O'CLOCK
LCM Driver IC ST77903
LCM interface QSPI   Interface
Lcm pin n count 16
Cover material /
 Touch screen structure /
Touch Driver IC /
Touch Interface /
Laminating process /
Backlight leds 2pcs
Backlight current 40ma
Backligh voltage 3.2v
operating temperature -20-+70ºC
storage temperature -30-+80ºC
Lumens degrees 280cd/m²
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
