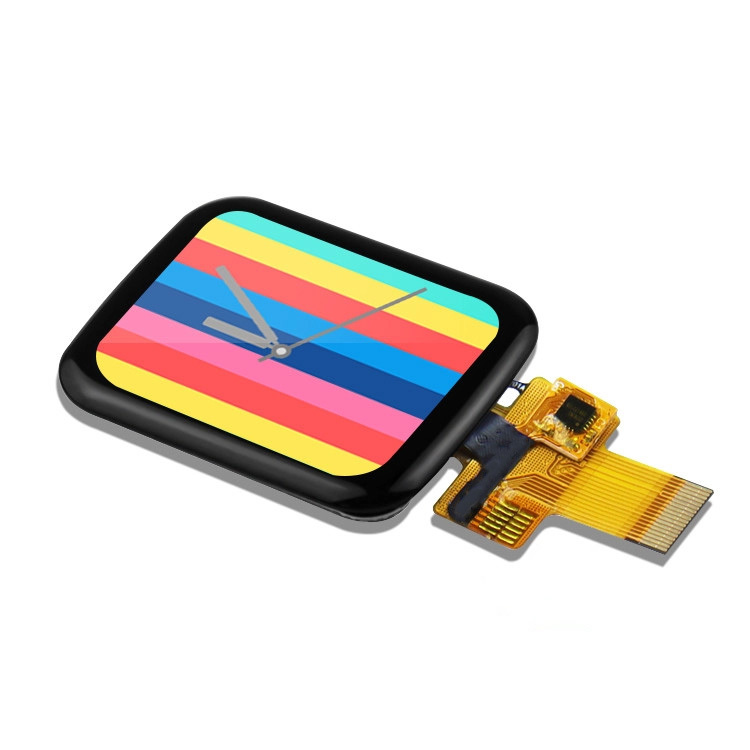

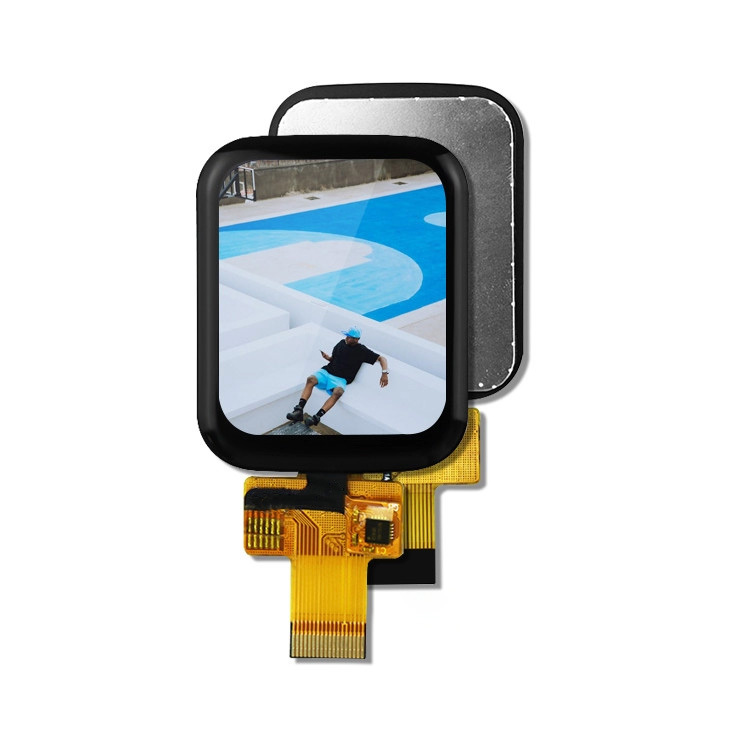

1.69 Inch IPS LCD TFT Capacitive Touch Screen 240x280 Spi Interface Normally Black Smart Watch Display
1. INTRODUCTION
1.69'' TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in wearable devices, industrial equipment, medical devices, and other applications where a small, high-quality display is required.
2.Features
| Model Number |
RP169H002-CTP |
| size |
1.69 inch |
| Number of Pixel |
240RGB(H)x280(V) |
| Display area |
27.97(H)x32.63(V)mm |
| Pixel pitch |
0.11655(H)x0.11655(V)mm |
| pins |
18 pins |

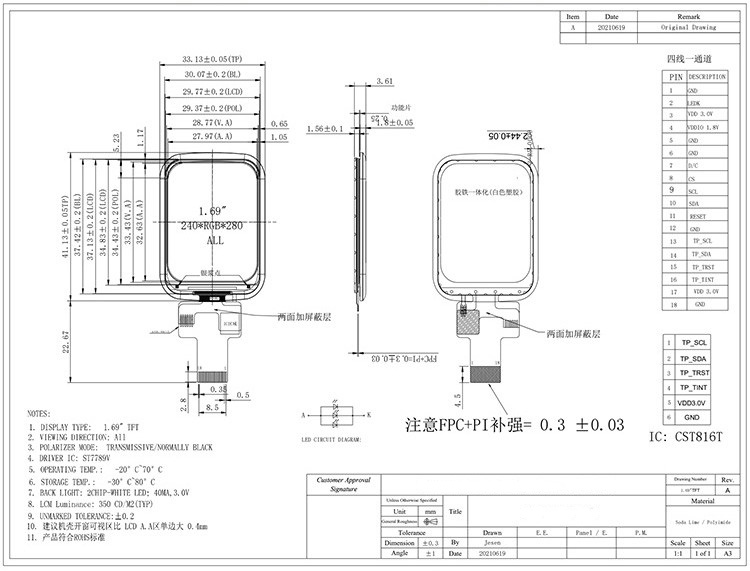

| Outline Dimension |
33.13x41.13x3.61 mm |
| Pixel arrangement |
RGB Vertical Stripe |
| Display mode |
Normally Black |
| Viewing Direction |
ALL |
| Display Color |
262K |
| Luminance(cd/m2) |
300 nit |
| Contrast Ratio |
1000:1 |
| operating temperature |
-20-+70ºC |
| storage temperature |
-30-+80ºC |
| Interface |
4-line SPI |
| Back-light |
LED Side-light type |
| Drive IC |
ST7789V |
Brand:
Reaper , over ten years manufacturer and exporter of various LCD display including mono LCD, TFT display, OLED display, touch panel and customized LCD solution.With the advantages of high contrast,fast response time, wide viewable angle and low power consumption, Reaper's products are widely used in Industrial Equipment, Medical devices,Home Intelligent Devices, Digital comsumers, Video Game Devices,Instruments etc.
