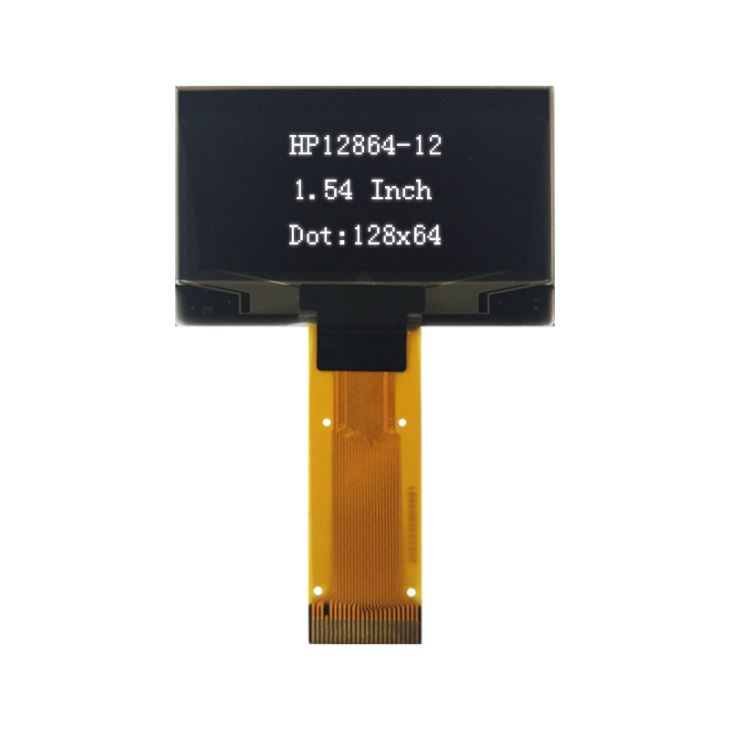

1.54inch OLED display  monochrome white 128x64 for smart wearable device

Item No.: HP12864-12-KPWG24P154-A
OLED Modules are perfect for wearable devices, hardware wallet, E-cigarette, white goods, smart home applications, IoT System, medical system, industrial instrument, DJ mixer, car equipment, car dashboard, car audio, car clock, car door display system, wa
1.54inch OLED display  monochrome white 128x64 for smart wearable device
Model HP12864-12-KPWG24P154-A
Size 1.54 inch
Dots 128x64
Color White

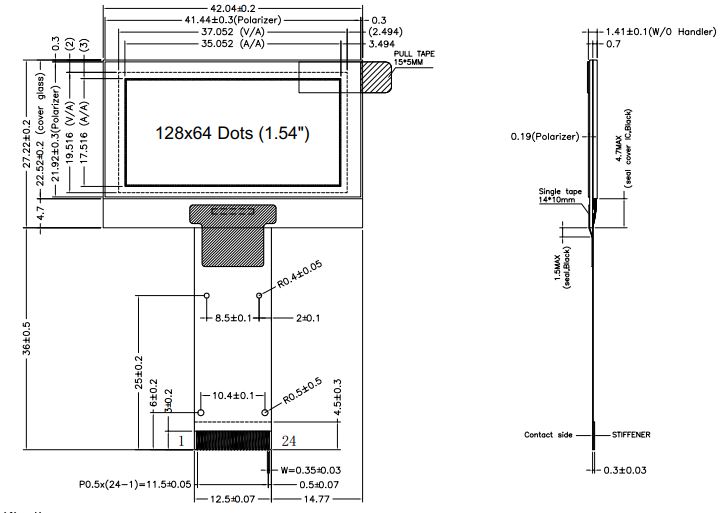

Outline Demision 42.04 x 27.22 x 1.41 mm
Viewing Area 37.052 x 19.516 mm
Active Area 35.052 x 17.516 mm
Drive IC SPD0301ZD

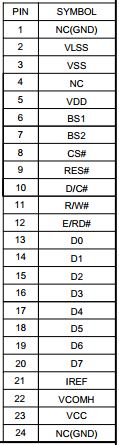

Pin number FPC 24PIN
Operating Temperature: -40 ~ +70ºC
Storage Temperature: -40 ~ +85ºC
